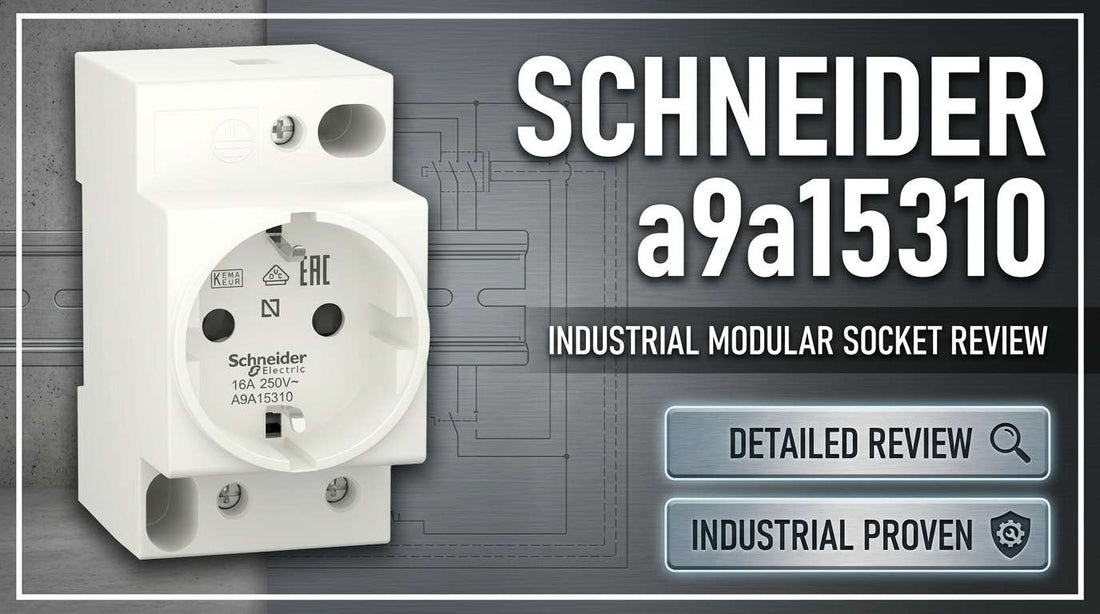

Schneider Electric A9A15310 Acti9 iPC 2P+E 16A 250VAC DIN rail socket for industrial panel power distribution

Schneider Electric A9A15310 DIN Socket Acti9 iPC - 2P+E - 16A - 250VAC: Specifications, Wiring, and Selection Guide

If you have a model number in hand and are validating whether the Schneider Electric A9A15310 fits your panel design, you are in the right place. This is a modular 2-pole + protective earth DIN rail power socket rated at 16A and 250VAC, part of the Acti9 iPC product family — built to interface low-voltage portable or semi-fixed equipment with single-phase building electrical distribution networks. The three questions that settle this purchase are: Is your system single-phase 250VAC? Does your load stay within 16A? And does your jurisdiction accept VDE 0620 certification? If all three are yes, this socket belongs in your panel.

If you have already confirmed this is the right part, check current pricing and availability for the A9A15310 at LeadTime.ca — ships worldwide.

Who Should Buy the A9A15310 — and Who Shouldn't

The Schneider Electric A9A15310 is the right socket for engineers and integrators building or expanding Acti9 iPC-based low-voltage distribution panels where a standardized single-phase outlet is required.

  • Your supply voltage is 250VAC single-phase — not 400VAC three-phase
  • Equipment current draw does not exceed 16A continuous at rated voltage
  • You need a 2P+E pole configuration (2 poles + protective earth), not 3P+E or 2P+N
  • Panel layout uses standard 35mm DIN rail mounting
  • Your jurisdiction accepts VDE 0620 and KEMA certification, or you have confirmed equivalency with the local electrical authority
  • You are already working within a Schneider Acti9 infrastructure and need socket integration without a panel redesign

If your equipment requires three-phase power, you need a 3P+E socket variant. If load exceeds 16A, look at the 32A or 63A variants in the Acti9 iPC series. For harsh outdoor or industrial plug environments, CEE-format connectors may be the more appropriate choice.

On this page:

What the A9A15310 Actually Does in Your Distribution System

The A9A15310 is not a circuit breaker and not a terminal block — it is a standardized connection interface. Its role is to provide a clean, code-compliant, accessible power point for portable or semi-fixed equipment rated at up to 16A at 250VAC, mounted directly on the DIN rail inside a distribution panel or machine cabinet. Where engineers previously relied on exposed terminal blocks for equipment connections, the Acti9 iPC socket gives that connection point a standardized form factor with protective earth included in the mating configuration.

The 2P+E designation means two current-carrying poles (line and neutral) plus a protective earth contact. This configuration is specified for single-phase AC systems. The socket does not incorporate internal overcurrent or residual current protection — an upstream MCB or RCD at the appropriate rating is a hard requirement, not optional. The Acti9 iPC product family is designed around modular integration: these sockets are sized and styled to sit beside Acti9 miniature circuit breakers and other distribution components on a shared DIN rail, which is exactly why integrators building full Schneider panels choose this socket over generic alternatives.

Compliance is dual: VDE 0620 (German standard) and KEMA certification. Both are recognized across European and many international markets. North American installations require verification with the local authority having jurisdiction before specifying this socket, as VDE 0620 is not automatically equivalent to CSA or UL listing requirements.

Where the A9A15310 Sits in a Typical Panel Architecture

The A9A15310 occupies the final distribution layer — the last accessible connection point between the building's electrical network and end-use equipment. Here is how a typical deployment chain looks:

  • Incoming supply from building network enters the distribution board at the main incomer breaker
  • Schneider Acti9 miniature circuit breakers (MCBs) or RCDs distribute protected branch circuits across the DIN rail
  • The A9A15310 socket is wired as the terminal device on a protected branch circuit — L, N, and PE conductors connect to its screw terminals
  • Portable equipment or semi-fixed machinery plugs directly into the socket face, completing the circuit
  • Earth continuity runs from the socket's PE terminal back through the distribution board to the main earth busbar

Typical Applications and Deployment Scenarios

In manufacturing environments, the A9A15310 is frequently used to build standardized machine power distribution points in control cabinets — allowing plant electricians to connect portable test equipment or temporary machinery to the panel without exposing live terminal blocks. The modular format means that when cabinet layouts are replicated across multiple machines on a production line, the same socket configuration drops in without modification.

Facilities managers use this socket to add customer-accessible power points inside industrial equipment enclosures. Rather than running new conduit to a standard wall outlet, the DIN-mounted socket integrates directly into existing Schneider low-voltage distribution hardware, extending the panel's capability without a full redesign.

Test and laboratory engineers deploy the A9A15310 where multiple instruments or test loads need to be connected to the same single-phase AC distribution rail. The standardized socket format reduces reconfiguration time in mixed-voltage test environments and eliminates the safety risk of exposed conductors during equipment swaps.

Retrofit projects are another strong use case: when upgrading older panels to modular distribution architecture, replacing legacy terminal-block-only connection points with Acti9 iPC sockets gives the panel a standardized outlet with protective earth that older installations often lacked.

Application Typical Deployment
Machine control cabinet build DIN-mounted socket on Acti9 rail alongside MCBs, providing 16A single-phase outlet for portable tools or instrumentation
Panel retrofit / modernization Replacing exposed terminal block connections with modular socket for standardized plug-in access
Test and laboratory power distribution Multiple A9A15310 sockets on shared DIN rail feed individual test instruments on protected branch circuits
Facilities management / portable equipment stations Socket installed inside equipment enclosure to allow temporary machine connection without exposed wiring
Industrial automation system replication Standardized cabinet template using Acti9 components including A9A15310 reproduced across multiple machine builds

Electrical and Compliance Specifications

Parameter Rating / Value Notes
Rated Current 16A Continuous industrial duty
Rated Voltage 250VAC Single-phase systems only — not suitable for 400VAC three-phase
Frequency 50/60Hz Compatible with both European and North American grid frequencies
Pole Configuration 2P+E 2 poles (L + N) plus protective earth — not 3P+E or 2P+N
Number of Contact Positions 3 L (line), N (neutral), PE (protective earth)
Contact Type Screw terminal Standard industrial terminal block connection
Insulation Class Class II Complies with IEC double insulation requirements
Mounting Method DIN rail Standard 35mm DIN rail, top-hat profile
Standards Compliance VDE 0620, KEMA German/European standard — verify regional acceptance before specifying
Product Family Acti9 iPC Modular Schneider Electric low-voltage distribution series

Full technical specifications are available on the product page at LeadTime.ca.

A9A15310 vs. Higher-Current and Multi-Phase Variants

The A9A15310 sits at the 16A single-phase position in the Acti9 iPC socket range. Understanding where it fits relative to alternatives prevents the most common ordering error in this product family.

Configuration Need Pole Config Current Rating Voltage Notes
Schneider Electric A9A15310 (this model) 2P+E 16A 250VAC Single-phase; standard for portable machine tools and test equipment
Acti9 iPC 32A variant 2P+E 32A 250VAC For higher-current single-phase loads — verify model number with distributor
Acti9 iPC 63A variant 2P+E 63A 250VAC Heavy-duty single-phase applications — verify model number with distributor
Acti9 iPC 3P+E variant 3P+E Various 400VAC Three-phase equipment — do not substitute A9A15310 for this requirement

If your equipment nameplate shows a current draw above 16A or a three-phase supply requirement, the A9A15310 is not the correct socket — check the full Acti9 iPC range at LeadTime.ca or contact the team to confirm the right variant for your load.

Expert Verdict: Is the A9A15310 the Right Socket for Your Project?

The Schneider Electric A9A15310 earns its place in a panel build when the conditions are right — and those conditions are specific. This socket is the correct choice for electrical engineers and integrators already working within the Schneider Acti9 ecosystem who need a standardized 16A single-phase outlet that mounts cleanly on the same DIN rail as their circuit breakers. Facilities managers retrofitting equipment connection points into existing Schneider low-voltage distribution boards will find that this socket drops in without requiring a panel redesign. Test lab managers who need repeatable, safe 16A single-phase power points for rotating equipment connections will also find this format appropriate. The Acti9 iPC modular design approach means the socket sits alongside breakers without custom adaptation, and the screw terminal format is familiar to any technician already working with IEC industrial distribution hardware.

The A9A15310 has real limits that matter at the specification stage. If your equipment requires three-phase power, this socket creates a dangerous mismatch — the 3P+E variant is the correct choice, and these two must never be confused. If load exceeds 16A continuous, move to the 32A or 63A variants rather than relying on upstream protection to carry the slack. Engineers working in jurisdictions where VDE 0620 is not automatically accepted — which includes parts of North America — must resolve regional code acceptance before committing to this part. Some regional inspectors will request additional documentation or a letter of equivalence; discovering this at commissioning is far more costly than resolving it at the sourcing stage. For harsh or outdoor industrial environments where CEE-format industrial connectors are the site standard, this socket is not the appropriate interface.

From a procurement standpoint, the A9A15310 is a current, actively distributed Schneider Electric catalog item — not an obsolete or hard-to-source part. Ordering through a specialist distributor matters here not just for delivery speed but for pre-purchase technical guidance: confirming pole configuration, verifying regional code acceptance, and cross-referencing the variant against your load calculations before the part ships. View current pricing and availability for the A9A15310 at LeadTime.ca — the team can confirm compatibility and regional considerations before your order is placed.

For volume orders or to confirm lead time before committing to a cabinet build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the A9A15310

Because community-specific feedback on the A9A15310 is limited to product family-level discussions rather than model-specific posts, the most actionable pre-purchase intelligence comes from recurring patterns across Acti9 iPC socket projects and from the wrong-part scenarios that surface consistently in distributor conversations. These are the details that a generic supplier won't flag at checkout — and that experienced integrators have learned the hard way.

The single most reported ordering error across the DIN socket category is pole configuration confusion. Engineers designing panels for single-phase equipment have received 3P+E sockets when they specified 2P+E, and vice versa, because catalog descriptions were not read carefully or because the specifying engineer did not confirm the equipment's supply phase requirement before ordering. With the A9A15310, the 2P+E designation is unambiguous — but it must be verified against the equipment nameplate, not assumed. Three-phase machinery, even light-duty, requires a 3P+E socket, and a 2P+E socket cannot be adapted to serve that function safely.

The second recurring concern raised by engineers in mixed-market environments involves VDE 0620 certification acceptance. In European projects, this is straightforward. In North American installations — particularly where local code authorities require CSA or UL listing as a condition of approval — VDE 0620 alone may not satisfy the inspector. This is not a universal barrier: many jurisdictions accept VDE 0620 under equivalency provisions, and some do not. The time to resolve this is before the socket ships, not after the panel is assembled. Specialist distributors like LeadTime.ca have the technical context to help engineers frame this question correctly with their local authority before an order is committed.

A third area where buyers have been caught unprepared is circuit protection. The A9A15310 is a passive connection device — it contains no internal overcurrent protection, no residual current device, and no short-circuit interrupting capability. An upstream MCB or RCD is not optional; it is a safety and code requirement. Engineers who inherit a panel design or who are new to DIN-mounted socket distribution sometimes assume the socket itself provides some level of protection based on its rating. It does not. The 16A rating describes the maximum current the socket can carry continuously — it does not mean the socket will disconnect under fault conditions.

Wiring and Installation Overview

The following is an overview of the installation process for reference. Engineers performing installation must consult the official Schneider Electric installation documentation and follow all applicable local electrical codes and lockout/tagout procedures.

  • Isolate all power to the distribution board and verify dead voltage with a calibrated multimeter before beginning any wiring work — do not proceed on assumed isolation
  • Slide the A9A15310 module onto a free section of 35mm DIN rail and confirm the mounting clips are fully engaged; the socket should not shift laterally under gentle lateral pressure
  • Connect L (line), N (neutral), and PE (protective earth) conductors to the corresponding screw terminals — color coding follows standard IEC conventions; apply torque per the manufacturer's specification using a calibrated screwdriver, never a power tool
  • Verify PE conductor continuity from the socket's earth terminal back to the main earth busbar with a continuity tester before energizing
  • Before closing the panel and restoring power, confirm no bare copper is exposed at any terminal, all screws are fully seated, and an appropriately rated MCB or RCD is installed and connected upstream on the supply line

Wrong-Part Prevention Checklist

Before placing your order for the A9A15310, work through each item on this checklist. These checks reflect the most common specification errors encountered with this socket class:

  1. Verify equipment current draw does not exceed 16A at rated voltage
  2. Confirm operating voltage matches 250VAC (not 400VAC 3-phase systems)
  3. Check pole configuration: this model is 2P+E (2 poles + ground), not 3P+E or 2P+N
  4. Ensure DIN rail mounting space and power distribution board layout accommodate this footprint
  5. Verify compliance certifications meet local electrical codes (VDE 0620 is German/European standard — confirm acceptance in your region)
  6. Do not use for outlets that will be daisy-chained on same circuit without load calculation
  7. Confirm replacement socket brand matches original if retrofitting into existing panels

If any item on this checklist raises a question you cannot resolve from the datasheet alone, contact the LeadTime.ca technical team before ordering — getting the configuration right before the socket ships is always faster than a return and reorder.

Frequently Asked Questions

Can the A9A15310 be used on a 400VAC three-phase system?

No. The A9A15310 is rated for 250VAC single-phase operation and carries a 2P+E pole configuration — two current-carrying poles plus protective earth. A 400VAC three-phase system requires a 3P+E socket variant with the appropriate voltage rating. Connecting a 2P+E single-phase socket in a three-phase application is both functionally incorrect and a safety hazard.

What is the difference between the A9A15310 and the 32A variant — can I use the 32A socket on a 16A circuit?

The A9A15310 is rated at 16A continuous; the 32A variant in the Acti9 iPC family is rated for twice that load. Using a 32A-rated socket on a 16A circuit is not dangerous in isolation, but the upstream circuit protection must match the actual load and conductor sizing — you cannot upsize the socket to gain additional capacity without also reviewing the MCB rating, wire gauge, and circuit design. If your application requires more than 16A, specify the correct higher-rated socket and the corresponding protection device together.

Is an RCD required on every A9A15310 outlet, or only at specific connection points?

The A9A15310 has no internal residual current or overcurrent protection. Whether an RCD is required upstream of each socket depends on your regional electrical code and the type of equipment being connected — not on the socket's own ratings. Many industrial electrical codes require RCD protection on socket outlets that will be used for portable equipment. Consult your local electrical authority or a licensed electrician to determine the exact protection requirements for your installation before wiring.

How do I verify that VDE 0620 certification is accepted by electrical inspectors in my region?

VDE 0620 is a German standard recognized across European and many international markets, but it is not automatically equivalent to CSA or UL listing in North American jurisdictions. The correct process is to contact your local authority having jurisdiction (AHJ) or provincial/state electrical inspection office before specifying the socket, and to ask directly whether VDE 0620 is accepted under an equivalency provision. Some jurisdictions will accept it with supporting documentation; others require local certification. Resolving this at the specification stage avoids potential panel rejection at commissioning.

Can the screw terminals on the A9A15310 be replaced with push-in connectors for faster cabinet assembly?

The A9A15310 is designed with screw terminal connections as specified by the manufacturer. Field modification of the terminal type is not supported and would void compliance certifications. If push-in termination is a priority for your cabinet assembly process, verify with Schneider Electric whether a push-in terminal variant exists in the Acti9 iPC product family before specifying this model.

Why Order the A9A15310 Through LeadTime.ca

  • LeadTime.ca ships worldwide — whether your project is in North America, Europe, or beyond, the A9A15310 can be sourced and dispatched without regional restrictions
  • Specialist distributor access means pre-purchase technical guidance is available — pole configuration, regional compliance questions, and variant confirmation before the order is placed
  • Hard-to-source and short lead-time parts are a core capability — emergency replacements and project-critical components are handled with urgency
  • Volume pricing is available for panel builders and integrators ordering multiple units — contact the team directly for project-based pricing

A9A15310 At-a-Glance Summary

  • Official product name: DIN Socket Acti9 iPC - 2P+E - 16A - 250VAC
  • Rated current: 16A continuous; rated voltage: 250VAC single-phase
  • Pole configuration: 2P+E — 2 current-carrying poles plus protective earth contact
  • Frequency compatibility: 50/60Hz — works with both European and North American grid frequencies
  • Mounting: Standard 35mm DIN rail, top-hat profile, modular Acti9 iPC format
  • Contact type: Screw terminal with 3 contact positions (L, N, PE)
  • Standards compliance: VDE 0620 (German standard) and KEMA certification — verify regional acceptance before specifying
  • No internal circuit protection — upstream MCB or RCD is mandatory on the supply line
  • Part of the Schneider Electric Acti9 iPC modular distribution family — integrates directly with Acti9 circuit breakers and distribution components on shared DIN rail
  • Not suitable for: three-phase equipment (need 3P+E), loads above 16A (need 32A or 63A variant), or harsh outdoor environments where CEE industrial connectors are required
