ProSoft PLX31-EIP-MBTCP — EtherNet/IP to Modbus TCP Gateway Review

By Abdullah Zahid
15 min read

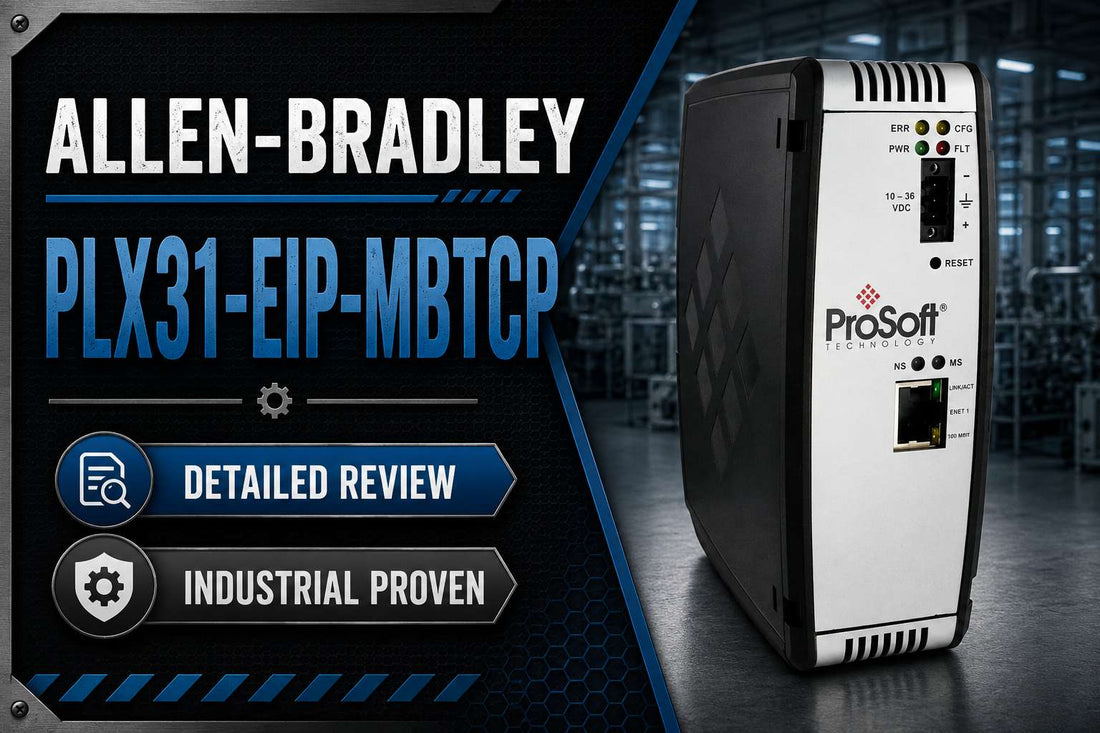

ProSoft PLX31-EIP-MBTCP EtherNet/IP to Modbus TCP/IP communication gateway DIN-rail mounted industrial control panel

ProSoft PLX31-EIP-MBTCP EtherNet/IP to Modbus TCP/IP Communication Gateway: Specs, Review and Buying Guide

If you are a controls engineer evaluating protocol gateways for a CompactLogix or ControlLogix project that needs to exchange data with Modbus TCP devices — power meters, drives, analyzers, or a DCS — the ProSoft PLX31-EIP-MBTCP is almost certainly already on your shortlist. This dedicated EtherNet/IP to Modbus TCP/IP communication gateway from ProSoft Technology sits between your Rockwell controller and Modbus TCP field equipment, handling all protocol conversion and data mapping so you are not writing custom MSG logic inside your PLC program. The key buying decision comes down to protocol match, network architecture, and connection capacity — and this review addresses all three.

If you have already confirmed this is the correct part for your system, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the PLX31-EIP-MBTCP — and Who Shouldn't

The PLX31-EIP-MBTCP is the right gateway if your project meets the following criteria:

  • You need EtherNet/IP on the Rockwell controller side and Modbus TCP/IP (not Modbus RTU or ASCII serial) on the device side.
  • Your Modbus TCP device count and register depth fit within the gateway's supported connection and internal database capacity.
  • Your network architecture operates on a single Ethernet segment or a managed switch — you do not require two physically isolated Ethernet networks.
  • Your panel environment is compatible with DIN-rail mounting and the gateway's DC power supply requirement.
  • Your Rockwell firmware and Studio 5000 or RSLogix version support the ProSoft EDS profile and configured connection sizes.

If your application requires two fully separated Ethernet networks, the PLX32-EIP-MBTCP is the correct selection. If your devices use Modbus RTU or ASCII serial rather than Modbus TCP, you need a different ProSoft gateway family entirely.

On this page:

What the PLX31-EIP-MBTCP Actually Does in a Live System

The PLX31-EIP-MBTCP is an industrial communication gateway from ProSoft Technology's PLX3x series, designed to bridge EtherNet/IP and Modbus TCP/IP networks in industrial environments. Its role is not passive — it acts as an active protocol conversion node that runs both sides of the communication independently. On the EtherNet/IP side it presents itself to a CompactLogix, ControlLogix, or any other EtherNet/IP-capable controller as an I/O module, exchanging data through cyclic I/O connections or explicit MSG instructions. On the Modbus TCP side it operates as a client polling Modbus TCP servers, as a server responding to Modbus TCP clients, or in some configurations both simultaneously.

The practical benefit to the controls engineer is significant: instead of building and maintaining custom Modbus TCP MSG instruction ladders inside the PLC program — with all the polling management, timeout handling, and error logic that entails — the gateway handles the Modbus side autonomously. The PLC sees clean, mapped input and output data in its standard tag structure. This separation of protocol responsibility is what makes the PLX31-EIP-MBTCP attractive for process environments where Modbus TCP devices are numerous, where that logic would otherwise clutter the PLC program, or where the Modbus devices come from OEMs who cannot guarantee their behavior under aggressive scan-rate polling from a PLC.

An internal database within the gateway stores the mapped data, connecting Modbus register addresses on one side to EtherNet/IP connection words on the other. The gateway supports multiple EtherNet/IP I/O connections, which allows users to prioritize status versus control data by assigning different Requested Packet Intervals (RPIs) to different connection blocks — an important feature for managing Ethernet bandwidth in larger systems.

Where the PLX31-EIP-MBTCP Sits in Your Network

The PLX31-EIP-MBTCP is a mid-chain device: it connects upward to an EtherNet/IP controller and downward to one or more Modbus TCP devices, translating between both worlds in real time. In a typical deployment the data chain looks like this:

  • CompactLogix or ControlLogix controller (EtherNet/IP scanner) running the main PLC program and polling the gateway as an I/O module.
  • PLX31-EIP-MBTCP gateway on the same Ethernet network, holding the internal data map and managing all Modbus TCP communication autonomously.
  • Managed industrial Ethernet switch (if required) connecting the gateway to Modbus TCP devices on the same or a switched network segment.
  • Modbus TCP field devices — power meters, variable frequency drives, analyzers, DCS controllers, or third-party PLCs — polled or served by the gateway.
  • SCADA, historian, or HMI system receiving EtherNet/IP data from the controller, which now includes all Modbus device values aggregated through the gateway.

Industries and Use Cases Where This Gateway Earns Its Keep

In oil and gas facilities, the PLX31-EIP-MBTCP is commonly deployed to connect Allen-Bradley control systems to Modbus TCP-based DCS equipment or third-party custody metering systems. Engineers integrating compressor control packages, wellhead controllers, or pipeline skid PLCs from OEM vendors — nearly all of which communicate via Modbus TCP — rely on this gateway to bring that data into the Rockwell EtherNet/IP architecture without requiring the OEM to change their interface.

In power generation and utilities, the gateway handles the integration of protective relays, power quality meters, and energy management systems that expose Modbus TCP registers. Water and wastewater plants use it to connect chemical dosing skids, flow analyzers, and SCADA nodes to a Rockwell control system. In mining and metals applications, it bridges drives, motor protection relays, and weighing systems that have standardized on Modbus TCP.

Manufacturing integrators use the PLX31-EIP-MBTCP on OEM machine lines where the customer specifies a Rockwell PLC but third-party drives or instruments ship with only Modbus TCP support. In brownfield migration projects, keeping legacy Modbus TCP devices in service while upgrading the controller platform to Rockwell is one of the most common justifications for specifying this gateway.

Application Typical Deployment
CompactLogix / ControlLogix to Modbus TCP DCS Gateway maps DCS register data into EtherNet/IP I/O for setpoints and process values
Modbus TCP power meters and energy analyzers Gateway polls meters cyclically; data aggregated in PLC tags for SCADA or historian
OEM skid integration (VFDs, analyzers) Gateway presents third-party Modbus TCP device data as standard EtherNet/IP I/O to plant PLC
Brownfield PLC migration Existing Modbus TCP field devices remain; gateway bridges them to new Rockwell controller without rewiring
SCADA / historian data aggregation Multiple Modbus TCP sources funneled through gateway into a single EtherNet/IP connection for SCADA collection

Specs That Matter at the Point of Purchase

Parameter Value / Description Notes
Brand ProSoft Technology PLX3x gateway family
Model / Catalog Number PLX31-EIP-MBTCP Exact catalog number — confirm on PO and BOM
Official Product Name EtherNet/IP to Modbus TCP/IP Communication Gateway Verify against ProSoft datasheet
Protocol — Side A EtherNet/IP (scanner and/or adaptor) Compatible with CompactLogix, ControlLogix, other EtherNet/IP controllers
Protocol — Side B Modbus TCP/IP (client and/or server) Not Modbus RTU or ASCII — confirm your devices use Modbus TCP
Data Exchange Method Internal database mapping Modbus registers to EtherNet/IP I/O connection data Supports cyclic I/O and MSG-based communications
EtherNet/IP Connections Multiple I/O connections supported; RPIs configurable per connection Allows prioritization of control vs. status data
Mounting DIN-rail Panel-mounted; requires external protection per panel standards
Power Supply Low-voltage DC as specified in datasheet Confirm exact voltage and current from ProSoft datasheet before panel design
Operating Temperature Industrial range per ProSoft datasheet Verify against site panel and ambient conditions

Full technical specifications are available on the product page at LeadTime.ca.

PLX31-EIP-MBTCP vs PLX32-EIP-MBTCP: Which One Do You Actually Need?

The most common ordering mistake in the PLX3x family is specifying the PLX31 when the application actually requires the PLX32. The distinction is not subtle — it has direct consequences for your network architecture.

Feature PLX31-EIP-MBTCP PLX32-EIP-MBTCP
Ethernet network segments Single Ethernet network (both protocols on same or switched network) Dual Ethernet networks — physically separate EtherNet/IP and Modbus TCP segments
Use when EtherNet/IP and Modbus TCP devices can share the same network infrastructure EtherNet/IP and Modbus TCP must be isolated — security, VLAN, or plant network policy requires it
Panel space and complexity Smaller footprint, simpler cabling Additional port and cable run; slightly more complex installation
Protocol support EtherNet/IP ↔ Modbus TCP EtherNet/IP ↔ Modbus TCP (same protocols, different hardware architecture)
Typical application Single-network plants, OEM machine integration, managed-switch architectures Segmented networks, process plants with strict network separation policies, DCS integrations requiring isolation

If your facility's network standards or cybersecurity policy require the EtherNet/IP control network to be physically separated from the Modbus TCP device network, order the PLX32-EIP-MBTCP — not this model. Check current availability at LeadTime.ca or contact the team to confirm which variant fits your architecture before committing to a PO.

Expert Verdict: Is the PLX31-EIP-MBTCP Worth It for Your Project?

For controls engineers and systems integrators running CompactLogix or ControlLogix systems alongside Modbus TCP field equipment, the PLX31-EIP-MBTCP is a technically sound and well-validated choice. Its strength is precisely how naturally it fits into a Rockwell-centric environment: EDS file support means it appears as a familiar module in Studio 5000, the configuration model aligns with PLC data structures, and ProSoft's long market presence in this application means there are real-world examples, community discussions, and distributor expertise available when you hit a configuration problem. For plants where Modbus TCP integration is a recurring requirement across multiple machines or systems, the upfront investment in learning the gateway pays back in standardization, repeatability, and reliable long-term operation.

Where the PLX31-EIP-MBTCP is not the right tool: small projects connecting a single Modbus TCP device where native PLC MSG instructions would be simpler to implement and maintain; applications that actually require Modbus RTU or ASCII serial (which this gateway does not support — there is no serial port); and architectures that demand two physically isolated Ethernet networks, for which the PLX32-EIP-MBTCP is the correct selection. It is also worth evaluating whether newer ProSoft models or alternative gateway families better fit applications with advanced security, redundancy, or higher-throughput requirements that go beyond what the PLX31 series addresses.

From a procurement standpoint, the PLX31-EIP-MBTCP is typically available through industrial automation distributors with reasonable lead times in North America, though supply conditions can shift. Buying through a specialist distributor rather than a generic channel gives you more than a part number — it gives you the ability to confirm variant fit, flag connection-size or device-count issues before the order ships, and access configuration guidance that reduces commissioning risk. Review current pricing and stock status at LeadTime.ca — the team ships worldwide and can assist with technical pre-sales questions before you lock in your BOM.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the PLX31-EIP-MBTCP

Community feedback from automation forums including r/PLC, PLCTalk, PLCS.net, and r/automation is consistently positive on one point: once the PLX31-EIP-MBTCP is correctly configured and documented, it runs reliably with minimal intervention. Integrators specifically call out the gateway's compatibility with Rockwell tooling — the EDS profile and available configuration examples measurably shorten commissioning time compared with generic protocol converters. The flexible internal database mapping, which allows granular control over which Modbus registers appear where in the EtherNet/IP tag structure, is frequently cited as a real productivity advantage on projects with many Modbus TCP devices.

That said, the same communities are clear about where projects go wrong. The ProSoft Configuration Builder has a learning curve, and the internal database addressing model catches first-time users off guard. The most damaging commissioning errors tend to be misconfigured EtherNet/IP connection sizes or RPI settings that do not match the data mapping in the gateway — these create intermittent communication faults that can be difficult to trace without understanding both sides of the configuration simultaneously. Several forum threads document time lost to this exact problem, with the resolution always being a careful re-alignment of connection word counts and offsets between the PLC project and the ProSoft configuration file.

The most avoidable mistakes reported in community discussions involve ordering the wrong variant. Engineers have received gateways expecting a serial port that does not exist on the PLX31-EIP-MBTCP (it handles Modbus TCP, not RTU), or ordered a PLX31 only to find their network policy required physically separated EtherNet/IP and Modbus TCP segments — a job for the PLX32. Catalog number mismatches on drawings and POs have also resulted in receiving a different ProSoft model entirely. These are pre-order problems, not product problems — and they are exactly why reviewing the wrong-part checklist below before raising a purchase order matters.

Physical Installation and Network Connection Overview

The following is an installation overview. For full wiring diagrams, terminal assignments, and safety requirements, refer to the official ProSoft Technology installation and hardware manual for the PLX31-EIP-MBTCP.

  • Mount the gateway on a DIN rail inside a control panel enclosure; the PLX31-EIP-MBTCP is a panel-mounted device and is not rated for direct field installation.
  • Connect low-voltage DC power per the datasheet specifications, using external protection devices as required by your panel standards and applicable electrical codes.
  • Connect your Ethernet cable(s) to the gateway's industrial Ethernet port(s); confirm physical port count and labeling from the ProSoft hardware documentation before cabling.
  • Verify IP addressing: set your configuration PC to the same subnet as the gateway's default IP address, confirm connectivity via ping, then assign production IP settings through the configuration interface.
  • Confirm all status LEDs indicate normal operation before beginning software configuration — observe power, EtherNet/IP, and Modbus TCP status indicators as documented in the ProSoft manual.

Configuration, Data Mapping and Studio 5000 Integration Overview

The following is a workflow overview for engineers familiar with ProSoft gateways and Rockwell PLC programming. Full configuration procedures are documented in the ProSoft Configuration Builder help system and the PLX31-EIP-MBTCP user manual.

  • Install the EDS file for the PLX31-EIP-MBTCP into Studio 5000 or RSLogix, then add the gateway as a module in the controller's I/O tree with the correct IP address, connection size, and RPI settings.
  • In ProSoft Configuration Builder, define Modbus TCP client or server entries for each Modbus device: IP address, unit ID where applicable, and the register ranges to read or write.
  • Map Modbus register ranges to sections of the gateway's internal database, ensuring there is no overlap between device address blocks; then link internal database ranges to EtherNet/IP input and output connection words, aligning word counts and offsets exactly with what is configured in the PLC project.
  • Download the configuration to the gateway, then download the updated PLC project to the controller and use ProSoft Configuration Builder's diagnostic views alongside PLC tag monitoring to confirm live data is flowing correctly through the gateway.
  • Export and archive the ProSoft configuration file and maintain a register mapping document as part of the project's as-built records — this is the single most important maintenance practice for long-term supportability of the installation.

Wrong-Part Prevention Checklist Before You Raise the PO

Run through every item on this checklist before the PLX31-EIP-MBTCP catalog number is locked into your BOM, drawing, or purchase order:

  1. Confirm you specifically need EtherNet/IP on the Rockwell side and Modbus TCP/IP (not Modbus RTU/ASCII) on the other side.
  2. Verify number of Modbus TCP devices and registers fits within the PLX31-EIP-MBTCP's supported connections and data capacity.
  3. Check whether you need one or two Ethernet segments; if you require fully separated EtherNet/IP and Modbus networks, consider PLX32.
  4. Confirm voltage/power supply in the panel matches the gateway's power requirements and that DIN-rail space is available.
  5. Ensure your Rockwell firmware and Studio 5000/RSLogix versions support the ProSoft EDS profile and requested connection sizes.
  6. Verify environmental ratings (operating temperature, industrial environment) against your panel/field conditions.

If any item on this checklist is unresolved before ordering, contact the LeadTime.ca team — confirming these details upfront is far less costly than a return, a project delay, or a reconfiguration at commissioning.

Frequently Asked Questions

Does the PLX31-EIP-MBTCP work with my current CompactLogix or ControlLogix firmware version?

The PLX31-EIP-MBTCP integrates with CompactLogix and ControlLogix controllers through a standard EDS file and EtherNet/IP I/O connection. Compatibility depends on your specific controller firmware version and Studio 5000 or RSLogix revision. Always validate EDS support against your current software version using ProSoft's compatibility documentation before committing the part to a BOM for an existing system.

How do I size the EtherNet/IP connection correctly in Studio 5000 for this gateway?

Connection size in Studio 5000 must match the number of input and output words configured in the ProSoft gateway's internal database mapping. A mismatch between the configured data map and the connection size defined in the PLC project is the most commonly reported cause of persistent communication faults. Plan your Modbus register map first, calculate the required word count, and set both the gateway and PLC connection parameters to the same values before downloading either configuration.

Can the PLX31-EIP-MBTCP act as both Modbus TCP client and server in the same project?

The PLX31-EIP-MBTCP supports Modbus TCP client and server roles. Whether simultaneous operation of both roles in a single project configuration is supported, and any associated capacity constraints, should be verified against the current ProSoft datasheet and user manual for this specific catalog number before designing a system that requires it.

Why do I get timeouts or lost-connection errors when polling large Modbus register ranges?

Timeout errors when reading large Modbus register blocks typically result from response time mismatches — the Modbus TCP device takes longer to respond than the gateway's configured timeout allows, or the RPI set in the PLC project does not give the gateway enough time to complete a full poll cycle. Increase timeout values in the ProSoft configuration, reduce register block sizes into smaller sequential reads, and check that RPI settings are realistic for the number of devices and registers being polled.

Do I need separate physical networks or VLANs for EtherNet/IP and Modbus TCP when using the PLX31-EIP-MBTCP?

The PLX31-EIP-MBTCP operates on a single Ethernet network — both EtherNet/IP and Modbus TCP traffic share the same physical infrastructure or managed switch. If your application or network security policy requires the EtherNet/IP control network and the Modbus TCP device network to be physically isolated, the PLX31 is not the correct model. That requirement points specifically to the PLX32-EIP-MBTCP, which provides two separate Ethernet ports for this purpose.

What is the default IP address and how do I reset it?

The default IP address for ProSoft PLX3x gateways is documented in the ProSoft Technology installation manual and quick-start guide for the PLX31-EIP-MBTCP. Refer to that documentation for the confirmed default value and the exact procedure for performing a factory reset, as these steps vary by hardware revision and must be followed precisely to avoid unintended configuration loss.

Why Order the PLX31-EIP-MBTCP Through LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships industrial automation hardware worldwide, not limited to any single region.
  • Variant confirmation — the team can validate that PLX31-EIP-MBTCP is the correct ProSoft catalog number for your architecture before the order ships, reducing the risk of receiving the wrong model.
  • Hard-to-source parts — specialist distributor access means faster resolution when standard channels are out of stock or quoting extended lead times.
  • Volume and project pricing — contact for current pricing on multi-unit orders or ongoing project requirements.
  • Technical pre-sales support — available to discuss connection sizing, variant selection, and compatibility questions before you commit to a PO.

At-a-Glance Summary

  • Brand: ProSoft Technology — PLX3x gateway series, designed to bridge EtherNet/IP and Modbus TCP/IP networks in industrial environments.
  • Catalog number: PLX31-EIP-MBTCP — EtherNet/IP to Modbus TCP/IP Communication Gateway; confirm exact casing on every BOM and PO.
  • Protocols supported: EtherNet/IP (scanner and adaptor roles) on the Rockwell side; Modbus TCP/IP (client and server roles) on the device side — no Modbus RTU or ASCII serial port.
  • Primary application: Bridging CompactLogix or ControlLogix PLCs to Modbus TCP field devices, DCS systems, power meters, drives, and OEM skids without custom MSG logic in the PLC.
  • Key differentiator vs PLX32: Single Ethernet network architecture — both protocols share the same network infrastructure; choose PLX32-EIP-MBTCP if physical network separation is required.
  • Configuration tools: ProSoft Configuration Builder for gateway configuration; EDS file integration with Studio 5000 or RSLogix for PLC-side module setup.
  • Installation: DIN-rail mounted, panel-enclosed, low-voltage DC powered — not a field-rated device.
  • Top commissioning risk: Mismatch between EtherNet/IP connection size in Studio 5000 and the word count of the internal data map configured in ProSoft Configuration Builder.
  • Pricing: Available on the product page at LeadTime.ca — contact for volume or project pricing.
  • Availability: Ships worldwide through LeadTime.ca — contact to confirm current stock and lead time before finalizing your build schedule.
