Omron S8VK vs S8VS vs S8FS: DIN Rail Power Supply Comparison

By Abdullah Zahid
20 min read

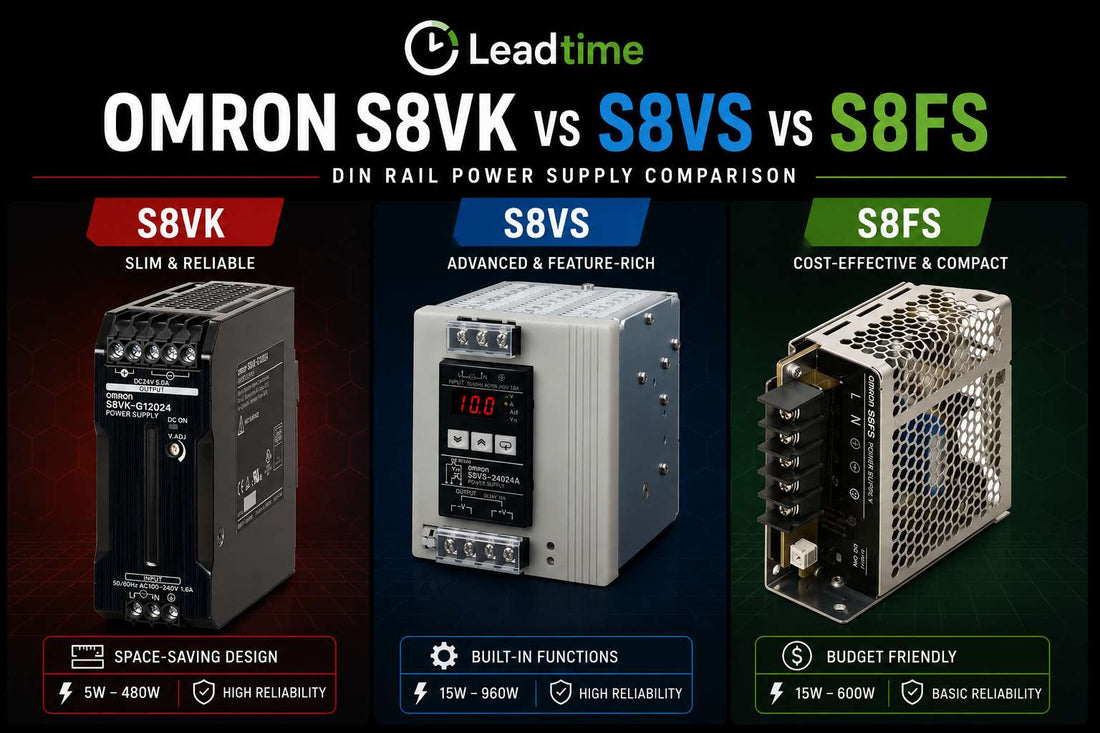

Omron S8VK S8VS S8FS DIN rail switching power supplies side by side for industrial control panel comparison

Omron S8VK vs S8VS vs S8FS Power Supply Comparison: Which DIN Rail Power Supply Series Fits Your Panel?

Controls engineers and panel shop leads searching for the right Omron DIN rail power supply often find themselves navigating three overlapping families — the modern compact S8VK Switching Power Supply, the established S8VS Switching Power Supply, and the higher-power S8FS Switching Power Supply. The decision matters because each family carries distinct mounting styles, terminal types, environmental ratings, warranty lengths, and cooling approaches that directly affect panel build time, long-term reliability, and total cost of ownership. This comparison gives you the concrete differences you need to specify the right family without backtracking later.

If you have already confirmed which Omron power supply family fits your application, check current pricing and availability at LeadTime.ca — we source and ship Omron power supplies worldwide.

Which Omron Power Supply Series Is Right for Your Panel?

The S8VK is the correct default choice for most new DIN rail control panel designs. Consider it when all of the following apply:

  • Your panel uses DIN rail mounting and space is at a premium
  • You want push-in terminals to reduce wiring time and loose-connection risk
  • Extended ambient temperature range, altitude capability, or explosion-proof standard coverage may be required (verify specific S8VK-S models against your site conditions)
  • A 5-year warranty for S8VK-S/G/X family members is a factor in your plant maintenance or procurement standards
  • You anticipate adding advanced monitoring in future panels via S8VK-X variants

If you are replacing a failed S8VS in an existing panel with minimal redesign budget, or your plant already runs a large S8VS installed base, staying with the S8VS Switching Power Supply minimizes mechanical and wiring rework. If your application demands higher output power beyond typical DIN rail supply ranges, fan-cooled capacity, remote on/off control, or specific transformer standard coverage, the S8FS Switching Power Supply — particularly fan-cooled S8FS-G models — is the correct tier. Do not select a family based on list price alone without accounting for environment, mounting, power range, and warranty implications.

On this page:

What Each Omron Power Supply Family Actually Does

The S8VK Switching Power Supply is Omron's current compact DIN rail platform. The S8VK-S subfamily offers extended ambient temperature operation documented down to approximately -40°C and up to around 70°C, altitude capability up to about 3,000 m, explosion-proof standard coverage, and a 5-year warranty. The S8VK-C provides a cost-effective option for lower power loads with universal AC input and documented DC input capability in defined ranges, backed by UL, CSA, and EN safety certificates. The S8VK-X adds network integration and lifetime monitoring for panels where predictive diagnostics matter. Push-in terminals are a consistent feature across relevant S8VK models, reducing termination time and the risk of loose connections during machine vibration.

The S8VS Switching Power Supply is the established DIN rail family that has served as a standard for years across general industrial panels. The S8VS-A/B variants include a local status display for straightforward voltage monitoring without additional instrumentation. Screw terminals and a familiar mechanical footprint make S8VS the path of least resistance when replacing a unit in an existing panel or when plant electricians already know the product. The tradeoff is a 3-year warranty, fewer extended-environment variants, and no advanced monitoring or remote control capability.

The S8FS Switching Power Supply covers two distinct roles. The S8FS-G is a fan-cooled model targeting higher output power levels and larger DC buses — Omron's own recommended model guides position certain S8FS-G variants as a low-price option for higher power requirements. The S8FS-G also supports remote control capability and carries EN61558-2-16 transformer standard coverage alongside international safety approvals. The S8FS-C provides a DIN rail bracket option, making it usable in DIN rail panels when replacing older panel-mounted supplies. Both S8FS subfamilies use screw terminals. The S8FS-G warranty is 3 years, matching S8VS rather than the extended 5-year coverage of S8VK-S/G/X.

Typical System Architecture

In a standard control panel, the Omron power supply sits between the incoming AC mains feed and the 24 VDC distribution rail that powers PLCs, I/O modules, HMIs, sensors, and field actuators. The supply's family choice cascades downstream — it determines how much rail space the unit occupies, whether a fan introduces noise and dust considerations, and whether monitoring data is available to the control system.

  • Incoming single-phase AC mains connect to the power supply input; some S8VK-C models also accept a defined DC input range for battery-backed or DC-distribution applications
  • The S8VK or S8VS mounts directly on the DIN rail alongside the PLC, I/O bases, and circuit protection; the S8FS-G typically mounts on the panel backplate via screw mounting, separate from the DIN rail assembly
  • 24 VDC output feeds the common control voltage rail supplying Omron or third-party PLC racks, sensor loops, valve solenoids, and HMI panels
  • Parallel operation using supported models (S8VK-S or S8FS-G following manufacturer rules) allows higher current capacity or basic redundancy on the DC bus
  • S8VK-X variants integrate monitoring signals or network status into the control system; S8VS-A/B provides local display-based status without network integration

Where These Supplies Get Used

The S8VK is the dominant choice for new compact control panels in packaging machinery, material handling lines, and semiconductor equipment where DIN rail space is tight and panel build efficiency matters. The push-in terminals reduce wiring labour hours per panel, and the extended temperature range of S8VK-S models makes it viable in cold-room packaging lines or outdoor enclosures where ambient conditions exceed standard industrial limits.

The S8VS continues to see use in retrofit and maintenance scenarios across automotive tier suppliers, process skids, and food and beverage lines where a large fleet of existing panels was built around the S8VS footprint. Maintenance engineers value the familiarity and straightforward screw-terminal replacement process. New designs on S8VS are less common, but the family remains a rational choice when the project budget does not support re-engineering the panel layout.

The S8FS-G is the correct selection when a large DC bus is needed — higher power applications feeding multiple drives, valve banks, or motion components in larger automation cabinets. OEM equipment builders working on high-load DC distribution, and integrators designing large panel boards where panel screw mounting is preferred, are the primary S8FS-G users. The S8FS-C's DIN rail bracket option also positions it as a direct path for replacing older panel-mounted supplies in DIN rail-capable enclosures.

Application Typical Deployment
New compact packaging machine control panel S8VK-S on DIN rail with push-in terminals; 5-year warranty supports OEM build standard
Retrofit replacement of failed S8VS in existing panel S8VS direct replacement for minimal rework; S8VK as upgrade option if re-termination is accepted
High-power DC bus for valve and motion cabinet S8FS-G panel screw mounted, fan-cooled, with remote control for system integration
Cold-room or high-altitude harsh environment panel S8VK-S for extended temperature and altitude ratings; validate explosion-proof coverage per site requirements
Panel with predictive maintenance requirements S8VK-X for network monitoring and lifetime diagnostics; S8VS-A/B for simpler local display
Budget-focused high-power application S8FS-G cost-effective models where higher current output is needed and 3-year warranty is acceptable

Head-to-Head Specification Comparison

Criteria S8VK Switching Power Supply S8VS Switching Power Supply S8FS Switching Power Supply
Primary role Modern compact DIN rail supply with extended environment options Standard DIN rail supply for legacy panels and simple applications Higher-power, often fan-cooled supply for larger loads and panel mounting
Typical output power range Low to medium power for most PLC and control loads Low to medium power for classic small to mid-size panels Medium to higher power for larger DC buses and higher current loads
Cooling Fanless Fanless Fan-cooled models (S8FS-G); check S8FS-C per datasheet
Mounting style DIN rail; compact footprint DIN rail as standard Panel screw mount standard; DIN rail via brackets on S8FS-C
Terminal type Push-In Plus terminals on relevant models Screw terminals Screw terminals; terminal orientation varies by model
Warranty 5-year (S8VK-S/G/X) 3-year 3-year (S8FS-G; verify others per catalog)
Ambient temperature (S8VK-S) Approximately -40°C to 70°C (S8VK-S; verify per datasheet) Standard industrial ambient; fewer extended variants Good industrial ambient coverage; confirm per model
Parallel operation Supported for S8VK-S per manufacturer rules Not highlighted; verify per model Supported for S8FS-G per recommended model guides
Remote control Basic signaling on some models; not primary feature for standard units Basic outputs; not remote-control-focused Remote control highlighted for S8FS-G
Expected lifetime Around 10 years documented for certain S8VK-S models under specified conditions Standard industrial lifecycle; confirm per datasheet Around 10 years documented for certain S8FS-G models under specified conditions

Full technical specifications are available on the product page at LeadTime.ca.

Scenario Recommended Family Key Reason
New compact DIN rail packaging panel S8VK Compact footprint, push-in terminals, 5-year warranty
Replacing failed S8VS with minimal redesign S8VS (or S8VK if re-termination acceptable) Mechanical and wiring compatibility
High-power DC bus, larger cabinet S8FS Fan-cooled S8FS-G handles higher current; remote control available
Harsh environment: cold room, high altitude, explosion-proof S8VK (S8VK-S specific models) Extended temperature to approx. -40°C / 70°C; altitude to approx. 3,000 m
Predictive maintenance and monitoring priority S8VK-X or S8VS-A/B Lifetime monitoring and network integration (S8VK-X); local display (S8VS-A/B)
Budget-focused high-power application S8FS-G (cost-effective models) or S8VK-C (lower power) S8FS-G explicitly referenced as low-price option for higher power in Omron guidance
Standardization across mixed-power machine fleet S8VK as primary; S8FS for high-power panels; S8VS for legacy-only Complementary tiers — not direct substitutes

If your application falls into the high-power or harsh-environment scenarios above, confirming the exact catalog number before ordering matters. Check current availability and pricing at LeadTime.ca or contact the team for application guidance.

Power Range, Cooling and Mounting: The Practical Differences

The S8VK and S8VS both use fanless designs — a meaningful advantage in panels where dust ingress, fan noise, or fan-motor maintenance are concerns. Fanless operation suits the majority of compact control panels for PLCs, I/O racks, and HMIs where the total 24 VDC load falls within the low to medium power range typical of these two families. The S8VK-C covers multiple wattage models in this range (60 W, 120 W, 240 W, 480 W documented in Omron materials) with its universal AC input and documented DC input capability.

The S8FS-G changes the equation for applications where the load exceeds what typical DIN rail fanless supplies handle. Fan cooling allows higher sustained power delivery in a panel-mounted form factor, which is why S8FS-G appears in larger automation cabinets feeding drives, valve manifolds, or motion control components. The tradeoff is real: fan noise is a documented concern in community discussions, particularly in smaller or quieter environments, and fan-cooled units require attention to airflow, panel ventilation, and filter maintenance.

Mounting method is a concrete design constraint, not just a preference. S8VK mounts directly on DIN rail with a compact footprint — no brackets, no additional hardware. S8VS also mounts directly on DIN rail. The S8FS-G is a panel screw-mount unit by default, which means it belongs on the backplate, not on the DIN rail assembly. If you are replacing a DIN rail supply with an S8FS model, the S8FS-C DIN rail bracket option is the correct path — but bracket hardware, panel clearance, and terminal access orientation must all be verified before ordering.

Input Voltage, Output Options and Parallel Operation

All three families support universal AC input for industrial mains, which means they work across North American and international voltage standards without manual switching. The S8VK-C adds documented DC input capability in a defined voltage range — useful in battery-backed systems or DC distribution architectures where AC input is not always present. For the S8VS and S8FS, DC input capability must be confirmed at the individual catalog level before assuming equivalence with S8VK-C.

Parallel operation is a feature that must be treated as model-specific, not family-wide. Omron explicitly supports parallel operation for S8VK-S models and for S8FS-G models in their recommended model guides. The S8VS is not highlighted for parallel operation in Omron materials — verify the specific model against its datasheet before attempting a parallel configuration. Never mix families in parallel unless you have explicit manufacturer confirmation that the specific catalog numbers support it. The consequences of mixing unsupported supplies in parallel include unequal current sharing, output voltage instability, and potential damage to the supplies.

Environmental Ratings and Standards: Where S8VK-S Pulls Ahead

The S8VK-S is the strongest performer among these three families for harsh-environment applications. Omron documents its ambient operating temperature range at approximately -40°C to 70°C and altitude capability up to about 3,000 m for specific S8VK-S models under defined installation conditions. These ratings make S8VK-S viable in cold-storage facilities, outdoor enclosures with solar heat loading, and elevated-altitude installations where standard industrial supplies would be operating outside their rated envelope.

Explosion-proof standard coverage and ANSI/ISA references are documented for S8VK-S — a capability not highlighted for S8VS or S8FS-G at the family level. The S8VK-S and S8FS-G both carry EN61558-2-16 transformer standard coverage, which is relevant for CE-marked panels and certain power factor compliance requirements in European and international export applications.

The S8VS covers standard industrial ambient ranges with fewer extended-environment variants, making it appropriate for climate-controlled panel rooms and standard factory floors but not the correct choice when harsh conditions are a confirmed design requirement. The S8FS-G meets good industrial ambient coverage and carries international approvals per catalog, but its extended-environment credentials are not equivalent to the S8VK-S family's documented -40°C lower limit and 3,000 m altitude rating.

A critical mistake to avoid: Omron's brand name does not guarantee uniform environmental ratings across all models in all three families. Always pull the datasheet for the specific catalog number and confirm the exact ambient temperature, altitude, and standards coverage for your application — not just the family-level marketing summary.

Terminals, Wiring Style and DIN Rail vs Panel Mounting

Terminal type has a direct impact on panel build time and long-term reliability in vibrating machinery. Key installation considerations for each family:

  • S8VK models with Push-In Plus terminals allow tool-free wire insertion on rigid conductors and require a screwdriver for stranded conductors — faster termination per connection point and lower risk of loose terminals during machine vibration compared to screw terminals
  • S8VS screw terminals are familiar to most panel electricians and require no change in tooling; torque specifications from the Omron datasheet must be followed to prevent under-torqued connections that loosen over time
  • S8FS models use screw terminals with terminal orientation that varies by model — confirm terminal access direction against your panel layout before specifying, particularly if the unit is mounted on the panel backplate
  • S8VK mounts directly on standard DIN rail without additional hardware; S8FS-G mounts via panel screws and requires planned clearance for the fan exhaust and intake airflow paths
  • S8FS-C provides a DIN rail bracket option for replacing older panel-mounted or DIN rail supplies, but bracket hardware must be sourced and the available panel depth confirmed before the replacement is ordered

Monitoring, Diagnostics and Remote Control Capabilities

The monitoring story across these three families breaks cleanly into three tiers. The S8VK-X delivers the most advanced capability: network integration, lifetime monitoring functions, and status outputs that can feed into predictive maintenance routines without additional instrumentation. For panels where the cost of an unplanned downtime event is high — remote sites, critical process equipment, or high-throughput lines — the S8VK-X's monitoring capability is a concrete argument for standardizing on S8VK rather than staying with S8VS.

The S8VS-A/B adds a local status display for voltage monitoring, making it a step above a basic power supply for maintenance technicians who need to read supply status without a multimeter. There is no network integration in S8VS — what you see on the display is what you get. For simple panels where predictive diagnostics are not a requirement, this is a practical middle ground.

The S8FS-G's remote control capability is distinct from monitoring — it allows external on/off control of the supply output, which is relevant in architectures where the power supply needs to be enabled or disabled by the PLC or a safety relay. This is a feature neither S8VK standard models nor S8VS provide prominently. If remote on/off is a documented application requirement, S8FS-G is the specific selection to evaluate against your power requirements.

Warranty, Expected Lifetime and Total Cost of Ownership

The warranty gap between these families is one of the clearest quantitative differentiators in the comparison. S8VK-S, S8VK-G, and S8VK-X family members carry a 5-year warranty per referenced Omron materials. The S8FS-G and S8VS carry a 3-year warranty. This two-year difference compounds when you consider panels at remote sites, panels inside machine tools with limited access for maintenance, or OEM builds where the manufacturer carries service responsibility for five or more years after delivery.

Certain S8VK-S and S8FS-G models are documented with an expected lifetime of around 10 years under specified operating conditions — a useful reference point for total cost of ownership calculations. A supply that lasts 10 years under normal conditions and carries a 5-year warranty costs less over a machine's lifecycle than a lower-priced unit with a 3-year warranty that fails in year four. For high-volume OEM builds, this arithmetic can justify standardizing on S8VK-S even at a slightly higher unit cost than S8VS or basic S8FS-C models. Pricing for all families is available on the product pages at LeadTime.ca — contact the team for volume pricing on larger builds.

Expert Verdict: Which Family Wins in Which Scenario

For the majority of new DIN rail control panel designs — packaging machines, material handling cells, automotive assembly fixtures, semiconductor equipment — the S8VK Switching Power Supply is the correct default. The combination of push-in terminals, compact DIN rail footprint, 5-year warranty on S8VK-S/G/X models, documented ambient temperature range down to approximately -40°C for S8VK-S, and the option to scale into networked lifetime monitoring via S8VK-X gives it a clear advantage over S8VS in any greenfield design. Engineers specifying new panels who are not constrained by legacy mechanical footprints should treat S8VK as the starting point, not a premium option to be justified.

The S8VS Switching Power Supply is not obsolete in every context. Plants with a large installed base of S8VS panels — particularly where maintenance staff know the product and spare units are already stocked — face a real cost in migrating to S8VK that can outweigh the technical advantages. The S8VS-A/B display variants continue to deliver practical value for straightforward panels where local status indication is the only monitoring requirement. Where the S8VS falls short is in new designs requiring extended temperature performance, explosion-proof coverage, parallel operation, or monitoring depth — in those cases, specifying S8VS to save on unit cost is a decision that often costs more downstream. The S8FS Switching Power Supply occupies a specific and non-negotiable role: when load requirements exceed what typical DIN rail fanless supplies handle, when remote control of the supply output is mandated, or when EN61558-2-16 transformer standard coverage is required and panel screw mounting is acceptable, the fan-cooled S8FS-G is the correct selection. Treating it as a like-for-like substitute for S8VK or S8VS in compact DIN rail panels creates mounting, airflow, and fan-maintenance complications that are avoidable.

From a procurement standpoint, the S8VK family is commonly stocked for mainstream control panel builds, and specific S8VK-C and S8VK-S catalog numbers are regularly available. S8VS remains available due to its large installed base, though it receives less active promotion than S8VK. S8FS-G and S8FS-C are stocked for higher-power and panel-mount applications, with some specific variants potentially carrying longer lead times depending on wattage. Before committing a build to any specific catalog number, confirm current stock and lead time — particularly for S8FS variants in volume. Check availability for the specific Omron power supply catalog numbers you need at LeadTime.ca, or contact the team to validate lead times before your build schedule locks in.

For volume pricing or to confirm lead times across S8VK, S8VS and S8FS catalog numbers before committing to a build, contact the LeadTime.ca team directly — we source and ship Omron power supplies worldwide.

What Engineers Say About S8VK, S8VS and S8FS

Community feedback from automation forums and discussions among controls engineers consistently positions the S8VK as the preferred choice for new designs. Engineers who have switched from S8VS to S8VK in new machine platforms cite the compact footprint and push-in terminals as the most immediate practical benefits — fewer wiring errors, faster panel assembly, and more DIN rail space for other components. The extended temperature ratings of S8VK-S come up regularly in discussions about cold-room and outdoor panel applications, where engineers who previously had to derate or over-specify S8VS units find S8VK-S a cleaner fit. OEMs migrating from S8VS to S8VK in new platforms while continuing to support S8VS in older equipment is a recurring pattern — not a clean cutover, but a deliberate generational shift.

The S8VS earns consistent respect for its track record and familiarity, particularly from maintenance engineers who value knowing exactly how to replace a unit without referencing new documentation. The most common complaints are its larger footprint relative to S8VK and the absence of the advanced monitoring features now available on S8VK-X variants. Engineers evaluating whether S8VS still justifies its place in new designs typically conclude it does not — unless legacy panel compatibility is a hard constraint. One recurring forum question captures the tension well: "Does S8VK really justify its higher price vs S8VS?" The answer from experienced panel builders is consistently yes for new designs, no for straightforward legacy replacements.

The S8FS-G receives positive feedback specifically in its intended role — high-load DC distribution cabinets where fanless supplies would be undersized. Fan noise and dust ingress are the documented concerns, and engineers using S8FS-G in smaller or quieter environments note that panel ventilation and filter maintenance become active considerations rather than afterthoughts. The bracket requirement for DIN rail mounting on S8FS-C models also generates questions at the ordering stage, with some buyers not realizing the unit ships without DIN rail hardware. Verifying the full accessory requirement before ordering is a consistent recommendation from the community.

Replacing S8VS or S8FS: What to Check Before You Order

Switching families mid-panel or mid-fleet is not a drop-in operation. Key installation and wiring considerations:

  • When replacing an S8VS with an S8VK, compare physical dimensions carefully — while S8VK is typically more compact, DIN rail clip position, terminal height, and adjacent component clearance must all be verified against the existing panel layout
  • Push-in terminals on S8VK require conductor preparation suited to the terminal type; if the existing wiring uses ferrule-terminated stranded conductors, confirm compatibility with the specific S8VK terminal design before assuming direct re-termination
  • Replacing a panel-screw-mounted S8FS-G with an S8VK or S8VS requires planning for the mounting hole pattern, backplate cutout, and any wiring conduit routing that was designed around the S8FS-G's panel footprint
  • When introducing a fan-cooled S8FS-G to replace a fanless supply, the panel must be evaluated for adequate ventilation, clearance above and below the fan exhaust, and a plan for periodic filter cleaning or replacement
  • Multi-supply panels mixing families should restrict parallel operation exclusively to models with explicit Omron documentation for parallel use — S8VK-S and S8FS-G are referenced; mixing families in parallel without manufacturer confirmation is not a supported configuration

Wrong-Part Prevention Checklist

Before placing an order for any Omron S8VK, S8VS, or S8FS power supply, work through each of these checks. Missing any one of them is the most common source of rework in panel design and replacement projects:

  1. Confirm required output power and whether fan cooling is acceptable; do not pick S8VS for high-power, forced-air applications where S8FS-G is intended.
  2. Check ambient temperature and altitude; for harsh environments and explosion-proof or extended-temperature requirements, validate that the chosen S8VK model meets them.
  3. Verify mounting method (DIN rail vs panel screw) and terminal orientation; S8FS models may need brackets for DIN rail and have different terminal access.
  4. Confirm need for remote control and advanced monitoring; if you require remote on/off or more advanced monitoring, S8FS-G or other S8VK variants may be more appropriate than basic S8VS.
  5. Align warranty expectations with plant standards; some S8VK models offer longer warranties than S8VS and S8FS-G.
  6. Check available input voltage (single-phase, three-phase, DC input) at the exact catalog level before assuming equivalence across families.
  7. Validate safety and standards (CE, North American approvals, explosion-proof) for the specific model, not just the family name.

If any item on this checklist raises a question you cannot answer from the datasheet alone, contact the LeadTime.ca team before ordering — confirming the right catalog number costs nothing; correcting a mis-specified power supply mid-build costs significantly more. Reach the LeadTime.ca team here to confirm your Omron power supply selection.

Frequently Asked Questions

Is the S8VK a direct mechanical replacement for S8VS in an existing panel?

Not always without verification. The S8VK is typically more compact than the S8VS, which means the DIN rail clip position, terminal block height, and adjacent component clearances must be checked against the existing panel layout before ordering. Push-in terminals on S8VK also differ from the screw terminals on S8VS, so conductor preparation and ferrule compatibility must be confirmed. It is not a guaranteed drop-in swap — it can often be made to work, but it requires a mechanical check first.

Can the S8FS-G be mounted on DIN rail, and what hardware is required?

The S8FS-G is designed for panel screw mounting by default and does not mount directly on DIN rail without additional hardware. The S8FS-C variant offers a DIN rail bracket option for DIN rail installation. If you need to replace a DIN rail-mounted supply with an S8FS model, confirm you are ordering the S8FS-C with the appropriate DIN rail bracket, and verify that the available panel depth and terminal access orientation are compatible with your enclosure.

Which Omron power supply family covers explosion-proof standard requirements?

Explosion-proof standard coverage and ANSI/ISA references are documented for S8VK-S models specifically. This coverage is not highlighted at the family level for S8VS or S8FS-G in Omron's referenced materials. Always validate the specific catalog number's certifications against your site's hazardous area classification — family-level claims are not a substitute for model-level documentation review.

How does the warranty differ across S8VK, S8VS and S8FS?

S8VK-S, S8VK-G, and S8VK-X family members carry a 5-year warranty per Omron's referenced materials. The S8VS carries a 3-year warranty. The S8FS-G also carries a 3-year warranty — verify other S8FS subfamilies at the catalog level. For mission-critical or remote applications where unplanned replacement is costly, the S8VK's 5-year warranty provides a concrete total cost of ownership advantage that should be factored into the specification decision.

What must I verify before running S8VK-S or S8FS-G supplies in parallel?

Parallel operation for S8VK-S and S8FS-G is explicitly documented in Omron's recommended model guides and must be followed precisely — including current derating, cable sizing, and any diode or balancing requirements specified by Omron for the specific catalog numbers. Never mix S8VK, S8VS, and S8FS supplies in parallel across families unless Omron has explicitly confirmed the specific combination is supported. Parallel operation of non-supported models risks unequal current sharing and potential supply damage.

Is the S8FS-G fan noise a real concern in typical industrial panels?

Fan noise from S8FS-G is a recurring topic in automation community discussions. In large open cabinets or machine rooms with high ambient noise floors, fan noise is generally not a practical problem. In smaller enclosures, quieter lab-style environments, or operator workstation panels, the fan noise is noticeable and can be a maintenance concern if filters are not serviced regularly. If fanless operation is a priority, the S8VK or S8VS families are the correct choice within their respective power ranges.
