Omron S8VK-S24024 24V 10A DIN Rail PSU — Buyer Review

By Abdullah Zahid
14 min read

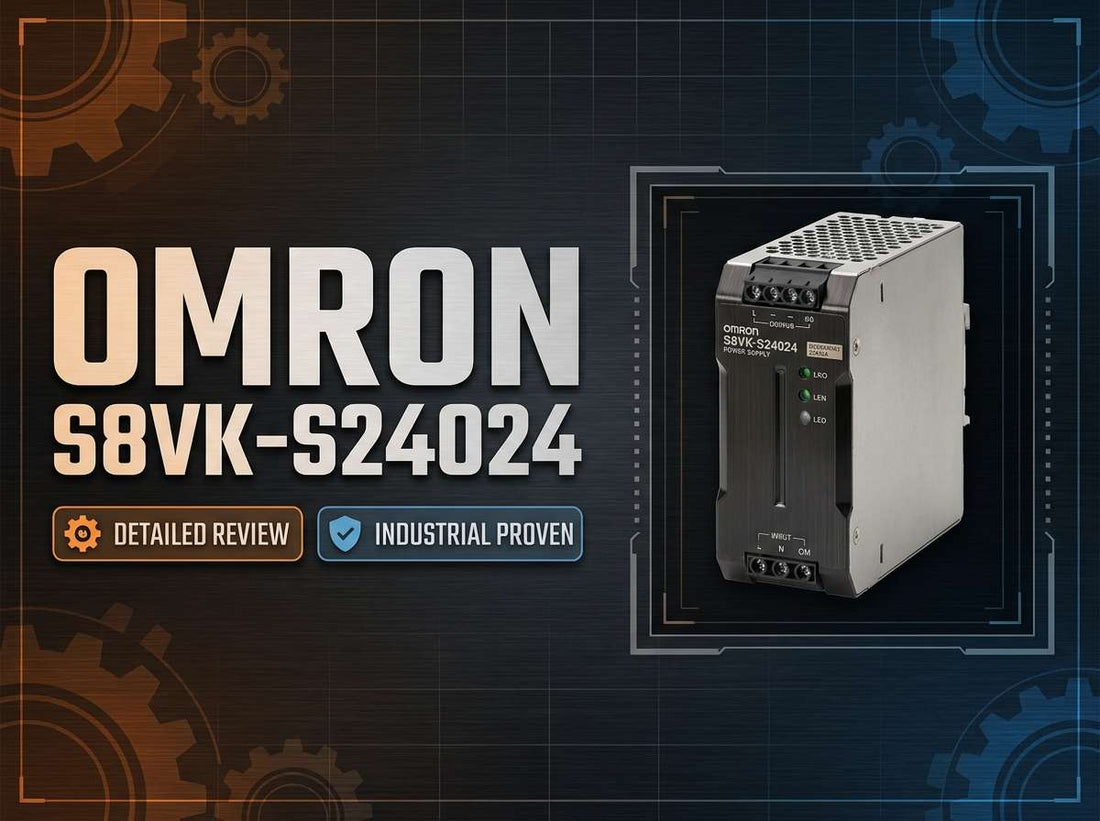

Omron S8VK-S24024 240W 24VDC DIN-rail switching power supply for industrial control panels

Omron S8VK-S Switch Mode Power Supply, 240 W, 24 VDC — Complete Buyer Review and Specification Guide

Controls engineers and panel builders specifying a reliable 24 VDC source for industrial automation panels consistently land on the Omron S8VK-S24024 as a primary candidate. This DIN-rail switching power supply delivers 24 VDC at a continuous 10 A (240 W) from a universal AC input range, with an operating temperature floor of -40 °C and the integrated protections — overvoltage, overload, overcurrent, and short-circuit — that serious machine builders expect from a brand-name supply. The slim DIN-rail footprint and push-in spring terminals mean it fits the tight panel layouts common in packaging, material handling, and factory automation builds. If you are sizing a panel around PLCs, I/O modules, sensors, and Ethernet switches, the S8VK-S24024 covers a load tier where many panels actually land.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Omron S8VK-S24024 — and Who Shouldn't

This supply is the right choice for controls engineers and OEM machine designers who need a compact, trusted 24 VDC source with industrial-grade temperature performance, strong safety approvals, and the assurance of Omron brand support. Confirm all five of the following before ordering:

  • Your total 24 VDC load — including startup and inrush, plus allowance for future expansion — is comfortably within 10 A / 240 W continuous.
  • Your incoming supply is single-phase AC in the 100–240 VAC wide-range band; this is not a three-phase or DC-input model.
  • Panel space accommodates the approximately 122 x 38 x 124 mm (H x W x D) footprint with required ventilation clearances above and below.
  • Push-in / spring terminals are acceptable under your plant wiring standards and the conductor sizes you are using.
  • The certifications this model carries — UL/CSA, CE, and others per the datasheet — match the end-user's approval requirements for the installation site.

If your total load sits at or below 5 A, the S8VK-S12024 (120 W) is the more economical fit. If the system exceeds 10 A under realistic conditions, step up to the S8VK-S48024 (480 W / 20 A) rather than pushing this unit to its ceiling. If your project demands advanced diagnostics or integrated redundancy features, review the S8VK-G or S8VK-C series before finalizing your BOM.

On this page:

Where the Omron S8VK-S24024 Fits in a Modern Control Panel

The S8VK-S24024 sits at the power distribution core of a 24 VDC control panel — the single source that everything else depends on. At 240 W continuous, it occupies the sweet spot between the 120 W model suited to compact single-PLC panels and the 480 W unit required for multi-drive or heavily populated racks. A 10 A supply at 24 V comfortably handles a mid-size PLC rack with remote I/O expansion, a managed Ethernet switch, a handful of proximity and photoelectric sensors, a relay array, and an HMI — with margin for wiring losses and inrush on startup.

This model is a standard selection for OEM machine builders who have standardized on Omron PLC and I/O platforms. The brand alignment simplifies technical support, spare parts planning, and datasheet cross-referencing. It also appears frequently in retrofit and modernization projects where a failing legacy 24 V supply needs to be replaced by a unit that fits in the same panel bay with the same DIN-rail footprint and similar terminal arrangement.

The -40 °C lower operating temperature limit is a meaningful differentiator in cold-storage facilities, outdoor enclosures, or unheated machine rooms where standard commercial-grade supplies are not rated. That same environmental hardening — combined with vibration resistance and industrial approvals — makes it the appropriate choice wherever uptime is critical and replacing a failed PSU mid-shift has real cost consequences.

Typical System Architecture for a 24 VDC Panel Supply

The S8VK-S24024 connects upstream to the panel's AC distribution and downstream to every 24 VDC load in the enclosure, acting as the single regulated DC source for the entire control system.

  • Upstream: single-phase 100–240 VAC distribution, typically via a circuit breaker or fuse block rated for the PSU's input current draw.
  • The S8VK-S24024 converts AC to a stable 24 VDC output at up to 10 A with integrated protection against overvoltage, overload, overcurrent, and short-circuit events.
  • The 24 VDC output feeds a distribution point — fuse terminal blocks or a busbar — that branches to individual load circuits.
  • Downstream loads: PLC CPU and expansion racks, remote I/O blocks, Ethernet and serial communication switches, sensors and transducers, relay and contactor coils, HMI panels.
  • In higher-availability applications, a second S8VK-S24024 or a dedicated redundancy module may be added in parallel for fault tolerance.

Typical Applications and Deployment Scenarios

The S8VK-S24024 appears across a wide range of factory automation environments. In packaging and material handling machinery, it powers the PLC, I/O, and sensor arrays that coordinate conveyor, vision, and reject systems — applications where compact panel depth and reliable output under vibration are both important. In automotive and general manufacturing, it supplies the 24 VDC bus in machine control panels where ambient temperatures inside the enclosure can climb during summer operation, making the derating curve relevant to the sizing calculation.

Process control panels in water and wastewater infrastructure benefit from the wide temperature range and broad certifications, where equipment may sit in unheated pump houses or outdoor rated enclosures. OEM builders standardizing on Omron controls select this unit as a matched-brand PSU for new machine builds, simplifying documentation and after-sales support. Maintenance and MRO teams use it as a reliable replacement during panel upgrades, where the DIN-rail form factor and 24 V / 10 A rating cover the most common legacy supply class.

Application Typical Deployment
OEM machine control panel Primary 24 VDC source for PLC CPU, I/O modules, and HMI in a new machine build
Packaging line control cabinet Powering sensors, relay arrays, and conveyor I/O in a vibration-prone environment
Cold storage or refrigerated facility Installed in panels subject to low ambient temperatures down to -40 °C
Panel modernization / retrofit Drop-in replacement for aging legacy 24 V supplies in existing DIN-rail panels
Water and wastewater infrastructure Process control panels in outdoor or unheated pump station enclosures
Automotive manufacturing cell 24 VDC distribution for robot I/O, Ethernet switch, and safety relay modules

Specifications That Drive the Purchase Decision

Parameter Value Notes
Output Voltage 24 VDC nominal Confirm adjustment range from latest datasheet if trimming is required
Output Current / Power 10 A / 240 W Continuous rating under specified conditions; derate at higher ambient temperatures
Input Voltage Range Wide-range AC, approx. 100–240 VAC Single-phase; verify exact range and any DC input capability from datasheet
Efficiency Approx. up to 93% Per distributor data; confirm from latest Omron datasheet
Operating Temperature -40 °C lower limit, upper limit with derating Confirm exact upper limit and derating curve before sizing for hot enclosures
Mounting DIN-rail (EN standard), vertical orientation Observe spacing above and below for ventilation per Omron guidance
Terminals Push-in / spring terminals Confirm acceptable wire size range from datasheet before wiring
Dimensions (H x W x D) Approx. 122 x 38 x 124 mm Verify exact values from datasheet before finalizing panel layout
Protections Overvoltage, overload / overcurrent, short-circuit, overtemperature Auto-recovery behavior typical; confirm exact protection modes from datasheet
Certifications UL/CSA, CE, others per datasheet Confirm specific marks required for your project before ordering

Full technical specifications are available on the product page at LeadTime.ca.

S8VK-S 24 V Model Comparison: Which Rating Do You Actually Need?

All four models in the S8VK-S 24 VDC line share the same series architecture and approvals. The differences are output power, current rating, and physical width — which determines how much DIN-rail space is consumed and how much current the unit can sustain under real panel temperatures.

Model Output Power Output Current Width (approx.) Typical Use Case Notes
S8VK-S06024 60 W ~2.5 A Narrower Small panels with few loads Confirm exact ratings from datasheet
S8VK-S12024 120 W ~5 A Medium Standard small to medium PLC panels Sizing step before 240 W
S8VK-S24024 240 W 10 A 38 mm (approx.) Larger panels, multiple loads, expansion room Focus of this review
S8VK-S48024 480 W 20 A Widest High-load systems or multi-panel distribution Consider heat dissipation and wiring requirements

If your load calculation — with headroom for inrush and future expansion — consistently exceeds 10 A, the S8VK-S48024 at 20 A is the correct next step. Do not attempt to run the S8VK-S24024 at or near its ceiling in a warm enclosure without reviewing the derating curve. Check current availability and confirm the right model at LeadTime.ca.

Expert Verdict on the Omron S8VK-S24024

The Omron S8VK-S24024 earns its place in serious industrial panels by combining a 240 W continuous output with a -40 °C operating temperature floor, an efficiency figure near 93%, and the protection suite — overvoltage, overcurrent, short-circuit, overtemperature — that belongs in any panel where a failed power supply has real cost consequences. It is the right supply for controls engineers and OEM builders who are powering a PLC rack, a distributed I/O network, a managed Ethernet switch, and the associated sensors and relays from a single 24 VDC rail, and who need that supply to perform reliably in environments where cheaper alternatives have failed. The compact 38 mm width for a 240 W unit is a genuine advantage in panels where DIN-rail space is contested.

Where the S8VK-S24024 is not the optimal choice is equally worth stating clearly. If your steady-state load is comfortably below 5 A, the S8VK-S12024 at 120 W is more economical and narrower. If your application requires built-in redundancy management or advanced diagnostics beyond a status LED, review the S8VK-G or S8VK-C series before finalizing the BOM — those series carry features this model does not. And if project budget is the dominant constraint and the installation environment is benign, economy-grade DIN-rail supplies exist at lower price points, though without the temperature range, approvals, or brand support this model provides.

From a procurement standpoint, the S8VK-S24024 is a broadly stocked item at specialist automation distributors, with the support structure to confirm series, approvals, and sizing before the order ships. Extended lead times are possible on large volume orders, so factoring in lead time for project builds and stocking at least one spare for critical installations is straightforward planning. For current pricing and confirmed stock, visit the product page at LeadTime.ca — buying through a specialist distributor means your part number, voltage, and series are verified before the order leaves the warehouse.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Omron S8VK-S24024

Community feedback across control engineering forums, distributor Q&A sections, and the broader S8VK user base is consistently positive on the core proposition: the S8VK family delivers long-term reliability in harsh industrial panels when the unit is correctly sized and properly installed. Users who have standardized on this supply for OEM builds cite the compact footprint relative to power output, the wide temperature range, and the brand's approval coverage as the reasons they keep specifying it. The consensus is that you pay a moderate premium over no-name alternatives, and in environments where an unexpected PSU failure means an unplanned production stoppage, that premium is the right trade.

Two recurring complaints are worth acknowledging. First, cost: buyers comparing the S8VK-S24024 against non-branded 24 V DIN-rail supplies will find a price gap, and for lower-criticality applications in benign environments, that gap prompts genuine reconsideration. Second, terminals: a portion of the installer community prefers traditional screw-type terminations and finds push-in spring terminals less convenient when working with specific conductor types or where plant maintenance standards call for screw terminals throughout. Neither of these is a technical deficiency — they are trade-off decisions that depend on your specific environment and standards.

The ordering mistake that appears most frequently is confusion within the S8VK family itself. Buyers have received S8VK-C or S8VK-G series units when the panel BOM called for S8VK-S, because the part numbers look similar at a glance. The suffix letter — S, C, or G — indicates a different product series with different features, not a regional or packaging variant. Similarly, 12 V and 48 V models exist with nearly identical part numbers differing only in the voltage digits. The wrong-part checklist below is not optional reading — it is a direct reflection of the mistakes that have caused rework and returns on real projects.

Wiring and Installation Overview for the S8VK-S24024

The following is an overview of key installation requirements. Engineers completing a first installation should work from Omron's official installation manual and datasheet for exact torque values, conductor sizing tables, and derating curves.

  • Verify that the incoming single-phase AC supply voltage falls within the unit's rated wide-range input (approx. 100–240 VAC) and that upstream protection — circuit breaker or fuse — is correctly sized for the PSU's input current draw.
  • Mount on a suitable EN-standard DIN-rail in the standard vertical orientation, maintaining the clearances above and below the unit specified in the Omron datasheet for adequate convection cooling.
  • Connect AC line (L), neutral (N), and protective earth (PE) to the designated input terminals using conductors sized per the datasheet and tightened to the specified torque; use the push-in terminal tool where required by terminal design.
  • Connect the 24 VDC positive and negative output terminals to the panel's DC distribution — fuse terminal blocks, busbars, or terminal rows — observing polarity and using conductor sizes appropriate for the 10 A maximum output current and cable run length.
  • After re-energizing, verify the status indicator, measure the 24 VDC output at the terminals under no-load conditions, then confirm voltage is within specification under representative load before handing off to commissioning.

Wrong-Part Prevention: Verify Before You Order

These checks reflect the exact points where engineers and buyers have placed incorrect orders on the S8VK platform. Work through this list against your BOM and project specification before submitting the purchase order:

  1. Confirm output voltage is 24 VDC; do not mix with 5 V, 12 V, or 48 V S8VK variants.
  2. Confirm 10 A / 240 W is sufficient for total 24 VDC load plus startup and inrush, including future expansion.
  3. Check input supply type: single-phase 100–240 VAC; do not use where 3-phase-only or higher-voltage DC input models are required.
  4. Verify physical size and DIN-rail space in the panel (height, width, depth) and clearances for airflow and wiring.
  5. Confirm terminal style (push-in/spring) is acceptable for plant standards and wire sizes used.
  6. Ensure environmental specs (ambient temperature, vibration, enclosure type) match the installation site, considering derating at higher temperatures.
  7. Check approvals and certifications required by the end user (UL/CSA, CE, marine, etc.) are covered by this exact model.
  8. Verify you are ordering S8VK-S24024 (S-series, 24 V, 240 W) and not S8VK-C24024 or S8VK-G24024; the suffix letters indicate different series with different features.

If any item on this list raises a question before your order, contact the LeadTime.ca team — confirming the right part number before the order ships costs nothing and avoids the rework cost of receiving the wrong unit.

Frequently Asked Questions

Can I parallel two S8VK-S24024 units to double available current or add redundancy?

Parallel operation of switching power supplies requires specific diode or ORing circuit arrangements to prevent one unit from backfeeding the other. The S8VK-S24024 does not have a dedicated built-in redundancy module integrated into the unit itself. Review Omron's official documentation for supported parallel configurations and the recommended method before wiring two units together. If integrated redundancy management is a hard requirement, evaluate the S8VK-G or S8VK-C series, which are designed with that use case in mind.

How much load margin should I plan when sizing the S8VK-S24024 for a mixed PLC and relay panel?

Best practice is to calculate total steady-state 24 VDC load across all connected devices — PLC, I/O, sensors, relays, communication switches — then add headroom to cover startup inrush currents and any planned expansion. Running a 10 A supply at or near its ceiling continuously, particularly in a warm enclosure, shortens service life and increases the risk of nuisance trips. A margin above calculated steady-state load is the standard approach; the exact figure depends on the inrush characteristics of your specific loads and the ambient temperature derating applicable to your installation.

What happens if the S8VK-S24024 is overloaded or shorted on the output?

The S8VK-S24024 incorporates overload, overcurrent, and short-circuit protection as defined in the S8VK-S datasheet. Auto-recovery behavior is typical for this class of supply — the unit reduces or shuts down output under a fault condition and recovers when the fault is cleared. Confirm the exact protection mode and recovery sequence from the Omron datasheet for your specific installation, as behavior can vary with the severity and duration of the overload condition.

Is the S8VK-S24024 a drop-in replacement for older 24 V DIN-rail supplies in existing panels?

The S8VK-S24024 is a standard DIN-rail form factor supply with widely compatible 24 VDC output, making it a practical candidate for replacing aging 24 V supplies in existing panels. However, verify that the physical dimensions and DIN-rail mounting align with the panel bay, that the push-in spring terminals are compatible with existing conductor types and sizes, and that the input voltage range matches the panel's AC supply. Do not assume a direct swap without checking these three points, particularly when replacing a supply from a different manufacturer or an older Omron series with different terminal arrangements.

Can the S8VK-S24024 be mounted in any orientation, or is vertical mounting required?

Omron's installation guidance specifies vertical DIN-rail mounting for the S8VK-S series to ensure proper convection cooling across the unit. Mounting in non-standard orientations — horizontal or inverted — can impair airflow and cause the unit to operate at elevated internal temperatures, increasing the likelihood of derating or thermal protection activation. If your panel layout makes standard vertical mounting difficult, consult the Omron installation manual for any approved alternative orientations before proceeding.

Why Order the Omron S8VK-S24024 From LeadTime.ca

  • Global shipping: LeadTime.ca fulfills orders for controls engineers and procurement teams worldwide, not limited to any single region.
  • Part number verification: specialist automation distributor staff can confirm you are ordering S8VK-S24024 specifically — not S8VK-C24024, S8VK-G24024, or an incorrect voltage variant — before the order ships.
  • Stock and lead time transparency: real-time availability checks and honest lead time estimates for both single-unit orders and project volumes.
  • Volume pricing: contact the team directly for project quantities or blanket order pricing.
  • Technical depth: questions about sizing, derating, series differences, or approval requirements are handled by people who work with this platform daily.

Omron S8VK-S24024 — At-a-Glance Summary

  • Output: 24 VDC at 10 A continuous, 240 W total power.
  • Input: single-phase wide-range AC, approximately 100–240 VAC.
  • Operating temperature: lower limit of -40 °C; upper limit subject to derating — confirm from datasheet.
  • Efficiency: approximately up to 93% per distributor data — verify from latest Omron datasheet.
  • Form factor: DIN-rail mounted, approximately 122 x 38 x 124 mm (H x W x D); push-in spring terminals.
  • Integrated protections: overvoltage, overload, overcurrent, short-circuit, overtemperature.
  • Certifications: UL/CSA, CE, and others per datasheet — confirm specific marks against project requirements.
  • S8VK-S family range: 60 W (S8VK-S06024), 120 W (S8VK-S12024), 240 W (S8VK-S24024), 480 W (S8VK-S48024) at 24 VDC.
  • Key ordering risk: verify S8VK-S (not S8VK-C or S8VK-G) and 24 V (not 12 V or 48 V) before submitting the purchase order.
  • Pricing is available on the product page at LeadTime.ca; contact for volume or project pricing.
