Omron S8VK-G24024 — 240W 24V DIN Rail Power Supply Review

By Abdullah Zahid
14 min read

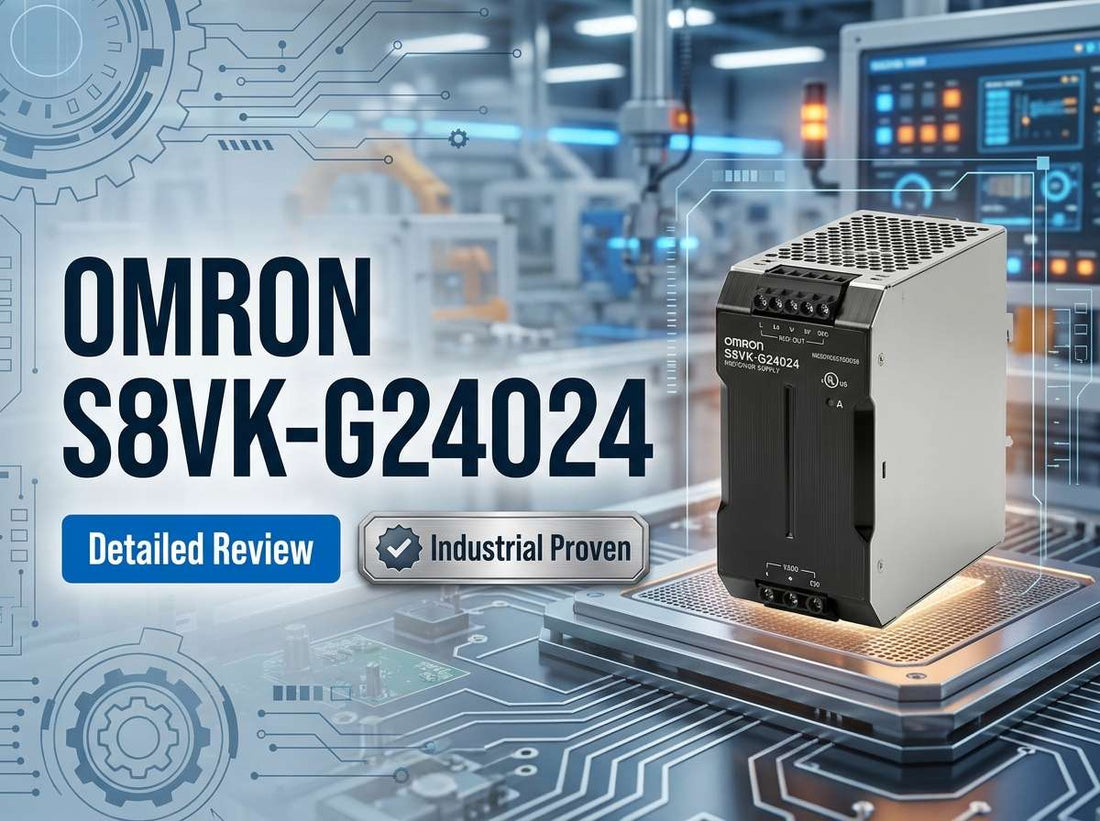

Omron S8VK-G24024 240W 24VDC 10A DIN rail switch mode power supply for industrial control panels

Omron S8VK-G Switch Mode Power Supply, 240 W, 24 VDC, 10 A — Full Review, Specs, and Alternatives

Controls engineers and panel builders searching for the Omron S8VK-G24024 are typically at one of two moments: confirming a spec before finalizing a BOM, or replacing an existing 24 VDC supply and verifying the S8VK-G is the right fit. This review covers what the S8VK-G24024 actually delivers — 240 W, 24 VDC, 10 A from a single-phase wide-range AC or DC input — and gives you the honest context to decide whether this is the unit to order or whether a different wattage or feature set is the smarter call.

If you have already confirmed this is the right part, check current pricing and availability for the Omron S8VK-G24024 at LeadTime.ca — ships worldwide.

Who Should Buy the Omron S8VK-G24024 — and Who Should Look at a Different Variant

The S8VK-G24024 is the right choice for controls engineers and OEM panel builders who need a mainstream 240 W, 24 VDC, 10 A DIN rail supply for small-to-medium automation panels and want a well-supported Omron product that fits neatly alongside Omron PLCs and I/O modules. It is right for your application when all of the following are true:

  • Your required DC bus voltage is 24 VDC nominal — not 5 V, 12 V, or 48 V
  • Your total continuous 24 VDC load (PLCs, I/O, sensors, relays, HMIs) fits comfortably within 10 A with engineering margin for inrush and future expansion
  • Your input supply is single-phase AC within the wide-range input band or a compatible DC source — not direct three-phase mains
  • Your panel has DIN rail space and the physical depth clearance appropriate for a 240 W class unit, which is physically larger than 15–60 W models
  • Your installation environment and enclosure cooling keep the ambient temperature within the S8VK-G specified operating range without derating the output
  • Your project requires UL, CE, or equivalent safety approvals as provided by the S8VK-G series

If your load exceeds 10 A, consider the S8VK-G48024 for higher current capacity. If your load is well below 10 A, the S8VK-G12024 at 120 W may be the more appropriately sized choice. If you need hot-swap redundancy, advanced diagnostics, or significantly higher efficiency, evaluate higher-feature alternatives before specifying this model.

On this page:

What the Omron S8VK-G24024 Actually Does in a Control Panel

The S8VK-G24024 is a DIN rail mount switch mode power supply that takes single-phase AC mains — or a DC input — and delivers a regulated 24 VDC output at up to 10 A continuous, for a rated output power of 240 W. In practical terms, it is the component that converts panel supply voltage into the 24 VDC bus that feeds PLCs, digital and analog I/O modules, proximity sensors, photoelectric sensors, safety relays, solenoid valves, contactors, and HMIs throughout an automation enclosure.

The S8VK-G24024 sits in the middle of the Omron S8VK-G DIN rail power supply family by wattage. Its wide-range AC input — supporting 100–240 VAC with an extended range of 85–264 VAC — means a single hardware variant works across North American, European, and international installations without switching taps or changing hardware. The DC input capability adds flexibility for applications fed from a DC bus, battery-backed systems, or 24 VDC distribution panels.

What distinguishes the S8VK-G series as a product family is its combination of a compact DIN rail housing, industrial temperature and vibration ratings, and a straightforward protection feature set — overcurrent, overvoltage, and overtemperature protection — that handles the common failure modes a panel power supply encounters in service. There is no integrated circuit breaker, which means external input protection is the installer's responsibility and is covered in the wrong-part checklist below.

Typical System Architecture for the S8VK-G24024

The S8VK-G24024 sits between the panel's incoming single-phase mains protection and the 24 VDC distribution rail that powers all control-voltage devices. Understanding where it falls in the signal chain helps with both sizing and troubleshooting.

  • Incoming single-phase AC mains enter through a disconnect switch and input fuse or circuit breaker sized per Omron documentation
  • The S8VK-G24024 converts AC (or DC input) to a regulated 24 VDC output at up to 10 A
  • Output feeds a 24 VDC distribution block or bus bar, typically protected with per-branch output fusing
  • Branch circuits supply PLCs, I/O modules, sensors, safety relays, contactors, and HMIs
  • Optional downstream components — buffer modules or redundancy modules — connect between the supply output and the 24 VDC bus when higher availability is required

Where the S8VK-G24024 Gets Deployed: Industries and Use Cases

The S8VK-G24024 is a workhorse in small-to-medium machine control panels across factory automation. Packaging line control panels are a primary application: a typical packaging machine panel running an Omron PLC, digital I/O, a handful of photoelectric sensors, and a safety relay can consume well under 10 A at 24 VDC, making this unit a natural fit with capacity to spare.

OEM machine builders — particularly those designing standardized enclosures around Omron PLC platforms — frequently spec the S8VK-G24024 as their reference 24 VDC supply because it integrates physically and electrically with the rest of the Omron component set and simplifies panel layout with its DIN rail form factor.

Material handling and assembly line control panels are another common deployment, where the 240 W rating covers the combined load of a PLC, distributed I/O, and field devices without needing to parallel supplies or add a second unit. Retrofit projects — replacing aging 24 VDC supplies in existing Omron-based panels — also generate significant demand for this part, as the S8VK-G form factor and output specifications allow direct substitution in many existing DIN rail layouts.

In smaller process skids and building automation panels where a single 24 VDC bus powers instruments, transmitters, and control relays, the S8VK-G24024 provides enough headroom for the full load while remaining compact enough for a modestly sized enclosure.

Application Typical Deployment
Packaging machine control panel 24 VDC bus for PLC, I/O modules, sensors, safety relay — full load well within 10 A
OEM standardized enclosure (Omron PLC platform) Reference 24 VDC supply DIN rail mounted alongside CJ/CP/NX series PLC components
Assembly line or material handling panel Single supply powering distributed I/O, field devices, and HMI within 240 W budget
Retrofit of existing 24 VDC supply Drop-in replacement for older Omron or third-party 240 W class DIN rail supply
Small process skid or building automation panel 24 VDC rail for instruments, transmitters, control relays — compact enclosure requirement

Specifications That Drive the Purchase Decision

Parameter Value Notes
Output voltage 24 VDC nominal Output voltage adjustable within a trim range — verify exact range in current Omron datasheet
Output current 10 A continuous Size loads with margin; do not plan for sustained 100% load without thermal review
Output power 240 W Rated output power at nominal conditions
Input voltage (AC) 100–240 VAC wide range (85–264 VAC extended range) Single-phase only; covers North American, European, and international mains
Input voltage (DC) DC input supported — confirm exact range from current datasheet Useful for DC-bus or battery-backed applications
Input frequency 50/60 Hz Compatible with both North American and international grid frequencies
Protection functions Overcurrent, overvoltage, overtemperature No integrated circuit breaker — external input protection required
Mounting type DIN rail mount Standard DIN rail; 240 W class unit is physically larger than 15–60 W models
Operating temperature Confirm exact range and derating curve from current Omron S8VK-G24024 datasheet Thermal derating applies at higher ambient temperatures
Safety approvals UL, CE (verify current certifications from Omron documentation) Suitable for industrial machine panels; confirm specific standards for export or regulated applications

Full technical specifications are available on the product page at LeadTime.ca.

S8VK-G24024 vs. Other S8VK-G Variants: Which Wattage Do You Actually Need?

Model Output Voltage Output Current Output Power Best Fit
S8VK-G12024 24 VDC 5 A 120 W Smaller panels with lighter 24 VDC loads — PLC plus limited I/O
S8VK-G24024 24 VDC 10 A 240 W Small-to-medium machine panels — PLCs, I/O, sensors, relays on a single supply
S8VK-G48024 24 VDC 20 A 480 W Larger machines, higher current loads, or installations requiring more headroom
S8VK-G series (other voltages) 5 V, 12 V, 48 V variants available Varies by model Varies by model Applications requiring output voltages other than 24 VDC

If your calculated continuous load approaches or exceeds 10 A — or if you anticipate future I/O expansion — the S8VK-G48024 is the correct next step. Check current availability of the S8VK-G24024 and related S8VK-G variants at LeadTime.ca.

Expert Verdict: Is the S8VK-G24024 the Right Supply for Your Panel?

The Omron S8VK-G24024 earns its place as a default spec for 24 VDC bus power in small-to-medium automation panels precisely because it does not try to be more than it is. It delivers 240 W at 24 VDC with a wide-range single-phase input that covers installations from North America to international sites without hardware changes, in a DIN rail form factor that integrates cleanly with Omron PLC and I/O ecosystems. For controls engineers building or retrofitting standard machine panels — packaging equipment, assembly lines, material handling — this is a well-understood, well-supported choice that eliminates sourcing risk and simplifies documentation. The S8VK-G family's track record as a reliable fit-and-forget supply in typical industrial environments reinforces that confidence.

Where the S8VK-G24024 has real limits is equally important to say plainly. It carries no advanced diagnostics, no integrated hot-swap redundancy, and no unusually high efficiency figure that would distinguish it in energy-sensitive applications. If your load reliably approaches or exceeds 10 A, move to the S8VK-G48024 rather than running this unit at the edge of its rating. If your application demands redundant power with automatic failover and no manual intervention, you need redundancy modules or a different supply architecture — this unit alone does not provide that. Engineers specifying for food-and-beverage washdown environments should verify the enclosure IP rating against the installation requirements, as the S8VK-G24024 carries an IP20 rating suitable for panel-interior use only.

From a procurement standpoint, the S8VK-G24024 benefits from being a mainstream, actively stocked part in specialist automation distributor channels worldwide, which reduces lead time risk compared to lower-volume variants. Ordering through a specialist distributor rather than a generic catalog channel also means faster cross-referencing if stock is temporarily constrained, and access to selection validation before the order ships — which matters when a wrong-wattage or wrong-voltage variant causes a project delay. View current pricing and lead time for the S8VK-G24024 on the LeadTime.ca product page — we ship worldwide.

For volume pricing or to confirm availability before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the S8VK-G24024

Community sentiment toward the S8VK-G family across automation forums — including PLCTalk, PLCS.net, MrPLC, Reddit's r/PLC and r/automation communities, and distributor Q&A sections — is consistently positive on the core question of reliability. Users routinely describe these supplies as fit-and-forget components that run quietly in standard panel environments for years without intervention. Compact physical size and smooth coexistence with Omron PLCs and non-Omron devices alike are recurring praise points. The 240 W class does not generate the complaints about heat or nuisance tripping that underrated supplies attract, provided the unit is sized with real margin and installed with adequate ventilation.

Where community discussion gets more cautious is around thermal management at higher loads and the specifics of parallel or redundant operation. Several forum threads note that units running close to their full rated output in enclosures with limited airflow can run warmer than expected — not a defect, but a reminder that the S8VK-G24024's rated output assumes adequate cooling conditions. Parallel operation of two units without following Omron's guidance on output sharing and protection is flagged as a known source of issues; simply tying outputs together without the correct redundancy hardware is not supported and can cause problems that are avoidable with proper planning.

The most consistent engineering feedback centers on variant confusion during ordering. Because the S8VK-G family spans multiple output voltages and wattage classes with similar-looking catalog numbers, ordering mistakes occur — primarily confusing the 120 W S8VK-G12024 with the 240 W S8VK-G24024, selecting a 12 V output variant instead of 24 V, or assuming DC input compatibility across the entire family without checking the specific model. When community data for a specific part is limited, the right move is to consult a specialist distributor who can validate the selection against your actual load profile and installation requirements before the order ships. That is exactly the kind of pre-order support the LeadTime.ca team provides.

Wiring and Installation Overview

The following points cover the key requirements for mounting and connecting the S8VK-G24024. For complete wiring diagrams, terminal torque values, and step-by-step procedures, refer to the current Omron S8VK-G installation manual.

  • Mount the unit on a standard DIN rail in the orientation and with the clearances specified in Omron documentation; the 240 W class unit requires more panel space and depth than lower-wattage models and needs adequate air circulation around the housing
  • Connect single-phase AC input to the correct L, N, and PE terminals using wire sized for the full input current; for DC input applications, observe polarity and confirm the input voltage is within the supported DC range from the current datasheet
  • Install appropriately sized external fuses or circuit breakers on the input side as required by Omron documentation and applicable electrical codes — the S8VK-G24024 has no integrated circuit breaker
  • Connect 24 VDC output terminals to a distribution block or directly to loads, using wire gauge appropriate for the full 10 A output current and tightening terminals to the torque values specified in the Omron datasheet
  • After energizing, verify the DC OK LED status indicator and measure the output voltage under load to confirm correct operation before connecting all downstream devices

Wrong-Part Prevention Checklist

Before finalizing your order for the S8VK-G24024, work through every item on this checklist. These are the most common sources of wrong-part orders and installation problems for this product family.

  1. Confirm required output voltage is 24 VDC; do not use this model for 5 V, 12 V, or 48 V loads without separate conversion.
  2. Verify total continuous DC load plus inrush and peak demand stays within 10 A / 240 W with adequate margin.
  3. Check input supply is single-phase within the supported AC or DC voltage range; not suitable for direct three-phase-only mains without proper connection.
  4. Confirm DIN rail space and panel depth clearance for this wattage class; higher-wattage units are physically larger than 15–60 W models.
  5. Confirm operating ambient temperature and enclosure cooling allow operation within the S8VK-G specified temperature range without derating.
  6. Verify required approvals (UL, CE, etc.) and any specific industry standards (e.g., for machine building or export) match the S8VK-G certifications.
  7. Check whether you need parallel operation, redundancy modules, or buffer modules; this basic supply alone does not replace those functions.
  8. Ensure external input protection (fuses/breakers) and output overcurrent protection are sized and installed per Omron documentation; there is no integrated circuit breaker.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — our team can cross-reference variants and confirm the correct part for your application, ships worldwide.

Frequently Asked Questions

Can I run two S8VK-G24024 units in parallel to get more than 10 A on the same 24 VDC bus?

Parallel operation requires careful attention to Omron's specific guidance on output sharing and the use of appropriate redundancy or parallel operation hardware. Simply connecting two supply outputs together without following Omron's documented approach can cause current sharing problems or protection issues. If your application needs more than 10 A continuous, the S8VK-G48024 at 20 A / 480 W is usually the cleaner solution.

How close to the rated 10 A can I run the S8VK-G24024 continuously without compromising reliability?

Running any power supply at or very near its continuous rated output — particularly in warm enclosures — increases thermal stress and reduces service life. The practical guidance from experienced panel builders is to target no more than 70–80% of rated output as a design load, leaving headroom for inrush, future I/O additions, and thermal margin. If your calculated load regularly approaches 10 A, move to the S8VK-G48024.

What fuse or circuit breaker should I install on the input side of the S8VK-G24024?

External input protection sizing must follow Omron's installation documentation for the S8VK-G24024 and the requirements of the applicable electrical code for your installation. The S8VK-G24024 has no integrated circuit breaker, so correctly rated external protection is mandatory. Consult the current Omron S8VK-G installation manual and your local electrical code before sizing protection devices.

Does the S8VK-G24024's wide input range mean it works on DC input as well as AC?

The S8VK-G24024 does support DC input operation in addition to its wide-range AC input. The exact supported DC input voltage range must be confirmed from the current Omron datasheet for this specific model — not all S8VK variants share identical DC input specifications, so verify before designing a DC-input application.

Is the S8VK-G24024 suitable for use in higher ambient temperature environments, and how does derating apply?

The S8VK-G series carries a specified operating temperature range with a derating curve for elevated ambient temperatures — meaning the maximum continuous output current must be reduced at higher enclosure temperatures to maintain reliability. The exact derating profile for the S8VK-G24024 is in the Omron datasheet; if your enclosure regularly operates near the upper end of the specified range, factor derating into your load sizing and consider active cooling or a higher-rated supply.

Will the S8VK-G24024 work with non-Omron PLCs and automation hardware?

Yes. The S8VK-G24024 outputs a standard 24 VDC supply that is compatible with automation equipment from any manufacturer that accepts 24 VDC input within the supply's output tolerance. The Omron ecosystem fit is a convenience for panel builders using Omron PLCs, but there is no electrical or protocol dependency that limits this supply to Omron hardware only.

Why Order the S8VK-G24024 Through LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not just within North America
  • Specialist automation focus — our team can validate variant selection and cross-reference alternatives when your first-choice model has a lead time constraint
  • Sourcing hard-to-find S8VK-G variants — access to stock and order placement for non-standard or lower-volume models in the Omron S8VK-G family
  • Volume and project pricing — contact us for current pricing on larger quantities or ongoing OEM requirements
  • Fast response for urgent replacement and maintenance orders — minimizes panel downtime when a supply needs immediate replacement

At-a-Glance Summary

  • Rated output: 24 VDC, 10 A, 240 W — mid-range in the Omron S8VK-G DIN rail power supply family
  • Wide-range single-phase AC input: 100–240 VAC nominal, 85–264 VAC extended range — no tap switching required for international installations
  • DC input capability supported — confirm exact voltage range from current Omron datasheet before designing DC input applications
  • Protection functions include overcurrent, overvoltage, and overtemperature — no integrated circuit breaker; external input protection is mandatory
  • DIN rail mount form factor — physically larger than 15–60 W class units; verify panel space and depth clearance before ordering
  • Step up to S8VK-G48024 (20 A / 480 W) if load approaches 10 A or future expansion is planned; step down to S8VK-G12024 (5 A / 120 W) for lighter loads
  • Safety approvals include UL and CE — verify current certifications from Omron documentation for your specific application and export requirements
  • IP20 enclosure rating — suitable for panel-interior installation; not for direct exposure to contaminants or washdown environments
  • Best-fit buyer profile: controls engineers and OEM panel builders specifying a reliable, mainstream 24 VDC bus supply for small-to-medium automation panels
