Omron S8VK-C12024 — 24V 5A DIN Rail Power Supply Buyer Review

By Abdullah Zahid
14 min read

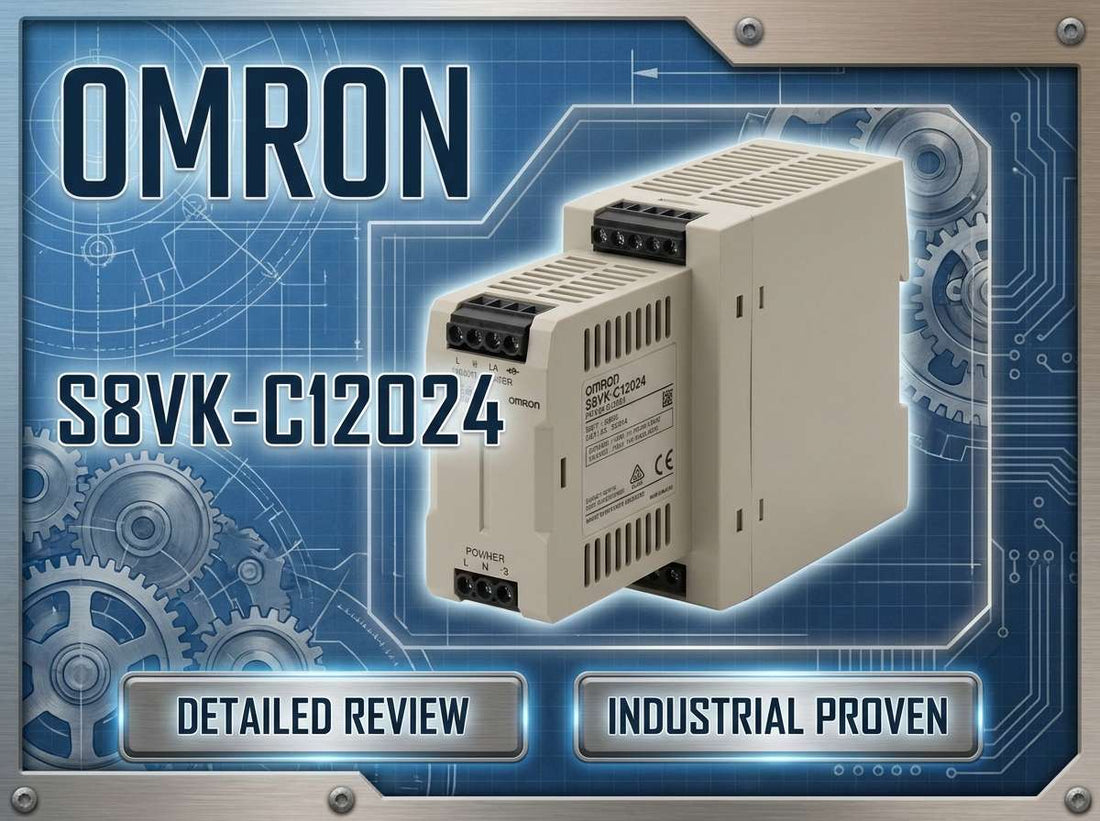

Omron S8VK-C12024 24 VDC 5 A 120 W switch mode DIN rail power supply for industrial control panels

Omron S8VK-C Switch Mode Power Supply, 24 VDC, 5 A, 120 W — Complete Buyer Review and Selection Guide

Controls engineers specifying 24 VDC panel power have a straightforward decision at the 120 W mark: pick a recognizable brand with solid approvals and a compact DIN rail footprint, or pay more for features the application may not need. The Omron S8VK-C12024 is a single-phase AC-DC switching power supply that converts 100–240 VAC to a regulated 24 VDC output at up to 5 A continuous, housed in a book-style enclosure that mounts directly on a 35 mm DIN rail. It belongs to Omron's S8VK-C Lite family and carries the UL, CSA, and EN compliance most North American and international panel builders require.

If you have already confirmed this is the right part for your BOM, check current pricing and availability for the Omron S8VK-C12024 at LeadTime.ca — ships worldwide.

Who Should Buy the Omron S8VK-C12024 — and Who Shouldn't

This power supply is the right specification for controls engineers and panel builders who need a reliable 24 VDC supply from a recognized automation brand, are working within standard ambient conditions, and do not require advanced diagnostics or redundancy. Confirm all of the following before ordering:

  • Your output requirement is 24 VDC at 5 A or less, with total continuous load not exceeding 120 W after applying temperature derating for your enclosure conditions.
  • Your input supply is single-phase 100–240 VAC, 50/60 Hz — or falls within the permitted DC input range of approximately 90–350 VDC.
  • Your panel has space for a DIN rail-mounted book-style enclosure and sufficient depth and clearance for airflow around the unit.
  • Your ambient operating temperature is within the specified range of approximately -25 °C to +60 °C, and you have reviewed Omron's derating curve for your installation's upper temperature.
  • Your project's panel certification requirements are satisfied by UL, CSA, and EN approvals, including EMC compliance to EN55011 Class A.

If your total load exceeds 120 W, if you need a DC-OK relay output or parallel redundancy support, or if your environment exceeds the rated temperature range, consider a higher-wattage S8VK-C variant or a more feature-rich Omron S8VK series before ordering.

On this page:

What the Omron S8VK-C12024 Actually Does in a Control System

The S8VK-C12024 is an AC-DC switch mode power supply whose job is to take whatever single-phase mains voltage arrives at the panel — anywhere from 100 VAC to 240 VAC — and deliver a stable, regulated 24 VDC bus at up to 5 A continuous. That 24 V bus is the heartbeat of most modern industrial control panels: it powers the PLC CPU, I/O modules, HMI screens, relay coils, proximity sensors, solenoid valves, and safety relays. The supply belongs to Omron's S8VK-C Lite series, which positions it as a cost-conscious, mainstream-approved option rather than a premium diagnostics-heavy supply.

The book-style DIN rail housing is important to panel designers working with limited enclosure depth. The double DC output terminals — both positive and negative — are a practical feature that simplifies multi-drop wiring without adding terminal blocks. The wide input range also means the same catalog number can be specified across facilities running 120 VAC North American supply or 230 VAC European supply, reducing the number of variants a panel shop needs to stock. According to Omron documentation, the S8VK-C Lite series meets key industrial safety and EMC standards including UL, CSA, and EN compliance, which is the minimum approval set most UL508A panel integrators and CE machinery builders need.

Typical System Architecture and Signal Chain

In a standard control panel, the S8VK-C12024 sits between the incoming single-phase AC branch circuit and the 24 VDC distribution bus that feeds every low-voltage device in the cabinet. Understanding its position helps verify whether 5 A and 120 W are genuinely sufficient for the downstream load.

  • Upstream: Single-phase 100–240 VAC branch circuit with an upstream fuse or MCB sized for the input current draw of the supply.
  • Power supply: Omron S8VK-C12024 converts AC to regulated 24 VDC, with overload, overvoltage, and short-circuit protection internal to the unit.
  • Distribution: 24 VDC output terminals feed a distribution terminal block or bus bar that branches to each device group.
  • Primary loads: PLC CPU rack and I/O modules, HMI, safety relay modules, and relay output coils — typically the largest continuous current draw.
  • Secondary loads: Proximity sensors, pushbutton indicators, solenoid valve coils, and signal conditioning devices drawing smaller but cumulative currents.

Where the S8VK-C12024 Gets Installed: Industries and Use Cases

The S8VK-C12024 is most at home in small to mid-size machine control panels where the total 24 VDC load is well below 120 W and panel depth is constrained. OEM machine builders in packaging, assembly, material handling, and food and beverage machinery are a natural fit — these machines typically run compact PLC systems with a moderate I/O count and benefit from a supplier-recognized brand name on the BOM without the cost of a premium diagnostics supply.

For maintenance and MRO teams, the S8VK-C12024 is a practical replacement candidate when an existing 24 V 5 A DIN rail supply fails and the panel has similar dimensional constraints. The universal input range means it will accept the existing wiring in nearly any facility worldwide without adjustment. Controls engineers retrofitting older equipment or adding a new machine section to a production line also use this supply to power distributed I/O cabinets where running a larger supply back from a central panel is impractical.

Building automation and HVAC control panels that require UL and CSA approvals but operate in standard office or mechanical room environments also fall within the application envelope. Similarly, small process skids destined for export benefit from the EN compliance and wide input range, which simplifies customs and installation documentation in multiple regions.

Application Typical Deployment
OEM packaging machine 24 VDC supply for PLC CPU, I/O modules, and HMI in a compact machine enclosure
UL508A industrial control panel Control power brick for relay logic, safety circuits, and sensors in a panel shop build
Distributed I/O cabinet on a production line Local 24 V bus for remote I/O drops where running long DC runs from a central supply is not practical
MRO replacement in existing equipment Direct replacement for a failed 24 V 5 A DIN supply where footprint and wiring configuration match
Process skid for export Control power supply for a skid-mounted panel destined for international installation, using the wide 100–240 VAC input range
Building automation and HVAC controls 24 VDC supply for controllers, actuators, and sensors in standard indoor mechanical room environments

Purchase-Decision Specifications and Variant Comparison

Parameter Value
Output voltage 24 VDC nominal
Output current 5 A
Output power 120 W continuous (apply derating at elevated ambient temperatures)
Input voltage range (AC) 100–240 VAC, 50/60 Hz, single-phase
Input voltage range (DC) Approximately 90–350 VDC
Mounting 35 mm DIN rail, book-style enclosed housing
DC output terminals Double positive and negative terminals for multi-drop wiring
Operating temperature Approximately -25 °C to +60 °C (consult derating curve for upper range)
Protection features Overload, overvoltage, and short-circuit protection
Approvals UL, CSA, EN compliance including EMC to EN55011 Class A

Full technical specifications are available on the product page at LeadTime.ca.

The S8VK-C family spans several wattage points at 24 VDC, and the correct model depends on your calculated load, derating requirements, and any need for advanced features. The table below maps the key decision points across the family.

Model Output Power Rating Feature Level Typical Use Case
S8VK-C06024 24 VDC / 2.5 A 60 W S8VK-C Lite Small PLC or sensor-only panels with low total load
S8VK-C12024 24 VDC / 5 A 120 W S8VK-C Lite Standard small to mid-size machine panels
S8VK-C24024 24 VDC / 10 A 240 W S8VK-C Lite Mid-size panels with higher I/O count or larger HMIs
S8VK-C48024 24 VDC / 20 A 480 W S8VK-C Lite Large machine panels or multi-section distributed loads
Omron S8VK-G series 24 VDC (various) Various Premium / diagnostics Applications requiring DC-OK relay output, redundancy, or higher diagnostics

If your total calculated load — including inrush margin and temperature derating — brings you within 10–15% of the 120 W nameplate, the S8VK-C24024 is the correct step up. Check current availability for the full S8VK-C family at LeadTime.ca.

Expert Verdict: Is the S8VK-C12024 the Right Supply for Your Panel?

The Omron S8VK-C12024 earns its place in a BOM when the requirement is straightforward: 24 VDC at 5 A, DIN rail mounted, from a recognized automation brand, with approvals that satisfy both UL508A panel integrators and CE machinery directives. Controls engineers and OEM machine builders who are already standardizing on Omron components get a consistent vendor relationship, a familiar commissioning experience, and a supply that covers the universal 100–240 VAC input range without needing region-specific variants. The double DC output terminals reduce terminal block count in crowded panels, and the compact book-style housing fits in enclosures where deeper power supplies create layout conflicts.

Where the S8VK-C12024 has real limits is outside that comfortable middle ground. If the application calls for a DC-OK relay output to feed a PLC fault input, that feature is not a given in the S8VK-C Lite series — engineers who need that signal should evaluate the Omron S8VK-G premium family before specifying. Similarly, if the ambient temperature inside the enclosure routinely approaches or exceeds the upper end of the rated range, or if the panel is sealed with limited ventilation, the 120 W continuous rating will derate and a higher-wattage model becomes the safer choice. Applications with strong future growth potential — where the 24 V bus load may climb as I/O is added — are better served by stepping up to the S8VK-C24024 now rather than replacing the supply after commissioning.

From a procurement standpoint, the S8VK-C12024 is a standard catalog item in the Omron power supply line, which means it benefits from the sourcing predictability of a mainstream product rather than an exotic specification. Lead times on standard Omron power supply catalog items are generally more predictable than on premium or specialty units, but availability can tighten during supply chain disruptions — making a relationship with a specialist industrial distributor valuable before you commit to a build schedule. For current pricing, confirmed stock status, and volume availability, visit the Omron S8VK-C12024 product page at LeadTime.ca — we ship worldwide and can confirm lead times before you lock in your BOM.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the S8VK-C12024

Model-specific field reports for the S8VK-C12024 in public automation forums are limited. A thorough search across Reddit r/PLC, Reddit r/automation, Reddit r/industrialautomation, PLCTalk, PLCS.net, MrPLC, the Omron support community, and distributor Q&A sections returned no consistent, verifiable pattern of recurring praise, chronic complaints, or documented failure modes attributable specifically to this model or the S8VK-C family. This is not unusual for a mainstream catalog power supply — engineers who are satisfied with a standard DIN rail brick rarely post about it, and the S8VK-C12024 does not appear to have generated the kind of widespread field frustration that surfaces as forum threads.

What that absence of community data does mean is that the specification decision rests entirely on Omron's documentation and the judgment of the engineer or distributor reviewing it — there is no shortcut through crowd-sourced field experience for this particular part. The questions that experienced engineers in the broader automation community consistently raise about DIN rail power supplies of this type are directly applicable here: How carefully was the total load calculated? Was inrush from contactor coils, valve solenoids, and capacitive HMI inputs included? Was the Omron derating curve checked for the actual maximum enclosure temperature, not just the nameplate operating range? These are the questions that determine whether a 120 W supply performs reliably for five-plus years or gets replaced in eighteen months.

When forum data is sparse, the most effective risk mitigation is a direct conversation with a distributor who has handled enough industrial power supply specifications to recognize the gaps in a BOM review. The wrong-part checklist below captures the eight most common specification errors engineers make with DIN rail power supplies in this class — work through it before the purchase order is placed, not after the panel is wired.

Wiring and Installation Overview

The S8VK-C12024 mounts on a standard 35 mm DIN rail. The following points cover the key requirements engineers should verify before and during installation. Full wiring procedures, torque values, and terminal diagrams are in the Omron installation documentation for this series.

  • Mount the supply in the recommended orientation on a 35 mm DIN rail, maintaining the minimum clearance specified by Omron above, below, and to the sides of the unit to allow adequate airflow and prevent thermal derating.
  • Connect input terminals — line, neutral, and protective earth — using wire gauge and an upstream fuse or MCB correctly sized for both the input current of the supply and the fault current rating of the panel.
  • Use both sets of double positive and negative output terminals to distribute 24 VDC loads, keeping total output current at or below 5 A continuous and accounting for any simultaneous inrush from contactors, solenoids, or capacitive loads at startup.
  • Tighten all terminals to the torque values in the Omron datasheet and label input and output conductors clearly — correct labeling is critical for maintenance and replacement without rewiring errors.
  • After energizing, measure the output voltage under actual load conditions and verify it is stable at the nominal 24 VDC before commissioning the connected PLC, I/O, or HMI devices.

Wrong-Part Prevention Checklist Before You Order

Work through every item on this checklist before submitting a purchase order for the Omron S8VK-C12024. These checks prevent the most common and costly misorders for DIN rail power supplies in this class.

  1. Confirm you need 24 VDC output and that 5 A / 120 W is sufficient with derating and startup inrush of loads.
  2. Verify input supply is single-phase 100–240 VAC (or suitable DC input) and that system does not require 3-phase input.
  3. Check mechanical space: confirm DIN rail space and panel depth fit the S8VK-C12024 housing.
  4. Confirm environmental conditions (ambient temperature, enclosure ventilation) are within Omron's specified range, including derating curves.
  5. Verify required approvals (UL508, CSA, EN, etc.) match your panel and end-user requirements.
  6. Confirm whether you need features like DC-OK signaling; if so, verify this specific Lite model provides what you need or consider another Omron series.
  7. Ensure external protection (fuses/circuit breakers) and wiring gauge are correctly sized for 5 A output and input current.
  8. Confirm regional availability and lead time for Canada / North America before committing to the design.

If any item on this checklist is unresolved, contact the LeadTime.ca team before ordering — we can validate the specification against your application requirements and confirm stock and lead time worldwide.

Frequently Asked Questions

Is the S8VK-C12024 a drop-in replacement for an existing 24 V 5 A DIN rail power supply from another brand?

It can be, but drop-in compatibility depends on three things: the physical housing dimensions fitting the existing DIN rail space and panel depth, the terminal layout accepting the existing wire sizes and gauges without rewiring, and the approval markings on the replacement matching what the original panel certification requires. Confirm all three against the Omron datasheet and your original panel documentation before ordering a replacement unit.

How do I correctly size the S8VK-C12024 for a PLC and I/O system without running too close to the 120 W limit?

Start by listing every 24 VDC load — PLC CPU, I/O cards, HMI, relay coils, valve solenoids, sensors — and summing their steady-state current draw. Add a margin for inrush from capacitive and inductive loads at startup, then apply Omron's derating factor for your enclosure's maximum ambient temperature. If the derated available power is within 15% of your calculated load, step up to the S8VK-C24024 at 240 W rather than operating the S8VK-C12024 at its practical ceiling.

What happens at temperatures approaching the upper limit of the operating range — does the supply shut down or derate?

Omron specifies a derating curve for the S8VK-C series that reduces the available continuous output power as ambient temperature rises toward the upper end of the approximately -25 °C to +60 °C range. Operating above the derated limit increases thermal stress on internal components and can cause the supply's protection circuits to trigger, resulting in shutdown. Always consult the derating curve in the Omron datasheet and size the supply so that the derated output still exceeds your calculated load at the highest expected enclosure temperature.

Does the S8VK-C12024 include a DC-OK relay output for PLC fault monitoring?

The S8VK-C Lite series is positioned as a cost-conscious offering, and advanced features such as DC-OK relay output signals are not confirmed as standard in this family. If your control system design requires a hardwired DC-OK signal to a PLC input for power supply fault detection, evaluate the Omron S8VK-G premium series or confirm directly with Omron documentation whether this feature is available on the specific S8VK-C12024 variant before specifying it.

What are the first checks to perform if the S8VK-C12024 stops producing 24 VDC output?

De-energize the system and inspect visually for loose input or output terminals, signs of overheating, or obvious physical damage. Re-energize and measure input voltage at the supply terminals to confirm it is within the 100–240 VAC specified range. With input confirmed, disconnect all output loads and measure the unloaded 24 VDC output — if the supply recovers with no load, the cause is likely overload or a downstream short circuit that needs to be isolated before the supply is returned to service. If output is absent with no load and correct input voltage, the unit requires replacement.

How do approvals on the S8VK-C12024 satisfy UL508A panel certification requirements?

UL508A-listed control panels require that major components including power supplies carry recognized third-party safety listings appropriate for industrial use. The S8VK-C12024 carries UL and CSA approvals along with EN compliance including EMC to EN55011 Class A, which satisfies the component approval requirements for UL508A panels in North America and CE-marked machinery for export. Confirm that the approval markings on the physical unit and the Omron datasheet match the specific revision your panel certification requires before final BOM submission.

Why Order From LeadTime.ca

  • LeadTime.ca ships Omron automation products worldwide — no geographic restrictions on orders.
  • Specialist industrial focus means stock visibility and lead time confirmation are available before you commit to a build schedule, not after.
  • Volume pricing available for OEM panel builders and integrators ordering multiple units per project or maintaining a spares inventory.
  • Application-level support for power supply sizing and variant selection — confirmation that the S8VK-C12024 is the correct wattage and series for your specific panel before the order is placed.
  • Hard-to-find Omron catalog items and regional availability checks for Canada and North America included as part of the ordering process.

At-a-Glance Summary

  • Output: 24 VDC, 5 A, 120 W continuous — apply Omron's derating curve for ambient temperatures approaching +60 °C.
  • Input: 100–240 VAC single-phase, 50/60 Hz, with a DC input range of approximately 90–350 VDC for universal global deployment.
  • Mounting: 35 mm DIN rail, book-style compact housing with double positive and negative DC output terminals.
  • Approvals: UL, CSA, EN compliance including EMC to EN55011 Class A — satisfies UL508A and CE panel requirements.
  • Part of the Omron S8VK-C Lite family — cost-conscious, mainstream-approved, without advanced diagnostics or DC-OK relay outputs of premium series.
  • Best fit: OEM machine builders and panel shops needing a standard 24 V 5 A supply with recognized brand approvals at a mid-range price point.
  • Step up to S8VK-C24024 (240 W) if derated load is within 15% of 120 W, or to S8VK-G series if DC-OK signaling or redundancy modules are required.
  • Wrong-part checklist has 8 mandatory verification steps — complete all before submitting a purchase order.
