Omron PYF14A-E Relay Socket — MY4 Compatibility & Buying Guide

By Abdullah Zahid
13 min read

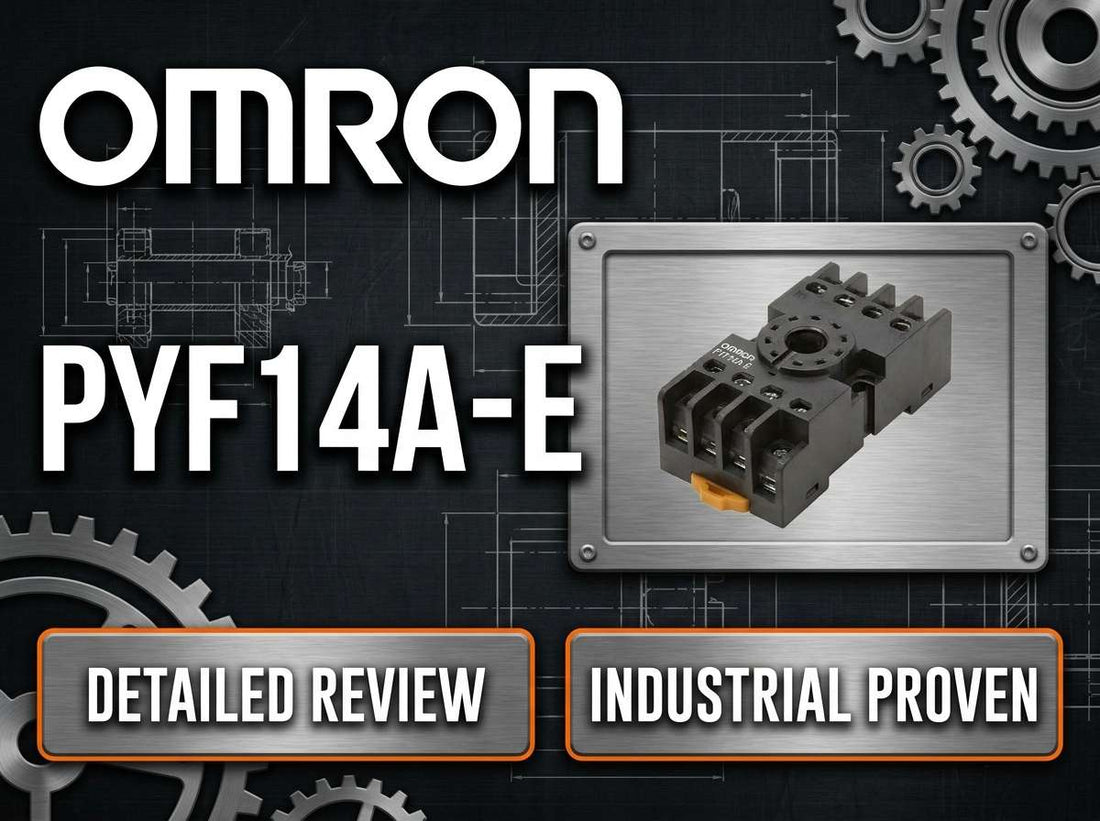

Omron PYF14A-E 14-pin DIN rail relay socket with screw terminals for MY4 general-purpose relay in industrial control panel

Omron PYF14A-E Socket, DIN Rail/Surface Mounting, 14-Pin, Screw Terminals, for MY4 General-Purpose Relay — Specs, Compatibility & Buying Guide

Controls engineers and panel builders searching for the Omron PYF14A-E are typically at the same decision point: they have an Omron MY4-series plug-in relay specified and need the correct 14-pin socket to match it. The PYF14A-E is a DIN rail and surface mount relay socket with screw terminals, rated in the 250 VAC / 5 A class, and designed to accept Omron MY4, MY4H, and MY4-GS family relays. The key question is not whether this socket works — it does, reliably — but whether this specific variant is the right one for your mounting method, terminal preference, and long-term sourcing plan.

If you have already confirmed the PYF14A-E is the correct part for your application, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the Omron PYF14A-E — and Who Should Look at Alternatives

This socket is the right choice if your panel design meets all of the following criteria:

  • You are mounting Omron MY4, MY4H, or MY4-GS series plug-in relays that require a 14-pin base
  • Your panel layout uses standard DIN rail mounting or allows surface/panel mounting with screws
  • Your wiring standard calls for screw terminals with front access — not push-in or spring-clamp connections
  • Your load falls within the 250 VAC / 5 A class rating with appropriate derating applied
  • You need IEC/VDE-compliant insulation performance, including a minimum 100 MΩ insulation resistance at 500 VDC

If your application requires panel-only mounting without DIN rail, push-in terminals, higher current capacity, or a different relay family such as G2R or LY, this is not the correct socket. In those cases, review the PTF14A-E for panel mount or the PYF14A-N for a current-variant DIN rail alternative before ordering.

On this page:

What the Omron PYF14A-E Actually Does Inside a Control Panel

The Omron PYF14A-E is not a relay — it is the wiring infrastructure that makes plug-in relay replacement possible without touching a single field wire. It accepts the 14 pins of an MY4-family relay into a fixed socket body that is permanently wired into the panel. When a relay fails or requires testing, a technician pulls it out and inserts a replacement in seconds. The socket absorbs all the mechanical wear from insertions and removals, protecting the relay contacts and the field wiring terminations from repeated stress.

The socket provides two functions simultaneously: it is the mechanical mount that holds the relay securely in position under vibration, and it is the electrical interface that connects the relay coil and four sets of contacts to the conductors running to the PLC output, the load, and the power supply. The screw terminals on the PYF14A-E accommodate front-access wiring, which matters in dense panels where rear access is limited or impossible. The 250 VAC / 5 A class rating aligns the socket with the contact ratings of the MY4 relay series it is designed to carry.

The socket itself does not provide overcurrent protection. External fusing or a circuit breaker correctly sized to the relay and load combination is required in every installation.

Typical System Architecture: Where the PYF14A-E Sits in the Signal Chain

The PYF14A-E sits between the control system output and the field load, acting as the fixed wiring base for the relay that switches power to the load. A typical signal chain looks like this:

  • PLC or controller output card — provides the discrete 24 VDC or 120 VAC coil drive signal
  • Field wiring conductors — run from the controller output to the PYF14A-E coil terminals on the socket
  • Omron PYF14A-E socket body — fixed on DIN rail, permanently wired; accepts the MY4 relay
  • Omron MY4 / MY4H / MY4-GS relay — plugs into the socket, switching the load circuit via its four contact poles
  • Load conductors — run from the socket contact terminals to the field device (motor starter, solenoid valve, pilot light, or similar)

Typical Applications and Deployment Scenarios

In new OEM control panels, the PYF14A-E provides the standard DIN rail relay interface for interposing relays between PLC output cards and field loads. Panel builders clip a row of sockets onto the DIN rail during build, wire them before relays are inserted, and drop in MY4 relays during final assembly or commissioning. This approach is common in packaging machinery, material handling systems, and machine tool control cabinets.

Process industry panels for water and wastewater treatment, food and beverage production, HVAC systems, and utilities frequently use PYF-series sockets as the standard relay base in motor control centers, valve actuator panels, and alarm annunciator circuits. The 5 A class rating is adequate for the majority of control circuit loads in these environments.

For MRO and maintenance operations, the PYF14A-E is a critical spare. A damaged socket can be unclipped from the DIN rail and replaced in minutes, with field wiring transferred to the new socket terminal by terminal, without requiring a schematic in hand — provided the maintenance team follows a careful, methodical transfer process and verifies wiring against documentation afterward.

Small junction boxes and control enclosures where a compact 4-pole relay-and-socket combination is needed also use the PYF14A-E, taking advantage of its surface mount option where DIN rail is not available.

Application Typical Deployment
OEM packaging or material handling panel DIN rail row of PYF14A-E sockets wired during build; MY4 relays inserted at commissioning
Process industry motor control or valve panel PYF14A-E sockets as standard interposing relay bases between PLC outputs and field actuators
HVAC control cabinet MY4 relay on PYF14A-E for switching fan contactors, damper actuators, or alarm circuits
MRO spare parts program PYF14A-E stocked as replacement for existing panels standardized on PYF/MY4 combinations
Small junction box or control enclosure Surface-mounted PYF14A-E where DIN rail is unavailable; 4-pole switching for compact loads

Specifications That Drive the Purchase Decision

Parameter Value Notes
Brand Omron Industrial Automation PYF series relay socket
Model / Catalog Number PYF14A-E Exact Omron catalog casing
Applicable relay family Omron MY4 / MY4H / MY4-GS 14-pin, 4-pole plug-in relays
Number of pins 14 4 poles plus coil terminals
Rated voltage class 250 VAC class Per associated relay rating
Rated current class 5 A class per contact External overcurrent protection required
Insulation resistance 100 MΩ minimum at 500 VDC Between live parts and accessible metal parts
Mechanical operating rate 18,000 operations/hour For relay/socket combination
Electrical operating rate 1,800 operations/hour under rated load Real-load duty cycle rating
Mounting method DIN rail and surface/panel mounting Terminal type: screw, front access

Full technical specifications are available on the product page at LeadTime.ca.

PYF14A-E vs PYF14A-N vs PTF14A-E: Which One Do You Actually Need?

Model Pin Count Mounting Terminal Style Key Consideration
PYF14A-E 14 DIN rail and surface mount Screw terminals Standard variant; verify lifecycle status with distributor
PYF14A-N 14 DIN rail and surface mount Screw terminals Current active variant; preferred for new designs where lifecycle is a concern
PTF14A-E 14 Panel/surface mount only Screw terminals Use when DIN rail is not available; not for DIN rail panels

If you are designing a new panel and your distributor shows limited availability on the PYF14A-E, the PYF14A-N is the natural successor to evaluate first — check current stock and lead time for both variants at LeadTime.ca before freezing your BOM.

Expert Verdict: Is the Omron PYF14A-E Worth Specifying Today?

The Omron PYF14A-E is precisely what its specification says it is: a 14-pin, DIN rail and surface mount relay socket with screw terminals for the MY4 relay family, rated at 250 VAC / 5 A class, with 100 MΩ minimum insulation resistance and mechanical endurance rated at 18,000 operations per hour. For OEM panel builders, controls engineers, and MRO teams who are already standardized on Omron MY4 or MY4H relays, this socket does its job without complication. The plug-in relay design it enables — where a failed relay can be swapped in under a minute without disturbing field wiring — is one of the most practical features in a control panel, and the PYF14A-E delivers it reliably. Engineers who have specified this socket across multiple panel generations tend to keep it as a default because it is familiar, compatible, and proven in real industrial conditions.

Where the PYF14A-E has real limits is lifecycle and terminal technology. Some distribution channels have flagged the PYF14A-E-US regional variant as obsolete or difficult to source, which creates risk for new designs with multi-year production commitments. For those programs, the PYF14A-N is the variant to evaluate as a replacement — it occupies the same functional role with DIN rail and surface mounting options. If your plant standard has shifted to push-in or spring-clamp terminals, neither the PYF14A-E nor the PYF14A-N will satisfy that requirement; you will need a socket series that matches your terminal preference. Similarly, applications requiring higher current capacity or relay families outside the MY4 class — such as G2R or LY series — require entirely different sockets and relay combinations.

From a procurement standpoint, the PYF14A-E is a commodity part, but the ordering traps around it are not trivial. The difference between a PYF14A-E, a PYF14A-N, and a PTF14A-E is not immediately obvious from a catalog number alone, and mismatches in mounting method or regional approval suffix have caused real-world panel build delays. A specialist automation distributor who can verify current lifecycle status, confirm exact variant availability, and cross-reference against the correct successor part is measurably more useful here than a general catalog channel. View current availability and pricing for the Omron PYF14A-E at LeadTime.ca — we ship worldwide and can advise on alternatives when stock is constrained.

For volume pricing, MRO stocking programs, or to confirm lead time before committing your build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the PYF14A-E

Model-specific community discussion on the Omron PYF14A-E is sparse across the forums engineers typically use — r/PLC, PLCTalk, PLCS.net, MrPLC, and major distributor Q&A sections. This is entirely normal for a commodity relay socket. Hardware that works reliably and installs predictably does not generate forum threads. What the community does discuss, at the PYF and MY relay family level, is informative: Omron PYF and MY combinations are frequently described as default, standard hardware in mixed-brand cabinets. The reason is simple — the plug-in relay architecture means a failed relay can be replaced without disturbing wiring, which matters enormously during an unplanned maintenance event on a production line.

Where community discussions do surface problems, they center on three recurring patterns rather than inherent product defects. First, ordering the wrong socket: buying an 8-pin or 11-pin socket when a 14-pin MY4 base is required is the most common sourcing mistake mentioned across general relay-socket discussions. Second, mounting-method confusion: ordering a panel-mount socket like the PTF14A-E when the panel is built around DIN rail, or the reverse. Third, part-number suffix confusion: the difference between PYF14A-E, PYF14A-N, and regional suffix variants such as -US is not self-evident from the catalog number alone, and at least one distribution channel flags the PYF14A-E-US as obsolete or limited. Engineers who have been caught by this report it as a minor but time-consuming redesign problem when it surfaces late in a project.

The practical advice from experienced panel builders is consistent: cross-check the relay model against the socket's applicable relay list before ordering, confirm the exact mounting method the panel requires, verify terminal style against plant wiring standards, and contact your distributor to confirm lifecycle status before any new design freeze. For applications where the community is quiet and manufacturer documentation is the primary source, working with a specialist distributor who actively tracks Omron lifecycle changes is the most reliable way to avoid a last-minute sourcing problem. LeadTime.ca maintains current inventory intelligence across the Omron PYF family and can flag obsolescence concerns before they become a build delay.

Wiring and Installation Overview

The following points cover what to verify and prepare before installation. Full wiring procedures and torque specifications are available in the Omron PYF series datasheet.

  • De-energize all circuits in the panel and verify absence of voltage before mounting or wiring the socket
  • Clip the PYF14A-E onto a standard DIN rail from the top and press until it snaps securely; for surface mounting, use the appropriate screw fixing method per the Omron datasheet for the -E variant
  • Route conductors to the correct terminals by mapping coil and contact terminal numbers against the MY4 relay pinout diagram; confirm wiring against the panel schematic before tightening
  • Tighten each screw terminal to the torque specified in the Omron datasheet and perform a gentle tug test on each conductor to confirm secure connection; under-torqued terminals are the most common cause of intermittent faults on relay sockets
  • Insert the MY4-family relay into the socket with pins aligned to the 14-pin base, confirm full seating, add a hold-down clip if your panel standard requires it, then energize and verify relay coil operation and contact switching under initial load

Wrong-Part Prevention Checklist

Before placing your order for the Omron PYF14A-E, work through each item on this checklist. Every item represents a documented ordering mistake in the field.

  1. Confirm relay type: this socket is for 14-pin MY4-type Omron relays; do not mix with 8-pin MY2 or other relay families.
  2. Verify pin count and layout: 14-pin plug-in relay base, not 8-pin or 11-pin.
  3. Check mounting requirement: DIN rail or surface mount; if you need panel-only or PCB mount, choose the correct variant (e.g., PTF14A).
  4. Confirm terminal style: screw terminals; if plant standard is push-in or spring clamp, use matching socket series.
  5. Verify contact load: ensure 5 A / 250 VAC class rating is adequate for your load and derating; use external protection as required.
  6. Verify approvals and region: confirm the exact PYF14A-E or PYF14A-E-US variant your standards and regional approvals require.
  7. Check lifecycle status: some distributors mark PYF14A-E-US as obsolete; verify availability and consider PYF14A-N or other current sockets if needed.
  8. Add required accessories: hold-down clip, relay removal lever, and identification tags if your maintenance standards require them.

If any item on this checklist raises a question, contact LeadTime.ca before ordering — our team can verify compatibility, confirm lifecycle status, and recommend the correct current variant for your application.

Frequently Asked Questions

Is the Omron PYF14A-E directly compatible with MY4H relays, or only standard MY4?

The PYF14A-E is designed for the Omron MY4 relay family, which includes MY4, MY4H, and MY4-GS variants. All of these are 14-pin, 4-pole plug-in relays with the same base footprint. Confirm compatibility against the Omron PYF series datasheet for your specific relay model before installation.

What is the practical difference between the PYF14A-E and the PYF14A-N?

Both are 14-pin, DIN rail and surface mount sockets with screw terminals for the MY4 relay family. The key practical difference is lifecycle status: the PYF14A-N is the current active variant recommended for new designs, while the PYF14A-E — particularly the -E-US regional suffix — is flagged as obsolete or limited by some distribution channels. For new panel designs with long production runs, verify availability of both variants with your distributor before committing.

What happens if load current exceeds the 5 A class rating on the socket?

The 5 A class rating applies to the relay contacts, not a built-in protective device. The socket itself provides no overcurrent protection. Operating above the rated current will cause overheating of contacts and terminals, accelerated wear, and eventual failure — potentially without a trip event. External fusing or a circuit breaker sized to the load and relay combination is mandatory, and derating should be applied for elevated ambient temperatures or high duty-cycle applications.

Can I use the PYF14A-E for both DIN rail and surface mounting in the same panel build?

Yes. The PYF14A-E supports both DIN rail mounting and surface/panel mounting with screws. Confirm the exact mounting method and hardware requirements for the surface mount option in the Omron PYF series datasheet for the -E variant before building panels with mixed mounting methods.

The PYF14A-E variant I need is showing limited availability — what should I do?

First, confirm whether the PYF14A-N is an acceptable substitute for your relay model, mounting method, and approvals requirements. If you are sourcing for MRO on existing equipment, contact a specialist automation distributor who can check multiple channels and locate remaining stock. If availability is structurally constrained, evaluate the PYF14A-N as the designed-in replacement for new and reorder quantities, and update your BOM and documentation accordingly before the next panel build.

How often should relay socket terminal screws be re-tightened in high-vibration installations?

Terminal screw re-tightening frequency depends on the severity of vibration and the initial installation torque. The general guidance from Omron PYF series documentation is to follow a preventive maintenance schedule that includes terminal inspection and re-torquing to the datasheet specification, particularly on machinery subject to continuous vibration such as compressors, conveyors, and motor-driven equipment. Including terminal checks in scheduled maintenance intervals — rather than waiting for an intermittent fault — is the lowest-risk approach.

Why Order the Omron PYF14A-E Through LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships industrial automation components worldwide, not only within North America
  • Lifecycle intelligence — our team actively tracks Omron PYF family availability and can flag when specific variants shift from active to limited or obsolete status before it affects your build schedule
  • Cross-reference support — if the PYF14A-E is constrained, we can confirm whether the PYF14A-N or another current variant is the correct substitute for your relay model and mounting requirements
  • Volume and MRO pricing — contact us for quantity pricing on panel builds or stocking programs

At-a-Glance Summary

  • Model: Omron PYF14A-E — 14-pin relay socket for MY4 / MY4H / MY4-GS plug-in relays
  • Mounting: DIN rail and surface/panel mount; screw terminals with front wiring access
  • Electrical class: 250 VAC / 5 A per contact; insulation resistance 100 MΩ minimum at 500 VDC
  • Mechanical endurance: 18,000 operations per hour; electrical endurance under rated load: 1,800 operations per hour
  • External overcurrent protection is required — the socket provides no built-in protection
  • Lifecycle caution: PYF14A-E-US flagged as obsolete or limited by some distributors; verify availability before design freeze
  • Primary alternative for new designs: PYF14A-N (current active DIN rail/surface mount variant with screw terminals)
  • Panel-only mount alternative: PTF14A-E (no DIN rail; surface/panel screw mounting)
  • Key ordering traps: pin count mismatch (8-pin or 11-pin vs 14-pin), mounting method confusion, and regional suffix differences
  • Available through LeadTime.ca with worldwide shipping and lifecycle cross-reference support
