Omron PTF08A-E Relay Socket — LY1/LY2 Finger-Safe Buying Guide

By Abdullah Zahid
14 min read

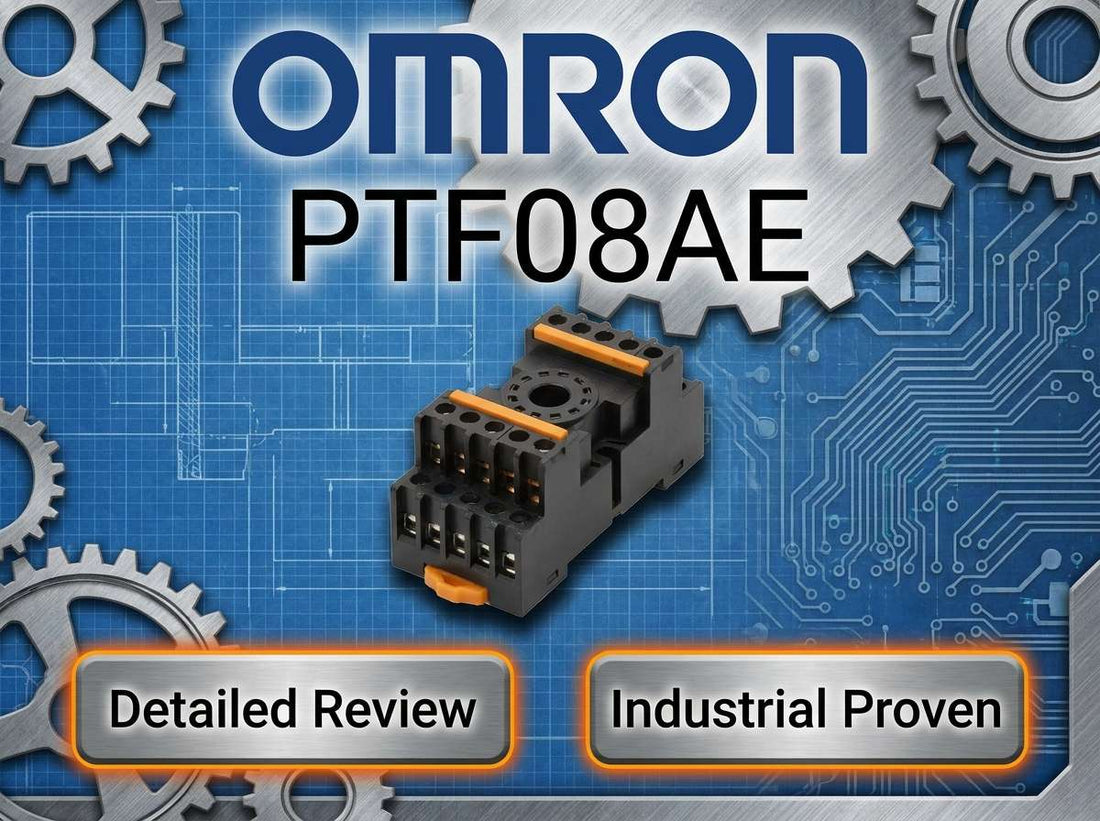

Omron PTF08A-E 8-pin finger-safe relay socket for LY1 LY2 general-purpose relays in industrial control panel

Omron PTF08A-E 8-Pin Relay Socket with Finger Protection for LY General-Purpose Relays: Specs, Wiring Overview, and Buying Guide

Controls engineers and panel builders specifying Omron LY1 or LY2 general-purpose relays need a socket that matches exactly — right pin count, right terminal style, and the finger-protection compliance that modern panel standards increasingly demand. The Omron PTF08A-E is the manufacturer-approved 8-pin relay socket with finger protection built specifically for the LY relay series, providing the mechanical mounting base and field wiring interface that makes relay replacement fast and safe without disturbing panel wiring. If you are confirming compatibility and need current pricing before raising a purchase order, check availability directly on the product page.

If you have already confirmed this is the correct part, check current pricing and availability for the Omron PTF08A-E at LeadTime.ca — ships worldwide.

Who Should Buy the Omron PTF08A-E — and Who Should Not

The Omron PTF08A-E is the right socket when all of the following apply to your project:

  • Your relay is an Omron LY1, LY2, or another specified LY-series general-purpose plug-in relay — not MY, G2R, or any other family.
  • Your relay is 8-pin. If your LY relay is 11-pin (LY3 or LY4), you need the PTF11A-E, not this part.
  • Your panel safety standards, customer specification, or facility compliance rules require finger-safe terminal design — the "-E" suffix designates exactly that feature.
  • Your enclosure supports DIN rail or panel mounting as provided by this socket.
  • Your wiring and approval requirements align with the screw terminal style and regional certifications (UL, CSA, IEC) listed in the Omron datasheet.

If your design uses LY3 or LY4 relays, you need the PTF11A-E. If finger protection is not required and space is tight, the PTF08A (without the -E) may be considered. If you are working with MY-series relays, the PYF socket family applies instead.

On this page:

What the Omron PTF08A-E Actually Does in a Control Panel

The Omron PTF08A-E is not a relay — it is the socket that the relay plugs into. Its job is to provide a fixed, field-wired terminal base in the control panel so that the LY1 or LY2 relay itself can be inserted, secured, and removed without touching a single wire. Panel wiring connects once to the socket's screw terminals; after that, the relay becomes a plug-in consumable. This is the fundamental value of the plug-in relay socket concept, and the PTF08A-E delivers it with the added layer of finger-safe terminal coverage that the "-E" designation identifies.

The finger-protection design covers the screw terminal area, reducing the risk of accidental contact with live conductors during relay replacement or inspection. In facilities running safety audits or building panels to modern IEC and UL standards, that distinction between the base PTF08A and the PTF08A-E can be the difference between passing and failing a compliance review. Omron formally defines the "-E" suffix across its PTF socket range as indicating this finger-protection feature.

The socket accepts 8-pin LY-series relays, uses screw terminals for field wiring, and supports both DIN rail and panel mounting. These three characteristics together make it one of the most specified relay sockets in OEM control panels and MRO stock lists across industrial automation applications.

Typical System Architecture: Where the PTF08A-E Sits

The PTF08A-E sits between the control panel's wiring infrastructure and the plug-in LY relay, acting as the permanent mechanical and electrical interface point in the signal chain. A typical deployment looks like this:

  • PLC output module or control circuit provides the coil drive signal — this connects to the socket's coil terminals.
  • The Omron PTF08A-E mounts to the DIN rail or panel surface, with all field conductors terminated to its screw terminals once during installation.
  • The Omron LY1 or LY2 relay plugs into the PTF08A-E socket — coil energizes through the socket, and contacts switch the load circuit through the socket terminals.
  • Load circuit (motor contactor coil, valve solenoid, indicator, or similar) connects to the socket's contact terminals.
  • Optional accessories — retaining clip, test button — attach to the socket to secure the relay against vibration or enable manual coil testing without external tools.

Typical Applications and Deployment Scenarios

The PTF08A-E appears most consistently in OEM machinery panels — packaging lines, material handling systems, and machine tool control cabinets — where LY1 and LY2 relays handle interposing, signal isolation, and load switching duties. The combination of quick relay replacement and finger-safe terminals suits high-uptime environments where maintenance technicians need to swap relays without de-energizing an entire panel section.

Process automation and factory automation panels use the PTF08A-E where standardization matters. Facilities that have committed to the Omron LY relay family across multiple machines benefit from stocking a single socket SKU for all 8-pin LY positions, reducing the risk of grabbing the wrong part during an emergency repair.

Building automation and HVAC control panels, water and wastewater utility cabinets, and upgrade projects replacing legacy open-frame PT08 sockets with finger-safe equivalents are also consistent application areas. The PTF08A-E is a direct step up from older open-style sockets for any panel that needs to meet current safety requirements without redesigning the relay circuit.

Application Typical Deployment
OEM packaging and material handling machinery New panel builds using LY1/LY2 for interposing and signal isolation with finger-safe wiring
Industrial control panel standardization Single socket SKU across multiple panel designs to simplify MRO stock and maintenance
Legacy panel upgrades Replacing open-frame PT08 sockets with PTF08A-E for compliance with modern safety standards
Building automation and HVAC Control cabinets using LY relays for switching HVAC actuators and control outputs
Water and wastewater utilities MRO stock for critical LY relay positions in utility control cabinets requiring finger-safe access
Facility MRO stocking programs Standard spare held on-site for rapid replacement of any 8-pin LY relay socket in the plant

Omron PTF08A-E Specifications and Variant Comparison

Parameter Value Notes
Manufacturer Omron Official Omron industrial automation product
Model / Catalog Number PTF08A-E "-E" designates finger-protection design per Omron naming convention
Product Type 8-pin relay socket with finger protection For LY general-purpose plug-in relays
Compatible Relays LY1, LY2, and other specified LY-series models Confirm exact relay-to-socket compatibility in Omron datasheet
Number of Pins 8 Not suitable for 11-pin LY3/LY4 relays
Terminal Type Screw terminals Round crimp terminals are not permitted; use forked or compatible crimp terminals
Finger Protection Yes — finger-safe terminal design Meets Omron "-E" safety concept for modern panel compliance
Mounting DIN rail and panel mounting Verify mounting hardware and rail type in current datasheet
Safety Approvals UL / CSA / IEC as per datasheet Verify current certification details in official Omron documentation
Accessories Test button, retaining clip, and others Use Omron accessory part numbers listed in the datasheet

Full technical specifications are available on the product page at LeadTime.ca.

The following comparison covers the Omron PTF socket variants most commonly evaluated alongside the PTF08A-E:

Model Pin Count Finger Protection Compatible Relays Terminal Type Mounting
PTF08A-E 8 Yes ("-E") LY1, LY2 Screw (forked terminals) DIN rail / panel
PTF08A 8 No LY1, LY2 Screw (forked terminals) DIN rail / panel
PTF11A-E 11 Yes ("-E") LY3, LY4 Screw (forked terminals) DIN rail / panel
PT08 8 No (open-frame style) LY1, LY2 Screw Panel / surface

If your relay is LY3 or LY4 and requires an 11-pin socket with finger protection, the PTF08A-E is not the correct part — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is PTF08A-E the Right Socket for Your Panel?

The Omron PTF08A-E earns its position as the default relay socket choice for controls engineers and panel builders who have standardized on LY1 or LY2 relays and need to satisfy finger-protection requirements. It is an Omron-approved match for the LY relay family, supports the manufacturer's documented high-current wiring guidance for terminals 1 and 2, 3 and 4, and 5 and 6 when currents exceed 10 A with LY1, and it is stocked by major distributors making it a practical MRO choice as well as a new-build component. The socket's screw-terminal design is familiar to virtually every panel builder in the industry, and the "-E" designation gives compliance documentation a clear foundation.

Where the PTF08A-E is not the right answer is equally clear. If the design uses LY3 or LY4 relays, the 11-pin PTF11A-E is required and the PTF08A-E will not fit. If finger protection is genuinely not required and enclosure space is at a premium, the PTF08A saves a small amount of room without the terminal cover. If the project calls for push-in or spring-clamp terminals, neither PTF variant applies and a different socket family is needed. Engineers working with MY-series relays should be looking at PYF-family sockets entirely. The honest engineering view is that the PTF08A-E is excellent within a well-defined boundary — and a wrong choice outside it.

From a procurement standpoint, the PTF08A-E is widely stocked across North America and available for global shipment, making it a low-risk part to specify. The most common sourcing problems are administrative: ordering PTF11A-E instead of PTF08A-E, mixing finger-safe and non-finger-safe variants in the same panel build, or failing to verify the "-E" requirement against the project specification before placing a bulk order. A specialist distributor adds genuine value here by cross-referencing the relay catalog number, confirming the correct socket variant, and providing visibility into stock levels and factory lead times for larger project quantities. View current pricing and stock status for the Omron PTF08A-E at LeadTime.ca before finalizing your BOM.

For volume pricing, lead time confirmation on project quantities, or help validating compatibility before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the PTF08A-E

Community sentiment across automation forums including PLCTalk, PLCS.net, MrPLC, and the r/PLC and r/automation communities consistently frames Omron LY relay sockets — and the PTF08A-E specifically — as a familiar, reliable industry standard. Installers who have worked with LY relays for years recognize the socket immediately and appreciate that relay replacement in the field requires no rewiring whatsoever. The finger-safe "-E" variant draws particular praise from engineers working in plants with active safety audits, where the terminal cover is not optional. That comfort level with a proven component is meaningful in a category where incorrect socket selection can cause panel delays and costly rework.

The recurring complaints from the community, however, are instructive. Screw terminals that are not torqued correctly or wired without proper ferrules or forked crimp terminals have caused intermittent connections and terminal loosening over time. Omron's own documentation reinforces this: round crimp terminals are explicitly not permitted with the PTF08A-E, and forked or appropriately rated crimp terminals are required. The high-current terminal bridging guidance — connecting terminals 1 and 2, 3 and 4, and 5 and 6 together when using LY1 at currents exceeding 10 A — is another detail that experienced users flag as easy to miss if the datasheet is not read carefully before installation. The finger-protection version is also noted as slightly more bulky than the non-"-E" variant, which occasionally becomes a layout concern in very dense panel designs.

Ordering mistakes reported in the community follow a predictable pattern: specifying PTF11A-E for an 8-pin LY relay, purchasing PTF08A when the project specification requires the "-E" variant, or assuming that sockets for MY, G2R, or other Omron relay families share pinouts with the LY series. None of these mistakes involve a defective product — they are all preventable with the wrong-part checks below. When community discussion is thin and you cannot find a forum answer that matches your exact application, that is precisely the situation where a specialist distributor's pre-order compatibility check prevents the kind of rework that costs far more than the socket itself.

Wiring and Installation Overview for the Omron PTF08A-E

The following is an overview of key installation requirements. For full wiring diagrams and step-by-step procedures, consult the official Omron PTF08A-E datasheet and installation documentation.

  • De-energize all circuits and apply lockout/tagout procedures before mounting or wiring the socket.
  • Mount the PTF08A-E securely to the DIN rail or panel surface before connecting any conductors; verify alignment and stability before wiring.
  • Use forked crimp terminals or other Omron-approved terminal types for all connections — round crimp terminals are explicitly not permitted by Omron documentation.
  • When using LY1 relays at currents exceeding 10 A, Omron's guidance requires that socket terminals 1 and 2, 3 and 4, and 5 and 6 be connected together; verify this requirement against the current datasheet before wiring.
  • After wiring, verify all screw terminals are tightened to the specified torque, check for stray conductor strands, and perform a continuity check before inserting the relay and restoring power.

Compatible Accessories for the Omron PTF08A-E

Omron offers accessories designed specifically for use with the PTF08A-E and the broader PTF socket family. Using the correct Omron-designated accessories ensures mechanical compatibility and preserves the safety characteristics of the finger-protected socket design.

  • Relay retaining clip — secures the inserted LY relay against vibration in mobile or high-vibration environments; verify the Omron part number for PTF08A-E compatibility in the current accessory list.
  • Test button — allows manual coil testing and relay actuation without energizing the control circuit; confirm the correct test button part number for the PTF08A-E in Omron's documentation.
  • Hold-down clip variants — additional mechanical retention options for demanding mounting orientations; consult Omron's accessory catalog for applicable part numbers.

Wrong-Part Prevention Checklist for the Omron PTF08A-E

Before placing an order or issuing a purchase requisition, work through each item on this checklist. These checks directly address the most common ordering mistakes for this product.

  1. Confirm the relay family: this socket is for LY-series relays (LY1/LY2); do not use for MY, G2R, or other families without checking Omron's compatibility list.
  2. Confirm pin count: 8-pin relay required. If the relay is 11-pin, you need PTF11A-E or equivalent, not PTF08A-E.
  3. Confirm you require finger protection: if your panel or safety standards require finger-safe terminals, choose PTF08A-E rather than PTF08A.
  4. Check mounting method: verify your panel supports DIN rail or panel mounting as provided by this socket.
  5. Verify electrical rating and approvals match your application voltage/current and regional codes.
  6. Verify terminal connection type: socket is designed for screw terminals and forked/appropriate crimp terminals (round crimp terminals are not allowed).
  7. Confirm accessories and retention method: check if you need relay hold-down clips or test buttons compatible with PTF08A-E.
  8. Check stock and lead time across distributors to avoid mixing PTF08A and PTF08A-E in the same panel.

If any item on this checklist raises a question about your specific application, contact the LeadTime.ca team for compatibility confirmation before ordering — or view the product page for current stock and pricing.

Frequently Asked Questions

Is the Omron PTF08A-E compatible with both LY1 and LY2 relays, or is it specific to one model?

Omron explicitly confirms that the PTF08A-E socket can be used with LY1 and LY2 general-purpose relays. Always verify against the current Omron compatibility table for your exact relay catalog number, particularly if using a coil voltage variant or special option version of the LY series.

What is the practical difference between PTF08A and PTF08A-E — is it worth specifying the -E version?

The only structural difference is finger protection: the "-E" variant includes a terminal cover that prevents accidental contact with live screw terminals. If your panel standards, customer specification, or facility safety policy requires finger-safe wiring, PTF08A-E is mandatory. If none of those requirements apply and space is constrained, the PTF08A is the alternative — but mixing the two variants in the same panel creates a maintenance and compliance risk that most engineers prefer to avoid.

Can I use round crimp terminals on the PTF08A-E screw terminals?

No. Omron's documentation explicitly states that round crimp terminals are not to be used with the PTF08A-E. Forked crimp terminals are the recommended connection type. Using incorrect terminal types risks poor contact, terminal damage, and potentially unsafe connections under load.

When do I need to bridge terminals 1-2, 3-4, and 5-6, and what happens if I skip that step?

Omron's official guidance specifies that when using the PTF08A-E (or PTF08A/PT08) with an LY1 relay at currents exceeding 10 A, terminals 1 and 2, 3 and 4, and 5 and 6 must be connected together. Skipping this step at high current loads can result in overheating at the terminals. Review the Omron datasheet and FAQ documentation for the correct bridging method before wiring high-current LY1 applications.

Can I replace an existing PT08 socket directly with PTF08A-E without rewiring the panel?

The PTF08A-E is designed for the same 8-pin LY relay family as the older PT08, and the relay itself remains the same. However, the mounting footprint and terminal arrangement may differ between the open-frame PT08 and the PTF08A-E — verify the physical dimensions and panel cutout requirements before treating this as a direct drop-in replacement. In most retrofit projects, some rewiring or panel adaptation work is involved.

What are the best alternatives to the Omron PTF08A-E if it is out of stock?

Within the Omron family, the first check is whether the PTF08A (non-finger-safe version) is acceptable under your project's requirements. Third-party 8-pin relay sockets from other manufacturers may be physically similar, but pinout, terminal style, approvals, and mechanical fit must be verified against your specific LY relay before any substitution. A specialist distributor can cross-reference alternatives and confirm compatibility more reliably than a generic catalog search.

Why Order the Omron PTF08A-E from LeadTime.ca

  • Global shipping — LeadTime.ca ships Omron relay sockets worldwide, not limited to any single region.
  • Specialist sourcing — we help validate LY relay and socket compatibility, reducing the risk of ordering the wrong variant before the order ships.
  • Hard-to-find parts — access to Omron catalog items that may not be stocked locally, including accessories and related socket variants.
  • Volume pricing available — contact for project quantities and MRO blanket order pricing.
  • Responsive team — fast response on lead time inquiries before you commit to a build schedule.

At-a-Glance Summary: Omron PTF08A-E

  • 8-pin relay socket with finger protection ("-E" suffix) — designed specifically for Omron LY1 and LY2 general-purpose plug-in relays.
  • Finger-safe terminal design meets the Omron "-E" safety concept for modern panel compliance and safety audit requirements.
  • Screw terminal style — forked crimp terminals required; round crimp terminals are explicitly not permitted per Omron documentation.
  • Supports both DIN rail and panel mounting — verify mounting hardware against the current datasheet for your enclosure type.
  • High-current wiring guidance: when using LY1 at currents over 10 A, Omron requires terminals 1 and 2, 3 and 4, and 5 and 6 to be connected together.
  • Not suitable for 11-pin LY3/LY4 relays (use PTF11A-E), MY-series relays (use PYF sockets), or G2R and other relay families.
  • UL, CSA, and IEC approvals as per current Omron datasheet — verify certification details against your regional code requirements.
  • Optional accessories: relay retaining clip and test button — confirm Omron part numbers for PTF08A-E compatibility before ordering.
  • Widely stocked through major distributors; available for worldwide shipment through LeadTime.ca.
