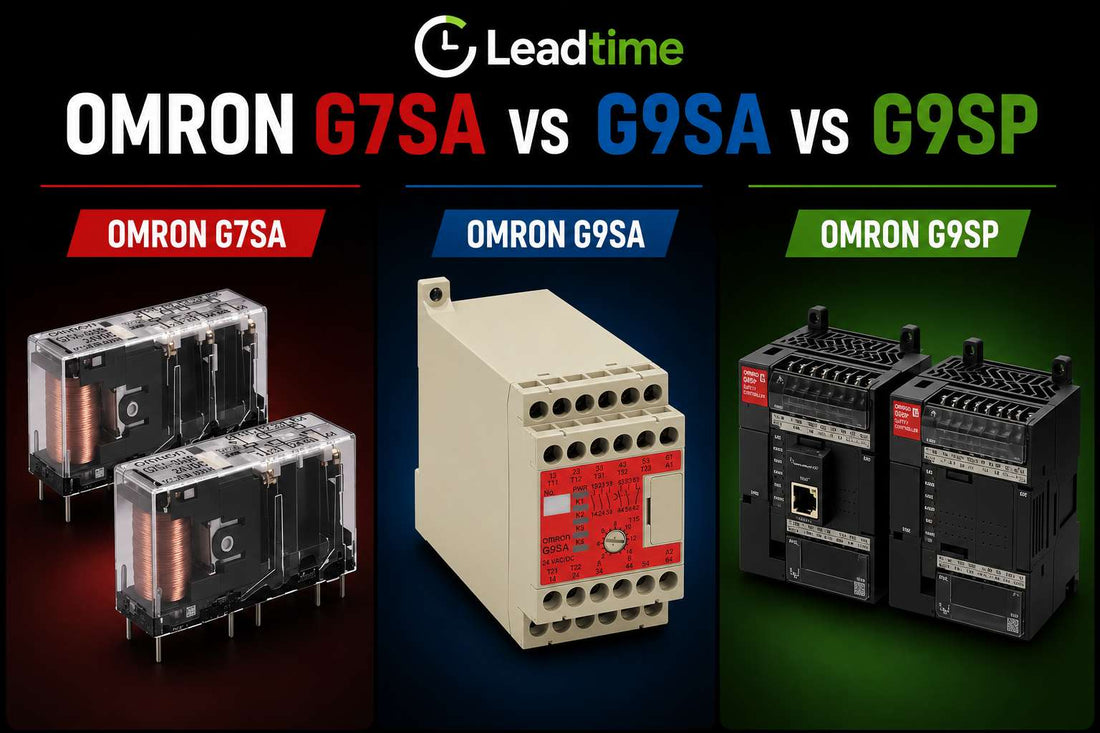

Omron G7SA G9SA G9SP safety relays and safety controller side-by-side comparison for machine safety applications

Omron G7SA vs G9SA vs G9SP Safety Relays and Controllers: Selection Guide

Controls engineers specifying machine safety in Canada and worldwide regularly face the same architecture question: does this application need a simple safety relay, a relay unit with timing and expansion, or a configurable safety controller? Omron's three primary safety product families — the G7SA Safety Relay, the G9SA Safety Relay Unit, and the G9SP Safety Controller — each occupy a distinct position in that decision, and choosing the wrong tier adds either unnecessary cost and complexity or leaves real safety and diagnostic capability on the table. This guide maps the three families against real application scenarios so you can make the right call before the design is committed.

If you have already identified the correct series and need to confirm current pricing and availability, check the Omron safety product listings at LeadTime.ca — ships worldwide.

Which Omron Safety Series Fits Your Application?

The right choice among G7SA, G9SA, and G9SP depends entirely on application complexity, not on which product appears more advanced. Use these qualifying criteria to orient your decision:

  • Your application has one or a few safety devices with fixed, stable logic and no timing requirements — G7SA is the appropriate starting point.
  • Your circuit requires OFF-delay or ON-delay safety outputs, two-hand control functionality, or structured contact expansion while remaining within a relay-based design — G9SA is the correct tier.
  • Multiple safety input devices (E-stops, guard switches, safety light curtains, safety mats) must be coordinated across zones, and logic may need to change over the machine's life — G9SP is the correct tier.
  • Your team is standardizing across a range of small to mid-size machines and needs reusable safety configuration templates — G9SP as the primary platform, with G7SA or G9SA for the simplest machines in the portfolio.
  • Budget, panel space, and wiring conventions favor incremental relay-based upgrades rather than a controller migration — G9SA preserves the relay philosophy while adding structured timing and expansion.

If none of these criteria point clearly to a single family, contact the LeadTime.ca team before finalizing the specification — a short conversation is faster than a redesign.

On this page:

What G7SA, G9SA, and G9SP Each Actually Do

The G7SA Safety Relay is an electromechanical safety relay series built around forcibly guided contacts. Its role is the most elemental of the three: provide reliable safety contacts for basic E-stop circuits, guard interlock circuits, and contact expansion to contactors or drives. There is no embedded timing logic and no configuration software. Safety performance is a function of the complete circuit design, not the relay alone. For applications where the safety function is well-defined, stable, and involves few devices, the G7SA is a direct and cost-effective choice.

The G9SA Safety Relay Unit steps up from a pure relay into a more structured safety unit. Where the G7SA handles simple contact switching, the G9SA integrates OFF-delay safety output poles and two-hand control functionality within a relay-based architecture. Omron has confirmed that the G9SA series is designed to conform to EN ISO 13849-1 at PLe and Safety Category 4 when applied according to Omron documentation — a meaningful proof point that positions it clearly for applications requiring documented safety performance within a relay-based design. The family also includes expansion units to add safety contacts where needed. The G9SA reduces the need for separate timing relays in controlled stop applications without forcing engineers into a configurable controller architecture.

The G9SP Safety Controller is a different category of device entirely. It is an electronic, configurable safety controller. Safety inputs, outputs, and logic are defined in Omron's G9SP configuration software rather than in wiring alone. Omron describes the G9SP as a configurable safety controller within its extensive safety solutions portfolio, designed to integrate with E-stop switches, door and limit switches, safety sensors, and safety mats. The principal advantages over relay-based designs are three: software-defined logic can be changed without rewiring, diagnostics go well beyond indicator LEDs, and a single G9SP can coordinate multiple safety devices and zones that would require complex parallel relay circuits if implemented with G7SA or G9SA units.

Where Each Series Fits in a Machine Safety System

Each series occupies a specific position in the signal and control chain between safety input devices and the machinery's power-removal or stop mechanism.

  • Safety input devices (E-stop buttons, guard interlock switches, safety light curtains, safety mats, two-hand stations) generate the safety demand signals that enter the safety system.
  • For a G7SA circuit, the relay is wired directly between the safety input device contacts and the downstream safety output contacts that remove power from a contactor or drive safe-torque-off input.
  • For a G9SA circuit, the safety relay unit receives safety input signals and its internal relay-based logic — including timed outputs where the variant supports them — controls downstream safety contacts; expansion units are added to the unit to extend contact count.
  • For a G9SP circuit, the safety controller sits as the central logic device, receiving multiple safety input channels in software-configured blocks and driving multiple safety output channels to contactors, drive STO inputs, and other loads; configuration is applied via the G9SP configuration software tool.
  • Downstream of all three series, the final controlled elements are typically contactors, servo drive STO inputs, or other power-removal devices — the series choice affects only the logic and wiring layer above them, not the downstream hardware.

Seven Application Scenarios with Clear Recommendations

Rather than a single verdict, these scenarios map real-world conditions to the correct series.

Scenario 1 — Single E-stop and guard switch on a small machine. Simple stop function, minimal device count, no need for complex diagnostics. The G7SA Safety Relay is the correct choice. Adding a safety controller would introduce engineering overhead and cost that the application does not justify.

Scenario 2 — Safety circuit requiring OFF-delay outputs for controlled stop plus contact expansion. The drive needs a timed safe stop rather than an immediate drop; multiple contactors must be opened in a controlled sequence. The G9SA is the correct choice. Its OFF-delay safety output poles and expansion units handle this within a relay-based architecture, avoiding the need for separate timing relays.

Scenario 3 — Two-hand control station for a small press. Verified simultaneous actuation and timing of both hand buttons is required for safety compliance. The G9SA family includes models designed for two-hand controller applications — a focused, relay-based solution for this specific safety function without the overhead of a configurable controller.

Scenario 4 — Machine with multiple safety devices and evolving logic. E-stops, guard switches, and safety light curtains must all be coordinated; machine options change between orders and safety zones may shift. The G9SP is the correct choice. Software-defined logic, configurable I/O assignments, and diagnostic feedback make it significantly more manageable than equivalent hardwired relay combinations that would require rewiring with each change.

Scenario 5 — OEM standardizing safety across a range of small to mid-size machines. Reusable safety configuration templates, central engineering approach, and consistent diagnostics across the fleet are priorities. G9SP is the primary platform. Simple machines within the portfolio that have very few safety devices may still use G7SA or G9SA where a full controller is not justified, but the OEM should standardize on G9SP wherever the machine complexity warrants it.

Scenario 6 — Retrofit of existing relay-based safety panel with minor upgrades. The existing wiring philosophy is being preserved; the main need is to add timing or contact expansion within budget. G9SA (or G7SA for purely simple additions) is the appropriate upgrade path. This avoids a full controller migration and allows incremental improvement within a familiar architecture.

Scenario 7 — Plant needing better safety trip diagnostics with moderate device complexity. Maintenance wants to know which device tripped; operators want clearer indication. If multiple safety devices are involved, the G9SP's configurable diagnostics and status capabilities justify the additional investment. If device count is low, a G9SA with a clear indication scheme may be sufficient, though its diagnostic capability remains more limited than a controller-based solution.

Core Platform Comparison: Architecture, Diagnostics, and Engineering Effort

The tables below translate the three series into the attributes that matter at purchase and design decision time.

Attribute G7SA Safety Relay G9SA Safety Relay Unit G9SP Safety Controller
Device type Electromechanical safety relay Relay-based safety unit with timing and expansion Electronic configurable safety controller
Logic implementation Hardwired only Hardwired with built-in timing functions (variant-dependent) Software-configurable logic
Safety standard note Safety performance depends on complete circuit design Designed to conform to EN ISO 13849-1 PLe / Category 4 when applied per Omron datasheet Designed for integration in functional safety systems; PL depends on application design
Diagnostics Minimal — relay state and indicators Relay state plus indicators; still relay-level Enhanced diagnostics via software and status indicators
Application scale Small machine, few safety devices Small to medium complexity relay-based systems Small to mid-size machines with multiple devices or zones
Change flexibility Low — requires rewiring Low to moderate — timing options but still rewiring High — logic changes via configuration software
Typical application E-stop, guard interlock, contact expansion Controlled stop (OFF-delay), two-hand control, expansion Multi-zone, multi-device, evolving safety logic
Attribute G7SA G9SA G9SP
Engineering tools required Wiring diagrams and safety function calculations only Wiring diagrams; timing configuration via wiring and parameter selection Dedicated G9SP configuration software plus electrical design
Wiring complexity Simple for basic circuits; increases with additional functions Reduces need for separate timing relays; relay wiring throughout Reduces wiring for multi-device safety; adds configuration layer
Configuration time Short for simple circuits Moderate for timed and expanded circuits Higher initial setup; easier to modify later
Hardware cost tier Lower Medium Higher
Pricing and lead time Market-typical estimates — verify current pricing and availability with LeadTime.ca before quoting

Current pricing and availability for G7SA, G9SA, and G9SP variants are available on the product page at LeadTime.ca.

Expert Verdict: Matching the Right Series to the Right Machine

The G7SA Safety Relay is the correct choice when the safety function is simple, stable, and involves a small number of devices. Its forcibly guided contact design makes it a reliable building block for basic E-stop and guard interlock circuits, and its role in contact expansion to contactors and drive inputs is well-established. Engineers who know exactly what the circuit needs and do not anticipate logic changes are not giving anything up by choosing a relay. The G7SA's value is precisely that it does not overcomplicate a task that does not require complexity. The buyer profile that fits the G7SA is the controls engineer designing a single-machine safety circuit with defined, fixed functions and a preference for straightforward relay-based validation.

The G9SA Safety Relay Unit belongs in the hands of an engineer who needs more structure than a pure relay provides — specifically OFF-delay safety outputs for controlled stopping, two-hand control functionality, or integrated expansion — but who has neither the application complexity nor the organizational mandate to justify a configurable safety controller. The fact that the G9SA series is designed to conform to EN ISO 13849-1 at PLe and Safety Category 4 when applied per Omron documentation is meaningful for engineers working to documented safety performance targets within a relay-based design. The G9SA is not the right choice if logic will need to change frequently or if multiple coordinated safety zones are present — that is where relay-based designs become difficult to maintain and validate, and where the G9SP earns its additional cost. When the machine has multiple safety input devices, evolving logic requirements, or a maintenance team that needs to identify fault conditions quickly, the G9SP Safety Controller becomes the correct investment. Omron positions the G9SP to reduce wiring complexity for multi-device safety functions and to enable logic changes via configuration software rather than panel rewiring — both of which translate directly to lower lifecycle engineering cost on machines that change. The specific alternative to evaluate honestly: if the device count is genuinely low and logic is fixed, the G9SP's added engineering effort is a cost with no corresponding benefit.

From a procurement standpoint, all three series are sourced through Omron's industrial distribution network and are available to buyers worldwide. Lead times and specific variant availability vary by region and by distributor inventory position — verifying before committing to a build schedule matters, particularly for less common G9SA or G9SP variants. For volume orders, retrofit projects, or time-sensitive builds, working with a specialist distributor who can navigate Omron's product family and confirm variant-level availability is the practical approach. Check current stock and pricing for G7SA, G9SA, and G9SP at LeadTime.ca — or contact the team directly if you need variant-level guidance before quoting.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Are Saying About G7SA, G9SA, and G9SP

Across PLC and industrial automation forums, including discussions on Reddit's r/PLC and r/industrialautomation communities, the recurring thread in G7SA feedback is reliable simplicity. Engineers describe it as a dependable go-to for straightforward safety contact expansion and basic E-stop circuits. The praise is consistent: it works, it is well understood, and it is easy to validate. The frustration is equally consistent: as safety requirements evolve or more devices are added, the wiring complexity compounds and diagnostics remain minimal. Several engineers have noted that starting with G7SA on a simple machine and then facing incremental additions over the machine's life is how relay-based panels become difficult to maintain.

The G9SA receives positive feedback from engineers who need OFF-delay outputs or two-hand control functionality but are either constrained by organizational standards around relay-based safety or are working on retrofits where a full controller migration is not feasible. The structured approach to timing and expansion is cited as a practical alternative to assembling multiple individual timing relays. The recurring caution from the community is that timing functions in a safety context are not a wiring convenience — they require genuine safety analysis to confirm that the resulting stopping behavior and timing parameters achieve the required performance level, and that this analysis is often underestimated at design time.

G9SP commentary in engineering communities tends to split clearly between two camps. Engineers who have configured it appreciate the diagnostic visibility, the ability to modify logic without rewiring, and the value of reusable configuration templates across machine variants — particularly cited by OEM engineers managing multiple machine types. The consistent criticism is the initial learning curve with the configuration software and the documentation obligation that comes with software-based safety logic. Engineers moving from purely relay-based panels to G9SP report that the up-front investment in learning and configuration pays back on the second and subsequent machines, but represents a real cost on a single simple application. The community consensus aligns with what the technical architecture would predict: all three series are effective in their intended role; the risk is misapplying the wrong tier to a given machine's complexity.

Wiring and Installation Considerations by Series

  • G7SA wiring is hardwired relay circuit design throughout — safety input contacts, relay coil, and forced-guided output contacts to downstream elements; wiring grows linearly with added safety devices and contact expansion requirements.
  • G9SA installation requires careful attention to variant-specific wiring for OFF-delay poles and two-hand control functions; timing behavior is configured through wiring connections and parameter selection, not software, so the circuit design must reflect the intended timing function explicitly.
  • G9SP installation includes both a hardware wiring phase (connecting safety input devices and output loads) and a configuration software phase (assigning inputs, defining logic blocks, configuring outputs and diagnostics); both phases must be completed and validated before the system is commissioned.
  • For all three series, verify that panel power supply capacity and wiring gauge match the selected variant's requirements; confirm that the chosen safety architecture, wiring topology, and diagnostic restart behavior are consistent with the risk assessment and applicable standards before installation.
  • Refer to Omron's documentation for the specific variant being installed — series-level wiring guidance is not a substitute for variant-level datasheets and application notes, particularly for G9SA timing configurations and G9SP logic programming.

Migrating from Relay-Based Safety to G9SP: When It Makes Sense

Migration from a G7SA or G9SA relay-based safety panel to a G9SP configurable safety controller is a design decision, not a like-for-like replacement. The triggers that make migration worth evaluating are specific: the number of safety input devices has grown beyond what the relay circuit manages cleanly, logic changes are being requested frequently enough that rewiring is a recurring burden, or maintenance and diagnostic visibility have become a production concern. Omron describes G9SP as designed to reduce wiring complexity for multi-device safety functions and to enable flexible safety logic configuration via software — both benefits are realized most clearly when the device count justifies a controller-based approach.

When migrating, existing safety input devices (E-stop switches, guard interlock switches, safety sensors and mats) can typically be reconnected to G9SP safety input terminals — but the logic that governed their behavior in the relay circuit must be re-implemented in the G9SP configuration software, not assumed to carry over automatically. The migration also resets the validation requirement: a new safety architecture requires a new safety function validation, including confirmation that the resulting Performance Level meets the risk assessment outcome. Review of EN ISO 13849-1 and applicable Omron documentation for the G9SP is required before completing any migration. Where budget or project scope does not justify a full migration, incremental improvements using G9SA units to add timing or expansion can deliver meaningful gains within the existing relay-based architecture without triggering a full revalidation of the safety architecture.

Wrong-Part Checklist: Selection Mistakes That Cost Time and Rework

The following checklist covers the most common selection errors when specifying among G7SA, G9SA, and G9SP. Review each item before finalizing the specification.

  1. Do not select G7SA for applications requiring frequent logic changes or multiple safety zones.
  2. Do not assume G9SA timing and expansion features remove the need for a clear safety function design and calculations.
  3. Do not select G9SP purely for future-proofing if the machine safety is very simple; the added engineering cost may not be justified.
  4. Verify that the required safety category and Performance Level can be met with the chosen architecture and product series when used per Omron documentation.
  5. Confirm local support, configuration tools, and user familiarity before standardizing on G9SP.
  6. Check that required diagnostic and restart behavior is achievable with the selected series.
  7. Ensure panel space, wiring conventions, and power supply capacity fit the chosen series and variant.

If any of these checks raise uncertainty before the order is placed, contact the LeadTime.ca team for sourcing and specification support — we work with engineers worldwide to confirm the right variant before the build starts.

Frequently Asked Questions

Can the G9SP Safety Controller fully replace G7SA and G9SA units across an entire plant?

Not universally, and replacing them purely for standardization is not always justified. The G9SP is the better choice where multiple safety devices, evolving logic, or diagnostic needs are present. For very simple, stable single-device circuits, G7SA remains a practical and cost-effective solution. A mixed fleet — G9SP on complex machines, G7SA or G9SA on simple machines — is a legitimate and common approach.

When is a configurable safety controller like the G9SP overkill compared with relay-based designs?

When the safety function involves one or a few devices, logic is fixed for the life of the machine, and diagnostic visibility beyond basic relay state is not required, the G9SP's configuration software overhead and higher unit cost add complexity without a corresponding benefit. G7SA or G9SA relay-based designs are faster to engineer, validate, and commission in these cases.

How do I confirm that my design achieves the required Performance Level with each series?

Performance Level under EN ISO 13849-1 is determined by the complete system design — the safety input device, the safety relay or controller, the output element, and the circuit architecture — not by any single device in isolation. For G9SA, Omron's datasheet confirms design conformity to PLe and Category 4 when applied per Omron documentation; for G9SP, PL depends on the application design. Use the applicable Omron documentation and safety calculation tools alongside your risk assessment for each variant and architecture you specify.

Are G7SA, G9SA, and G9SP designed to work together in the same safety system?

They can coexist in a safety system at the panel and plant level — for example, G7SA units used for safety contact expansion downstream of a G9SP safety controller. However, they are not designed as a single integrated system where all three operate as a unified unit. Each series functions independently within the safety architecture, and the designer is responsible for ensuring that the combined design meets the required safety performance.

What documentation should I review before specifying any of these series?

Consult the Omron datasheet for the specific variant you are considering, the Omron G9SP configuration software documentation if G9SP is being evaluated, Omron's application notes for safety circuit design, and the relevant sections of EN ISO 13849-1 for Performance Level determination. Never rely on family-level catalog data alone when finalizing a safety circuit specification — variant-level documentation is required.

How difficult is it to learn the G9SP configuration software compared with wiring relay-based circuits?

Engineers familiar with relay-based safety design typically report a real but manageable learning curve with G9SP configuration software. The initial project takes longer than a comparable relay circuit; subsequent machines using similar configurations take significantly less time because logic templates can be reused. For OEMs managing multiple machine variants, the investment in learning the G9SP software is generally reported as recovering quickly across the machine portfolio.

Why Source Omron Safety Products Through LeadTime.ca

  • LeadTime.ca ships worldwide — North American buyers and international teams can both confirm availability and place orders.
  • Specialist distributor support for Omron safety product families means variant-level questions about G7SA, G9SA, and G9SP can be answered before an order is committed.
  • Hard-to-find variants and time-sensitive builds benefit from active lead-time tracking rather than waiting on generic stock availability notices.
  • Volume pricing inquiries are handled directly — contact the team for current pricing on larger safety product orders or plant-wide standardization programs.

At-a-Glance Summary

  • G7SA Safety Relay: electromechanical, forcibly guided contacts, hardwired only, suited to simple E-stop and contact expansion applications with few devices and fixed logic.
  • G9SA Safety Relay Unit: relay-based safety unit with OFF-delay safety output poles, two-hand control variants, and expansion units; designed to conform to EN ISO 13849-1 PLe and Safety Category 4 when applied per Omron documentation.
  • G9SP Safety Controller: electronic configurable safety controller using software-defined logic; integrates with E-stop switches, door and limit switches, safety sensors, and safety mats; Omron-designed for multi-device, multi-zone safety applications with enhanced diagnostics.
  • Logic implementation: G7SA and G9SA are hardwired; G9SP uses Omron's dedicated G9SP configuration software — changes are made in software rather than by rewiring.
  • Safety performance for all three series depends on the complete system design and correct application per Omron documentation; Performance Level is not inherent to the device alone.
  • Hardware cost tiers: G7SA is lower, G9SA is medium, G9SP is higher; lifecycle cost including engineering effort and future modifications may favor G9SP on complex or evolving machines.
