Omron CJ1W-ID211 DC Input Module — Is This the Right CJ Card?

By Abdullah Zahid
13 min read

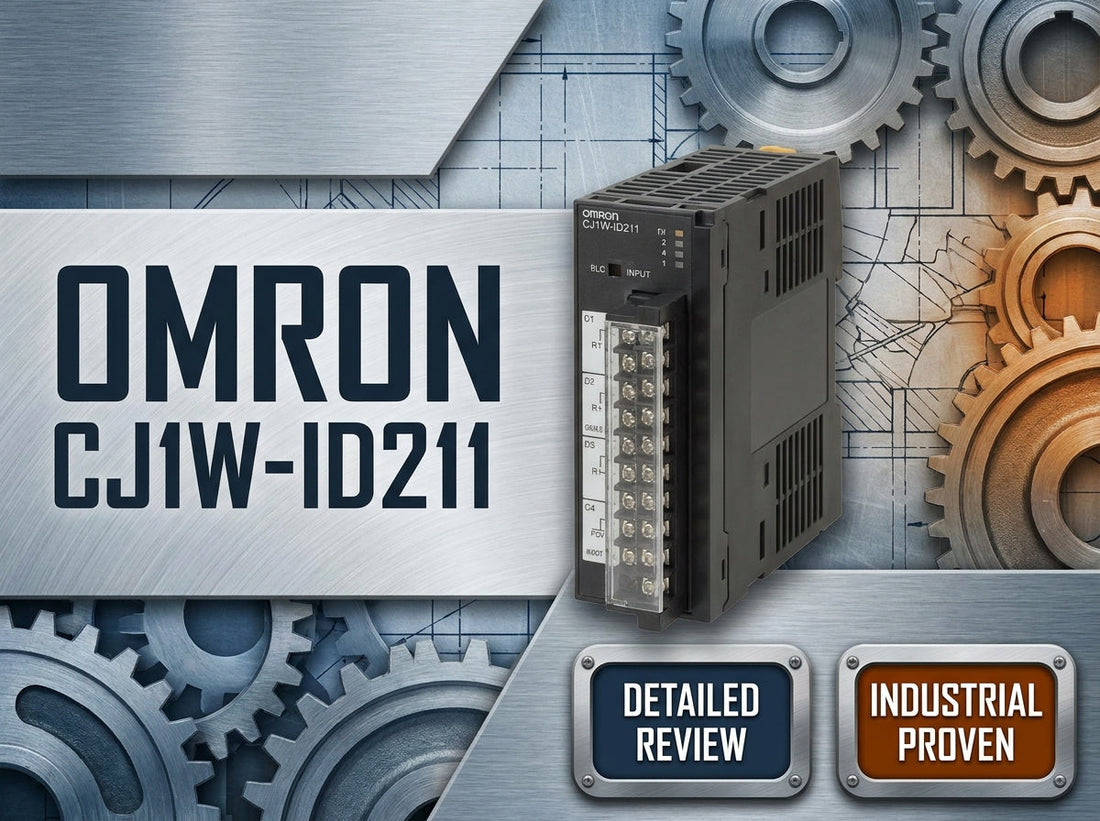

Omron CJ1W-ID211 24 VDC 16-point DC input module for CJ1 and CJ2 PLC rack expansion

Omron CJ1W-ID211 DC Input Unit (24 VDC, 16 Points) — Specs, Pricing and Best Alternatives

Controls engineers specifying digital input capacity for an existing Omron CJ1 or CJ2 PLC installation typically arrive at the CJ1W-ID211 after checking their I/O list against available rack slots. The decision usually comes down to three confirming details: 24 VDC input voltage, 16 points per module, and screw terminal block wiring that the maintenance team can service without special tooling. The CJ1W-ID211 DC Input Unit checks all three, with an operating voltage range of 20.4 to 26.4 VDC, an input impedance of approximately 3.3 kΩ, and ON response times as fast as 20 μs maximum under high-speed conditions.

If you have already confirmed this is the right part for your CJ rack, check current pricing and availability for the CJ1W-ID211 at LeadTime.ca — we ship worldwide.

Who Should Buy the CJ1W-ID211 — and Who Shouldn't

This module is the right choice for engineers and maintenance teams running established CJ1 or CJ2 PLC installations who need additional or replacement 24 VDC digital input capacity without changing platforms. Specify the CJ1W-ID211 when all of the following apply:

  • Your PLC rack is a CJ1 or CJ2 series with available I/O slot space and sufficient power supply capacity.
  • Your field devices output 24 VDC signals — switches, proximity sensors, photoeyes, pushbuttons, or interlock contacts.
  • 16 input points per module is the correct density for your I/O layout and panel space constraints.
  • Screw terminal block wiring is required for ease of field termination and ongoing maintenance access.
  • Your supply voltage is within the 20.4 to 26.4 VDC operating range under all load conditions.
  • Lifecycle risk and lead time have been confirmed with a distributor before the part is committed to a BOM or spare parts plan.

If you need 32 points per module to conserve rack slots, look at the higher-density CJ1W-ID family variants. If your field devices output AC signals, the CJ1W-IA211 is the correct module. If you are starting a greenfield project with no existing CJ infrastructure, evaluate whether a current-generation Omron platform better fits your long-term roadmap before investing further in CJ hardware.

On this page:

What the CJ1W-ID211 Actually Does in a Control System

The CJ1W-ID211 is a 16-point 24 VDC digital input module that slots directly into a CJ-series rack and presents discrete field signals to the CJ CPU over the CJ I/O bus. Each of the 16 input channels monitors a 24 VDC signal from a field device — a proximity switch, limit switch, photoelectric sensor, pushbutton, or interlock contact — and maps that signal to a corresponding input bit in PLC memory. The CPU reads those bits on every scan cycle and acts on them in logic.

The module handles its own signal conditioning internally. Input impedance is approximately 3.3 kΩ per channel, which determines the loading presented to connected sensors and governs the current drawn from the 24 VDC supply at each input. The ON response time is 20 μs maximum and the OFF response time is 400 μs maximum under the high-speed conditions documented in the datasheet — figures that matter when the application involves fast-cycling sensors or time-critical interlock detection. Isolation between the external input terminals and the internal bus circuit is rated at 1,000 VAC between terminals and GR, protecting the PLC backplane from transient disturbances on the field wiring side.

Front-panel status LEDs provide per-channel indication, giving technicians a direct visual confirmation of signal state without needing a laptop or HMI. This is a practical advantage in maintenance scenarios where a fast field check is needed during production troubleshooting.

Typical CJ System Architecture Using the CJ1W-ID211

The CJ1W-ID211 occupies a discrete position in the CJ rack I/O bus, sitting between the power supply and CPU assembly and the field wiring terminal block. Here is how the signal chain typically looks in a deployed system:

  • CJ1 or CJ2 CPU unit receives input data from all rack-mounted I/O modules over the internal CJ I/O bus.
  • CJ-series power supply unit provides 24 VDC bus power to the rack; a separate field 24 VDC supply (customer-provided) powers the input channels on the CJ1W-ID211.
  • CJ1W-ID211 mounts in an available I/O slot on the CJ rack, connects to the backplane, and presents 16 input channels via the screw terminal block on its face.
  • Field devices — proximity sensors, limit switches, photoelectric sensors, pushbuttons — connect to the terminal block with their 24 VDC output and common wiring.
  • PLC program in CX-Programmer or Sysmac Studio addresses the input bits allocated to the CJ1W-ID211 slot and uses them in ladder or structured text logic.

Typical Applications and Deployment Scenarios

The CJ1W-ID211 is a workhorse module in factory automation environments where Omron CJ PLCs are already the installed standard. Packaging line machines are among the most common hosts — the 16-point density aligns well with a single machine section's sensor count, and screw terminals simplify the wiring changes that happen when format changeovers require repositioning sensors.

Material handling systems including conveyor lines, sorting equipment, and accumulation zones rely on arrays of 24 VDC inductive proximity sensors and photoelectric sensors that feed directly into CJ input modules. The CJ1W-ID211 provides a clean, cost-effective way to expand input capacity when an additional conveyor zone or new pick station is added to an existing CJ-controlled line.

OEM machine builders who have standardized on CJ-series PLCs across a product line often specify the CJ1W-ID211 as the default DC input module, keeping maintenance inventories simple by reducing the number of distinct spare part numbers stocked across a customer base.

Retrofit and brownfield expansion projects represent a particularly strong use case. When an existing CJ1 system needs additional inputs to accommodate a machine upgrade — new sensors, additional interlocks, or an expanded safety monitoring circuit — adding a CJ1W-ID211 to an available rack slot is significantly lower-effort than reconfiguring the PLC platform.

Application Typical Deployment
Packaging line expansion Adding sensor inputs for a new filling or sealing station on an existing CJ2 system
Conveyor and material handling 24 VDC inductive proximity sensors and photoelectric sensors feeding zone logic
OEM machine standardization Single DC input module type used across all CJ-based machines in a product family
Brownfield retrofit Expanding an existing CJ1 rack with additional input slots for a machine upgrade
Failed module replacement Direct replacement of a faulty CJ1W-ID211 to restore production with zero program changes
Plant-wide spare standardization Stocking a single input module type across multiple CJ lines to simplify MRO inventory

Purchase-Decision Specifications

Parameter Value Notes
Input type 24 VDC digital input DC only — not compatible with AC field devices
Number of input points 16 points Terminal block connection style
Rated input voltage 24 VDC Nominal supply voltage
Input voltage operating range 20.4 to 26.4 VDC Verify supply regulation fits within this window under load
Input impedance Approximately 3.3 kΩ Governs sensor loading and input current per channel
ON response time (max) 20 μs High-speed mode per datasheet
OFF response time (max) 400 μs High-speed mode per datasheet
Isolation voltage 1,000 VAC Between external input terminals and GR (internal bus)
Compatible PLC families CJ1 series, CJ2 series CJ I/O bus rack-mounted; confirm available slot and power supply capacity
Connection type Screw terminal block Suitable for direct field wiring; periodic retorque recommended

Full technical specifications are available on the product page at LeadTime.ca.

CJ1W-ID211 vs. Other CJ Input Module Variants

Model Input Voltage Points Connection Style Primary Use Case Notes
CJ1W-ID211 24 VDC (20.4–26.4 V) 16 Screw terminal block Standard 24 VDC sensor inputs on CJ1/CJ2 racks Balanced density; easy maintenance access
CJ1W-ID201 12–24 VDC 8 Terminal block Small I/O expansions or sparse sensor layouts Lower channel count per slot
CJ1W-ID231 (32-point DC variant) 24 VDC 32 Terminal block High-density DC input applications needing maximum channels per slot More channels but denser terminal wiring
CJ1W-IA211 AC input 16 Terminal block AC field devices on CJ1/CJ2 racks Do not substitute for DC applications — completely different input circuit

If your field devices, sensor wiring, or I/O count do not match the CJ1W-ID211 profile exactly, review the full CJ input module lineup and check current availability at LeadTime.ca before finalizing your BOM.

Expert Verdict: Is the CJ1W-ID211 Worth Specifying in 2024?

For engineers and maintenance teams running established CJ1 or CJ2 PLC installations, the CJ1W-ID211 is a dependable, low-risk specification. It delivers the 24 VDC, 16-point input combination that a large proportion of legacy CJ-based machines were built around, integrates directly into the CJ backplane without configuration overhead, and provides familiar front-panel diagnostics that maintenance technicians can act on without software tools. The documented ON response time of 20 μs maximum and OFF response time of 400 μs maximum are adequate for the majority of discrete sensor applications found in packaging, material handling, and general factory automation. For a replacement or brownfield expansion purchase, this module keeps engineering effort and downtime to a minimum.

Where the CJ1W-ID211 is not the right answer: greenfield projects that are free to select any PLC platform should evaluate current-generation options rather than extending CJ investment. Applications that require more than 16 inputs per rack slot should look at the 32-point CJ1W-ID family variants. If any field device outputs an AC signal rather than 24 VDC, the CJ1W-IA211 is the correct module — the two are not interchangeable under any circumstances. And if your organization's roadmap points toward Omron's NX/NJ platform or another vendor entirely, the stronger case is planning a migration rather than adding CJ hardware.

From a procurement standpoint, the CJ platform's maturity means that stock positions and lead times can vary meaningfully between distributors and between periods of regional demand. Ordering through a specialist industrial distributor that can verify CJ-series compatibility, check current lifecycle status, and provide realistic lead time commitments for your location reduces the risk of selecting the wrong CJ1W variant or discovering availability problems after a build has been committed. Check current pricing and stock for the CJ1W-ID211 at LeadTime.ca — pricing is displayed live on the product page and we ship worldwide.

For volume orders or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we support procurement specialists and controls engineers worldwide.

What Engineers Need to Know Before Ordering the CJ1W-ID211

Model-specific community discussion for the CJ1W-ID211 is sparse across the major industrial automation forums — no recurring threads, troubleshooting posts, or ordering war stories were found referencing this exact catalog number. That absence is not unusual for a well-understood, stable module in a mature product family: when a part simply works as documented, it does not generate support forum traffic. What does exist at the CJ-series family level, however, carries direct lessons for anyone ordering a CJ input module for the first time or returning to the platform after some time away.

The single most common ordering error discussed in CJ-series forums — though not tied to CJ1W-ID211 specifically — is selecting an AC input module when a DC input module is required, or vice versa. The part numbers are visually similar (CJ1W-ID versus CJ1W-IA), and the physical modules can look identical on a distributor image. At 24 VDC, the CJ1W-ID211's input circuit will not respond correctly to an AC field signal, and the reverse is equally true. Checking the full part number against the voltage type on the I/O list before submitting a purchase order takes under a minute and prevents a potentially costly wrong-module delivery.

A second recurring theme at the family level is the CJ platform's age and what that means for long-term sourcing. Engineers who have been on CJ systems for years report that the platform is reliable and well-understood, but that lead times from certain channels have lengthened as the platform matures. Building a small buffer stock of critical I/O modules — including the CJ1W-ID211 — is a practical recommendation for plants running multiple CJ systems where an unplanned module failure would halt production. When community data is thin and the sourcing environment is less predictable, the value of a distributor who can verify current stock levels and realistic delivery windows before you commit is significant. That is exactly where a specialist like LeadTime.ca adds value that a generic marketplace cannot match.

Wiring and Installation Overview

  • Power down the CJ rack and confirm absence of voltage before inserting or removing any module from the backplane.
  • Seat the CJ1W-ID211 fully into the target I/O slot so that the backplane connector is fully engaged; confirm the module locks into position.
  • Connect 24 VDC field device outputs and corresponding common (0 VDC) wiring to the screw terminal block following the wiring diagram in the manufacturer documentation; verify polarity before applying power.
  • Tighten all screw terminals to the torque value specified in the datasheet and perform a gentle pull test on each conductor to confirm secure termination.
  • After power-up, verify that the CPU recognizes the module in the configured slot and that individual input LEDs respond correctly to field device state changes before proceeding to full I/O mapping validation.

Engineers requiring complete wiring diagrams, terminal block pinout drawings, or detailed installation procedures should refer to the Omron CJ1W-ID/IA Input Unit datasheet and the CJ-series installation manual available from Omron's documentation portal.

Wrong-Part Prevention Checklist

Before submitting a purchase order for the CJ1W-ID211, verify each of the following against your I/O list, field wiring design, and rack layout:

  1. Confirm you need 24 VDC inputs, not AC – do not confuse CJ1W-ID211 (DC) with CJ1W-IA211 (AC).
  2. Verify 16 input points is correct; check I/O list to avoid under- or over-specifying density.
  3. Confirm you need a terminal block style CJ input unit (not MIL connector or other wiring style, if applicable).
  4. Check CJ-series compatibility (CJ1/CJ2 rack, power supply, and free I/O slots available).
  5. Verify input voltage range (20.4–26.4 VDC) fits your sensor and power supply design.
  6. Review ambient temperature and derating notes (number of points ON simultaneously vs. temperature).
  7. Ensure enough panel space and cable routing to access the screw terminal block for field wiring.
  8. Confirm lifecycle status and lead time with a distributor before locking the design or spares plan.

If any item on this checklist raises a question about the correct module for your system, contact the LeadTime.ca team — our application specialists can help confirm the right CJ1W variant before you order.

Frequently Asked Questions

Is the CJ1W-ID211 compatible with both CJ1 and CJ2 CPUs?

Yes. The CJ1W-ID211 is specified for use with CJ1 and CJ2 series PLCs. It mounts in any standard CJ-series I/O rack slot and communicates with the CPU over the CJ I/O bus regardless of whether the CPU is a CJ1 or CJ2 unit. Always confirm that the specific CPU model and firmware revision you are using are listed as compatible in the current Omron documentation.

Does the CJ1W-ID211 support both PNP (sourcing) and NPN (sinking) sensors?

The CJ1W-ID211 is a 24 VDC input module. Compatibility with PNP or NPN sensor output types depends on how the common terminal wiring is configured relative to the sensor's output polarity. Refer to the Omron CJ1W-ID/IA wiring diagram in the datasheet to confirm the correct connection topology for your sensor types before wiring the module.

What happens if the 24 VDC supply voltage falls outside the 20.4 to 26.4 VDC range?

Operation outside the rated input voltage range of 20.4 to 26.4 VDC is not guaranteed by Omron's specification. Voltages below 20.4 VDC may result in inputs failing to register an ON state; voltages above 26.4 VDC exceed the rated input operating window. Verify that the field 24 VDC power supply maintains regulation within this range under full load and transient conditions.

How many inputs can be simultaneously ON at higher ambient temperatures?

The CJ1W-ID211 datasheet includes derating guidance specifying the maximum number of inputs that may be simultaneously ON as a function of ambient temperature. Running the full 16 points simultaneously ON may be subject to restrictions at the upper end of the operating temperature range. Review the derating table in the Omron documentation and design enclosure cooling accordingly to remain within rated limits.

Is the CJ1W-ID211 a direct replacement for a failed module of the same part number?

A replacement CJ1W-ID211 of the same catalog number is a direct physical and electrical replacement — the module slots into the same rack position, uses the same terminal block wiring, and is recognized by the CPU at the same I/O allocation without program changes. Confirm that the replacement module's hardware revision is consistent with your system's existing modules and that no configuration changes are needed in your programming software.

What should I consider if the CJ1W-ID211 becomes difficult to source due to platform lifecycle changes?

If lead times extend significantly due to CJ platform maturity, the immediate mitigation is to maintain a buffer stock of CJ1W-ID211 modules for critical production lines. Longer term, evaluate whether migrating the affected system to a current-generation Omron platform — such as the NX/NJ series — is warranted. A specialist distributor can provide current lifecycle status and realistic lead time data to help inform that decision before it becomes urgent.

Why Order from LeadTime.ca

  • Global shipping — LeadTime.ca ships the CJ1W-ID211 and CJ-series I/O modules worldwide, not limited to any single region.
  • Specialist verification — our team can confirm CJ-series compatibility, check current lifecycle status, and flag the correct module variant before an order is placed.
  • Realistic lead time data — we provide current stock and lead time information specific to your location rather than generic distributor estimates.
  • Volume and project pricing — contact us directly for pricing on multi-unit orders or bill-of-materials requirements.
  • Hard-to-find and mature-platform parts — we source modules across the CJ1W input family including replacement and retrofit requirements.

At-a-Glance Summary

  • Product: Omron CJ1W-ID211 DC Input Unit — 24 VDC, 16 points, screw terminal block.
  • Operating voltage range: 20.4 to 26.4 VDC nominal 24 VDC.
  • Input impedance: approximately 3.3 kΩ per channel.
  • ON response time: 20 μs maximum; OFF response time: 400 μs maximum (high-speed conditions).
  • Isolation: 1,000 VAC between external input terminals and GR.
  • Compatible with: CJ1 series and CJ2 series PLC racks via CJ I/O bus.
  • Best fit: brownfield expansion, module replacement, and plant standardization on existing CJ1/CJ2 systems.
  • Not a fit for: AC field devices (use CJ1W-IA211), applications requiring 32 points per slot, or greenfield projects evaluating platforms.
  • Key ordering check: confirm 24 VDC input type and 16-point count against I/O list — do not confuse with CJ1W-IA211 (AC).
  • Pricing: displayed live on the LeadTime.ca product page; contact for volume or project pricing.
