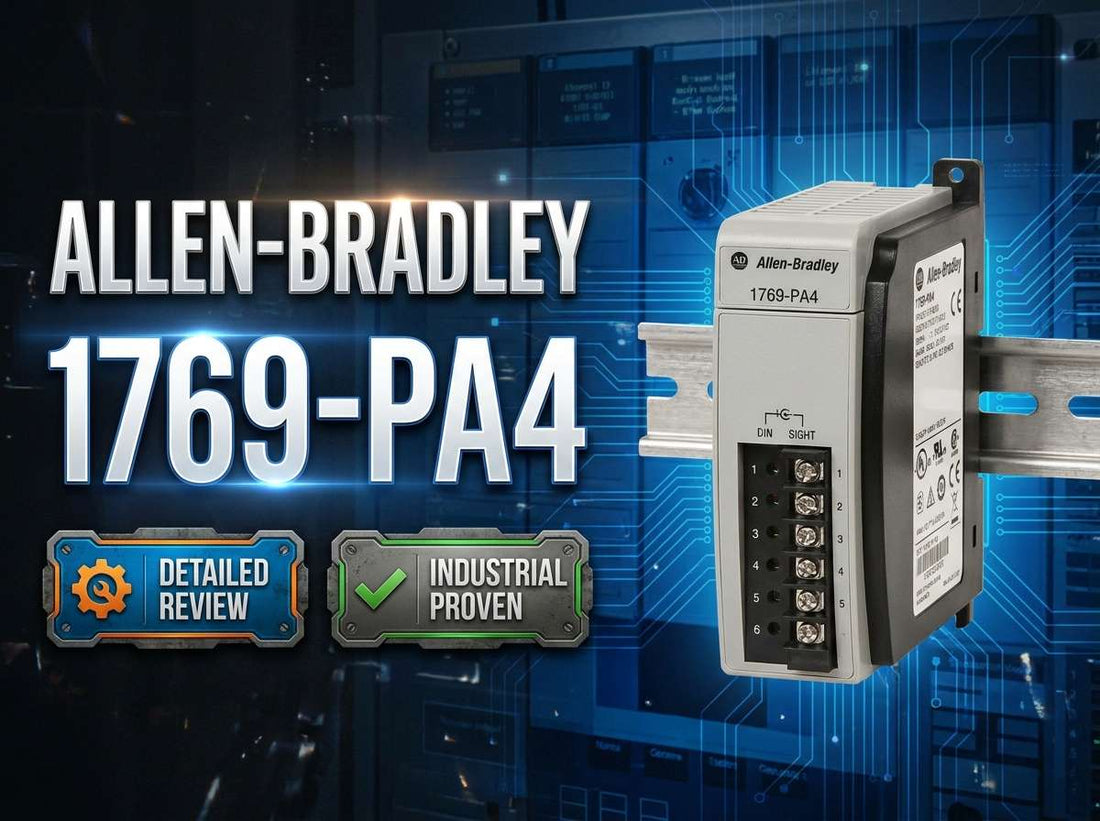

Allen-Bradley 1769-PA4 Compact I/O expansion power supply module for CompactLogix systems, 120/240V AC input

Allen-Bradley 1769-PA4 Compact I/O Expansion Power Supply, 120/240V AC, 4 A @ 5V DC, 2 A @ 24V DC — Specs, Sizing, and Where to Buy

Controls engineers specifying or replacing a power supply in a CompactLogix or 1769 Compact I/O system often land on the 1769-PA4 as the go-to expansion module — and for good reason. This 120/240V AC input supply delivers 4 A at 5V DC and 2 A at 24V DC to the 1769 backplane, making it the higher-current choice in the 1769 AC power supply family and the right answer when a mixed digital and analog I/O group has grown beyond what a base controller supply can support. The decision usually comes down to confirming the current budget per side, matching the input type to the panel supply, and sourcing from a distributor who can validate the variant before it ships.

If you have already confirmed this is the right part, check current pricing and availability for the Allen-Bradley 1769-PA4 at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 1769-PA4 — and Who Should Not

The 1769-PA4 is the correct expansion power supply when all of the following are true for your system:

  • Your controller and I/O modules are 1769 Compact I/O or CompactLogix — not ControlLogix, Micro800, or 5069 Compact I/O.
  • Your combined 5V DC load across the expansion group exceeds what a 2 A supply (1769-PA2) can provide, and your total stays within 4 A at 5V DC and 2 A at 24V DC.
  • Your panel supply is 120V AC or 240V AC and the 1769-PA4 input selector will be set correctly before energizing.
  • Your module layout can be balanced so neither side of the supply exceeds 2 A at 5V DC or 1 A at 24V DC from that side of the 1769 bus.
  • You are expanding or maintaining an existing 1769-based architecture rather than designing a greenfield system on a newer I/O platform.

If your panel runs on 24V DC, the 1769-PB4 is the correct variant. If your total 5V load is modest and a 2 A supply is sufficient, the lower-cost 1769-PA2 is the better fit. For new designs outside the 1769 family, evaluate current CompactLogix platform families before committing to 1769 expansion hardware.

On this page:

What the Allen-Bradley 1769-PA4 Actually Does in a CompactLogix System

The 1769-PA4 is a 1769 Compact I/O expansion power supply — not a controller, not a standalone power unit, but a module that inserts directly into the 1769 I/O bank and converts 120/240V AC mains into the regulated 5V DC and 24V DC rails the 1769 backplane requires. Its role is to extend the available power budget when the base controller's integrated supply has been consumed by the first group of I/O modules and additional groups are needed.

Every CompactLogix or MicroLogix 1500 system using 1769 I/O has a finite power budget determined by the controller and any power supplies already installed. As analog modules, communication cards, and specialty motion modules are added, their 5V and 24V current draws accumulate quickly. The 1769-PA4 addresses that constraint by providing 4 A at 5V DC and 2 A at 24V DC to the modules on either side of it in the I/O bank. The manufacturer's documentation is explicit that the 1769 bus itself limits distribution to a maximum of 2 A at 5V DC and 1 A at 24V DC from either side of any 1769 power supply — a critical constraint that directly governs how you lay out modules around the supply.

It is worth stating clearly: the 1769-PA4 is a power supply only. It provides no I/O points, no backplane communication, and no controller functionality. External overcurrent protection and a main disconnect upstream of the supply are required — the module depends on the installer to provide appropriate upstream protection per the installation instructions.

Typical System Architecture for a 1769-PA4 Expansion Group

The 1769-PA4 sits inside the 1769 I/O bank, physically between I/O module groups, delivering backplane power to modules on both its left and right sides. Here is how the component chain typically looks in a CompactLogix panel:

  • AC mains supply (120V or 240V AC) feeds through an upstream circuit breaker or fuse to the 1769-PA4 terminal block.
  • The CompactLogix controller occupies the leftmost position in the 1769 bank and provides its own integrated power to the first group of adjacent I/O modules.
  • When the first group's power budget is consumed, the 1769-PA4 is inserted to start a new power group, with I/O modules mounted to its immediate left and right within the per-side bus limits.
  • Digital I/O, analog, and specialty modules (motion, communication) connect via the 1769 backplane connectors and draw from the 1769-PA4's 5V and 24V outputs according to their individual current requirements.
  • A 1769 end-cap or bus terminator closes the rightmost position of the I/O bank, completing the backplane bus.

Where the Allen-Bradley 1769-PA4 Gets Specified — Industries and Use Cases

The 1769-PA4 appears most frequently in OEM machinery and plant-floor panels where a CompactLogix system has grown beyond the base power supply capacity. Packaging machine builders commonly add a 1769-PA4 when a second I/O bank is needed to handle servo drives, analog sensors, and safety modules simultaneously. In food and beverage facilities, where washdown and environmental ratings drive enclosure design, having a dedicated expansion supply for high-load I/O groups is standard practice to maintain power margin.

Automotive assembly lines and material handling conveyors often run multiple 1769-PA4 units across a single panel to segregate power groups by function — digital field I/O in one group, analog process instruments in another, and communication or motion specialty modules in a third. This segregation also simplifies troubleshooting when a power fault occurs, since the fault is isolated to one group rather than the entire backplane.

In maintenance and MRO scenarios, the 1769-PA4 is one of the first spare parts a controls engineer at a CompactLogix-standardized plant will keep on the shelf. A failed expansion power supply can take an entire I/O bank offline, and sourcing a replacement under production pressure is exactly the situation where having a spare or a distributor with immediate stock becomes critical.

Application Typical Deployment
Packaging machinery OEM Second 1769 I/O group for analog sensors and servo communication modules beyond base controller budget
Food and beverage production line Dedicated expansion supply for high-load analog and safety I/O in a washdown-rated enclosure
Automotive assembly conveyor Multiple 1769-PA4 units segregating digital field I/O, analog instruments, and motion specialty modules
Material handling / logistics Expansion power for additional I/O banks on extended conveyor control panels
MRO / plant maintenance Drop-in replacement for a failed expansion supply to restore I/O bank operation quickly
Multi-machine OEM standardization Common 1769-PA4 stocked across all machine variants for consistent spares management

Electrical and Mechanical Specifications Worth Knowing Before You Order

Parameter Value Notes
Input voltage 120/240V AC, 50/60 Hz (selector switch) Verify plant supply voltage and confirm selector position before energizing
Output current — 5V DC 4 A total Maximum 2 A per side of the 1769 bus
Output current — 24V DC 2 A total Maximum 1 A per side of the 1769 bus
Input type AC input; external overcurrent protection required Provide upstream breaker or fuse per installation instructions
Compatible platforms CompactLogix controllers using 1769 I/O; select MicroLogix 1500 configurations Confirm controller catalog numbers for 1769 bus compatibility
I/O module family 1769 Compact I/O (digital, analog, motion, specialty) Not for use with ControlLogix, Micro800, or 5069 Compact I/O
Status indication Front-panel status LEDs Indicates power and fault conditions during operation
Mounting DIN rail or panel mount Follow spacing and ventilation guidelines; locking clips to adjacent modules
Bus connection 1769 backplane connectors, left and right Ensure proper seating; bus end-cap required at last position in bank
Enclosure requirement Suitable industrial enclosure required Provide adequate ventilation and ingress protection for the installation environment

Full technical specifications are available on the product page at LeadTime.ca.

1769-PA4 vs 1769-PA2 vs 1769-PB4 — Which CompactLogix Power Supply Do You Actually Need?

The 1769 power supply family spans AC and DC input variants at two current levels. Getting this selection right before ordering saves returns, delays, and emergency re-sourcing. The table below maps the key differences:

Model Input Type 5V DC Output 24V DC Output Best For
1769-PA4 120/240V AC 4 A total (2 A per side) 2 A total (1 A per side) Medium to large I/O groups; mixed analog and digital loads on AC panels
1769-PA2 120/240V AC 2 A total 1 A total Smaller I/O groups on AC panels where total load is modest
1769-PB4 24V DC 4 A total (2 A per side) 2 A total (1 A per side) DC-powered panels and machinery with 24V DC control supply
1769-PB2 24V DC 2 A total 1 A total Smaller I/O groups on DC-powered panels
1769-PA4K 120/240V AC 4 A total (2 A per side) 2 A total (1 A per side) Same capacity as 1769-PA4 but with regional certifications for Korean market

Manufacturer documentation groups the 1769-PA4, 1769-PA4K, 1769-PB4, and 1769-PB4K together as the higher-current 4 A Compact I/O power supplies, distinct from the lower-current 2 A family. If your load calculations show you are well within 2 A at 5V DC and 1 A at 24V DC per side, the 1769-PA2 is the more cost-effective selection. If your panel runs on 24V DC rather than AC mains, the 1769-PB4 is the correct choice — ordering a 1769-PA4 for a DC panel is one of the most common and costly ordering mistakes in this product family. Check current stock and pricing for the 1769-PA4 at LeadTime.ca — our team can also confirm the right variant for your system before you commit.

Expert Verdict: Is the Allen-Bradley 1769-PA4 the Right Call for Your Project?

The 1769-PA4 earns its place as the default expansion power supply for mid-sized and larger 1769 Compact I/O groups precisely because it covers the realistic load profile of mixed digital and analog racks. At 4 A on 5V DC and 2 A on 24V DC, it handles the combination of digital I/O cards, analog modules, and specialty communication modules that a typical CompactLogix machine or process cell accumulates. Its long track record in CompactLogix installations means failure modes are well understood, replacement procedures are familiar to most AB-trained technicians, and community knowledge is deep. For any plant or OEM already standardized on CompactLogix with 1769 I/O, the 1769-PA4 is a dependable, low-drama expansion supply — provided the sizing work is done correctly up front.

The honest limits are worth stating. If your total 5V DC load sits comfortably below 2 A and your 24V load below 1 A per side, you are paying a premium for capacity you will never use — the 1769-PA2 is the better fit and the more cost-effective choice. For DC-powered panels, the 1769-PA4 is simply the wrong part; the 1769-PB4 is the correct selection and ordering the PA variant in error is a straightforward but disruptive mistake. For new greenfield projects, it is also worth evaluating whether standardizing on newer CompactLogix I/O families makes more sense for long-term lifecycle and support before committing to 1769 expansion hardware. The 1769-PA4 is not the wrong answer for brownfield sites, but it is a deliberate platform choice, not a default one.

From a procurement standpoint, the 1769-PA4 is generally available through specialist automation distributors, though periods of supply chain pressure have produced backorder situations for specific series and revisions. Sourcing through a distributor who actively checks series compatibility, validates your variant selection against your I/O list, and maintains multi-warehouse access is meaningfully lower risk than treating this as a commodity purchase. A wrong part that arrives during an unplanned outage costs far more than the price difference between sourcing channels. View current availability for the Allen-Bradley 1769-PA4 at LeadTime.ca — we ship worldwide and can confirm variant and series before the order is placed.

For volume pricing, critical-spares planning, or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we serve controls engineers and procurement specialists worldwide.

What Engineers and Technicians Report After Working With the Allen-Bradley 1769-PA4

Across discussions on PLCTalk, r/PLC, PLCS.net, MrPLC, and the Rockwell Automation support forum, the 1769-PA4 consistently draws the same core observation: it is a reliable workhorse that causes problems mainly when it is mis-sized or mis-specified, not because of inherent hardware defects. Users frequently note that correctly installed 1769-PA4 units run for years without intervention, and that the module's familiar form factor, LED indication, and straightforward terminal wiring make field replacements fast for any technician who has worked with the 1769 platform before. The drop-in fit for existing CompactLogix racks is frequently cited as a practical advantage when expanding or servicing systems in the field.

The recurring complaints in the community almost all trace back to sizing and selection errors rather than hardware failures. Intermittent I/O faults and controller power events are commonly reported on forums where further investigation reveals that the 5V or 24V load has exceeded the per-side bus limit — either because modules were added without recalculating the budget, or because the module layout was not balanced across both sides of the power supply. The 2 A per side limit on 5V DC and 1 A per side on 24V DC is the constraint that catches engineers who focus only on the total 4 A and 2 A output ratings without working through the left-right distribution. Community members also flag the 120/240V input selector as a point of failure during replacement — a selector left at the wrong position after a swap is a quick path to a damaged supply or a panel fault.

On the ordering side, the most frequently discussed mistake is confusing the 1769-PA4 with the 1769-PA2 under time pressure, resulting in a lower-current supply arriving for a high-load group that then triggers the exact faults the replacement was supposed to fix. The PA vs PB distinction — AC input versus DC input — is the second most common ordering error, particularly on sites where a mix of AC and DC control panels exist. Pricing sensitivity is a recurring theme: community members acknowledge that the 1769-PA4 carries a higher price tag than smaller 1769 supplies and some competing platforms, and several forum threads discuss remanufactured and surplus units as an alternative, with the trade-off of reduced warranty coverage and no guarantee of series or revision consistency.

Wiring and Installation Overview for the Allen-Bradley 1769-PA4

  • Mount the 1769-PA4 on DIN rail or panel, lock it to adjacent 1769 modules using the backplane connectors, and ensure it is positioned within the I/O group as planned — confirm the bus end-cap is in place at the last position in the bank.
  • Before connecting input power, set the 120/240V selector switch to match the plant supply voltage and document this setting in the commissioning record — verifying selector position is a mandatory step after any replacement.
  • Connect line, neutral, and protective earth to the terminal block following the installation instructions; ensure that an appropriate upstream circuit breaker or fuse is installed for external overcurrent protection.
  • With wiring complete, re-energize and observe the front-panel status LEDs to confirm normal operation — LEDs indicate both power status and fault conditions and should be checked before and after the controller is brought online.
  • After energizing, confirm that the CompactLogix controller boots correctly, all I/O modules in the expansion group power up without faults, and PLC diagnostics show no power-related events — if faults appear, check per-side load distribution against the 2 A at 5V DC and 1 A at 24V DC per-side bus limits before assuming hardware failure.

Wrong-Part Prevention Checklist for the Allen-Bradley 1769-PA4

Before placing an order, run through each item on this checklist. The most expensive errors in 1769-PA4 procurement are preventable and almost always involve one of these points:

  1. Confirm platform: This supply is for 1769 Compact I/O / CompactLogix, not for ControlLogix, Micro800, or 5069 Compact I/O.
  2. Confirm input type: 1769-PA4 is 120/240V AC input. For 24V DC input you need 1769-PB4 or another PB variant.
  3. Confirm power budget: Sum 5V and 24V load of all modules on each side of the supply; ensure each side stays within the 1769 bus limits and the total within 4 A @ 5V and 2 A @ 24V.
  4. Check left/right group planning: Ensure the modules on each side of the supply do not exceed the per-side current limit of the 1769 backplane.
  5. Check regional variant: For Korean markets, K-suffix versions (e.g., 1769-PA4K) may be required; do not mix these up with standard 1769-PA4 if local approvals matter.
  6. Confirm series/revision and firmware compatibility with existing hardware (Series A vs B) if the site standardizes on a specific revision.
  7. Verify mechanical spacing and mounting (enclosure depth, DIN rail or panel mounting, ventilation) for the added heat and footprint of an extra power supply.
  8. Confirm that the application truly needs an expansion supply (the base controller's integrated supply may be enough for small systems).

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can validate your selection against your I/O list before the order ships.

Frequently Asked Questions

How many 1769 I/O modules can a single 1769-PA4 reliably support?

There is no fixed module count — the answer depends entirely on the 5V DC and 24V DC current draw of each specific module in the group. The hard limits are 4 A total at 5V DC and 2 A total at 24V DC, with no more than 2 A at 5V DC and 1 A at 24V DC delivered to either side of the supply. Sum the per-module current requirements from the module datasheets, balance them across both sides of the 1769-PA4, and confirm that neither side exceeds the per-side bus limits — that calculation, not a module count, determines the answer for your specific mix of I/O cards.

Can I use a 1769-PA4 in the same system as a 1769-PB supply, and will they interfere?

Yes, different 1769 power supply variants can coexist in the same CompactLogix system as long as each supply powers its own distinct I/O group and the modules on each side of each supply are within that supply's per-side bus limits. Each power supply is electrically independent — one supply does not back-feed or interact with another on the 1769 backplane. The key requirement is correct group planning so that no module draws from two different power supplies simultaneously.

What happens if the 5V or 24V load slightly exceeds the 1769-PA4 ratings — will it shut down or just run degraded?

Exceeding the rated output current or the per-side bus limits typically produces intermittent I/O faults, module communication errors, or controller power events rather than an immediate hard shutdown. This is one reason overload conditions are often initially misdiagnosed as module faults or communication issues. If you see recurring I/O faults that clear on power cycle, recalculating the 5V and 24V load against the per-side limits is the first diagnostic step recommended in the community before condemning individual modules.

Is a 1769-PA4 of a different series (Series A vs Series B) a direct swap without any programming changes?

Replacing a 1769-PA4 with a unit of a different series is a hardware swap only — the power supply carries no controller programming, I/O configuration, or firmware. The replacement procedure involves de-energizing the panel, disconnecting wiring and backplane connectors, swapping the module, reconnecting, verifying the 120/240V selector switch position, and confirming normal operation via LED indication and PLC diagnostics. Confirm with Rockwell documentation that the series revision in use is compatible with your specific controller and I/O hardware revision if the site has standardized on a particular revision.

How do I determine whether a power issue is caused by a failing 1769-PA4 or by a fault in one of the I/O modules it powers?

Start by checking the 1769-PA4 front-panel LED status and measuring input voltage upstream of the supply to rule out an input power problem. Then temporarily remove or power down non-critical I/O modules in the affected group to reduce the load — if the fault clears with reduced load, the issue is overload or a specific module drawing excess current rather than a failing supply. If faults persist with minimal load and confirmed wiring integrity, the supply itself becomes the primary suspect and replacement is the appropriate next step. This isolation approach is the systematic method described in both the manufacturer documentation and repeated in forum troubleshooting discussions.

Can I replace a 1769-PA2 with a 1769-PA4 without any other changes to the system?

Yes — the 1769-PA4 is a higher-current version of the same AC-input 1769 expansion power supply family and is a direct physical replacement for a 1769-PA2 in the same mounting position. No programming changes are required since the power supply contributes no logic or configuration to the controller. The additional current capacity of the 1769-PA4 relative to the 1769-PA2 is available immediately to the modules in the group. Confirm that the input voltage selector is set correctly for the installation before re-energizing.

Why Order the Allen-Bradley 1769-PA4 Through LeadTime.ca

  • LeadTime.ca specializes in industrial automation components including the 1769 Compact I/O family — our team can validate your variant selection (PA4 vs PA2 vs PB4, series, K-suffix) against your system before the order ships, reducing the risk of a wrong-part return under time pressure.
  • We ship worldwide — whether you are sourcing a single MRO replacement or stocking spares across multiple sites, we serve controls engineers and procurement teams globally.
  • For hard-to-find series revisions or parts showing extended factory lead times, our multi-channel sourcing can identify stock that generic distributors may not have visible.
  • Volume pricing is available for OEM builds and multi-site stocking programs — contact us directly for project pricing before committing to a build schedule.

Allen-Bradley 1769-PA4 — At-a-Glance Summary

  • Product: 1769 Compact I/O Expansion Power Supply, 120/240V AC input, 4 A at 5V DC, 2 A at 24V DC total output
  • Per-side bus limit: maximum 2 A at 5V DC and 1 A at 24V DC from either side of the supply — this constraint governs module layout, not just total output
  • Compatible platforms: CompactLogix and MicroLogix 1500 systems using 1769 Compact I/O modules; not compatible with ControlLogix, Micro800, or 5069 Compact I/O
  • Input selector: 120/240V AC is user-selectable via a switch — verifying selector position before energizing is a mandatory commissioning and replacement step
  • Key variants: 1769-PA2 (AC, 2 A lower-current), 1769-PB4 (24V DC input, same 4 A capacity), 1769-PA4K (Korean market certification variant)
  • Most common ordering mistake: confusing PA4 with PA2 under time pressure, or ordering an AC-input PA4 for a DC-powered panel that requires a PB4
  • Grouped by manufacturer documentation with 1769-PA4K, 1769-PB4, and 1769-PB4K as the higher-current 4 A Compact I/O power supply family
  • Mounting: DIN rail or panel mount; locking clips to adjacent 1769 modules; bus end-cap required at last position in the I/O bank
  • External overcurrent protection (upstream breaker or fuse) is required — not built into the module
  • Pricing: available on the product page at LeadTime.ca; contact for volume and project pricing
