Allen-Bradley 1769-OW16 — CompactLogix Relay Output Buying Guide

By Abdullah Zahid
15 min read

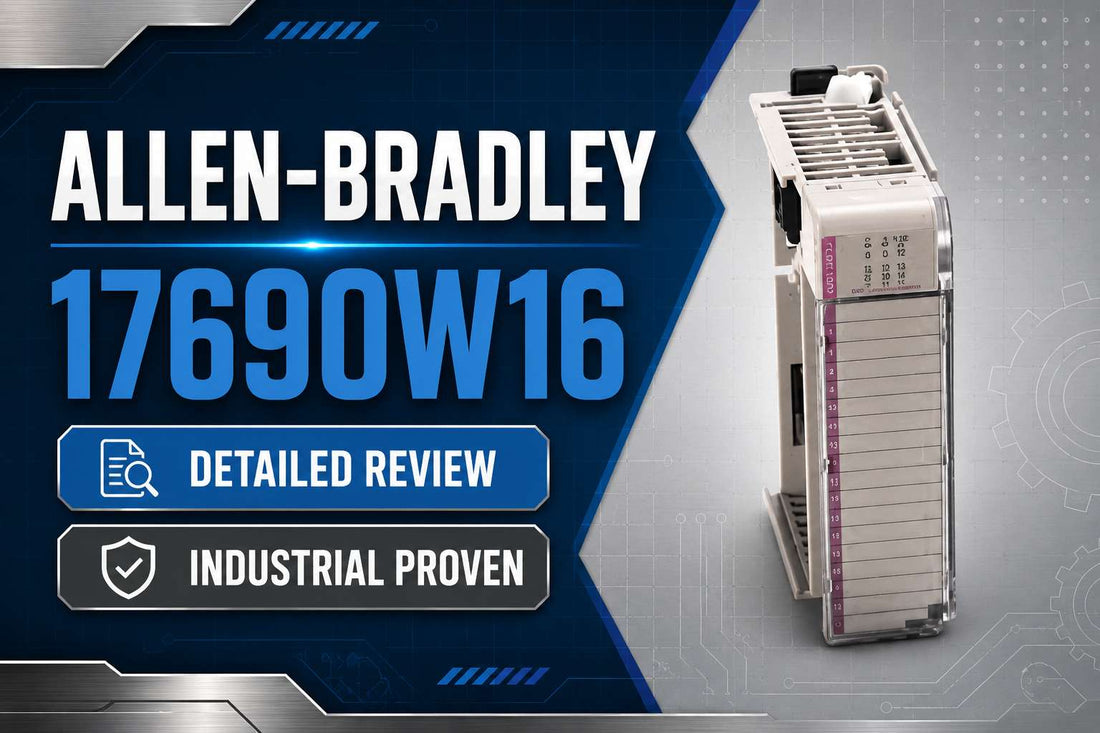

Allen-Bradley 1769-OW16 16-point AC/DC relay output module for CompactLogix Compact I/O systems

Allen-Bradley 1769-OW16 Compact I/O Relay Output Module: Specs, Pricing and Selection Guide

Controls engineers specifying relay outputs for CompactLogix or MicroLogix 1500 systems frequently arrive at the same crossroads: relay module or solid-state, and is 16 points the right count for this panel? The Allen-Bradley 1769-OW16 is a 16-point AC/DC relay digital output module built for the 1769 Compact I/O bus, offering two isolated groups of eight normally open relay contacts that can switch both AC and DC field loads from the same module. For mixed-load machines, retrofits, and applications where zero off-state leakage matters, this module has been the default choice in CompactLogix and MicroLogix 1500 systems for good reason.

If you have already confirmed this is the right part, check current pricing and availability for the Allen-Bradley 1769-OW16 at LeadTime.ca — ships worldwide.

Who Should Buy the 1769-OW16 — and Who Shouldn't

The Allen-Bradley 1769-OW16 is the right module if your project meets all of the following criteria:

  • Your controller platform is 1769 Compact I/O — either a CompactLogix CPU or a MicroLogix 1500 with expansion I/O — not ControlLogix 1756, Micro800, or SLC.
  • You need exactly 16 relay output points arranged as two isolated groups of eight, with separate common terminals per group.
  • Your field devices are a mix of AC and DC loads such as contactors, solenoids, pilot lights, or interposing relays, and zero off-state leakage is a hard requirement.
  • Your loads are moderate in switching frequency and fall within the module's per-point and aggregate VA limits specified by Rockwell Automation.
  • Your 1769 power supply and bus can support the additional backplane current and VA draw of this module without exceeding the system budget.
  • Ambient temperature and enclosure conditions stay within the module's specified operating range and the application holds UL, cUL, or CE certification requirements.

If you need high-speed DC transistor outputs with higher channel density, the 1769-OB16 or 1769-OB16P is the correct choice. If your application requires fewer relay points, the 1769-OW8 may serve better. Neither is a drop-in substitute without a full I/O plan review.

On this page:

What the 1769-OW16 Actually Does in a Live System

The Allen-Bradley 1769-OW16 sits between the CompactLogix or MicroLogix 1500 CPU and the physical field devices that need to be switched on or off. Its 16 normally open relay contacts close or open in response to output commands from the PLC program, physically breaking or completing the circuit to each field load. Because the outputs are mechanical relay contacts rather than transistors or triacs, they carry no inherent off-state leakage current — a meaningful advantage when switching sensitive interposing relays or low-current pilot devices that solid-state outputs can falsely energize through their residual leakage.

The module divides its 16 outputs into two isolated groups of eight. Each group has its own common terminal, which means you can run a different supply voltage on each group — for example, 120V AC on group one for contactor control and 24V DC on group two for solenoid valves. This grouped isolation is what makes the 1769-OW16 genuinely useful on mixed-load machines rather than just theoretically capable. Rockwell Automation specifies this module for use as Compact I/O with CompactLogix controllers and as expansion I/O with MicroLogix 1500 controllers, confirming its dual-platform role in the 1769 family.

Each output point has a front-panel status LED that illuminates when the PLC commands that output on, giving technicians a direct visual confirmation of commanded state without needing a laptop. This seemingly minor hardware detail significantly reduces panel troubleshooting time during commissioning and maintenance.

Typical System Architecture for Compact I/O Relay Outputs

The 1769-OW16 occupies a defined position in the 1769 I/O chain, directly downstream of the CompactLogix CPU or MicroLogix 1500 and upstream of the field devices it switches. A typical deployment looks like this:

  • CompactLogix CPU (e.g., L1, L2, or L3 series) or MicroLogix 1500 controller seated on the left end of the 1769 I/O bank.
  • 1769 Compact I/O bus connecting the CPU to adjacent I/O modules via side connectors and locking levers — the 1769-OW16 clips directly onto this bus in any valid slot position.
  • 1769-OW16 receiving backplane power and I/O commands from the CPU over the Compact I/O bus; no separate communication cable is required.
  • Field wiring arm (removable terminal block) connecting each of the 16 relay contacts to field loads — AC contactors, DC solenoids, pilot lights, sirens, and interposing relays are all typical downstream devices.
  • 1769 end cap installed on the final module to close the bus and prevent controller faults; external power supply or field power tied to the common terminals of each output group per load voltage requirements.

Typical Applications and Industries for the Allen-Bradley 1769-OW16

General manufacturing and packaging operations are the most common homes for the 1769-OW16. Machine builders assembling CompactLogix-based panels frequently need to control a mix of AC contactors for motor starters and 24V DC solenoid valves for pneumatic actuators — a task the 1769-OW16 handles in a single module slot where two separate solid-state modules would otherwise be required.

Food and beverage facilities often specify relay outputs specifically to avoid the off-state leakage that can keep solenoid valves or interposing relays partially energized. In these environments, a clean open contact is a safety and process-quality requirement, and the 1769-OW16 delivers that without additional suppression circuitry.

Material handling and intralogistics applications use the module to drive conveyor diverter solenoids, indicator lamps, audible alarms, and gate releases. These loads switch infrequently relative to their cycle time, which plays to the relay module's strength — contact life is maximized when switching frequency is kept well within Rockwell's specified guidelines.

Retrofit and modernization projects are a natural fit. When a plant replaces a relay panel or older PLC with a CompactLogix system, keeping relay-style outputs preserves the electrical isolation that maintenance teams are already accustomed to, simplifies reuse of existing field wiring, and avoids the need to re-engineer load circuits for transistor compatibility.

MicroLogix 1500 expansion applications round out the use profile. Small OEM panels and skid-mounted equipment running MicroLogix 1500 often add the 1769-OW16 as a cost-effective way to extend relay output capacity without migrating to a larger controller platform.

Application Typical Deployment
Mixed AC/DC machine control CompactLogix panel switching AC contactors on group 1 and DC solenoids on group 2 from one module
Food and beverage processing Relay outputs eliminating off-state leakage on solenoid valves and interposing relays
Material handling conveyor systems Driving diverter solenoids, indicator lamps, and audible alarms with infrequent switching cycles
Retrofit of legacy relay panel CompactLogix replacing hardwired relay logic with relay-output PLC control, reusing existing field wiring
MicroLogix 1500 expansion Adding 16 relay outputs to a small OEM panel or skid-mounted system without a platform change
Pilot lights, sirens, and indicators Relay contacts driving low-current signaling devices where solid-state leakage would cause false illumination

Specifications That Drive the Purchase Decision

Parameter Value / Description
Catalog Number 1769-OW16
Product Family 1769 Compact I/O (CompactLogix / MicroLogix 1500 expansion)
Output Type Mechanical relay, normally open contacts
Number of Outputs 16 points
Output Grouping 2 isolated groups of 8 outputs, each group with its own common terminal
Load Voltage AC and DC per Rockwell Automation datasheet specifications
Off-State Leakage Essentially zero (mechanical relay open contact)
Isolation Group-to-group and group-to-bus isolation per Rockwell specifications
Certifications UL, cUL, CE and other markings as documented in Rockwell datasheet
Operating Temperature As specified in Rockwell Automation Compact I/O documentation — confirm before installation

Full technical specifications are available on the product page at LeadTime.ca.

1769-OW16 vs. 1769-OB16, 1769-OW8, and AC Triac Modules

Module Output Technology Points Load Type Off-State Leakage Best For
1769-OW16 Mechanical relay, NO contacts 16 AC and DC Essentially zero Mixed AC/DC loads, infrequent switching, isolation-critical applications
1769-OB16 DC transistor (sourcing) 16 DC only Low but present Purely DC loads requiring faster switching and longer cycle life
1769-OB16P DC transistor, protected 16 DC only Low but present DC loads with short-circuit and overload protection per point
1769-OW8 Mechanical relay, NO contacts 8 AC and DC Essentially zero Smaller panels where only 8 relay outputs are required
1769 AC triac variants Solid-state triac Varies AC only Present (triac) Purely AC loads requiring solid-state longevity and faster response

If your application is exclusively DC and your outputs switch frequently under high duty cycles, the 1769-OB16 is the correct choice — check current availability for the 1769-OW16 and 1769 Compact I/O family at LeadTime.ca.

Expert Verdict on the Allen-Bradley 1769-OW16

For controls engineers and OEM machine designers running CompactLogix or MicroLogix 1500 systems with mixed AC and DC field devices, the Allen-Bradley 1769-OW16 is a dependable, low-risk relay output module. Its two isolated groups of eight normally open contacts allow AC and DC load circuits to share a single module without cross-contamination, a flexibility that removes the need for separate output modules or external isolation relays in many panel designs. The per-point status LEDs are a practical maintenance asset, and the removable wiring arm means a module swap does not require any field rewiring. These are not marketing claims — they are the reasons this module appears on BOMs across general manufacturing, food and beverage, and material handling applications worldwide.

Where the 1769-OW16 has genuine limits is equally worth stating plainly. Mechanical relay contacts wear. If your application involves high switching frequency, high inrush loads, or purely DC outputs at densities better served by a transistor module, the 1769-OB16 or 1769-OB16P will outperform this module in both longevity and response speed. Applications requiring safety-rated I/O in GuardLogix architectures will need a different solution entirely. The 1769-OW16 is not designed for those scenarios, and choosing it for them creates reliability problems that are predictable and avoidable.

From a procurement standpoint, the 1769-OW16 is broadly available from authorized distributors and is commonly stocked for immediate or short-lead-time delivery. Buying through a specialist distributor rather than a surplus or gray-market channel matters here — you receive verified, current-production stock with full Rockwell Automation traceability, access to accurate lead time data before you commit to a project schedule, and expert pre-sales support if you need to confirm bus power budgets or load sizing. View current pricing and lead time for the Allen-Bradley 1769-OW16 at LeadTime.ca, with worldwide shipping available.

For volume orders or to confirm availability before locking in a project BOM, contact the LeadTime.ca team directly — we ship worldwide and can provide accurate lead times across multiple distribution channels.

What Engineers Need to Know Before Ordering the 1769-OW16

Community feedback on the Allen-Bradley 1769-OW16 across forums including Reddit r/PLC, PLCTalk, and PLCS.net is consistently positive for the applications this module was designed for. Engineers working on CompactLogix-based machines with mixed AC and DC loads report reliable, long-service operation when the module is kept within its rated electrical limits. Two hardware details draw particular appreciation from technicians in the field: the individual status LED per output point, which makes commissioning and fault isolation faster without requiring software access, and the removable wiring arm, which allows a module replacement without disturbing field wiring or re-terminating conductors.

The recurring complaints in these communities are consistent and instructive. Relay contact failure is almost always traceable to loads exceeding the module's per-point current or aggregate VA limits, particularly on inductive loads with high inrush — contactors and small motors that are not properly sized against the relay's switching ratings. A second persistent issue is controller faults caused by removing or reinstalling modules under power, or by failing to reinstall the 1769 end cap after a module change. These are not product defects; they are installation and handling mistakes that appear regularly in forum troubleshooting threads and have straightforward preventive answers.

The ordering mistake that surfaces most often is confusing the 1769-OW16 with the 1769-OB16. Both are 16-point 1769 Compact I/O output modules, and buyers sometimes select one while needing the other. The relay module and the DC transistor module serve different load types and duty cycle profiles, and the difference only becomes obvious during commissioning — an expensive point in the project timeline to discover a wrong part. A second ordering error is assuming the 1769-OW16 is compatible with ControlLogix 1756 racks, Micro800 systems, or SLC-based panels. The 1769 bus is specific to CompactLogix and MicroLogix 1500 expansion, and this platform boundary is non-negotiable. When community data is limited on a specific model, these are exactly the situations where consulting a specialist distributor before placing the order eliminates costly rework. LeadTime.ca's team can confirm platform compatibility, validate your I/O count and load sizing, and ensure you receive the correct catalog number for your application.

Wiring and Installation Overview

The following points summarize the key installation requirements for the 1769-OW16. Full wiring procedures are detailed in Rockwell Automation's installation instructions for the 1769 Compact I/O family, which should always be consulted before wiring field devices.

  • Always power down the CompactLogix or MicroLogix 1500 system and confirm all field power is removed before adding, removing, or rewiring any 1769 module. Removing a module under power causes controller faults and risks equipment damage.
  • Mount the 1769-OW16 by sliding it onto the 1769 bus next to adjacent modules, engaging the side connectors, and locking the lever. Install the end cap on the final module in the group — omitting the end cap will cause a controller fault.
  • The module uses a removable wiring arm (terminal block). Each of the two groups of eight outputs has its own common terminal; connect the appropriate AC or DC supply voltage to each group's common and wire each field device in series with its relay contact and supply voltage.
  • Use wire sizes and tightening torques specified in Rockwell's installation instructions. Where both AC and DC conductors are present in the same enclosure, physically separate them where practical to reduce noise coupling.
  • Provide external overcurrent protection (fuses or circuit breakers) on all output circuits as required by Rockwell's guidelines and applicable electrical codes. After restoring power, verify each output through the PLC program while observing the front-panel status LEDs for commanded-state confirmation.

Compatible Modules and System Expansion Context

The 1769-OW16 is part of the 1769 Compact I/O family, which includes a broad range of digital input, digital output, and analog modules that mount on the same bus. When building or expanding a 1769 system, the following module types are commonly deployed alongside the 1769-OW16:

  • 1769-IQ16 — 16-point 24V DC digital input module, the most common companion input module for CompactLogix machines using the 1769-OW16 for outputs.
  • 1769-IQ32 — 32-point 24V DC digital input module for higher input density in the same Compact I/O bank.
  • 1769-OB16 / 1769-OB16P — 16-point DC transistor output modules for purely DC loads requiring faster switching or per-point protection.
  • 1769-OF2 / 1769-IF4 — Compact I/O analog output and input modules for mixed digital-analog control architectures on the same 1769 bus.
  • 1769-ECR / 1769-ECL — Right-end and left-end caps required to terminate the 1769 bus; one must always be present on the last module in any 1769 bank.
  • 1769 power supplies — Compact I/O bus power supplies that must be sized to support the aggregate backplane current draw of all modules in the group, including the 1769-OW16.

Wrong-Part Prevention Checklist Before Ordering the 1769-OW16

Review every point in this checklist before placing your order. Each item corresponds to a real ordering or sizing mistake documented in the field.

  1. Confirm the PLC platform is 1769 Compact I/O (CompactLogix or MicroLogix 1500 expansion) – not ControlLogix (1756), Micro800, or SLC.
  2. Verify you truly need relay outputs (AC/DC, zero leakage, moderate speed) rather than DC transistor or AC triac outputs.
  3. Check that 16 outputs are sufficient and that two groups of 8 with common terminals match your field wiring plan.
  4. Verify load voltage and current are within the module's rated switching range and per-point/per-module current limits.
  5. Confirm the 1769 power supply and bus support the additional backplane current and VA of this module.
  6. Ensure ambient temperature and enclosure conditions stay within the module's specified operating range.

If any of these points raise uncertainty before you order, contact the LeadTime.ca team to confirm compatibility — getting this right before shipment is always faster than a return and reorder mid-project.

Frequently Asked Questions

Can I mix AC and DC loads on different channels of the same 1769-OW16?

Yes. The 1769-OW16 has two isolated groups of eight outputs, each with its own common terminal. You can connect an AC supply to one group's common and a DC supply to the other group's common, allowing AC and DC loads to be controlled from the same module without electrical interaction between groups. What you cannot do is mix voltage types within the same group of eight, since all outputs in a group share a single common terminal.

Is the 1769-OW16 compatible with my CompactLogix controller, and are there slot-position rules?

The 1769-OW16 is designed for use as Compact I/O with CompactLogix controllers and as expansion I/O with MicroLogix 1500 controllers, per Rockwell Automation's Compact I/O documentation. Standard 1769 bus rules apply regarding maximum module count, bus distance limits, and power supply placement. Confirm your specific controller model and system configuration against Rockwell's selection guide before finalizing the BOM.

How do I troubleshoot an output channel on the 1769-OW16 that won't turn on?

Start with the front-panel status LED for that output point. If the LED illuminates but the load does not switch, the issue is in the field circuit — check wiring continuity, supply voltage at the common terminal, and load fuse or breaker status. If the LED does not illuminate when the PLC tag is set, the issue is either in the PLC program logic, the module configuration, or the module itself. Check controller fault codes and verify the module is correctly seated with the locking lever engaged and the end cap installed.

What are the key wiring differences between the 1769-OW16 and the 1769-OB16?

The 1769-OW16 uses dry relay contacts that require an external field power supply connected to each group's common terminal — the relay simply opens and closes the circuit. The 1769-OB16 uses DC transistor (sourcing) outputs that source 24V DC through each output point and require a DC power supply connected to the module's field power terminal. The wiring arm layouts and terminal assignments differ between the two modules, so they are not interchangeable in the panel without re-terminating field wiring.

Do I have to power down before replacing a 1769-OW16, and what happens if I forget to reinstall the end cap?

Yes. Rockwell Automation's installation instructions require that the system be powered down before adding or removing any 1769 module. Removing a module under power can cause controller faults and potential equipment damage. Omitting the 1769 end cap after a module change will also generate a controller fault, as the end cap is required to properly terminate the 1769 bus. Always confirm the end cap is installed and the controller shows the module as present before returning the system to service.

What relay contact life and switching frequency should I plan for?

Relay contact life is determined by both the number of switching operations and the electrical load at each switching event — higher current and inductive loads with high inrush reduce contact life. Rockwell Automation's datasheet specifies the maximum recommended switching frequency for the 1769-OW16; staying within those guidelines and keeping loads below the rated per-point and aggregate VA limits is the single most effective way to maximize contact service life. For applications with high switching frequency, a solid-state transistor or triac output module is a better long-term choice.

Why Order the Allen-Bradley 1769-OW16 From LeadTime.ca

  • Authorized distribution with full product traceability — no surplus, gray-market, or counterfeit risk.
  • Worldwide shipping on all Compact I/O modules, including the 1769-OW16, with accurate lead time data provided before you commit.
  • Pre-sales technical support to confirm 1769 bus compatibility, power budgets, and correct module selection before the order is placed.
  • Volume pricing available for OEM machine builders and MRO stocking programs — contact for current terms.
  • Single-source access to the full 1769 Compact I/O family for complete BOM fulfillment.

At-a-Glance Summary

  • The Allen-Bradley 1769-OW16 is a 16-point AC/DC relay digital output module in the 1769 Compact I/O family.
  • 16 normally open relay contacts are divided into two isolated groups of eight, each with its own common terminal for independent supply voltages.
  • Compatible with CompactLogix controllers as Compact I/O and with MicroLogix 1500 controllers as expansion I/O — not compatible with ControlLogix 1756, Micro800, or SLC platforms.
  • Mechanical relay contacts provide essentially zero off-state leakage, making the module suitable for sensitive interposing relays, pilot lights, and low-current loads that solid-state outputs may falsely energize.
  • Each of the 16 output points has a dedicated front-panel status LED for visual fault isolation without software access.
  • The removable wiring arm allows module replacement without re-terminating field wiring — a key maintenance advantage.
  • Contact wear under overload or high-frequency switching is the primary failure mode; sizing loads within Rockwell's per-point and aggregate VA limits is the primary preventive measure.
  • Certifications include UL, cUL, and CE as documented in Rockwell Automation's current datasheet — verify regional certifications before specifying for marine or specialty applications.
  • Always power down before module installation or removal, and confirm the 1769 end cap is installed on the last module in the group.
