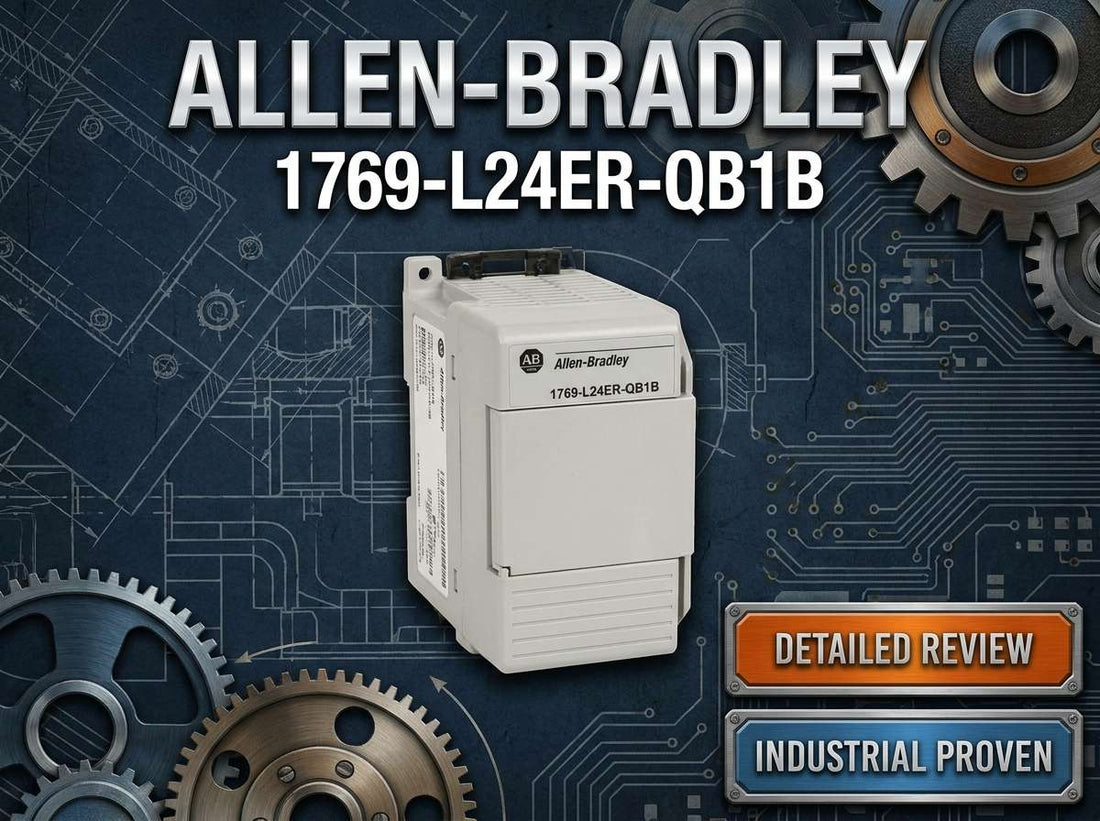

Allen-Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 controller with dual EtherNet/IP ports and embedded DC I/O for OEM machine control

Allen-Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 Controller, 2 EtherNet/IP ports with Device Level Ring capability, 750KB Memory, 16 DC Inputs, 16 DC Outputs, up to 4 1769 I/O Expansion Modules — Specs, Price, and Selection Guide

Controls engineers specifying a compact packaged controller for a small to medium machine face a familiar decision: how much I/O is embedded, how far will it expand, and does the networking match the plant topology? The Allen-Bradley 1769-L24ER-QB1B answers those questions with 16 DC digital inputs, 16 DC sinking digital outputs, 750 KB of user memory, and dual EtherNet/IP ports with Device Level Ring capability — all in a 24V DC powered CompactLogix 5370 L2 package that supports up to four 1769 Compact I/O expansion modules. If you are near the end of your evaluation and this SKU already matches your I/O count and network requirements, the fastest next step is to confirm availability now.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 1769-L24ER-QB1B — and Who Shouldn't

The Allen-Bradley 1769-L24ER-QB1B is the right controller if your project meets all of the following criteria:

  • You need exactly 16 DC digital inputs and 16 DC sinking digital outputs on-board — no analog I/O is required from the embedded module.
  • Four or fewer 1769 Compact I/O expansion modules are sufficient to cover your full I/O count, including any future growth planned at design stage.
  • Your network design requires or benefits from dual EtherNet/IP ports with Device Level Ring topology, and your plant infrastructure supports DLR.
  • A 24V DC control power supply is available in the panel, and external overcurrent protection can be provided as required.
  • Your engineering team has Studio 5000 Logix Designer licenses and is already working within the Rockwell/Allen-Bradley ecosystem.
  • 750 KB of user memory is adequate for your application program size and data requirements.

If your design calls for on-board analog I/O, consider the 1769-L24ER-QBFC1B instead. If you need more than four expansion modules, a larger CompactLogix or ControlLogix platform is the correct path.

On this page:

What the 1769-L24ER-QB1B Does in a Real System

The Allen-Bradley 1769-L24ER-QB1B is a packaged CompactLogix 5370 L2 programmable automation controller that combines logic execution, embedded discrete I/O, and EtherNet/IP communications in a single 24V DC powered unit. Unlike modular ControlLogix or larger CompactLogix platforms that require a chassis and separate power supply module, this controller ships as a self-contained unit ready for DIN rail mounting. The embedded I/O — 16 DC digital inputs and 16 DC sinking digital outputs — handles a substantial portion of typical small machine wiring without a single additional I/O module.

The 750 KB of user memory accommodates programs of moderate complexity, covering logic for motion sequences, conveyor control, batching routines, and HMI data exchange without memory pressure for most small to medium OEM applications. Two EtherNet/IP ports with Device Level Ring capability mean the controller can sit in a ring topology with drives, safety devices, and remote I/O without requiring a separate managed switch to maintain network continuity if a cable or device fails. The controller also provides one USB port for local programming and firmware updates, and supports 8 EtherNet/IP connections and 120 TCP connections simultaneously.

What the 1769-L24ER-QB1B does not include is equally important to understand: there is no on-board analog I/O. Engineers needing analog channels must add 1769 Compact I/O analog modules within the four-module expansion limit, or reconsider the platform entirely. There is no integrated safety controller, and the controller does not accept AC mains power directly — an external 24V DC supply and appropriate overcurrent protection are mandatory.

Typical System Architecture for the 1769-L24ER-QB1B

The 1769-L24ER-QB1B sits at the top of the local control node, executing logic and managing all I/O and network communications for its assigned machine or skid. Here is where it fits in a typical deployment:

  • Engineering workstation running Studio 5000 Logix Designer connects via USB or EtherNet/IP for project download, monitoring, and firmware management.
  • The 1769-L24ER-QB1B processes field signals through its embedded 16 DC inputs and 16 DC sinking outputs, with up to four 1769 Compact I/O modules mounted directly beside it for additional I/O points.
  • Dual EtherNet/IP ports connect to plant network devices — drives, servo amplifiers, remote I/O adapters, and HMI panels — in either a linear daisy-chain or a Device Level Ring topology for fault-tolerant connectivity.
  • The controller communicates upstream to a supervisory SCADA system, MES, or plant historian over EtherNet/IP using producer/consumer messaging.
  • A 24V DC panel power supply feeds the controller and I/O bus, with an external fuse or circuit breaker providing branch circuit protection as required by Rockwell installation guidelines.

Typical Applications and Deployment Scenarios

OEM machine builders consistently reach for the 1769-L24ER-QB1B when a machine needs moderate discrete I/O, EtherNet/IP drives or HMI connectivity, and a compact panel footprint. Packaging machines — horizontal form-fill-seal, case erectors, labelers — often match this I/O profile precisely, with the embedded 16 inputs and 16 outputs handling sensors, solenoids, and status signals while EtherNet/IP connects servo drives and the operator panel.

Material handling cells and small conveyor lines are another strong fit. A controller that supports 8 EtherNet/IP connections and 120 TCP connections simultaneously can easily manage a handful of variable frequency drives, a barcode scanner network node, a remote I/O drop, and an HMI within a single project without pushing the connection limits.

Process skids — pump panels, chemical dosing units, small water treatment sub-systems — benefit from the dual-port EtherNet/IP when the skid must be integrated into a plant DLR ring without breaking the ring during maintenance. The 750 KB memory easily accommodates the PID blocks, alarming logic, and data logging typical of these applications.

Retrofit projects replacing legacy Allen-Bradley MicroLogix or SLC systems are a growing use case. The 1769-L24ER-QB1B brings those legacy machines onto an EtherNet/IP infrastructure — though note that MicroLogix and SLC programs must be rewritten in Studio 5000 Logix Designer; direct program migration without conversion is not supported.

Application Typical Deployment
Standalone packaging machine Embedded I/O for sensors and solenoids; EtherNet/IP to servo drives and HMI panel
Small conveyor or material handling cell Drives on DLR ring; remote I/O drop for end-of-line signals; HMI on same EtherNet/IP network
Process skid (pumping, dosing, batching) Controller in panel on DLR ring; analog I/O via 1769 expansion modules; SCADA connection over EtherNet/IP
OEM standard platform (multi-machine replication) Same catalog number deployed across machine variants; Studio 5000 project template reused per build
Legacy MicroLogix or SLC retrofit 1769-L24ER-QB1B replaces legacy CPU; field wiring reused where compatible; program rewritten in Studio 5000
Food and beverage line equipment Embedded DC I/O for washdown-compatible field devices; DLR for network resilience in wet environments

Key Specifications and Variant Comparison

Parameter Value
Catalog Number 1769-L24ER-QB1B
Product Family CompactLogix 5370 L2 / 1769 CompactLogix Controllers
User Memory 750 KB
Supply Voltage 24V DC (input range 10–30V DC)
Embedded Digital I/O 16 DC digital inputs, 16 DC sinking digital outputs
Analog I/O (embedded) None — analog requires 1769 expansion modules
1769 I/O Expansion Capacity Up to 4 modules
EtherNet/IP Ports 2 ports with Device Level Ring (DLR) capability
EtherNet/IP / TCP Connections 8 EtherNet/IP connections, 120 TCP connections
Local Programming Port 1 USB port

Full technical specifications are available on the product page at LeadTime.ca.

1769-L24ER-QB1B vs. Close CompactLogix 5370 L2 Variants

Model Embedded I/O Analog On-Board EtherNet/IP Ports Max 1769 Expansion Best For
1769-L24ER-QB1B 16 DI, 16 DO (sinking DC) No 2 (DLR capable) 4 modules Discrete I/O machines, DLR networks, no analog needed on-board
1769-L24ER-QBFC1B Mixed digital and analog embedded I/O Yes 2 (DLR capable) 4 modules Applications requiring on-board analog alongside digital I/O
1769-L27ERM-QBFC1B Mixed digital and analog embedded I/O Yes 2 (DLR capable) 4 modules Higher-performance L2 with motion and analog capability

If your design includes analog signals or integrated motion, the 1769-L24ER-QBFC1B or 1769-L27ERM-QBFC1B are the correct variants to evaluate — check current availability at LeadTime.ca and contact the team to confirm which variant suits your I/O list.

Expert Verdict: Is the 1769-L24ER-QB1B Worth the Investment?

The Allen-Bradley 1769-L24ER-QB1B earns its place in small to medium machine control precisely because it does not ask you to compromise on networking. Dual EtherNet/IP ports with Device Level Ring capability in a 24V DC packaged controller is a genuine advantage for OEM builders replicating the same machine platform across multiple customer sites — each installation benefits from DLR resilience without adding an external switch. The 16 DC digital inputs and 16 DC sinking outputs cover the majority of discrete I/O in typical packaging, material handling, and process skid applications, and the 750 KB of user memory handles programs of real-world complexity. For engineers already standardized on Rockwell, the tight integration with Studio 5000, EtherNet/IP drives, and 1769 Compact I/O modules is a tangible productivity benefit.

Where this controller reaches its limits is equally clear. The hard ceiling of four 1769 Compact I/O expansion modules is a genuine constraint — designers who discover mid-project that they need a fifth module face a platform change, not a configuration adjustment. There is no on-board analog I/O; if your design has even a few 4–20mA signals, the 1769-L24ER-QBFC1B is the more appropriate starting point. For very simple applications with minimal I/O and no EtherNet/IP requirement, the Micro800 family represents a significantly lower entry cost. For high-channel-count systems, safety integration, or redundancy requirements, a modular CompactLogix or ControlLogix platform is the correct choice — not a larger configuration of this model.

From a procurement standpoint, the 1769-L24ER-QB1B is a mainstream CompactLogix SKU — but mainstream does not mean always in stock. Demand cycles and supply chain conditions have created multi-week lead times on standard Rockwell controllers at various points in recent years. Buying through a specialist automation distributor rather than a generic channel matters here: a knowledgeable distributor can verify realistic lead times across multiple warehouses, confirm firmware revision alignment with your Studio 5000 version, and identify whether a stocked alternative variant can bridge a gap while your preferred unit ships. For current pricing and lead time on the 1769-L24ER-QB1B, visit the product page at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Are Saying About the CompactLogix 5370 L2

Across PLC forums including PLCTalk, PLCS.net, MrPLC, and Reddit communities such as r/PLC and r/automation, the CompactLogix 5370 L2 family — and the 1769-L24ER-QB1B in particular — carries a reputation for dependable long-term operation. Engineers running these controllers in 24/7 production environments consistently describe them as reliable once correctly installed and commissioned. The compact form factor and embedded I/O draw particular appreciation from panel designers working within tight enclosures, where every module eliminated is real panel space saved. Integration with Studio 5000 and EtherNet/IP devices such as PowerFlex drives and PanelView HMIs is described as straightforward for teams already experienced in the Rockwell environment — the ecosystem coherence is genuinely valued.

Recurring complaints follow a predictable pattern. Cost is the most consistent friction point — controls engineers acknowledge that CompactLogix 5370 controllers carry a price premium relative to mid-range competitors, and project managers on tight budgets frequently push back. Device Level Ring configuration is a second pain point: engineers who have not previously set up DLR topologies report a learning curve, and misconfigured ring properties can produce confusing fault symptoms. Studio 5000 software licensing and version compatibility generate ongoing frustration, particularly in plants running multiple hardware generations where older firmware revisions may not align with the currently available software version.

The ordering mistakes that surface most frequently in community discussions are worth internalizing before you submit a purchase order. Confusing the 1769-L24ER-QB1B with the 1769-L24ER-QBFC1B is the single most common error — buyers who need analog I/O on-board and order the QB1B variant discover the issue at commissioning, not at the parts counter. Assuming more than four 1769 expansion modules will fit is the second failure mode — the limit is hard, not advisory. The third recurring mistake is misunderstanding the sinking output type: engineers accustomed to sourcing outputs have rewired field circuits or added interposing relays after the fact. Verifying all three of these points before ordering takes less than five minutes and prevents multi-week project delays.

Wiring and Installation Overview

The following points summarize key installation requirements. Engineers performing full wiring should refer to the Rockwell Automation user manual for the CompactLogix 5370 L2 controller platform — this overview is not a substitute for manufacturer documentation.

  • Mount the controller on DIN rail or panel per the clearance and orientation requirements in the user manual; ensure adequate spacing above and below for heat dissipation and cable routing.
  • Supply 24V DC power within the 10–30V DC input range through an external fuse or circuit breaker — the controller does not provide integrated branch circuit protection, and Rockwell documentation requires external overcurrent protection; connect protective earth as specified.
  • Wire 24V DC digital inputs following the polarity and common terminal arrangements shown in the wiring diagrams; wire the 16 DC sinking digital outputs with attention to load ratings per point and confirm that field devices are compatible with sinking (NPN) output logic before terminating.
  • Connect EtherNet/IP ports to the plant network using industrial-grade Ethernet cable with appropriate shielding for the environment; for Device Level Ring topology, both ports participate in the ring — do not use both ports for independent network segments unless the project is specifically configured for that topology.
  • Use the USB port for initial project download and IP address configuration; after commissioning, verify all I/O status LEDs, confirm no fault indication on the controller status LED, and test basic I/O operation with a simple diagnostic rung before enabling machine motion.

Wrong-Part Prevention Checklist for the 1769-L24ER-QB1B

Before submitting your purchase order, work through this checklist verbatim — each item addresses a documented ordering or installation failure mode for this exact model:

  1. Confirm you specifically need 24V DC digital I/O: 16 DC inputs and 16 DC sinking DC outputs; no analog on-board.
  2. Verify 4 or fewer 1769 Compact I/O modules are sufficient for the project's expansion needs.
  3. Check that dual EtherNet/IP ports with DLR are desired and that the plant network supports/needs DLR.
  4. Ensure a 24V DC control power supply is available; this controller does not accept AC mains directly and requires external protection.
  5. Confirm Studio 5000 Logix Designer and appropriate Rockwell licenses are available in-house (for configuration/programming).
  6. Verify environmental ratings (temperature, vibration, panel space) match the panel design and plant conditions per TD sheet.
  7. Make sure you are not confusing 1769-L24ER-QB1B with 1769-L24ER-QBFC1B (latter includes analog and different I/O mix).
  8. Check that no serial (RS-232) requirement is hard-mandated; this L2 model is Ethernet/USB-based per the 5370 L2 platform.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — our specialists can confirm the right catalog number for your application and check current availability worldwide.

Frequently Asked Questions

Does the 1769-L24ER-QB1B include analog I/O, or do I need to add expansion modules for analog signals?

The 1769-L24ER-QB1B has no on-board analog I/O. Its embedded module provides 16 DC digital inputs and 16 DC sinking digital outputs only. If your application requires analog input or output channels, you must add 1769 Compact I/O analog modules within the four-module expansion limit — or specify the 1769-L24ER-QBFC1B, which includes embedded analog I/O.

How many 1769 Compact I/O modules can I connect before I hit the system limit?

The 1769-L24ER-QB1B supports a maximum of four 1769 Compact I/O expansion modules. This limit is a hard platform constraint, not a default setting that can be changed through configuration. If your I/O count requires five or more additional modules, you must move to a larger CompactLogix or ControlLogix platform at the design stage — retrofitting after the fact requires a controller replacement.

How do I configure the dual EtherNet/IP ports for Device Level Ring topology, and what are the common pitfalls?

Device Level Ring configuration is done in Studio 5000 Logix Designer by enabling the DLR properties on the embedded EtherNet/IP module and adding ring-capable devices to the project. The most common pitfall is connecting both ports to independent network switches rather than threading them through the ring — both ports must participate in the physical ring for DLR to function. Rockwell Automation's DLR application guidance, available through their support portal, is the authoritative reference for ring configuration and troubleshooting fault symptoms such as ring node failure alerts.

Can I migrate an existing MicroLogix or SLC program directly to the 1769-L24ER-QB1B?

Not directly. MicroLogix and SLC programs use RSLogix 500/RSLogix Micro software and instruction sets that are not natively compatible with the CompactLogix platform. Migration requires recreating the program logic in Studio 5000 Logix Designer. Rockwell Automation provides migration guides and tools to assist with this process, but budget project time for logic conversion, I/O remapping, and retesting — direct import without rework is not supported.

What do the status LEDs indicate, and how do I interpret a controller fault condition?

The 1769-L24ER-QB1B includes status LEDs for controller run/fault state, I/O status, and EtherNet/IP link activity. A solid red fault LED indicates a major fault that has halted program execution — the fault code and description are readable in Studio 5000 under the Controller Properties fault log, which is the correct starting point for diagnosis. An I/O fault LED typically points to a missing or faulted 1769 expansion module or a device connection failure on EtherNet/IP. The user manual for the CompactLogix 5370 L2 platform contains the full LED state matrix and corresponding corrective actions.

What is the typical lead time for the 1769-L24ER-QB1B, and how do I get a current price?

Lead times for the 1769-L24ER-QB1B vary with demand cycles and distributor stock levels — multi-week lead times are common during periods of high demand, while authorized stocking distributors may have units available for faster shipment. Pricing is not fixed and should be confirmed with a current quote. Current pricing and availability are shown on the LeadTime.ca product page, and the team can confirm realistic ship dates before you commit to a project schedule.

Why Order From LeadTime.ca

  • Ships worldwide — no geographic restrictions on orders for the 1769-L24ER-QB1B or any stocked Allen-Bradley product.
  • Specialist automation distributor with direct knowledge of CompactLogix platform variants — we can confirm the correct catalog number before you order.
  • Access to current lead-time data across multiple fulfillment sources, not a single warehouse snapshot.
  • Volume pricing available for OEM builds and multi-unit orders — contact the team for a project quote.
  • Sourcing support for constrained or hard-to-find SKUs, including advice on suitable interim alternatives when preferred models are on extended lead time.

At-a-Glance Summary

  • Catalog number: 1769-L24ER-QB1B — CompactLogix 5370 L2 packaged controller from Allen-Bradley.
  • 750 KB of user memory for application programs of moderate complexity.
  • 16 DC digital inputs and 16 DC sinking digital outputs embedded — no analog I/O on-board.
  • Supports up to 4 additional 1769 Compact I/O expansion modules — hard platform limit.
  • 2 EtherNet/IP ports with Device Level Ring capability; supports 8 EtherNet/IP connections and 120 TCP connections simultaneously.
  • 1 USB port for local programming and firmware management.
  • Powered by 24V DC (input range 10–30V DC); requires external overcurrent protection — no integrated branch circuit protection.
  • Programmed exclusively in Studio 5000 Logix Designer; MicroLogix and SLC programs require full conversion, not direct import.
  • Primary alternatives: 1769-L24ER-QBFC1B for on-board analog I/O; 1769-L27ERM-QBFC1B for higher performance and motion; larger CompactLogix or ControlLogix for more than 4 expansion modules.
  • Insulation type-tested at 500V AC for 60 seconds per Rockwell technical data sheet.
