Allen-Bradley 1734-AENTK — POINT I/O Adapter Selection Guide

By Abdullah Zahid
15 min read

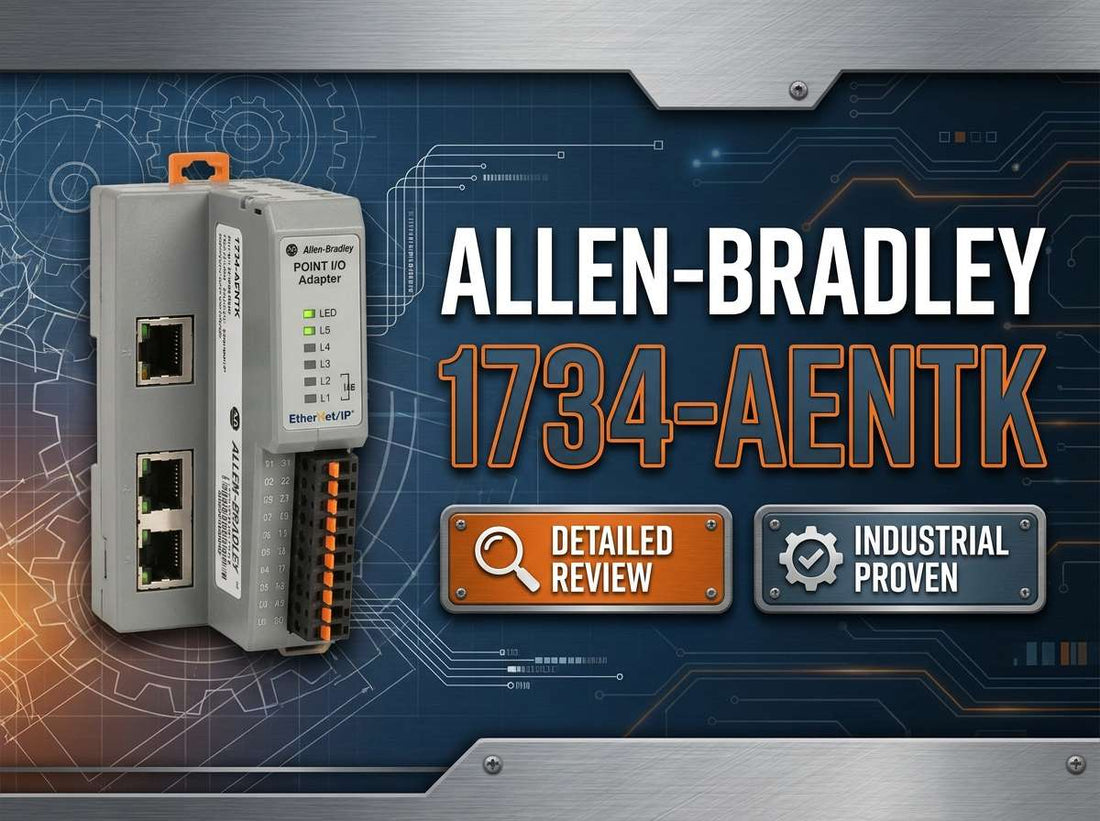

Allen-Bradley 1734-AENTK POINT I/O EtherNet/IP adapter conformal coated mounted on DIN rail in industrial control panel

Allen-Bradley 1734-AENTK POINT I/O EtherNet/IP Adapter, Conformal Coated — Specs, Pricing and Selection Guide

Controls engineers specifying a remote I/O node for a CompactLogix or ControlLogix system in a demanding panel environment often arrive at the same crossroads: standard adapter or conformal coated, single port or dual port? The Allen-Bradley 1734-AENTK is the conformal-coated, single-port EtherNet/IP adapter for the POINT I/O family, connecting up to 63 POINT I/O modules to an EtherNet/IP network while adding a K-suffix coating layer that resists humidity, condensation, and airborne contaminants that would degrade a standard unit over time. If you are at the shortlisting stage and have already confirmed your topology is switch-based star, your environment warrants conformal coating, and your I/O count sits within 63 modules, this is the part.

If you have already confirmed this is the right part, check current pricing and availability for the 1734-AENTK at LeadTime.ca — ships worldwide.

Who Should Buy the 1734-AENTK — and Who Shouldn't

The Allen-Bradley 1734-AENTK is the right adapter when all of the following are true for your project:

  • Your controller communicates over EtherNet/IP — ControlLogix, CompactLogix, Micro800 with EtherNet/IP, or any compatible EtherNet/IP originator.
  • Your network topology is star or tree, routed through an external managed or unmanaged switch — no Device Level Ring is required at this node.
  • Your environment involves elevated humidity, condensation risk, chemical vapors, or airborne contaminants that make conformal coating a reliability requirement rather than a preference.
  • Your total POINT I/O module count for this station is within the 63-module limit and within the adapter's backplane current budget.
  • You are working within the Allen-Bradley POINT I/O ecosystem and using Studio 5000 / Logix Designer for programming and commissioning.

If your application requires built-in Device Level Ring or daisy-chain line topology, the 1734-AENTK is the wrong part — look at the 1734-AENTR (dual-port, standard) or 1734-AENTRK (dual-port, conformal coated) instead. If your environment is a clean, climate-controlled panel with no humidity concern, the standard 1734-AENT is a more cost-effective choice.

On this page:

What the 1734-AENTK Does in a POINT I/O System

The Allen-Bradley 1734-AENTK is a network coupler — it is not an I/O module itself, and it does not directly read sensors or drive actuators. Its job is to sit at the left end of a POINT I/O backplane assembly and translate EtherNet/IP traffic from the controller into backplane commands that the downstream POINT I/O slices can act on. It is the single point of presence for the entire I/O station on the Ethernet network, and it also supplies backplane power to the connected modules within its rated current output.

Within the POINT I/O product family, the module hierarchy is straightforward: the adapter handles network communication and backplane management, the individual I/O slices handle field signal acquisition or output, and the terminal bases provide the mechanical connection, wiring termination, and backplane interconnect for each slice. None of the three can function without the others. When specifying a 1734-AENTK station, all three layers — adapter, I/O modules, and terminal bases — must be ordered together.

The K suffix in the catalog number signifies conformal coating applied to the PCB and internal components. This is not a cosmetic difference. In environments with high relative humidity, condensation cycles, salt air, or low concentrations of chemical vapors — common in food processing areas, coastal installations, chemical proximity, and OEM machines exported to tropical climates — conformal coating significantly reduces the risk of electrochemical corrosion on the board that would otherwise shorten service life. The underlying hardware and communication functionality are identical to the standard 1734-AENT.

Typical System Architecture for the 1734-AENTK

The 1734-AENTK sits between the plant EtherNet/IP network switch and the POINT I/O backplane, translating controller I/O data into slice-level commands and returning field data upstream. A typical deployment looks like this:

  • EtherNet/IP controller (CompactLogix or ControlLogix) connects to a managed Ethernet switch over a standard network segment.
  • The managed switch provides a dedicated port for each POINT I/O station — the 1734-AENTK connects here via its single RJ45 port.
  • The 1734-AENTK mounts on a POINT I/O base, occupying the leftmost position on the backplane rail, and manages all data exchange for up to 63 downstream POINT I/O slices.
  • Each POINT I/O module (digital input, digital output, analog input, analog output, specialty) snaps onto its own terminal base and draws backplane power from the adapter through the interconnect.
  • A POINT I/O end base or terminating base caps the right end of the assembly and closes the backplane connection.

Typical Applications and Deployment Scenarios

Packaging machinery designers frequently specify the 1734-AENTK for remote I/O stations mounted inside machine panels that are close to wash-down areas or subject to cleaning chemical vapor. The conformal coating provides the incremental reliability margin that justifies the cost delta over the standard 1734-AENT in those environments.

In material handling and conveyor systems, POINT I/O stations are often distributed along the line at junction boxes, where the adapter connects locally to sensors, solenoids, and motor starters. For long conveyor lines with multiple remote stations, the compact POINT I/O form factor reduces panel real estate at each node compared with rack-based I/O alternatives.

OEM machine builders exporting equipment to regions with variable climate conditions — Southeast Asia, coastal industrial zones, humid tropical environments — frequently standardize on the K-suffix variants across their product lines to avoid field failures and warranty returns that would result from using non-coated hardware.

Retrofit projects replacing hardwired terminal strips with EtherNet/IP distributed I/O also make strong use of the 1734-AENTK, particularly where the existing panel environment is not ideal and the integrator wants to specify hardware that offers the best chance of long service life without replacing the enclosure.

Application Typical Deployment
Packaging machinery Remote POINT I/O station inside machine panel, CompactLogix controller over EtherNet/IP star topology
Conveyor and material handling Distributed I/O junction boxes along conveyor line, multiple 1734-AENTK stations on managed switch
Food and beverage processing Protected panels adjacent to processing areas with humidity and cleaning vapor exposure
OEM export machines Machine panels shipped to high-humidity or tropical environments where conformal coating reduces field failure risk
Panel retrofit and modernization Replacing hardwired I/O with EtherNet/IP distributed I/O in existing panels where environment is uncertain
Process and utility skids Small remote I/O panel on a standalone skid connecting to plant EtherNet/IP backbone via switch

Specifications and Variant Comparison for the POINT I/O EtherNet/IP Adapter Family

Parameter Value Notes
Catalog Number 1734-AENTK Conformal-coated variant of 1734-AENT
Product Type POINT I/O EtherNet/IP adapter Network coupler for distributed POINT I/O
Communication Protocol EtherNet/IP, 10/100 Mbps Single RJ45 port
Network Topology Star or tree via external switch No integrated Device Level Ring
Maximum POINT I/O Modules Up to 63 modules Across digital, analog, and specialty slices combined
Power Supply 24 V DC nominal External protection required; verify exact voltage range on datasheet
Conformal Coating Yes (K-suffix) Improved resistance to humidity and airborne contaminants
Enclosure Type Open type device Must be installed in a suitable enclosure
Mounting DIN rail or panel-mount via POINT I/O base Requires terminal base and end terminator
Warranty 1-year standard Rockwell Automation standard product warranty

Full technical specifications are available on the product page at LeadTime.ca.

Model Ports Topology Conformal Coated Best Fit
1734-AENT 1 × RJ45 Star / tree via external switch No Standard panel environment, star topology, cost-sensitive
1734-AENTK 1 × RJ45 Star / tree via external switch Yes Demanding or high-humidity environment, star topology
1734-AENTR 2 × RJ45 Star, DLR ring, or line / daisy-chain No Ring or line topology required, standard environment
1734-AENTRK 2 × RJ45 Star, DLR ring, or line / daisy-chain Yes Ring or line topology required, demanding environment

If your network design requires Device Level Ring or daisy-chain line topology, the 1734-AENTK cannot fulfill that role — review the full variant details and check current availability at LeadTime.ca before finalizing your BOM.

Expert Verdict: Is the 1734-AENTK Right for Your Application?

The 1734-AENTK earns its place in the specification when two conditions are true simultaneously: your network is a switch-based EtherNet/IP star, and your installation environment is demanding enough to make conformal coating a genuine reliability requirement rather than a specification upgrade for its own sake. OEM machine builders standardizing POINT I/O across product lines destined for varied global environments, integrators commissioning distributed I/O in food processing or pharmaceutical panels, and plant engineers retrofitting I/O into existing enclosures with uncertain humidity histories — these are the buyers who get clear, measurable value from choosing the K-suffix adapter over the standard 1734-AENT. The up to 63-module capacity covers the vast majority of machine-level and skid-level I/O islands without requiring multiple adapters.

The 1734-AENTK has real limits, and being honest about them is more useful than ignoring them. If your project requires Device Level Ring for network resilience without a managed switch at every node, the correct parts are the 1734-AENTR or 1734-AENTRK — a single-port adapter cannot participate in a DLR topology regardless of firmware version. If your panel is genuinely clean and dry and you are specifying conformal coating only as a formality, the standard 1734-AENT is a more cost-effective choice for the same functional result. And if the application demands IP67-rated hardware mounted directly on the machine or in a wet environment without an enclosure, the ArmorPOINT 1738 family is the correct path, not any variant of the 1734 POINT I/O adapter.

From a procurement standpoint, the 1734-AENTK is an active catalog item from Rockwell Automation, but lead times on conformal-coated variants can vary more than standard versions depending on regional distributor stock. Having a specialist distributor confirm current availability before design freeze prevents the situation where a machine is built around a part that carries a longer-than-expected lead time. Working with a distributor who knows the POINT I/O family also means getting the complete BOM right the first time — terminal bases, end caps, and power supply sizing confirmed alongside the adapter. Check current pricing and availability for the 1734-AENTK at LeadTime.ca — ships worldwide, with support for volume orders and project-level sourcing.

For volume pricing, project BOM review, or lead time confirmation before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1734-AENTK

Community feedback across PLCTalk, Reddit r/PLC, r/automation, MrPLC, and the Rockwell Automation forums paints a consistent picture: engineers who have worked with POINT I/O adapters rate the integration experience with Logix controllers as one of the strongest arguments for the platform. Predefined module profiles in Studio 5000 / Logix Designer, familiar EDS-based configuration, and rack-optimized connection options make commissioning straightforward for anyone already working in the Allen-Bradley ecosystem. The compact, modular form factor draws repeated praise from engineers working in tight panels and machine-mounted enclosures where rack-based I/O simply does not fit.

The recurring warnings in community discussions, however, are worth taking seriously. The most common costly mistake is ordering the single-port 1734-AENTK or 1734-AENT when the network design actually requires a DLR-capable dual-port adapter. This error surfaces late — often during commissioning when the ring topology cannot be closed — and forces emergency re-orders that delay production startups. A closely related complaint involves power supply sizing: intermittent communication issues that get attributed to the adapter are frequently traced back to undersized 24 V DC supplies or poor grounding and shielding practices. The adapter is doing its job; the infrastructure around it is not. IP addressing confusion — thumbwheel settings versus BootP versus static assignment — is a third recurring frustration, particularly on multi-engineer projects where one person configures hardware and another commissions the network without shared documentation.

The conformal-coated K-suffix variants are viewed positively in community discussions, but with a candid observation that they are often overlooked during initial specification and only get added to the BOM after a field failure or a site survey uncovers conditions that a standard unit would not survive. OEM builders who have standardized on K-suffix adapters across their export machine lines consistently report fewer warranty-related field replacements. The lesson from community experience is clear: decide on conformal coating at the design stage, not after the first service call.

Wiring and Installation Overview for the 1734-AENTK

  • Mount the POINT I/O terminal base on DIN rail or panel surface and snap the 1734-AENTK adapter onto the base according to Rockwell installation instructions; verify the base and adapter are fully seated and mechanically locked before wiring.
  • Connect protective earth and ground the POINT I/O assembly per Rockwell grounding guidance — proper grounding is specifically called out in Rockwell installation documentation as a requirement for safe and reliable operation.
  • Wire the 24 V DC supply and return to the adapter's designated terminals, and install appropriate external protection (fusing or circuit breaker) per Rockwell guidance before energizing — the 1734-AENTK is an open-type device and requires the surrounding enclosure and protection to meet installation code requirements.
  • Connect the Ethernet cable from the external managed or unmanaged switch to the adapter's single RJ45 port; use cable type and length within the limits specified by Rockwell and apply recommended shielding practices for industrial environments.
  • Install downstream POINT I/O modules on their respective terminal bases from left to right along the backplane, then terminate the assembly with the correct POINT I/O end base at the right end — omitting the end base is a common installation mistake that prevents correct backplane operation.

Compatible Accessories and System Expansion

A complete 1734-AENTK installation requires several accessories that must be specified and ordered alongside the adapter. The following components are part of a functional POINT I/O station:

  • POINT I/O terminal bases (such as 1734-TB or 1734-TBS) — one base required per I/O module plus a base for the adapter itself; base type must match the I/O module wiring style.
  • POINT I/O end base or terminating base — required at the right end of every POINT I/O assembly to complete the backplane; omitting this prevents correct operation.
  • 24 V DC power supply — sized to meet the combined load of the adapter and all backplane-powered I/O modules, with appropriate margin for future expansion.
  • POINT I/O digital input modules, digital output modules, analog input modules, analog output modules, and specialty modules — selected based on the specific field signal requirements of the application, all within the 63-module total for the station.
  • External managed or unmanaged Ethernet switch — required for star or tree topology; the 1734-AENTK does not include switching capability and connects as a single end-device on the network.

Wrong-Part Prevention Checklist Before Ordering the 1734-AENTK

Before submitting a purchase order for the 1734-AENTK, verify every item on this checklist — each point corresponds to a real ordering mistake that causes delays, rework, or field failures:

  1. Confirm you need a single-port EtherNet/IP adapter (no built-in DLR). If ring or line topology is required, consider 1734-AENTR / 1734-AENTRK instead.
  2. Verify you truly need conformal coating; if the environment is standard control panel / clean and dry, 1734-AENT may be more cost-effective.
  3. Check the maximum number of POINT I/O modules (up to 63) and total backplane current required vs the adapter's backplane current rating.
  4. Ensure the controller supports EtherNet/IP and POINT I/O, and that firmware revisions are compatible.
  5. Verify required terminal bases (e.g., 1734-TB / 1734-TBS or equivalent) are specified and ordered for each I/O module plus the adapter's base.
  6. Confirm 24 V DC power supply capacity and that external protection (fusing or breaker) is provided as per Rockwell guidance.
  7. Check ambient temperature, enclosure, and pollution degree vs the ratings of the conformal-coated unit.
  8. Validate that the catalog number is 1734-AENTK, not 1734-AENT or 1734-AENTR, on the BOM and purchase order to avoid wrong topology or coating.

If any item on this checklist raises a question you cannot resolve from the datasheet alone, contact the LeadTime.ca team before ordering — confirming the correct variant now is faster and less expensive than a re-order after the machine is built.

Frequently Asked Questions

How many POINT I/O modules can the 1734-AENTK support, and does module type affect the limit?

The 1734-AENTK supports up to 63 POINT I/O modules on the backplane. The 63-module count is the hard ceiling, but the practical limit for a given station is often reached earlier due to the adapter's backplane current output — analog and specialty modules typically draw more backplane current per slot than simple digital modules. When designing a station with a significant proportion of analog or specialty I/O, calculate total backplane current against the adapter's rated output and leave margin for any future module additions.

Can I use the 1734-AENTK in a Device Level Ring or daisy-chain line topology?

No. The 1734-AENTK has a single RJ45 Ethernet port and cannot participate in a Device Level Ring topology or be daisy-chained to adjacent network nodes. DLR and line topologies require a two-port adapter with integrated switch capability. For those topologies, the correct catalog numbers are 1734-AENTR (dual-port, standard coating) or 1734-AENTRK (dual-port, conformal coated).

What is the practical difference between the 1734-AENT and the 1734-AENTK, and is the conformal coating worth the cost premium?

The communication hardware, module capacity, and functional capabilities are identical between 1734-AENT and 1734-AENTK. The sole difference is the conformal coating applied to the PCB assembly in the K-suffix variant. Whether the premium is worth it depends entirely on the installation environment. In a clean, climate-controlled enclosure, the standard 1734-AENT performs equally well. In panels exposed to humidity cycles, condensation, chemical proximity, or salt air — including OEM machines exported to tropical or coastal sites — the conformal coating provides meaningful protection against electrochemical corrosion that would otherwise shorten service life.

How do I interpret the Module Status, Network Status, and PointBus LEDs when the adapter is not communicating with the controller?

Rockwell's installation documentation defines LED patterns for normal operation, no network connection, no controller connection, and backplane faults. As a general diagnostic starting point: a steady green Module Status LED indicates the adapter is operating normally; a flashing green Network Status LED typically indicates the adapter is online but has no established connection to a controller; a red or flashing red PointBus LED points toward a backplane issue such as a missing end base or a module fault. For exact LED definitions and fault code interpretation, refer to the Rockwell Automation installation instructions document for the 1734-AENT / 1734-AENTK family.

Do I need BootP to assign an IP address to the 1734-AENTK, or can I use the thumbwheel switches for static addressing?

The 1734-AENTK supports multiple IP address assignment methods, including thumbwheel-based addressing and BootP/DHCP. The thumbwheel switches on the adapter allow a node address to be set directly on the hardware without a software tool, which many engineers prefer for maintenance traceability. BootP and DHCP assignment are also supported and are commonly used in larger installations with centrally managed IP schemes. The key is to document the method chosen and the assigned address at commissioning — confusion between thumbwheel settings and DHCP-assigned addresses across multiple units commissioned by different personnel is one of the most common sources of addressing conflicts in the field.

What accessories must I order alongside the 1734-AENTK to have a complete, functional I/O station?

At minimum, you need: a terminal base for the adapter itself, one terminal base per downstream I/O module (base type must match the module's wiring style — for example, 1734-TB or 1734-TBS), a POINT I/O end base or terminating base for the right end of the assembly, all specified POINT I/O modules, and a 24 V DC power supply with adequate current capacity and external protection. Forgetting the terminal bases or the end base is the most common incomplete-hardware error on initial deliveries.

Why Order the Allen-Bradley 1734-AENTK From LeadTime.ca

  • LeadTime.ca ships worldwide — whether you are sourcing from Canada, the United States, or internationally, orders are processed and dispatched globally.
  • Specialist automation distributors can confirm the correct variant — AENT vs AENTK vs AENTR vs AENTRK — before the order is placed, reducing the risk of receiving the wrong topology or coating specification.
  • Compatible POINT I/O modules, terminal bases, and accessories can be sourced together, reducing incomplete-delivery risk on project builds.
  • Volume pricing and project-level quotations are available for OEM builders and integrators sourcing across multiple machine builds.

At-a-Glance Summary: Allen-Bradley 1734-AENTK

  • Catalog number 1734-AENTK is the conformal-coated, single-port EtherNet/IP adapter variant of the Allen-Bradley POINT I/O family.
  • Supports up to 63 POINT I/O modules on a single backplane; practical module count is also bounded by the adapter's backplane current output.
  • Single RJ45 port operating at 10/100 Mbps; star or tree topology only via external switch — no Device Level Ring capability.
  • K-suffix conformal coating distinguishes this unit from the standard 1734-AENT and is the specification for demanding, high-humidity, or contamination-prone environments.
  • Requires 24 V DC nominal power supply, external protection, proper grounding, POINT I/O terminal bases for every module, and a POINT I/O end base — none of these are included with the adapter.
  • For DLR or line topology, the correct alternatives are 1734-AENTR (standard) or 1734-AENTRK (conformal coated).
  • Standard Rockwell Automation product warranty is 1 year.
  • Verify exact backplane current output, voltage range, and environmental ratings on the dedicated Rockwell datasheet before finalizing the BOM.
