Allen-Bradley 1606-XLS480E-3 — 3-Phase 24V 480W Supply Guide

By Abdullah Zahid
15 min read

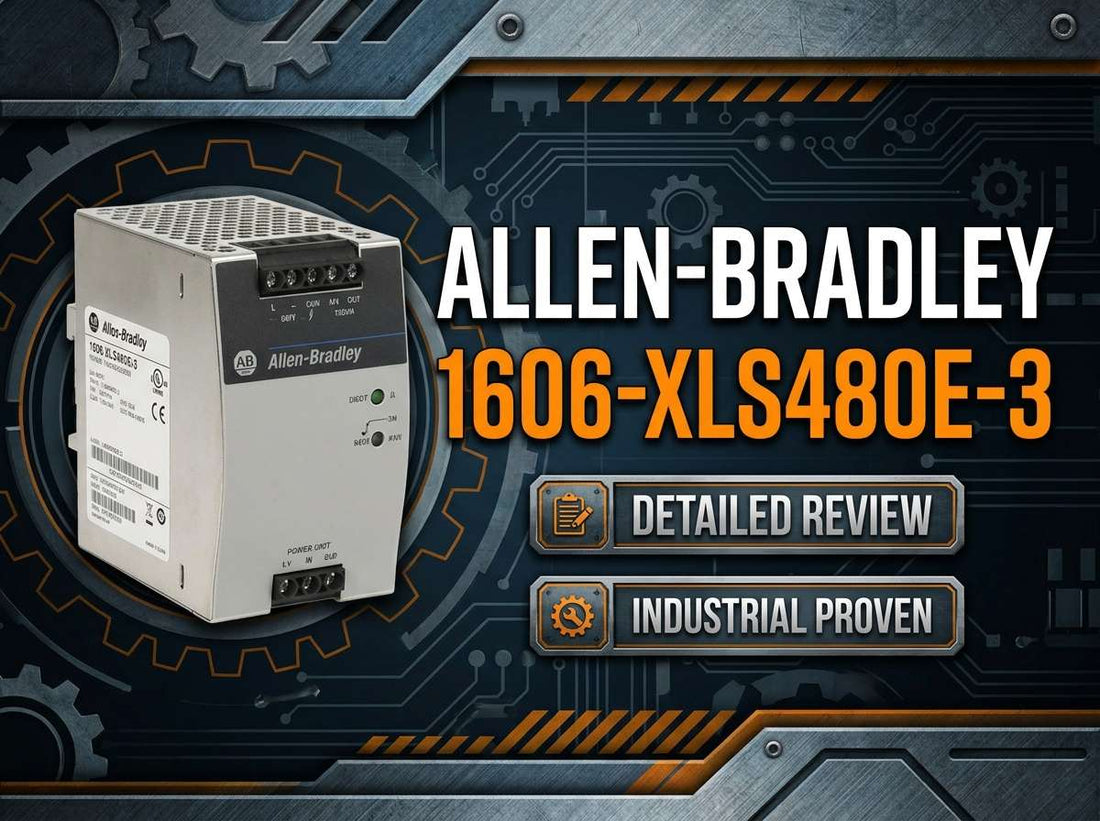

Allen-Bradley 1606-XLS480E-3 DIN-rail 3-phase 480W 24V DC power supply for industrial control panels

Allen-Bradley 1606-XLS480E-3 Performance Power Supply, 24-28V DC, 480 W, 3-Phase 380-480V AC Wide Range / 600V DC Input Voltage — Specs, Selection Guide and Where to Buy

Controls engineers building 480 V 3-phase machine panels know the specification decision that keeps projects on track: finding a single DIN-rail power supply that can draw directly from the plant's three-phase bus and deliver a clean, regulated 24 V DC control rail without a step-down transformer in the middle. The Allen-Bradley 1606-XLS480E-3 is precisely that supply — a switched-mode, DIN-rail mounted unit from the 1606-XLS Performance family that accepts 3-phase 380–480 V AC or 600 V DC input and outputs 24–28 V DC adjustable at 480 W continuous, covering roughly 20 A of 24 V DC load from a single housing.

If you have already confirmed this is the right part for your panel, check current pricing and availability for the 1606-XLS480E-3 at LeadTime.ca — ships worldwide.

Who Should Buy the 1606-XLS480E-3 — and Who Shouldn't

This supply is the right fit when all of the following are true for your project:

  • Your panel has a 3-phase 380–480 V AC supply or a 600 V DC bus available at the incoming terminals — not single-phase only.
  • Your 24 V DC load demand, including all PLCs, I/O modules, relays, solenoids, and instrumentation, sums to no more than 480 W continuous with adequate margin remaining.
  • You require a 24 V DC nominal output, adjustable up to approximately 28 V, on a standard DIN-rail housing.
  • Your panel or OEM standard calls for Allen-Bradley 1606-XLS Performance series hardware — for documentation alignment, approvals (UL, CSA, CE), and Rockwell ecosystem support.
  • Your installation environment falls within the operating temperature specification (approximately -25 °C to +70 °C with derating above the threshold) without exceeding ventilation clearance requirements.

If your facility has only single-phase 120/230 V AC available, the correct Allen-Bradley variant is the 1606-XLS480E (without the -3 suffix). If your load budget is substantially higher or lower than 480 W, other 1606-XLS wattage models are the correct selection. Do not order the 1606-XLS480E-3 for those situations.

On this page:

What the 1606-XLS480E-3 Actually Does in a Control Panel

The 1606-XLS480E-3 sits at the heart of the 24 V DC distribution architecture in a 3-phase industrial panel. It converts incoming three-phase mains — 380–480 V AC at 50/60 Hz, or a 600 V DC bus in DC-fed applications — into a stable, regulated 24 V DC rail that the rest of the control system depends on. The output is adjustable up to approximately 28 V, giving engineers the flexibility to compensate for cable voltage drop on long 24 V runs or to match specific device requirements without adding a separate regulator.

What separates the 1606-XLS Performance family from commodity DIN-rail supplies is the integration of diagnostic signaling. The DC-OK contact output allows the PLC or safety relay to monitor power supply health in real time — a capability that transforms the power supply from a passive component into an active participant in machine diagnostics. The 1606-XLS480E-3 also carries the short-term power boost capability common to the 1606-XLS family, supported by large output capacitors, which helps manage inrush from solenoid banks, contactors, and capacitive loads without nuisance tripping the output.

The supply is protected against overload, short circuit, overvoltage, and thermal conditions, and it carries UL, CSA, and CE approvals — covering the regulatory requirements of most industrial panel builds in North America and internationally. The metal housing and DIN-rail format are consistent with the broader 1606-XLS line, which means it mounts and wires in the same way as other units in a standardized Rockwell panel design.

Typical System Architecture for 3-Phase 24 V DC Control Power

The 1606-XLS480E-3 occupies the conversion stage between the plant's 3-phase mains and the 24 V DC control bus. Here is where it fits in the typical signal and power chain:

  • Upstream: 3-phase 380–480 V AC mains or 600 V DC bus, protected by a correctly sized circuit breaker or fuse set per the datasheet and applicable electrical code.
  • The 1606-XLS480E-3 receives L1, L2, L3 (and PE) from the upstream protective device and converts to 24–28 V DC adjustable output.
  • Output feeds a 24 V DC distribution bus bar or terminal block from which individual branches serve PLCs, remote I/O racks, safety relays, HMI backplanes, solenoid valve manifolds, and instrumentation.
  • The DC-OK signaling contact wires to a PLC digital input or safety monitoring circuit, enabling alarms or controlled shutdowns if the supply goes out of regulation.
  • If redundancy is required, a second 1606-XLS480E-3 and a compatible redundancy module connect in parallel, with both supplies sharing the DC bus and the redundancy module preventing back-feed.

Industrial Applications and Deployment Scenarios

The most common home for the 1606-XLS480E-3 is the mid-sized machine panel in a 480 V plant environment — packaging lines, material handling conveyors, assembly stations, and automotive tooling where a single 24 V DC supply needs to power a full ControlLogix or CompactLogix PLC rack along with distributed I/O, safety devices, and field instrumentation. The 480 W output at approximately 20 A covers this class of machine cleanly without requiring parallel supplies or a higher-wattage unit.

Panel shops building OEM equipment for export also specify this unit when the destination plant is known to have a 3-phase 380–480 V supply, as the wide input range accommodates both 400 V European standards and 480 V North American infrastructure without any internal hardware change. This makes it practical for equipment that ships to multiple regions.

Process industry applications — distributed I/O marshalling panels, motor control center satellite panels, and remote instrument junction boxes fed from a 3-phase bus — also use this supply where the 24 V DC load fits within the 480 W envelope and Rockwell standardization is a panel requirement.

Application Typical Deployment
Discrete machine panel (packaging / assembly) Single 1606-XLS480E-3 powering PLC rack, I/O, safety relays, and HMI from 480 V 3-phase supply
Material handling conveyor system 24 V DC bus for distributed I/O nodes, solenoid valves, and motor starters fed from plant 3-phase bus
OEM equipment for international deployment Wide-range 380–480 V AC input covers both European 400 V and North American 480 V mains without hardware changes
Process plant marshalling panel 24 V DC supply for field instrument loops, transmitters, and I/O cards in a 3-phase distribution environment
Redundant 24 V DC control bus Two 1606-XLS480E-3 units operating in parallel via a Rockwell redundancy module for N+1 availability
Panel standardization / legacy upgrade Replacing aging or non-Rockwell 24 V DC supplies with 1606-XLS units to align documentation and spares strategy

Key Specifications and Variant Comparison

Parameter 1606-XLS480E-3 Value
Catalog Number 1606-XLS480E-3
Input Voltage 3-phase 380–480 V AC wide range / 600 V DC
Input Frequency 50/60 Hz (AC input)
Output Voltage 24–28 V DC adjustable (24 V nominal)
Output Power 480 W continuous
Rated Output Current Approx. 20 A at 24 V DC
Operating Temperature Approx. -25 °C to +70 °C (with derating above threshold — verify in datasheet)
Mounting DIN-rail
Certifications UL, CSA, CE
Diagnostics Front-panel LED, DC-OK signaling contact

Full technical specifications are available on the product page at LeadTime.ca.

The table below compares the key variants engineers most commonly evaluate alongside the 1606-XLS480E-3:

Model Input Type Output Power Output Voltage Best For
1606-XLS480E-3 3-phase 380–480 V AC / 600 V DC 480 W 24–28 V DC 3-phase 480 V panels, Rockwell ecosystem, ~20 A 24 V DC loads
1606-XLS480E Single-phase wide range AC 480 W 24–28 V DC Single-phase 120/230 V panels needing the same 480 W output
Other 1606-XLS wattage variants Single- or 3-phase options Various 24 V DC or other voltages Lower or higher load budgets, or different output voltages

If your panel has only single-phase mains, the 1606-XLS480E-3 is not the correct variant — the 1606-XLS480E is the appropriate selection. Check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict — Is the 1606-XLS480E-3 Right for Your Application?

The 1606-XLS480E-3 earns its place on the approved vendor list for controls engineers and OEM panel builders who standardize on Rockwell hardware and have 3-phase 380–480 V AC as the available plant supply. The combination of wide-range 3-phase input (which eliminates the need for a step-down transformer), 480 W of continuous 24 V DC output at approximately 20 A, adjustable output up to 28 V, short-term power boost capability, and a DC-OK diagnostic contact gives this supply the feature depth that mid-complexity automation systems require. The operating range of approximately -25 °C to +70 °C with derating makes it viable across most industrial environments, and the UL, CSA, and CE approval package covers North American and international panel certification requirements simultaneously.

Where the 1606-XLS480E-3 is not the right answer is equally clear. If your panel is fed by single-phase 120/230 V AC — which is the majority of smaller or retrofit applications — the 1606-XLS480E (without the -3 suffix) is the correct part and the 3-phase variant simply will not operate. If your 24 V DC load budget is substantially below 480 W, a lower-wattage 1606-XLS model avoids paying for unused capacity. And if the project is cost-driven and Rockwell ecosystem alignment is not a hard requirement, third-party DIN-rail supplies from other manufacturers in the same power class offer functional alternatives at a lower acquisition cost — though without the documentation alignment and integrated support that Rockwell standardization provides.

From a procurement standpoint, the 1606-XLS series is widely stocked through authorized Rockwell distributors worldwide, and lead times are typically short when the part is in regional inventory. That said, during supply constraint periods, lead times for 1606 series supplies can extend, which makes confirming availability before finalizing a build schedule a sensible step. Working with a specialist automation distributor rather than a generic catalog channel means someone can verify the exact catalog number, flag the 3-phase versus single-phase distinction before the order ships, advise on compatible redundancy modules, and confirm actual stock across multiple warehouse locations. View current pricing and stock status for the 1606-XLS480E-3 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1606-XLS480E-3

Model-specific forum discussion for the 1606-XLS480E-3 is sparse across the major automation communities — r/PLC, PLCTalk, PLCS.net, MrPLC, and the Rockwell Automation knowledgebase all contain general 1606-XLS family content but very limited threads targeting this exact catalog number. Where the 1606-XLS family does appear in community discussions, the themes are consistent: the supplies are regarded as reliable and well-integrated in Rockwell-centric panels, but engineers note that they carry a price premium over generic DIN-rail supplies, which becomes a real conversation point on cost-sensitive projects. A recurring subthread across forums covers unexpected output cycling or shutdown events — and in almost every documented case, the root cause is not the supply itself but undersizing relative to inrush loads or positioning the unit too close to the rated ceiling without margin. The 1606-XLS480E-3's approximately 20 A at 24 V DC output is a real limit, not a soft advisory.

The single most consistent ordering mistake documented across Rockwell power supply discussions — and the one that generates the most re-order freight costs — is confusing the single-phase 1606-XLS480E with the three-phase 1606-XLS480E-3. The catalog numbers differ only by the "-3" suffix, the appearance of the units is similar, and a distributor listing that omits the input specification from the headline can easily cause a controls engineer or purchasing agent to order the wrong variant. This is compounded when someone unfamiliar with the product line is pulling the part number from a BOM without cross-checking the input voltage requirement. LeadTime.ca specialists routinely catch this exact mistake during order validation — it is one of the clearest arguments for ordering through a distributor who asks the right questions rather than through a catalog channel that does not.

A secondary issue raised in broader 1606 discussions involves thermal management. The 1606-XLS480E-3 is rated for operation up to approximately 70 °C with derating applied above the specified threshold, but panel builders occasionally mount the unit in a tightly packed enclosure with inadequate vertical clearance for convection cooling, or adjacent to variable-frequency drives and transformers that raise the local ambient temperature well above the enclosure thermostat setpoint. The datasheet derating curves are the governing document here — if ambient conditions in the enclosure exceed the threshold, the available output current must be reduced accordingly. Skipping this check and loading the supply to its full nameplate rating in a hot enclosure is the most common path to premature failures or nuisance trips in the field.

Wiring and Installation Overview

The following points cover the key requirements for installing and commissioning the 1606-XLS480E-3. For full wiring diagrams, conductor sizing tables, and commissioning procedures, refer to the Allen-Bradley 1606-XLS installation documentation from Rockwell Automation.

  • Mount the unit on a compatible DIN rail in the correct orientation with the minimum vertical clearance specified in the datasheet for convection cooling — do not mount immediately adjacent to significant heat sources.
  • Wire L1, L2, and L3 from the 3-phase 380–480 V AC supply (or the 600 V DC bus positive and negative terminals if using a DC-fed installation) to the input terminals along with a properly sized protective earth connection; external upstream protective devices (fuses or circuit breakers) must be sized per the datasheet and local electrical code.
  • Connect the 24 V DC output positive and negative terminals to the panel's DC distribution bus using conductors sized for the load current, observing correct polarity throughout.
  • Wire the DC-OK signaling contact to a PLC digital input or monitoring relay so the control system can detect a power supply fault condition and generate an alarm or controlled shutdown.
  • Before first power-on, verify all input and output connections and terminal tightness, then measure the 24 V DC output with a calibrated meter and adjust the output voltage potentiometer to the required setpoint within the 24–28 V adjustable range.

Compatible Accessories and Expansion Within the 1606-XLS Family

The 1606-XLS Performance family includes accessories designed to extend the capability of the 1606-XLS480E-3 in more demanding architectures. Where the brief contains confirmed family-level accessory data, the following are relevant to typical deployments:

  • Redundancy modules — designed for use with multiple 1606-XLS power supplies operating in parallel to create N+1 redundant 24 V DC bus architectures; prevents back-feed between parallel supplies and provides a single redundant output connection point.
  • Other 1606-XLS wattage variants — lower and higher wattage models in the same family share form factor and mounting conventions, simplifying panel standardization when different load budgets apply across machine types in the same fleet.
  • Buffer modules (if applicable within the 1606 accessory range) — provide short-term ride-through during input voltage interruptions, protecting sensitive PLCs and I/O from brief mains dips.

Consult the Allen-Bradley 1606-XLS family selection guide or contact LeadTime.ca to confirm which redundancy and buffer accessories are compatible with the 1606-XLS480E-3 for your specific architecture.

Wrong-Part Prevention Checklist Before You Order

Review every item below against your project requirements before placing an order. This checklist addresses the most common sources of mis-orders and field problems with the 1606-XLS480E-3:

  1. Confirm the available AC supply is 3-phase 380–480 V (or 600 V DC) – not single-phase only.
  2. Verify that 24 V DC output at ~480 W / 20 A is sufficient for all present and future loads with margin.
  3. Check required output voltage (24 V nominal, adjustable up to ~28 V) matches device and bus requirements.
  4. Confirm DIN-rail space and enclosure depth match the unit's width/height/depth and ventilation clearances.
  5. Verify environmental conditions (ambient temperature, vibration, contamination) meet the datasheet limits.
  6. Ensure required certifications (UL, CSA, CE, etc.) and panel standards are covered by this model.
  7. Review wiring diagram for 3-phase inputs and DC-OK contacts to avoid miswiring and missing diagnostics.
  8. Confirm if redundancy or parallel operation is needed; add appropriate redundancy modules if required.

If any item on this checklist raises a question about fit, contact LeadTime.ca before ordering — the team can validate the catalog number, check stock, and advise on compatible accessories before the order is placed.

Frequently Asked Questions

Can the 1606-XLS480E-3 be operated from a single-phase supply if only one phase is available in the panel?

No. The 1606-XLS480E-3 requires a 3-phase 380–480 V AC input (or 600 V DC). If only single-phase 120/230 V AC is available, the correct Allen-Bradley variant is the 1606-XLS480E (without the -3 suffix). Operating a 3-phase input supply from a single-phase source is not a supported configuration and will result in no output or damage to the unit.

Can two 1606-XLS480E-3 units be paralleled to deliver more than 20 A on the 24 V DC bus?

Paralleling 1606-XLS supplies for higher combined output current requires the use of a compatible Allen-Bradley redundancy module from the 1606 accessory range. The redundancy module manages load sharing and prevents back-feed between supplies. Direct paralleling without a dedicated redundancy module is not a recommended configuration — consult the 1606-XLS installation documentation and confirm accessory compatibility with your distributor before designing a parallel architecture.

How do I adjust the output voltage on the 1606-XLS480E-3 above 24 V, and what is the adjustment range?

The output voltage is adjustable using the front-panel potentiometer across the range of 24 V to approximately 28 V DC. Adjustment should be performed with a calibrated DC voltmeter connected to the output terminals. Setting a higher output voltage can compensate for cable voltage drop on long 24 V distribution runs. Do not exceed the maximum adjustment limit specified in the datasheet, as overvoltage can damage connected devices.

What does the DC-OK contact do, and how should it be wired into the control system?

The DC-OK signaling contact closes when the 24 V DC output is within the specified regulation window and opens when the output falls below the threshold — typically indicating an overload, input loss, or internal fault. It is wired to a PLC digital input or safety monitoring relay so the control system can detect a power supply fault and generate an alarm or initiate a controlled machine shutdown. Wiring the DC-OK contact into the control logic is strongly recommended for any application where undetected loss of 24 V DC control power poses a safety or process risk.

At what enclosure temperature does the 1606-XLS480E-3 begin to derate, and how significant is the output reduction?

The 1606-XLS480E-3 is rated for operation across approximately -25 °C to +70 °C ambient, with derating applied above a specific temperature threshold as defined in the official datasheet derating curves. The exact derating onset temperature and the rate of output reduction must be confirmed from the current Rockwell Automation datasheet for this catalog number. In practice, panel builders should measure or estimate the actual enclosure ambient temperature at the supply location — not the room temperature — before assuming full nameplate output is available.

What upstream protective devices are required for the 1606-XLS480E-3, and does it meet CE and UL requirements?

External upstream fuses or a circuit breaker must be provided, sized per the conductor cross-section and the supply's input current requirements as specified in the datasheet and the applicable electrical installation code. The 1606-XLS480E-3 carries UL, CSA, and CE certifications, covering North American and European panel certification requirements. Confirm the exact approval markings and any conditional requirements from the current datasheet before signing off a panel for regulatory inspection.

Why Order the 1606-XLS480E-3 from LeadTime.ca

  • Global shipping — LeadTime.ca ships the 1606-XLS480E-3 worldwide, not limited to any single region or country.
  • Catalog number validation — specialists confirm the exact -3 suffix and input voltage match your application before the order is processed, catching the most common ordering mistake with this part.
  • Stock visibility — LeadTime.ca checks availability across multiple sources and advises on realistic lead times before you commit to a build schedule.
  • Compatible accessories — the team can advise on the correct Allen-Bradley redundancy modules and 1606 family accessories to complete your architecture.
  • Volume and project pricing — for larger BOM quantities or ongoing panel shop requirements, contact the team for current pricing.

At-a-Glance Summary

  • Catalog number: 1606-XLS480E-3 — the "-3" suffix designates 3-phase input; do not confuse with single-phase 1606-XLS480E.
  • Input: 3-phase 380–480 V AC wide range or 600 V DC — no step-down transformer required in standard 480 V plant panels.
  • Output: 24–28 V DC adjustable, 480 W continuous, approximately 20 A at 24 V DC.
  • Short-term power boost capability supported by large output capacitors — handles solenoid and contactor inrush without nuisance tripping.
  • Operating temperature: approximately -25 °C to +70 °C with derating above the threshold defined in the datasheet.
  • Certifications: UL, CSA, CE — covers North American and European panel approval requirements.
  • Diagnostics: front-panel LED status indication and DC-OK signaling contact for PLC integration.
  • Mounting: DIN-rail, metal housing, convection cooled — requires vertical clearance per datasheet.
  • Wrong-part risk: high — always verify "-3" suffix and confirm 3-phase input availability before ordering.
  • Available worldwide through LeadTime.ca — pricing available on the product page; contact for volume or project rates.
