Allen-Bradley 1492-J3 — IEC Terminal Block Selection Guide

By Abdullah Zahid
14 min read

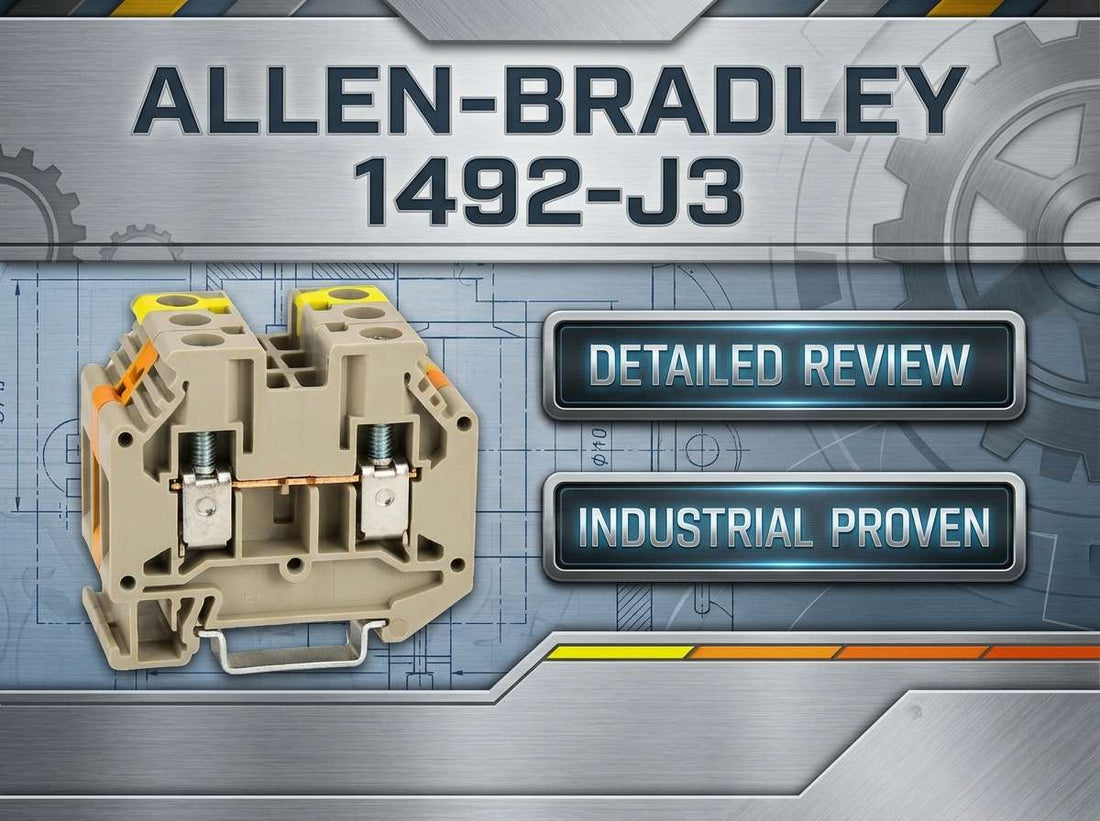

Allen-Bradley 1492-J3 grey IEC feed-through terminal block on 35 mm DIN rail in industrial control panel

Allen-Bradley 1492-J3 IEC Terminal Block, One-Circuit Feed-Through Block, 2.5 mm², Standard — Specs, Selection Guide, and Where to Buy

If you are a controls engineer or panel builder specifying terminal blocks for a Rockwell-based control panel, the Allen-Bradley 1492-J3 is almost certainly already on your BOM. This is the standard 2.5 mm² one-circuit feed-through IEC terminal block in the 1492-J series — a screw-clamp block designed for 35 mm DIN rail that covers the wire sizes and current levels typical of control wiring in machine panels, I/O marshalling assemblies, and process control enclosures. The decision usually comes down to confirming you have the right variant — feed-through, not ground or fused — the right color, and the right accessories to match.

If you have already confirmed this is the correct part, check current pricing and availability for the Allen-Bradley 1492-J3 at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 1492-J3 — and Who Shouldn't

The Allen-Bradley 1492-J3 is the right choice when all of the following are true for your project:

  • Your panel is standardized on Allen-Bradley 1492-J series terminal blocks and you need interchangeable accessories across the build.
  • Your control wiring conductors fall within the 2.5 mm² feed-through range the 1492-J3 is rated for.
  • Your panel requires UL, CSA, and CE approvals — all carried by the 1492-J3 under Rockwell documentation.
  • You need standard grey feed-through blocks, not a ground block (1492-JG3), a fused variant, a disconnect terminal, or a color-coded version such as the 1492-J3-W white variant.
  • Accessory continuity — end barriers like the 1492-EBJ3, cross-connect jumpers, and marker strips that match the J3 profile — matters for your panel standards.

If your conductors or circuits exceed the 1492-J3 ratings, the 1492-J4 (4 mm²) or 1492-J6 (6 mm²) are the correct next steps within the same family. If the project is cost-driven and not standardized on Allen-Bradley hardware, spring-clamp or competitor 2.5 mm² blocks may be worth evaluating — but they will require a full accessory and documentation change.

On this page:

What the Allen-Bradley 1492-J3 Actually Does in a Control Panel

The Allen-Bradley 1492-J3 is a one-circuit, feed-through IEC terminal block. Its job is straightforward: it provides a safe, standardized point where a field conductor and an internal panel conductor meet, are secured, and can be individually disconnected for testing or maintenance. It does not integrate any protection device — there is no fuse, no disconnect, no ground path. It is a pass-through connection point, and that simplicity is exactly what most control wiring applications need.

Within the Allen-Bradley Bulletin 1492-J family, the 1492-J3 is the 2.5 mm² baseline. The family naming convention is logical: J3 targets 2.5 mm² conductors, J4 steps up to 4 mm², and J6 handles 6 mm². Suffixes indicate function and color — a -JG3 is the ground block equivalent for protective earth connections, while suffixes like -W (white) or -B (black) indicate color coding. The 1492-J3 in standard grey is the default feed-through block that most Rockwell-centric panel builds start from.

The screw-clamp termination design requires periodic re-torque checks in high-vibration environments — a characteristic of the screw-clamp class that both manufacturers and the engineering community acknowledge. Spring-clamp designs, including Allen-Bradley's own 1492-P series, address this differently, but that is a separate selection decision addressed in the variant section below.

Typical System Architecture and Signal Chain

The 1492-J3 sits in the interface layer between the field and the control system — typically in the marshalling or termination section of a control panel, between incoming field cables and internal wiring running to PLC I/O modules or control devices.

  • PLC or control system (e.g., Rockwell ControlLogix or CompactLogix) mounted in the panel.
  • Internal panel wiring from PLC I/O terminals runs to the terminal block DIN rail section.
  • Allen-Bradley 1492-J3 blocks mounted on 35 mm DIN rail with end barriers (1492-EBJ3) separating circuit groups.
  • Cross-connect jumpers across multiple 1492-J3 blocks where 24 VDC control power is being distributed to grouped signals.
  • Field conductors from sensors, actuators, or junction boxes land on the field side of each 1492-J3 block.

Where the 1492-J3 Gets Installed: Industries and Use Cases

The 1492-J3 handles the most common task in any control panel: terminating and organizing the signal and control wiring that connects the real world to the control system. In PLC I/O marshalling sections, each field signal from a proximity sensor, limit switch, or solenoid valve lands on a 1492-J3 block before the short internal run continues to the I/O card. This separation makes troubleshooting and field cable replacement possible without disturbing internal panel wiring.

For 24 VDC control power distribution inside a panel, a group of 1492-J3 blocks connected with cross-connect jumpers creates a clean, organized power bus for distributing supply voltage to multiple loads. End barriers at the group boundaries maintain clear visual and electrical separation between circuits.

In OEM machine panels built to Rockwell standards, the 1492-J3 is often specified by default because it keeps the entire terminal block assembly — blocks, jumpers, markers, and end barriers — sourced from the same family, simplifying spare parts management and documentation across multiple identical machines.

Retrofitting or expanding existing panels that already use 1492-J series blocks is another strong use case. Adding terminal capacity to an existing DIN rail section is straightforward when the incoming blocks are already J3 — accessories match, rail spacing is consistent, and documentation updates are minimal.

Application Typical Deployment
PLC I/O marshalling Field sensor and actuator wiring terminated to 1492-J3 blocks before internal runs to I/O cards
24 VDC control power distribution Groups of 1492-J3 blocks cross-connected with jumpers to distribute control supply to multiple circuits
OEM machine panel construction Standard grey feed-through blocks specified across all panel builds for consistent BOM and spare parts
Process control enclosures Signal wiring from field instruments terminated and organized in marshalling sections on 35 mm DIN rail
Panel retrofit and expansion Additional 1492-J3 blocks added to existing DIN rail sections where J3 family is already installed

Electrical and Mechanical Specifications for the 1492-J3

Parameter Value / Detail Notes
Function One-circuit feed-through IEC terminal block Standard grey; no integrated protection
Conductor size (nominal) 2.5 mm² Per Rockwell 1492-J series specification
Termination type Screw-clamp Periodic re-torque recommended in vibration environments
Mounting 35 mm DIN rail Standard TS 35 DIN rail profile
Operating temperature Approximately -50 °C to +120 °C Per Rockwell 1492-J series documentation
Approvals UL, CSA, CE Additional regional certifications per Rockwell documentation
Standards IEC 60947-7-1 As referenced in terminal block specifications
Housing material Insulating thermoplastic Flammability rating per Rockwell product documentation
Contact material Copper alloy, tin-plated Per Rockwell 1492 terminal block documentation
Body color Grey (standard) White (-W), other color suffixes available as separate catalog numbers

Full technical specifications are available on the product page at LeadTime.ca.

1492-J3 vs 1492-J4, 1492-J6, and Alternative Blocks: Which One Do You Need?

The 1492-J3 is the right block when 2.5 mm² feed-through is what the circuit requires. When conductor sizes increase — either because load current climbs or because field cable sizing demands it — the answer stays within the same 1492-J family. The 1492-J4 steps up to 4 mm² and the 1492-J6 handles 6 mm² conductors. Accessories are designed for each block size, so moving up the family does require a BOM review for end barriers, jumpers, and markers.

For special-function blocks — protective earth grounding, fused circuits, or disconnect positions — the 1492-J series offers corresponding variants (1492-JG3 for ground, function-specific blocks for fuse and disconnect positions). Color variants for wiring standard compliance include suffixes such as -W for white and -B for black bodies.

When the panel is not committed to Allen-Bradley hardware and cost is the primary driver, functional equivalents from other manufacturers serve 2.5 mm² feed-through applications. These are not direct drop-in replacements — accessories, rail spacing between blocks, and documentation will differ — but they are widely used alternatives in cost-sensitive or multi-brand environments.

Model Type / Function Conductor Size Notes
Allen-Bradley 1492-J3 Feed-through, one-circuit, IEC 2.5 mm² Standard grey; baseline for Rockwell panel builds
Allen-Bradley 1492-J4 Feed-through, one-circuit, IEC 4 mm² Same family; different accessories — verify BOM
Allen-Bradley 1492-J6 Feed-through, one-circuit, IEC 6 mm² For higher current / larger conductors in same ecosystem
Allen-Bradley 1492-JG3 Ground / protective earth block 2.5 mm² Not a feed-through — specifies PE connections
Phoenix Contact UK 2.5 N Feed-through, one-circuit, IEC 2.5 mm² Functional equivalent; different accessories, different panel standard
WAGO 2002 series / Weidmuller WDU 2.5 Feed-through, one-circuit, IEC 2.5 mm² Functional equivalents; spring-clamp options available; not interchangeable accessories

If your conductor size or current requirement exceeds what the 1492-J3 is rated for, the 1492-J4 or 1492-J6 is the correct selection — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the Allen-Bradley 1492-J3 Worth It?

The 1492-J3 earns its place on the BOM when your panel is already built around Rockwell hardware. The 2.5 mm² screw-clamp feed-through design covers the conductor sizes and current levels found in the vast majority of control wiring applications — sensor signals, 24 VDC control circuits, and I/O marshalling runs. The operating temperature range of approximately -50 °C to +120 °C gives it comfortable headroom for industrial cabinet environments, and the UL, CSA, and CE approvals under Rockwell documentation mean it will pass panel certification reviews in North America and most international markets without additional qualification. For panel builders and OEMs who build the same machine multiple times, the consistency benefit is real: same block, same end barriers, same jumpers, same markers across every build — that standardization reduces errors and simplifies spare parts management over the machine's life.

Where the 1492-J3 is genuinely not the right answer: if hardware cost is the primary driver and the panel is not otherwise standardized on Allen-Bradley, competitor 2.5 mm² feed-through blocks from the IEC terminal block market typically come in at a lower per-unit cost. Phoenix Contact and WAGO equivalents are well-proven in their own ecosystems, and the spring-clamp variants from these manufacturers address the re-torque requirement that screw-clamp designs carry in high-vibration applications. Within the Allen-Bradley family itself, if your conductors or currents push above the 1492-J3 threshold, the 1492-J4 or 1492-J6 are the correct choices — do not stretch the 1492-J3 past its rated wire size to avoid reordering.

From a procurement standpoint, the 1492-J3 in standard grey is consistently available through major distributors in North America, making it a reliable specification for projects with firm schedules. Color variants and very large-quantity orders may carry extended lead times — this is where specialist distributor support matters. A distributor who knows the 1492 family can confirm the correct variant, validate accessory compatibility, and provide realistic stock and lead time information before you commit to a build schedule. View current pricing and availability for the Allen-Bradley 1492-J3 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1492-J3

Direct, model-specific forum discussions about the Allen-Bradley 1492-J3 by catalog number are limited — most community conversation happens at the 1492 family level or the broader Allen-Bradley terminal block discussion. What does surface consistently across forums including PLCTalk, PLCS.net, MrPLC, and Reddit's automation communities is a clear and recurring theme: Allen-Bradley 1492 terminal blocks are regarded as dependable and familiar in Rockwell-standardized plants, but buyers frequently note that the per-unit cost runs higher than equivalent blocks from Phoenix Contact, WAGO, or Weidmuller. The community sentiment is not that the 1492-J3 is overpriced for what it does — it is that the price premium is only justified when the rest of the panel is already Allen-Bradley, making accessory compatibility and documentation consistency the real value drivers.

The ordering mistakes that come up most often in community discussions are instructive. Confusing the standard grey 1492-J3 feed-through block with the 1492-JG3 ground block is a reported error — both share the 2.5 mm² form factor and similar catalog number structure, but their electrical function and color are different. Ordering the wrong color suffix is another consistent problem: specifying grey when the panel standard calls for white (1492-J3-W), or vice versa, fails internal quality reviews and creates rework that costs more than the blocks themselves. A third recurring mistake involves accessories — jumpers and end barriers from a different 1492 sub-family that physically resemble J3 accessories but do not fit correctly, discovered only at installation.

The practical takeaway from the community is that the 1492-J3 is a well-understood, low-risk component when you order exactly the right variant. The risk is not in the product — it is in the ordering process. When community feedback is thin on a specific catalog number, that is precisely when working with a specialist distributor who knows the 1492 family pays off. Verifying the full part number, the color suffix, the function designator, and the accessory compatibility before the order ships is the difference between a clean panel build and an expensive correction.

Mounting and Wiring the 1492-J3: Installation Overview

The following is an installation overview only. Engineers requiring full wiring procedures, torque values, and stripping lengths should refer to the Allen-Bradley 1492-J series installation documentation from Rockwell Automation.

  • Mount 1492-J3 blocks onto a 35 mm DIN rail starting from one end, adding end anchors at the terminal group boundaries to lock the assembly in position on the rail.
  • Install 1492-EBJ3 end barriers between circuit groups to maintain clear electrical and visual separation between different circuits on the same rail section.
  • Prepare conductors to the stripping length specified in the Rockwell datasheet; where ferrules are required by panel standards or local electrical code, attach them before insertion.
  • Insert conductors and tighten terminal screws to the torque value specified in the manufacturer documentation using a calibrated torque screwdriver; perform a gentle pull test on each conductor after tightening.
  • In high-vibration applications, include periodic re-torque intervals in the panel maintenance plan — screw-clamp designs require this as a scheduled maintenance task.

Compatible Accessories and System Expansion

The 1492-J3 is supported by a full range of Allen-Bradley 1492 accessories. Confirm that each accessory is specified for the J3 block profile — accessories from other 1492 sub-families may not fit correctly.

  • 1492-EBJ3 — End barrier separator plate for isolating groups of 1492-J3 blocks on the DIN rail assembly.
  • 1492-EAJ35 (or equivalent end anchor) — Locks terminal block assemblies in position on the 35 mm DIN rail to prevent shifting.
  • J3-type cross-connect jumpers — For commoning multiple 1492-J3 blocks into a shared bus, commonly used for 24 VDC power distribution within a panel section.
  • 1492 marker strips and labels — Terminal identification markers specified for the 1492-J family; confirm compatibility with J3 block dimensions before ordering.
  • 1492-J4 / 1492-J6 — Larger wire size feed-through alternatives within the same Rockwell family for circuits requiring 4 mm² or 6 mm² conductors and higher current ratings.

Wrong-Part Prevention Checklist

Before finalizing your 1492-J3 order, work through each item on this checklist. Ordering errors on terminal blocks are common and often discovered only at installation — after other project costs have already been committed.

  1. Confirm "1492-J3" (standard 2.5 mm² feed-through) vs other J-series functions (ground, fuse, disconnect, multi-level).
  2. Verify it is IEC-style on 35 mm DIN rail, not NEMA-style or a different mounting format.
  3. Check wire size and amp rating match your design (control wiring vs power circuits).
  4. Confirm body color requirement (grey 1492-J3 vs white 1492-J3-W or other colors if specified).
  5. Ensure accessories (end barriers, end anchors, jumpers, markers) match 1492-J3, not a different series.
  6. Validate approvals (UL/CSA/CE and any marine or regional approvals) meet project or customer specs.

If any item on this list raises a question about your specific application, contact the LeadTime.ca team before ordering — we can confirm the correct variant and accessory list for your build.

Frequently Asked Questions

What conductor size is the Allen-Bradley 1492-J3 rated for?

The 1492-J3 is specified as a 2.5 mm² IEC terminal block in the Allen-Bradley 1492-J series. It is intended for control wiring at this conductor size. For circuits requiring 4 mm² or 6 mm² conductors, the 1492-J4 and 1492-J6 are the correct selections within the same product family.

Which end barriers, jumpers, and markers are compatible with the 1492-J3?

The 1492-EBJ3 end barrier is the designated separator for the J3 block. Cross-connect jumpers and marker strips must be specified for the J3 profile — not for the J4, J6, or other 1492 sub-families, as they differ in physical dimensions. Confirm each accessory catalog number against the J3 series before adding to the BOM.

Can I substitute a Phoenix Contact or WAGO terminal block directly for the 1492-J3 without changing anything else?

No. Competitor 2.5 mm² feed-through blocks such as the Phoenix Contact UK 2.5 N or WAGO 2002 series are functional equivalents, not direct drop-in replacements. They use different accessories — end barriers, jumpers, and markers are not interchangeable with the 1492-J3 family. Substituting one brand for the other mid-project requires a full BOM and documentation review.

Should I choose the 1492-J3 screw-clamp or a spring-clamp terminal block for high-vibration applications?

The 1492-J3 uses a screw-clamp termination, which requires periodic re-torque intervals in high-vibration environments. If vibration exposure is significant and ongoing maintenance access is limited, spring-clamp terminal designs — including Allen-Bradley's own 1492-P series — are worth evaluating for their vibration-resistant clamping without scheduled re-torque. This is a design-stage decision, not a field substitution.

Is the Allen-Bradley 1492-J3 approved for use in CSA-certified Canadian panels?

Yes. Rockwell documentation confirms that the 1492-J series, including the 1492-J3, carries UL, CSA, and CE approvals, along with additional regional certifications. CSA approval supports use in Canadian panel builds subject to applicable electrical codes. Always verify that the specific approval marks required by your project or inspector are present on the product documentation before final specification.

What is the operating temperature range of the 1492-J3?

Per Rockwell 1492-J series documentation, the operating temperature range is approximately -50 °C to +120 °C. This range comfortably covers typical industrial control panel environments, including cold-start conditions in unheated enclosures and elevated ambient temperatures in process environments.

Why Order from LeadTime.ca

  • LeadTime.ca ships the Allen-Bradley 1492-J3 worldwide — not limited to Canada or North America.
  • Specialist distributor support means someone on the team knows the 1492-J family and can confirm the correct variant, color suffix, and accessory list before your order ships.
  • Volume pricing and stocking options available — contact the team for quantity breaks on larger panel builds or recurring BOM orders.
  • Sourcing support for hard-to-find variants, color-coded blocks, and accessory kits where generic distributors may show extended lead times.

At-a-Glance Summary

  • The Allen-Bradley 1492-J3 is a one-circuit, feed-through IEC terminal block rated for 2.5 mm² conductors on 35 mm DIN rail.
  • Screw-clamp termination; operating temperature range approximately -50 °C to +120 °C per Rockwell 1492-J series documentation.
  • Carries UL, CSA, and CE approvals, supporting North American and international panel certification requirements.
  • Standard grey body; white (1492-J3-W) and other color-coded variants available as separate catalog numbers.
  • Compatible accessories include 1492-EBJ3 end barriers, J3-profile cross-connect jumpers, end anchors, and 1492 marker strips — these are not interchangeable with other 1492 sub-family accessories.
  • For larger conductors or higher current circuits within the same Allen-Bradley family, 1492-J4 (4 mm²) and 1492-J6 (6 mm²) are the correct next steps.
  • IEC standard reference: IEC 60947-7-1, as referenced in terminal block specifications.
  • Per-unit pricing is available on the product page; contact LeadTime.ca for volume pricing and current lead time on standard and non-standard variants.
