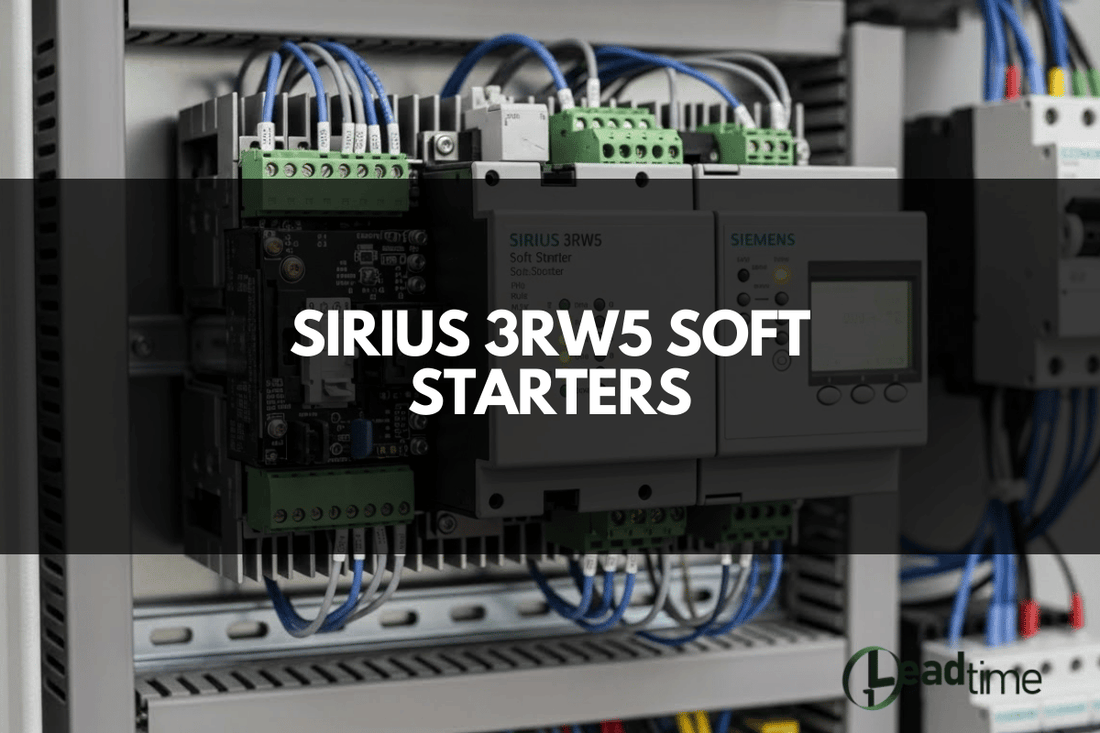

SIRIUS 3RW5 soft starters

Introduction to SIRIUS 3RW5 Soft Starters in Industrial Motor Control

3RW5 per official documentation soft starters from Siemens are engineered to provide smooth motor startups and stops, significantly reducing mechanical stress on drive trains and electrical disturbance like voltage dips in power supply systems. Utilizing hybrid switching technology, these devices combine the benefits of semiconductor and electromechanical switching to extend operational lifespan while lowering energy consumption during motor starting sequences.

Designed with compactness in mind, SIRIUS 3RW5 soft starters fit snugly into control cabinets and Motor Control Centers (MCCs), even under eight inches deep. Their suitability extends across a broad range of applications, including retrofit projects and new installations, offering reliable performance up to 400 HP models within limited installation spaces.

In this comprehensive guide, we explore the technical specifications, model variants, application versatility, and integration capabilities that make the 3RW5 series a cornerstone for modern motor control solutions in industrial automation.

Comparative Overview of 3RW5 Model Variants and Performance Levels

3RW5 family per Siemens PLC programming basics comprises three principal model tiers tailored to diverse application demands. The 3RW50 provides basic performance, supporting motors from 1.5 kW to 250 kW in primarily two-phase control formats. This makes it well suited for standard starting tasks with simple torque control requirements.

Advancing to the 3RW52 general performance capabilities extend over a power range of 5.5 kW to 560 kW, with support up to 750 HP in inside-delta wiring configurations. Its three-phase control enables more precise motor torque management, suitable for heavier industrial equipment and processes requiring smoother control dynamics.

The flagship 3RW55 high-performance line offers high-performance features with power capacities from 5.5 kW up to 1,200 kW (or 1,700 HP at 480 VAC inside-delta). Besides enhanced torque control, these models integrate Safe Torque Off (STO) safety functions and advanced communication options, making them ideal for complex safety and automation environments.

Hybrid Switching Architecture and Energy Optimization

The hybrid switching technology integrated into SIRIUS 3RW5 models is a hallmark of their efficiency and durability. By combining solid-state devices for soft start and stop control with a mechanical bypass contactor that engages post-startup, the system minimizes heat dissipation within the soft starter, significantly reducing thermal stress on semiconductor components as part of core components of industrial automation.

This architecture also facilitates an inherent bypass functionality, cutting energy draw by circumventing solid-state switches during motor run phases. Consequently, switchgear life is prolonged, and system electrical losses are minimized. The motorized soft start prevents enormous current surges and resulting supply voltage sags, safeguarding both the motor and the plant electrical network.

Communication Interfaces and Control System Integration

Modern industrial automation demands seamless integration and robust communication capabilities. The 3RW5 series supports multiple industry-standard protocols including PROFINET configuration, PROFIBUS, Modbus TCP, Modbus RTU, and EtherNet/IP, enabling interoperability within heterogeneous control systems.

Optional communication modules plug directly into the soft starter, facilitating setup and diagnostics via Siemens TIA Portal engineering software. The high-performance 3RW55 models further support a local Ethernet interface combined with micro-SD card slots on their operator panels, allowing for advanced diagnostic data extraction and firmware updates on site.

User Interface Variability and Control Voltage Flexibility

To accommodate diverse operational environments and user preferences, SIRIUS 3RW5 soft starters offer three operator panel configurations: units without a display for basic installations, standard panels with essential parameter controls, and advanced color operator panels for the 3RW55 series featuring detailed diagnostics and configuration menus.

The devices operate under a wide control voltage range, supporting both 24V AC/DC and 110-250V AC supplies, making them flexible for different control cabinet power arrangements. Parameter setup options include conventional rotary knobs and Siemens' automatic self-learning parameterisation, which significantly reduces commissioning time and engineering effort.

Enhanced Safety Functions with Safe Torque Off (STO)

The integration of the Safe Torque Off (STO) safety feature in the 3RW55 Failsafe models addresses the need for reliable emergency stop functions without added hardware complexity. STO prevents motor torque generation safely and quickly during emergency shutdowns, ensuring the motor remains at a standstill until manual restart is authorized.

This integration eliminates additional hardwired safety circuits, which reduces panel wiring complexity, saves cabinet space, and shortens commissioning schedules. Safety certifications compliant with IEC and UL standards further enhance suitability for critical industrial applications requiring functional safety measures.

Fluid Handling and Pump System Operation Benefits

Industrial pumping processes benefit substantially from the specialized functions in the 3RW5 series. The pump cleaning mode gradually increases system pressure to prevent pipeline contamination, while soft torque control and pump stop functions mitigate pressure spikes that could damage piping, valves, and seals.

These features make the soft starters well suited for centrifugal pumps, water treatment facilities, agricultural irrigation systems, and industrial circulation loops, where pressure stability and system longevity are paramount. Reduced mechanical stress contributes to increased overall system reliability and uptime.

Optimizing Ventilation, Compression, and Fan Motor Control

In HVAC and other air handling applications, smooth motor control reduces mechanical shock on fans, bearings, and dampers. The three-phase control featured in 3RW52 and 3RW55 models allows precise ramp-up profiles to optimize airflow for large ventilation units and industrial blowers.

For compressed air systems, a controlled slow pressure rise minimizes risks of tank rupture and accelerates wear on components. Applying soft starter technology in these contexts ensures operational safety and energy efficiency while reducing mechanical maintenance needs.

Conveyor and Material Handling Systems Control

Conveyor belts and processing lines require smooth acceleration and deceleration to prevent product spillage and equipment damage. The 3RW5 soft starters offer controlled ramp profiles with braking functions that enable predictable stops, critical for delicate material handling tasks requiring motion control systems with PLCs.

Automatic parameterisation adapts startup times and torque demands dynamically to variable load inertia and belt tension, improving system robustness and reducing the risk of slippage or mechanical failure during operation.

Integrated Condition Monitoring and Predictive Maintenance

Advanced condition monitoring features embedded in the 3RW5 series provide continuous oversight of bearing and seal health. By tracking operating parameters against predefined warning and alarm thresholds, the system can predict component wear and schedule maintenance proactively.

This predictive maintenance capability helps reduce unplanned downtime, lowers maintenance costs, and extends service intervals through timely interventions before equipment failure occurs, thereby enhancing plant availability.

Comprehensive Thermal and Overload Protection Schemes

The soft starters include selectable analog outputs and thermistor inputs for precise motor temperature monitoring. This enables accurate adjustment of motor protection algorithms to prevent damage from overheating or sustained overcurrent conditions.

Robust electrical design ensures reliable operation even in weak or fluctuating power grids, with minimal false trips. Such ruggedness is essential in industrial settings subject to voltage transients and other electrical disturbances.

Compactness and Mechanical Integration in Control Equipment

With a depth under 8 inches for the 400 HP class, the SIRIUS 3RW5 devices fit into compact control cabinets and Motor Control Centers effortlessly. Flexible mounting options suit modular panel configurations and retrofit projects, reducing engineering hours and cabinet redesign costs.

Reviewed against global certifications such as IEC, UL, and CSA, these devices comply with international safety and performance standards, simplifying multinational system design and facilitating approval processes.

Automatic Parameterisation and Self-Learning Capabilities

The 3RW5 soft starters incorporate self-learning algorithms that analyze load conditions during initial startups. This automatic parameterisation adjusts ramp time, current limits, and stop parameters based on load inertia and response characteristics without manual input.

This feature reduces commissioning complexity and time, particularly beneficial for applications with highly dynamic loads like conveyors and variable torque services, where manual tuning would otherwise be labor-intensive.

Streamlined Commissioning and Engineering with TIA Portal

Siemens supports SIRIUS 3RW5 integration into its Siemens collection TIA Portal platform, a unified engineering environment that simplifies device configuration, monitoring, and diagnostics across the automation control system.

Offline simulation tools enable testing of soft starter configurations before deployment, preventing startup errors and reducing downtime. Rotary knob parameterisation features complement software tools by allowing quick in-field adjustments without requiring a programming connection.

Economic Advantages and Return on Investment

Replacing traditional star-delta starters with the 3RW5 series reduces capital expenditure due to fewer components and simplified control wiring. Enhanced energy efficiency from soft starts translates to measurable savings on electricity consumption over time.

Moreover, predictive maintenance features decrease labor costs associated with reactive repairs, and the extended lifespan of both soft starters and driven equipment ensures a favorable total cost of ownership. This makes the 3RW5 an economically viable choice for industrial motor control needs.

Conclusion: SIRIUS 3RW5 Soft Starters as a Holistic Motor Control Solution

The Siemens SIRIUS 3RW5 soft starter series offers a comprehensive package combining advanced motor control technology with safety, efficiency, and integration capabilities suitable for a wide variety of industrial applications.

From the economical 3RW50 to the feature-rich 3RW55, these devices support diverse power ranges and control requirements, incorporating modern hybrid switching, communication protocols, and automatic parameterisation to streamline commissioning and operation.

By addressing concerns in pump, ventilation, conveyor, and other motor-driven processes, the 3RW5 soft starters reduce mechanical and electrical stresses, enhance system reliability, and support predictive maintenance strategies. Together, these qualities establish them as dependable components in modern automation infrastructures worldwide through partners like Leadtime.
