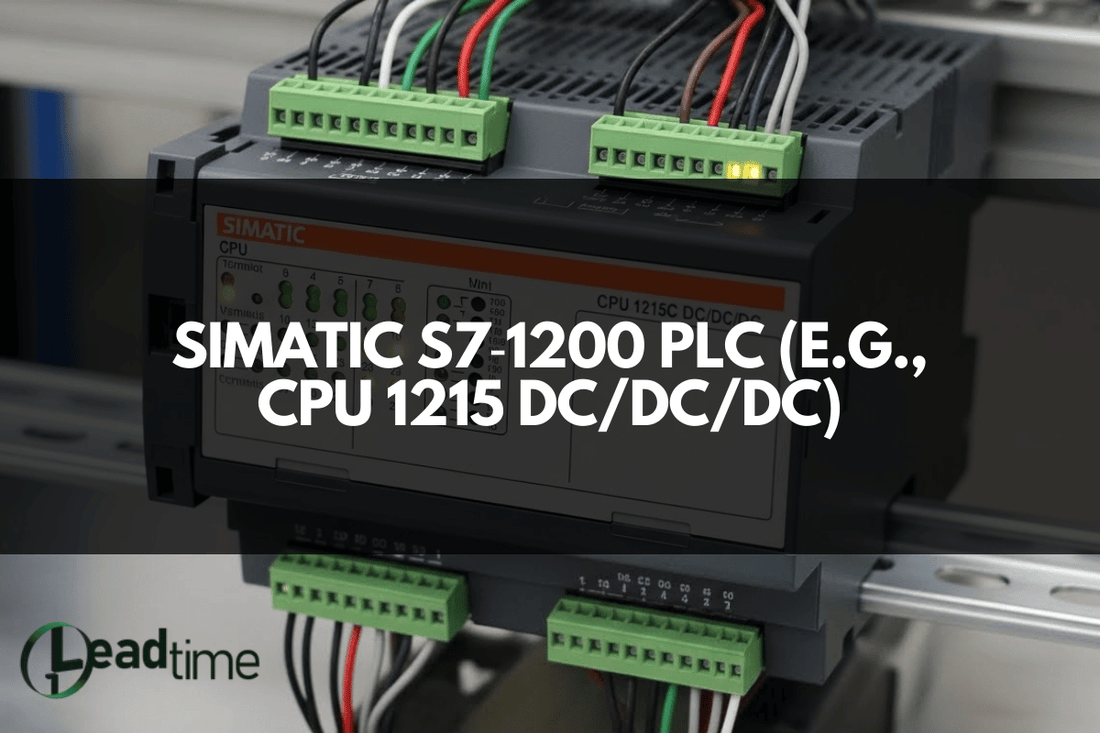

SIMATIC S7‑1200 PLC (e.g., CPU 1215 DC/DC/DC)

Introduction to the SIMATIC S7-1200 CPU 1215C

The SIMATIC S7-1200 CPU 1215C per official specifications is a mid-range compact programmable logic controller (PLC) per Siemens PLC programming basics within Siemens' well-regarded S7-1200 family. Designed to efficiently handle moderate automation tasks, the CPU 1215C sits between smaller models like the 1211C and 1212C and larger units such as the 1217C. It provides an ideal compromise in terms of I/O capacity, processing power, memory size, and feature set, making it a popular choice for manufacturing automation engineers and system integrators.

This PLC module is optimized for machine control, conveyor systems, packaging lines, process automation, and distributed I/O applications requiring robust PROFINET connectivity. Its compact form factor supports easy installation, while the integrated analog and digital I/O and high-speed capabilities allow for versatile control scenarios.

Understanding the CPU 1215C's role within an automation system enables engineers and plant supervisors to evaluate its suitability against other compact PLCs, factoring in application requirements, scalability, network integration, and cost efficiency.

Power Supply and Core Hardware Specifications

The CPU 1215C is available as a DC/DC/DC variant characterized by its three-level DC power architecture: DC supply input, DC logic supply, and DC output driver stage. The power input requires a nominal voltage between 20.4 V DC and 28.8 V DC, fitting standard industrial 24 V DC supplies with tolerance for voltage dips and surges common in field environments.

Power consumption averages approximately 14 W during operation, ensuring relatively low thermal dissipation and energy cost in a control cabinet. The internal 5 V DC supply bus can deliver up to 1600 mA, which supports attached modules, signal boards, and communication modules without external power augmentation.

Field installation demands careful consideration of electrical isolation, particularly for safety-related disconnection. The CPU's design complies with industrial safety standards, but panel wiring and fusing must adhere to best practices, including dedicated supply circuits and protective devices to prevent fault propagation.

Detailed Digital Input and Output Characteristics

The CPU 1215C includes 14 digital inputs rated for 24 V DC nominal voltage. Each input channel draws approximately 4 mA, which affects overall power budgeting and upstream supply design. These inputs exhibit robust noise immunity due to their transistor-based input circuitry suitable for industrial environments.

Digital output capacity consists of 10 transistor outputs each capable of switching up to 0.5 A at 24 V DC. These outputs deliver reliable switching for actuators, indicators, and small solenoids. The maximum switching frequency is governed by a maximum off-to-on delay of 10 ms, sufficient for typical discrete control tasks.

Signal wiring considers cable type and distance. Shielded cables are recommended for runs extending beyond 150 m to prevent electromagnetic interference, with an industry accepted maximum of 500 m for shielded installations. Proper grounding and shielding techniques ensure signal integrity and reduce noise-induced faults.

Analog Input and Output Functionalities

Embedded in the CPU 1215C are 2 analog inputs supporting 0 to 10 V DC signals with an input impedance of approximately 100 kOhms. These inputs can seamlessly interface with common industrial sensors such as potentiometers, thermocouples (with appropriate signal conditioning), or standard 0-10 V transducers.

The analog outputs comprise 2 channels delivering 0 to 20 mA DC signals. This current output is preferred for industrial actuators and devices due to immunity against voltage drops over long cable runs. Both analog input and output modules offer 10-bit resolution, providing precise signal quantization suitable for fine control and monitoring.

Each analog channel features a conversion time of approximately 625 microseconds, enabling reasonably fast updates for closed-loop control or data acquisition tasks. Signal conditioning parameters can be adjusted in software to compensate offset, span, or linearization requirements.

Memory Architecture and Program Storage

The CPU 1215C provides a substantial 125 KB of integrated work memory dedicated to user application programs, enabling implementation of complex control strategies. Additionally, it contains 4 MB of load memory for storing the program code, expanded optionally via a SIMATIC Memory Card (up to SD card size), allowing version management and rapid firmware upgrades.

Retention memory of 14 KB preserves critical variables and states through power cycles, supporting fault recovery and continuous operation. Bit memory (M) of 8192 bytes offers dedicated storage for discrete flags and intermediate computations.

Process image memory for inputs and outputs is adjustable up to 1024 bytes each, mapping physical I/O states to the PLC core for deterministic scanning and control cycles. Temporary and local variable memory sizes vary based on the complexity of the user's function blocks and program structure.

Specialized I/O Features: High-Speed and Pulse Functions

The CPU 1215C supports 3 high-speed inputs capable of counting pulses up to 100 kHz, enabling accurate reading of incremental encoders, flow meters, or high-frequency sensors. These inputs are essential for motion control tasks requiring motion control systems with PLCs.

Complementing the inputs, 4 programmable pulse outputs allow the generation of frequency-modulated signals, useful for stepper motor controls or PWM actuation. The CPU includes 6 counter channels in total, each able to handle counting frequencies similarly up to 100 kHz.

Advanced control schemes such as single-axis positioning and motion-coordinated tasks can be orchestrated by integrating dedicated single-axis modules paired with the CPU 1215C, offering an efficient solution for automated assembly and processing lines.

PROFINET Communication and Network Integration

Integral to the CPU 1215C's architecture are dual PROFINET ports following Siemens Profinet network configuration supporting both IO Controller and IO Device modes. These ports operate at 100 Mbit/s, enabling high-speed, deterministic communication within industrial Ethernet networks.

Network topology flexibility includes star, line, and ring configurations. Media redundancy protocols provide high availability by minimizing downtime on link failure. Open IE communication supports secure data transactions employing TLS 1.3 encryption, essential for protecting critical control data in Industry 4.0 environments.

The PROFINET stack's performance enables seamless integration with Siemens HMI devices, SCADA systems, and third-party controllers, facilitating coordinated control and real-time diagnostics across distributed automation landscapes.

Interrupt Management and Timing Precision

Real-time application demands are addressed with the CPU's interrupt capabilities. It supports 4 time-delay interrupts with a minimum resolution of 1 ms, providing precise scheduling for time-critical events such as periodic sensor sampling or output actuations.

Additionally, 4 cyclic interrupts allow continuous background tasks that must execute at fixed intervals, improving deterministic control and response. Edge interrupts are configurable for both rising and falling transitions, with 12 each available by default and extendable to 16 with the addition of a signal board.

A hardware real-time clock enables scheduling of timed operations and event logging, which assists engineers in implementing time-dependent control sequences and historical data records.

Expanding the CPU 1215C Capabilities with Signal and Communication Modules

The CPU supports a concise expansion system with 1 dedicated slot for a single signal board and up to 3 communication modules. Signal boards from the Siemens collection augment I/O capacity without consuming the main terminal pins, facilitating additional pulse outputs or positioning signals.

Communication modules broaden network interfaces, allowing integration of PROFIBUS, additional PROFINET ports, or specialized protocols tailored to specific automation scenarios. This modularity ensures that the CPU 1215C remains adaptable to evolving system requirements without full hardware replacement.

Engineers must consider the physical and power limitations when allocating modules, ensuring bus capacity and power supply are not exceeded for reliable system operation.

Programming Tools and Environment Compatibility

Programming the CPU 1215C is typically conducted using Siemens' STEP 7 software. Legacy systems often use STEP 7 V11 SP2, while modern developments leverage STEP 7 V20 within the Totally Integrated Automation (TIA) Portal environment. This software facilitates graphical programming via ladder diagrams (LAD) and function block diagrams (FBD), as well as textual programming through structured text (ST).

Firmware version V4.7 or later unlocks enhanced features and improved stability. The integrated development environment supports multi-language editing and debugging, catering to diverse engineering preferences and project requirements.

Project organization within the TIA Portal enables modular code management, symbol management, and easy integration of diagnostic and trace functions critical to reducing commissioning time.

Comparing CPU 1215C Within the S7-1200 Family

Selecting the appropriate CPU revolves around balancing program memory, I/O count, and processing speed against project complexity and budget.

The 1215C presents a significant step-up in memory and analog I/O capabilities compared to smaller 121x models, with a cost profile inline for mid-range automation projects. For projects demanding higher memory and extended signal processing, the 1217C models may be more suitable.

Installing and Mounting Considerations

The CPU 1215C's compact enclosure measures approximately 130 mm in width, facilitating space-saving panel mounting. It is DIN-rail compatible, allowing seamless integration into existing control cabinets.

Attention must be paid to proper grounding and shielding to comply with industrial EMC requirements. Cable lengths for I/O wiring should respect recommended limits: shielded cables up to 500 m and unshielded runs up to 150 m.

The device supports AC/DC isolation per IEC standards, but engineers should ensure appropriate fusing and circuit protection are present to safeguard the CPU and attached devices from field-side faults or overvoltage conditions.

Industrial Automation Scenarios for the CPU 1215C

Manufacturing plants utilize the CPU 1215C for a variety of control implementations, including automated machine control with coordinated motion, conveyor system management with distributed I/O nodes as part of core components of industrial automation, and hybrid analog-digital process loops for mixing, dosing, or temperature regulation.

Its high-speed inputs and pulse outputs lend themselves well to motion control tasks such as indexing, positioning, and speed regulation. The integrated PROFINET ports enable networking with sensors, HMIs, and higher-level control systems to build scalable, modular automation architectures.

Process automation applications benefit from the CPU's analog I/O capabilities and precise timing interrupts, which are vital in industries like packaging, pharmaceuticals, and food processing where speed and accuracy are critical.

Diagnostics, Troubleshooting, and Maintenance Features

The CPU 1215C incorporates built-in diagnostic LEDs indicating system RUN/STOP status, errors, and maintenance needs. These provide immediate visual feedback during installation and operation to pinpoint fault conditions rapidly.

Trace functionality supports up to two configurable online traces with 512 KB buffer each, allowing engineers to record variable behavior in real time and analyze system performance or identify intermittent faults.

PG/OP communications enable connection with programming devices and operator panels for live monitoring, program downloads, and diagnostics without interrupting control functions.

Conclusion: Positioning the CPU 1215C for Modern Automation Systems

The Siemens SIMATIC S7-1200 CPU 1215C offers a balanced blend of performance, memory, and I/O features that align well with mid-range manufacturing automation requirements. Its flexible PROFINET connectivity, expandable architecture, and comprehensive programming environment deliver a robust platform for machine control, process automation, and distributed systems.

System integrators and plant engineers through partners like Leadtime can leverage its high-speed counter capabilities, analog channels, and communication support to implement advanced control scenarios with reliability and cost efficiency. Proper installation, wiring discipline, and planned expansion provide the foundation for scalable and maintainable industrial automation solutions.

By carefully matching the CPU 1215C's specifications to the operational demands of their applications, professionals can optimize control performance and future-proof their automation investments.
