POINT I/O vs Flex I/O vs ArmorBlock: Choosing the Right Rockwell I/O

By Abdullah Zahid
19 min read

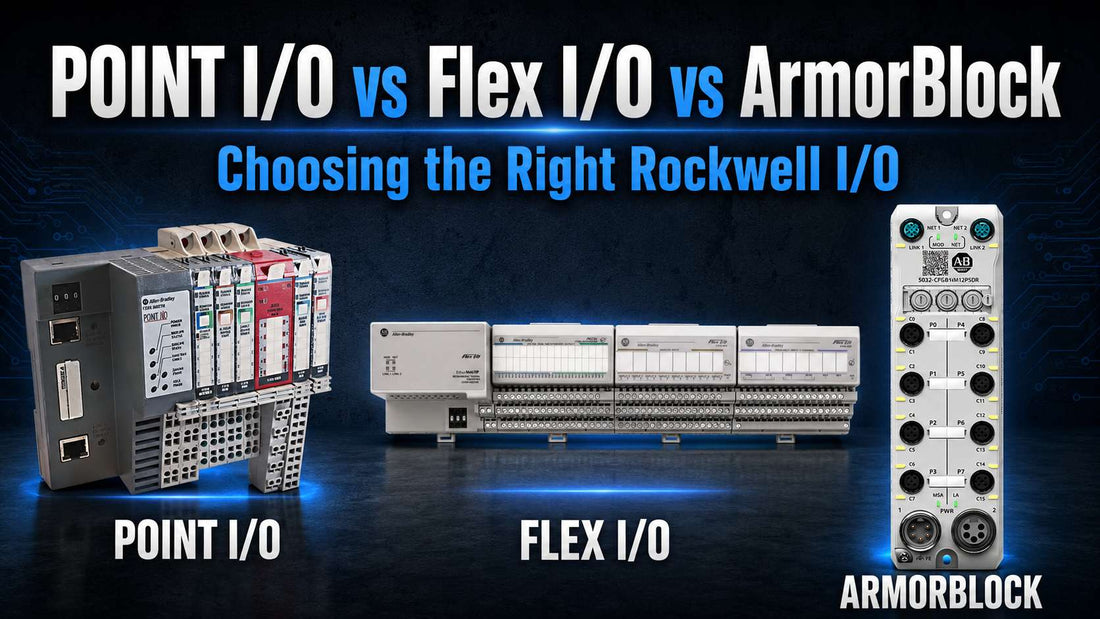

Allen-Bradley POINT I/O 1734, FLEX I/O 1794, and ArmorBlock I/O modules side by side for Rockwell distributed I/O comparison

POINT I/O vs Flex I/O vs ArmorBlock I/O Comparison Guide: How to Choose the Right Rockwell Distributed I/O for Your System

When a controls engineer specifying a Rockwell Automation-based system reaches the distributed I/O selection stage, the decision usually narrows to three families: the Allen-Bradley 1734 POINT I/O Modular I/O System for compact, granular in-panel deployments; the Allen-Bradley 1794 FLEX I/O Modular I/O System for mid-size panel I/O groups and legacy expansions; and the Allen-Bradley ArmorBlock I/O Machine-Mount I/O for harsh, washdown, or machine-level environments where IP67 protection and short sensor cable runs matter more than panel density. Each family sits on EtherNet/IP and legacy network adapters, connects to CompactLogix, ControlLogix, and Micro800 controllers, and is configured in Studio 5000 Logix Designer — but the architecture, wiring philosophy, and environmental fit of the three could not be more different. Getting this choice wrong means rewiring, replanning enclosures, or discovering that your I/O family does not support the specialty modules your application requires.

If you have already identified the right family and need to confirm current pricing and availability, the LeadTime.ca team stocks and sources all three families and ships worldwide — contact LeadTime.ca to confirm availability and lead times before committing to your design.

Which Rockwell I/O Family Is Right for Your Project?

This comparison is right for you if you are specifying distributed I/O for a Rockwell controller-based system and the environment, I/O density, or wiring strategy has not yet been locked down. Use the criteria below to shortlist your family before diving into module-level selection.

  • Your I/O will be installed inside a control panel in an IP20 environment — POINT I/O or FLEX I/O applies; ArmorBlock does not.
  • You need a high number of mixed digital, analog, and specialty modules per adapter on a single EtherNet/IP drop — lean toward POINT I/O, which supports up to 63 modules on certain EtherNet/IP adapters.
  • You are extending an existing 1794 FLEX I/O installation and want spares and wiring consistency — FLEX I/O is the pragmatic choice, with a lifecycle review recommended for new zones.
  • Your I/O must survive harsh, washdown, or dusty environments outside a panel — ArmorBlock I/O with IP67 machine-mount blocks is the correct architecture.
  • You want to reduce home-run cable runs by mounting I/O directly on the machine near sensors and actuators — ArmorBlock I/O with M12 field connectors solves this; panel-based POINT and FLEX do not.
  • You are starting a greenfield design on a modern EtherNet/IP backbone and want the strongest long-term support path among in-panel families — POINT I/O or newer platforms is the preferred direction.

If none of these criteria point clearly to one family, the scenario-based verdict section further down this page will help resolve the tie. If your application falls in a harsh environment but panels are available nearby, see the decision scenarios section for guidance on when ArmorBlock still wins even with accessible enclosures.

On this page:

What Each Family Actually Does in a Rockwell System

All three families serve the same fundamental purpose — connecting field signals to a Rockwell Automation controller over a network — but they approach that job from fundamentally different physical and architectural directions.

The Allen-Bradley 1734 POINT I/O Modular I/O System is a compact, modular, DIN-rail-mounted in-panel system. Each node begins with a communication adapter — an EtherNet/IP, DeviceNet, ControlNet, or Profibus variant — and individual I/O modules slide onto terminal bases to the right of the adapter. The key architectural strength is granularity: certain EtherNet/IP adapters support up to 63 I/O modules per node, which allows very precise tailoring of digital input, digital output, analog input, analog output, and specialty modules within a single drop. This makes POINT I/O the standard recommendation for new OEM machine designs, compact skid systems, and distributed I/O that needs to flex across many different signal types in a tight panel footprint.

The Allen-Bradley 1794 FLEX I/O Modular I/O System uses a different physical architecture: each node consists of a terminal base onto which I/O modules are mounted, with a communication adapter at the head of the assembly. FLEX I/O adapters typically support up to 8 I/O modules per node — considerably fewer than POINT I/O — which makes each FLEX drop better suited to a defined, moderately-sized group of signals rather than a sprawling mixed array. FLEX I/O carries a large installed base in North American manufacturing and is frequently encountered in legacy DeviceNet and ControlNet systems being migrated to EtherNet/IP. Its modules and bases are physically larger than POINT I/O, offering more terminal access per point, which some installers and maintenance technicians prefer.

The Allen-Bradley ArmorBlock I/O Machine-Mount I/O is a fundamentally different concept. Rather than living inside a panel, ArmorBlock blocks — including the 1738 ArmorBlock EtherNet/IP family and the newer ArmorBlock 5000 — mount directly on the machine structure, on conveyor frames, near actuators, or in washdown zones. IP67 ratings on many variants mean these blocks withstand water jets, dust ingress, and vibration that would destroy an IP20 panel module. Field devices connect via M12 connectors and pre-made cables, keeping wiring short and eliminating the long home-run cables that panel-based I/O requires. The trade-off is higher hardware and connector cost per channel and more complex physical replacement when a block is mounted in a difficult location.

Typical System Architecture for Distributed I/O

Understanding where each family sits in the signal chain helps clarify why the choice matters at the design stage, not after enclosures are ordered.

  • Rockwell controller (CompactLogix, ControlLogix, Micro800) communicates over EtherNet/IP — or legacy DeviceNet / ControlNet — to one or more remote I/O nodes distributed around the machine or plant.
  • For POINT I/O: the EtherNet/IP adapter mounts on a DIN rail inside a control panel; up to 63 I/O modules (on certain adapters) attach to the right of it on terminal bases, with field wiring landed directly on the terminal bases.
  • For FLEX I/O: the communication adapter heads a row of up to 8 I/O modules, each on its own terminal base, inside a panel; field wiring is heavier per module, suited to mid-size grouped signals.
  • For ArmorBlock I/O: the entire block — adapter and I/O in one IP67 enclosure — mounts directly on the machine frame; a single EtherNet/IP or DeviceNet cable runs back to the panel switch, and M12 cables fan out to nearby sensors and actuators.
  • In hybrid architectures, POINT I/O or FLEX I/O handles in-panel zones while ArmorBlock nodes cover machine-level harsh areas — all on the same EtherNet/IP network and visible to the same controller under Studio 5000 Logix Designer.

Typical Applications and Deployment Scenarios

Discrete manufacturing cells with many mixed signal types across a compact panel — digital inputs from pushbuttons, digital outputs to solenoids, analog inputs from pressure transmitters, and specialty counter modules — are the natural home for POINT I/O. The high module-per-adapter capacity means a single EtherNet/IP drop can serve an entire machine zone without requiring a second adapter.

Food and beverage processing lines, washdown packaging conveyors, and bottling or filling equipment are the dominant use case for ArmorBlock I/O. When a conveyor frame must be hosed down daily and the nearest panel is twenty metres away, mounting an IP67 ArmorBlock block at the machine with short M12 sensor cables eliminates dozens of metres of field wiring per zone and keeps the I/O block outside the splash zone without a separate enclosure.

Automotive body shops, material handling systems with many moderate-size I/O groups per panel, and process skids being expanded alongside an existing FLEX I/O backbone are where 1794 FLEX I/O continues to find practical use. A plant that has standardized on FLEX modules, trained its maintenance team on FLEX wiring practices, and stocked FLEX spares has a real operational reason to continue with FLEX for panel expansions even as newer in-panel platforms mature.

Large distributed plant-floor networks spanning multiple machine islands — where each drop needs its own tailored mix of 4 digital inputs, 2 analog inputs, and 2 digital outputs — favor POINT I/O for its ability to right-size every node without wasting module slots on unused channels.

Application Typical Deployment
Small OEM machine, mixed DI/DO/AI signals, limited panel space POINT I/O, compact DIN-rail node with fine-grained module mix per adapter
Washdown conveyor or food and beverage filling line ArmorBlock I/O, IP67 machine-mount blocks with M12 sensor cables
Existing DeviceNet or EtherNet/IP FLEX I/O line, adding one panel FLEX I/O for spares and wiring consistency, with lifecycle review recommended
Large plant-floor network, many small I/O drops across wide area POINT I/O, high module-per-adapter capacity enables many tailored drops
Simple conveyor, few sensors, far from main panel ArmorBlock I/O, machine-mount block with single network cable return to panel
Long-term modernization of legacy FLEX I/O system POINT I/O or newer platforms for new zones; FLEX retained on existing segments

Core Platform Comparison: POINT I/O vs FLEX I/O vs ArmorBlock I/O

Feature POINT I/O (1734) FLEX I/O (1794) ArmorBlock I/O
Installation type In-panel, IP20 modular DIN-rail In-panel, IP20 modular terminal bases Machine-mount, IP67 block
Typical form factor Compact modular: terminal base + module + I/O connector Larger modular bases, more terminals per point Self-contained block with integrated adapter and I/O
Max modules per adapter Up to 63 on certain EtherNet/IP adapters (variant-dependent) Up to 8 I/O modules (variant-dependent) Fixed channel count per block; not expandable by module
Typical I/O density per module or block Low-to-medium per module; high total per adapter Medium per module; fewer modules per adapter Medium per block; positioned close to field devices
Supported networks EtherNet/IP, DeviceNet, ControlNet, Profibus (adapter-dependent) EtherNet/IP, DeviceNet, ControlNet (adapter-dependent) EtherNet/IP, DeviceNet (variant-dependent)
Field connector type Screw terminals on terminal bases Screw terminals on bases M12 and similar field connectors, pre-made cables
Environmental rating IP20 (panel enclosure required for harsh environments) IP20 (panel enclosure required) IP67 on many variants; suitable for machine-mount washdown
Typical applications New OEM machines, small distributed drops, fine mixed I/O Legacy expansions, mid-size I/O groups, installed-base matching Washdown, harsh machine-level, packaging, conveyors
Controller compatibility CompactLogix, ControlLogix, Micro800 (adapter-dependent) CompactLogix, ControlLogix (adapter-dependent) CompactLogix, ControlLogix (adapter-dependent)
Engineering tool Studio 5000 Logix Designer, RSLogix 5000 Studio 5000 Logix Designer, RSLogix 5000 Studio 5000 Logix Designer, RSLogix 5000

Full technical specifications for each family are available on the product pages at LeadTime.ca.

Communication, Power, and Engineering Tool Comparison

Aspect POINT I/O (1734) FLEX I/O (1794) ArmorBlock I/O
Main EtherNet/IP adapter catalog families 1734-AENTR, 1734-AENT (dual-port EtherNet/IP adapters) 1794-AENTR, 1794-AENT EtherNet/IP adapters 1738-AENTR (ArmorBlock EtherNet/IP); ArmorBlock 5000 series
Legacy network options DeviceNet (1734-ADN), ControlNet (1734-ACN), Profibus adapter available DeviceNet (1794-ADN), ControlNet (1794-ACN) adapters available DeviceNet variants available; primarily EtherNet/IP for modern deployments
Backplane power considerations Field power modules required to distribute power along the node; careful power segmentation needed Power supplied through the adapter and base assembly; segment planning required Power supplied to the block directly; no DIN-rail backplane
Engineering tools Studio 5000 Logix Designer / RSLogix 5000; module profiles included Studio 5000 Logix Designer / RSLogix 5000; module profiles included Studio 5000 Logix Designer / RSLogix 5000; EDS files for block configuration
Diagnostics Per-channel and per-module status LEDs; module-level diagnostics via adapter Per-module status indicators; channel-level diagnostics depend on module type Machine-level LEDs on block housing; visible at the device without panel access

Cost and Availability Context

All pricing is market-typical and qualitative — verify with your distributor before quoting. Actual cost per point varies by specific module, quantity, and current market conditions.

Context POINT I/O (1734) FLEX I/O (1794) ArmorBlock I/O
Typical hardware cost per drop Lower-to-medium for mixed small I/O; adapter cost spread over many modules (market-typical estimate — verify with distributor before quoting) Medium; adapter cost spread over fewer modules per drop (market-typical estimate — verify with distributor before quoting) Higher hardware cost per channel due to IP67 block and M12 connector system (market-typical estimate — verify with distributor before quoting)
Wiring labor and field cabling effort Moderate; terminal-base wiring in panel, home-run cables from field devices Moderate-to-high per module; larger terminals but fewer modules per node Lower field wiring labor; M12 cables snap on, but connector procurement and planning required
Suitability for large installed-base expansions Strong for new and expanding systems; good spares ecosystem Best where FLEX I/O is the existing plant standard; spares inventory already in place Best where machine-mount IP67 is the justified requirement; not ideal purely for cost
Typical availability through distributors worldwide Widely stocked; confirm specific adapter and module combinations with distributor Widely stocked for common variants; verify lifecycle status on less common modules Stocked for common EtherNet/IP variants; specialty blocks may require lead-time confirmation

For current pricing and lead times on any POINT I/O, FLEX I/O, or ArmorBlock I/O module, contact the LeadTime.ca team — we source and ship worldwide.

Expert Verdict: Which Family Wins by Scenario

For most new in-panel distributed I/O designs, the Allen-Bradley 1734 POINT I/O Modular I/O System typically offers the best balance of flexibility, density, and long-term platform support. The ability to support up to 63 modules on certain EtherNet/IP adapters means a single node can serve an entire machine zone with a precisely tailored mix of signal types — no wasted channels, no redundant adapters. Engineers specifying new CompactLogix or ControlLogix systems who are starting from a blank slate will find POINT I/O the most capable and future-oriented in-panel choice in the current Rockwell catalog. Where specialty modules — motion, temperature, counters, safety — are required, POINT I/O's broad module portfolio is a practical advantage, though specific module availability should always be verified against current Rockwell literature for the exact application.

The Allen-Bradley 1794 FLEX I/O Modular I/O System is the honest choice when you are expanding an existing FLEX installation, not designing from scratch. Its limit of up to 8 modules per adapter makes it a less efficient architecture for new large or fine-grained systems, but for a plant where maintenance teams know FLEX wiring, spare modules sit on the shelf, and the existing DeviceNet or EtherNet/IP network is FLEX-based, adding another FLEX panel is operationally lower-risk than introducing a second I/O architecture. The important caveat: FLEX I/O is a mature platform, and for any new production zone — even within a FLEX-dominant plant — a lifecycle and modernization review is worth completing before committing to another FLEX drop. Where lifecycle constraints are a concern, POINT I/O or newer platforms such as PointMax I/O may be the better long-term investment. The Allen-Bradley ArmorBlock I/O Machine-Mount I/O wins decisively when the environment makes that decision for you: IP67 machine-mount blocks are not a premium option for clean panel environments — they are the correct engineering answer when panels are impractical, washdown is routine, or sensor cable runs from a panel would be prohibitively long.

From a procurement standpoint, all three families are available through specialist distributors worldwide, but specific adapter variants, specialty modules, and newer ArmorBlock 5000 blocks may carry lead times that affect build schedules. Confirming availability and lead time before finalizing your BOM — especially for mixed-family designs — is a step that experienced controls engineers do not skip. LeadTime.ca sources across the full POINT I/O, FLEX I/O, and ArmorBlock I/O portfolio and can compare availability across families to support both expansion and modernization projects. Check current availability and lead times at LeadTime.ca before locking your design.

For volume pricing, multi-family BOM review, or lead-time confirmation before committing to a machine build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Are Saying About Each Family

Across PLC forums including r/PLC, r/automation, r/industrialautomation, PLCTalk, and Rockwell Automation user communities, the consensus is consistent: all three families are well-regarded, but each earns its praise for completely different reasons. POINT I/O draws the most positive commentary from controls engineers working on new OEM machine designs. The recurring praise centres on its flexibility — the ability to mix digital, analog, and specialty modules within a single adapter node — and its compact DIN-rail footprint that makes tight panel designs achievable. The recurring complaint, however, is equally consistent: power distribution across a POINT I/O node requires careful attention. Field power modules must be placed correctly within the node to supply the right segments, and engineers who overlook this during initial design report having to restructure their I/O arrangement during commissioning. Documentation exists to prevent this, but community members repeatedly flag it as an area where careful reading pays off before the panel is wired.

FLEX I/O commentary divides predictably along generational lines. Engineers who have worked with FLEX for years value its sturdy modules, generous terminal access, and familiarity. It is consistently described as a workhorse — not exciting, but dependable. The platform's limit of up to 8 I/O modules per adapter draws criticism from engineers who discover mid-design that their I/O group requires a second adapter, adding cost and network overhead they did not budget for. The most common frustration is choosing FLEX I/O for a new system without reviewing lifecycle status first, then discovering that newer alternatives offer better long-term support. Community members who have moved from FLEX I/O to POINT I/O or newer platforms for modern EtherNet/IP systems generally report the transition as worthwhile for greenfield zones, while cautioning against disrupting existing FLEX installations unnecessarily.

ArmorBlock I/O discussion is overwhelmingly application-specific: engineers either need machine-mount IP67 I/O or they do not, and those who need it describe ArmorBlock as the right call for washdown packaging lines, conveyors, and food and beverage environments. The praise focuses on simplified machine wiring — one network cable back to the panel instead of dozens of home-run sensor wires — and the practical advantage of LED status indicators visible at the machine without opening a panel door. The complaints are equally practical: M12 connectors and pre-made cables cost more per point than terminal-base wiring, physical block replacement on a machine frame can be awkward, and cable routing from sensors to blocks requires careful planning at the design stage. Engineers who chose ArmorBlock to avoid panel design work in non-harsh environments generally regret it; those who chose it because the environment demanded IP67 consistently describe it as the right architecture.

Wiring and Installation Overview

  • POINT I/O uses a three-piece assembly on each node position: terminal base, I/O module, and I/O connector — field wiring lands on the terminal base, and modules can be replaced without disturbing field wiring when bases are used correctly.
  • FLEX I/O bases provide more terminal access per point and are physically larger; modules mount onto the base and field wiring terminates on the base screw terminals, which some installation teams prefer for heavier gauge conductors.
  • ArmorBlock I/O uses M12 (and similar) field connectors for sensor and actuator connections — pre-made cables reduce field termination time but require connector inventory and compatible cable assemblies to be planned into the BOM.
  • For POINT I/O, confirm power segmentation and placement of field power modules before finalizing the module order within a node — backplane power distribution is segment-based and must be planned against the module arrangement.
  • For all three families, verify IP rating of the mounting location against the family's environmental rating: POINT I/O and FLEX I/O require a sealed enclosure in harsh environments; ArmorBlock IP67 blocks are rated for machine-mount exposure but specific temperature and chemical resistance varies by variant — confirm against Rockwell technical data.

Lifecycle, Modernization, and Future Planning

Lifecycle status is a meaningful differentiator in this comparison, particularly for engineers planning systems that need to be maintainable and expandable over a decade or more. The 1734 POINT I/O family is an actively supported Rockwell Automation platform with a broad current module portfolio, and Rockwell's own modernization guidance for many legacy systems points toward POINT I/O or newer emerging platforms such as PointMax I/O as migration targets. For greenfield designs, POINT I/O represents the stronger long-term bet among in-panel families.

The 1794 FLEX I/O platform carries a large global installed base, and common modules remain available, but FLEX I/O is a mature platform. Specific lifecycle notices vary by module and variant, and engineers starting new production zones should verify current lifecycle status for the specific FLEX modules they intend to use against Rockwell's published lifecycle data before committing to a new FLEX deployment. Where lifecycle risk is a concern, introducing POINT I/O for new zones while retaining FLEX on existing segments is a practical hybrid strategy that avoids both a complete rip-and-replace and the risk of designing new systems onto a platform approaching end of active development.

ArmorBlock I/O, including the ArmorBlock 5000 series, continues as an active Rockwell Automation product line for machine-mount harsh-environment applications. The ArmorBlock 5000 represents a newer generation within the family and may be the preferred specification for new ArmorBlock deployments — confirming whether specific catalog numbers are current-generation or predecessor variants is worthwhile when writing a new BOM.

Wrong-Part Prevention Checklist

Before finalizing your I/O family selection, run through this checklist. Each item represents a real-world specification mistake that has caused redesigns, rewiring, or failed commissioning on Rockwell distributed I/O projects.

  1. Confirm whether I/O will be installed in-panel (IP20) or on-machine (IP67).
  2. Verify required I/O point count per node vs adapter module limits (POINT vs FLEX).
  3. Check required network (EtherNet/IP, DeviceNet, ControlNet, Profibus) against available adapters for each family.
  4. Ensure safety and specialty modules (e.g., motion, temperature) exist in the chosen family.
  5. Validate environmental ratings (temperature, IP rating, washdown, shock/vibration).
  6. Confirm lifecycle status and modernization options (POINT vs FLEX vs newer platforms).
  7. Check connector and cabling strategy (M12 on ArmorBlock vs panel terminal wiring) against maintenance practices.

If any of these checklist items surfaces uncertainty in your design, contact the LeadTime.ca team before ordering — we help engineers resolve selection questions and confirm the right catalog numbers before parts ship worldwide.

Frequently Asked Questions

How many POINT I/O modules can I put on one EtherNet/IP adapter?

Certain EtherNet/IP adapters in the 1734 POINT I/O family support up to 63 I/O modules per node. This is a key architectural advantage over FLEX I/O, which is limited to up to 8 I/O modules per adapter. The exact limit depends on the specific adapter catalog number, so confirm against Rockwell's technical data for the adapter you intend to specify.

When should I choose ArmorBlock I/O over POINT I/O, even if I have available panel space nearby?

Choose ArmorBlock I/O when the distance from the panel to field devices creates long, costly home-run cable runs, when the field environment involves regular washdown or heavy contamination that would require a sealed enclosure for panel-based I/O anyway, or when machine-level LED diagnostics visible without opening a panel door has operational value. If the environment is clean and panels are close to field devices, POINT I/O in a standard panel is typically more cost-effective per channel.

Is FLEX I/O still a good choice for new systems in 2024 and beyond?

FLEX I/O remains a valid choice for expanding existing FLEX I/O installations where spares, wiring practice, and plant standards are already FLEX-based. For greenfield designs — new machines or new production zones with no existing FLEX infrastructure — the general recommendation from both the engineering community and Rockwell's own modernization guidance leans toward POINT I/O or newer platforms. Verify specific module lifecycle status with Rockwell before designing a new system on 1794 FLEX.

Can I mix POINT I/O, FLEX I/O, and ArmorBlock on the same EtherNet/IP network?

Yes. Because each family connects to the EtherNet/IP network through its own independent adapter, they appear as separate EtherNet/IP nodes to the controller. A single CompactLogix or ControlLogix system can have POINT I/O nodes in panels, FLEX I/O nodes in legacy panel sections, and ArmorBlock nodes mounted at the machine — all on the same EtherNet/IP network and configured within the same Studio 5000 Logix Designer project. This hybrid architecture is common in plants that are modernizing incrementally.

How does cost per point typically compare among these three families?

Hardware cost per channel is generally lower for POINT I/O in mixed small-signal applications, medium for FLEX I/O (where fewer modules per adapter distributes adapter cost across fewer channels), and higher for ArmorBlock due to the IP67 block construction and M12 connector system. However, total installed cost including field wiring labor often shifts the comparison: ArmorBlock's reduced home-run cabling can lower total project cost in applications with many distributed field devices, even though the hardware itself costs more per channel. All cost comparisons are market-typical estimates — verify with your distributor before quoting.

What is PointMax I/O and should I consider it instead of POINT I/O?

PointMax I/O is referenced in Rockwell Automation modernization guidance as an emerging platform for certain POINT I/O migration applications. If you are starting a new system design or planning a modernization project, it is worth confirming with Rockwell or your distributor whether PointMax I/O is the current recommended path for your application versus the established 1734 POINT I/O family. LeadTime.ca can help you compare availability across both platforms.

Why Order Through LeadTime.ca

  • LeadTime.ca stocks and sources Allen-Bradley 1734 POINT I/O, 1794 FLEX I/O, and ArmorBlock I/O modules, adapters, and accessories — single-family and multi-family BOMs handled in one order.
  • Global shipping: LeadTime.ca ships to customers worldwide, not limited to any single country or region.
  • Hard-to-find modules and legacy variants sourced on request — useful for FLEX I/O expansion projects where specific older catalog numbers are required.
  • Volume pricing and lead-time confirmation available before you commit to a build schedule.
  • Expert team available to cross-reference module compatibility and flag potential ordering mistakes before parts ship.

At-a-Glance Summary

  • Allen-Bradley 1734 POINT I/O: in-panel IP20 modular DIN-rail system; up to 63 modules on certain EtherNet/IP adapters; best for new OEM machines, fine mixed I/O, compact panels.
  • Allen-Bradley 1794 FLEX I/O: in-panel IP20 modular system; up to 8 modules per adapter; best for legacy expansion and installed-base consistency; lifecycle review recommended for new designs.
  • Allen-Bradley ArmorBlock I/O (1738, ArmorBlock 5000): machine-mount IP67 blocks; M12 field connectors; best for washdown, harsh environments, and reducing home-run field cabling.
  • All three families support EtherNet/IP as the primary modern network; legacy DeviceNet and ControlNet adapters available for POINT I/O and FLEX I/O.
  • POINT I/O and FLEX I/O require panel enclosures for environmental protection; ArmorBlock IP67 variants are rated for machine-mount exposure without an additional enclosure.
  • All three families are configured in Studio 5000 Logix Designer and compatible with CompactLogix and ControlLogix controllers (adapter-dependent).
  • Mixing all three families on the same EtherNet/IP network and within the same Studio 5000 project is supported — hybrid architectures are common on modernization projects.
  • Total installed cost comparison must include field wiring labor and connector costs, not hardware cost per channel alone — ArmorBlock can offer lower total project cost in applications with many distributed field devices despite higher hardware cost per point.
  • Pricing for all families is available on request — contact LeadTime.ca for current pricing and worldwide shipping.
