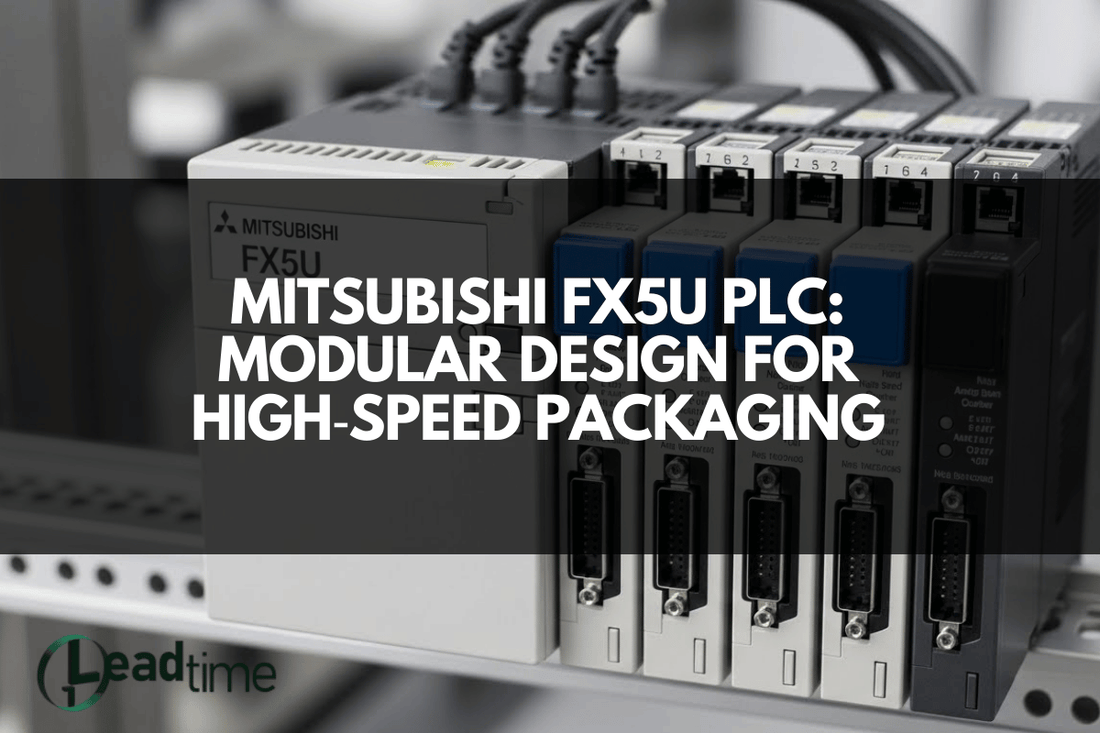

Mitsubishi FX5U PLC: modular design for high‑speed packaging

What Is the Mitsubishi FX5U and Why Does It Matter for Packaging?

The Mitsubishi FX5U PLC stands as a flagship compact controller within the MELSEC iQ-F series, designed specifically to meet the demanding requirements of OEMs and system integrators in the packaging industry. Its modular design and high-speed processing capabilities compare to Siemens PLC programming basics. packaging machinery applications as part of core components of industrial automation such as labelling, case erection, and bag sealing, where rapid cycle times and flexible I/O configurations are critical.

One of the key differentiators of the FX5U is its expandable architecture that supports connection of up to 16 accessory modules without necessitating CPU replacement. This allows engineers to build and scale customized control systems tailored to diverse packaging line needs. Equipped with a high-speed bus capable of transferring 1.5k words per millisecond and an ultra-fast 34 nanosecond instruction cycle time for common instructions like LD and MOV, the FX5U provides the performance required for time-sensitive control sequences typical in high-throughput packaging operations.

Its integrated features address challenges faced in packaging automation, including precise motion control, signal processing from digital sensors and analog weighing or pressure devices, and robust communication networks for supervisory control and data acquisition.

Key Modular Architecture: Building Your System

The FX5U series offers a range of CPU base modules featuring different input/output point counts to match factory floor requirements. For example, models like the FX5U-32MR/ES, FX5U-64MR/ES compare to Siemens S7-1200 compact controllers, and FX5U-80MT/ES provide configurations from 16 to 40 digital inputs combined with relay or transistor outputs. These base CPUs form the backbone of the control system and can be augmented with dedicated expansion modules offering analog inputs, temperature control, or simple motion capabilities.

The modular approach not only facilitates system growth but also simplifies maintenance and upgrades. Base units utilize spring clamp terminal blocks that streamline wiring in control panels, reducing installation time and potential wiring errors. The DIN rail mounting design follows industrial standards, ensuring easy integration within existing automation layouts. Component weights vary accordingly from approximately 0.65 kg for the 32-point units to heavier units accommodating up to 96 points of I/O.

Such configurability allows packaging engineers to tailor systems precisely to application demands without over-specifying hardware, resulting in cost-efficient yet high-performance automation solutions.

I/O Specifications: Input and Output Types

The FX5U supports versatile input and output options that address varied sensor and actuator requirements common on packaging lines. Digital inputs feature 16-point standard configurations with 24 V DC supply, and the capability to select sink or source input modes to accommodate different sensor wiring standards. Inputs exhibit a 4.3 kΩ impedance and only about 1.5 mA leakage current, ensuring safe and stable signal acquisition. Importantly, high-speed inputs can handle frequencies up to 200 kHz, enabling precise pulse counting and timing for devices such as encoders or mark sensors.

Output options include relay types capable of switching AC or DC loads up to 2 A per point, suitable for controlling solenoids and actuators, as well as transistor outputs providing 5 to 30 V DC signals with a minimum load current of 10 mA, ideal for driving solid-state devices or interfacing with conveyor motor starters. Terminals on outputs are removable M3 screw block types with LED indicators for easy visual confirmation of status.

Analog inputs come standard on base units with two-channel capability, allowing seamless integration of sensors measuring pressure, weight, or temperature. This mixed-signal support is crucial for modern packaging machinery requiring real-time feedback from physical processes to maintain precise product quality and throughput.

Memory, Programming, and Execution Speed

The FX5U series is equipped with 64K steps of flash memory, sufficient for sizeable control programs. This non-volatile storage obviates the need for a battery backup, preserving program integrity during power outages. The instruction execution speed is notably fast at 34 nanoseconds for common instructions like ladder diagram load (LD) and move (MOV), enabling the controller to achieve tight loop times necessary for high-speed packaging operations.

The supported instruction set includes comprehensive bit manipulation, word comparisons, timer and counter functions, and shift/rotate operations, providing flexibility for complex logic design. Programming is carried out via Mitsubishi's GX Developer or GX Works3 integrated development environments, supporting ladder diagram (LD), function block diagram (FBD), and structured text (ST) languages. This flexibility accommodates varying engineer preferences and project requirements.

Communication and Networking

The FX5U includes built-in Ethernet connectivity using an RJ45 10/100 Base-T port, capable of supporting up to eight simultaneous network connections. This feature enables seamless integration with SCADA systems, HMI dashboards, and third-party industrial equipment over standard TCP/IP protocols, ensuring efficient data exchange and real-time monitoring.

Additionally, a dedicated RS-485 serial port supports Modbus and Mitsubishi native protocols, facilitating communication with legacy devices and fieldbus networks. An onboard SD card slot provides a convenient medium for program backups and persistent data logging, enhancing system reliability and aiding diagnostics.

Crucially, the FX5U's integrated communication ports eliminate the need for external gateways in basic factory network setups, reducing cost and panel clutter.

Power Supply Options: AC and DC Variants

The controller family offers both AC and DC powered models to fit diverse industrial power supply environments. AC models accept inputs ranging from 100 to 240 V at 50/60 Hz, compatible with standard industrial panel power. DC-powered variants operate on 24 V DC, supporting applications that require power isolation or integration within safety circuits.

Power consumption remains reasonable, peaking at approximately 30 W across full I/O load configurations. The FX5U demonstrates robustness against instantaneous power failures with AC models tolerating cutouts up to 10 ms, extendable to 100 ms through program edits at voltages above 200 V, and DC models with a 5 ms tolerance. Incorporating fusing rated at 25 A/5 ms for 100 V AC and 50 A/5 ms for 200 V AC enhances protection against electrical faults.

Expansion Modules: Scaling Without Redesign

A hallmark of the FX5U system is its modular expansion capability, allowing connection of up to 16 accessory modules on a single CPU via a high-speed system bus. Expansion options encompass analog input/output units, temperature control modules for thermal process regulation, 4-axis simple motion controllers as in motion control systems with PLCs supporting interpolation and continuous motion, high-speed counter modules for advanced counting applications, and Ethernet gateway modules to extend network flexibility.

This architecture enables packaging systems to grow in complexity or functionality without the expense and downtime associated with CPU replacement or complete redesign. The expansion modules are hot-swappable under defined safety procedures, minimizing production interruptions during maintenance or upgrades.

Application-Specific Configurations for Packaging Lines

Various packaging tasks benefit from customized FX5U configurations. For case erection and coding operations, a 32-point base module supplemented with an analog input module can provide weight feedback, while a motion module manages gantry positioning for precise material handling.

Bagging and sealing stations leverage relay outputs to drive solenoid dump valves and employ pulse counters to track bag counts accurately. For labelling applications requiring industrial network configuration, the system uses high-speed inputs to capture sensor pulses from mark detectors and transistor outputs to drive label applicators and control conveyor advancement. Complex multi-head packaging setups can be orchestrated by a single FX5U controller managing up to four independent heads through dedicated output modules, preserving synchronization and operational efficiency.

Programming Workflow: From Task to Runtime

Engineers can follow a structured workflow starting with the definition of functional requirements, clearly outlining necessary inputs, timing constraints, and interlocks. Using GX Works3, the programming proceeds by creating modular ladder logic blocks, assigning physical I/O points via system configuration tools, and performing simulations on the engineering workstation to validate logic before deployment.

Programs are downloaded through USB or Ethernet interfaces, during which the FX5U halts execution, writes the program to flash memory, and auto-restarts to resume operation. Continuous monitoring and troubleshooting are facilitated via Ethernet connections from laptops or dedicated HMI panels, allowing engineers to observe live data, adjust parameters, and diagnose faults remotely.

Interfacing with HMI and SCADA Systems

The FX5U's Ethernet port enables straightforward connections to popular HMI products such as Siemens KTP panels or Weintek cMT3000 series devices. Custom applications can also communicate using protocols like TCP/IP, allowing real-time data polling including inputs, outputs, internal flags, and counter values at millisecond intervals.

This connectivity supports dynamic remote parameter adjustments, such as modifying speed setpoints, delay timers, or alarm thresholds without requiring physical PLC access. Additionally, event logging with timestamps facilitates production audit trails critical for compliance and continuous improvement initiatives.

Performance Advantages Over Competing Compact PLCs

Compared to contemporaries like Siemens S7-1200, Omron CP1/CP2, and Allen-Bradley CompactLogix, the FX5U boasts a high-speed system bus achieving data transfer rates of 1.5k words per millisecond—approximately 150 times faster than Mitsubishi's own FX3U predecessor per industry comparisons. Its cycle time of 34 ns for common instructions remains superior for many industrial control tasks demanding rapid response.

Native high-speed counter inputs integrated into the CPU eliminate the need for additional counting cards, simplifying hardware architecture. The standard inclusion of integrated Ethernet reduces overall system bill of materials and panel complexity compared to older compact PLC designs requiring optional communication modules.

Integration with Existing Mitsubishi Hardware

To protect legacy investments, the FX5U supports compatibility with FX3U intelligent function modules through optional bus conversion modules. This allows existing sensors, drives, and operator interfaces to be reused, reducing retrofit costs and downtime.

Servo drives such as the MR-J4 series communicate with the FX5U via Ethernet or pulse/direction signals through expansion modules, supporting sophisticated motion control. Variable frequency drives like the FR-F700 series accept Modbus or digital control interfaces, enabling coordinated speed regulation. Moreover, the programming paradigms of the MELSEC series are consistent across generations, facilitating rapid commissioning and minimizing training effort.

Common Specifications and Models Comparison

All models include 64K program memory, Ethernet ports, SD card slots, and DIN rail mountability as standard features, providing a balance of performance and convenience through partners like Leadtime across diverse packaging automation needs.

Troubleshooting: Identifying and Fixing Common Packaging Integration Issues

Common challenges during integration can often be traced to network or I/O configurations. If the PLC is unresponsive on the network, verifying the assigned IP address—whether via DHCP or static configuration—is a key first step. Physical layer checks include inspecting Ethernet cables and monitoring switch port LEDs for link status.

When outputs fail to switch, ensuring the load impedance is within the relay contact rating of 2 A maximum or that transistor outputs are connected to loads exceeding the 10 mA minimum current is essential to prevent damage or malfunction.

Missed input pulses may result from either insufficient pulse width or sensor output voltages falling outside the expected thresholds (approximately 24 V when ON and near 0.5 V or less when OFF). Adjusting sensor output or increasing pulse duration can resolve these issues.

Unexpected program stoppages typically relate to watchdog timer expirations. The default setting of 2 seconds may require extension in applications with high CPU load or long processing loops to prevent premature resets.
