MELSEC-Q vs Allen Bradley ControlLogix

By Abdullah Zahid
24 min read

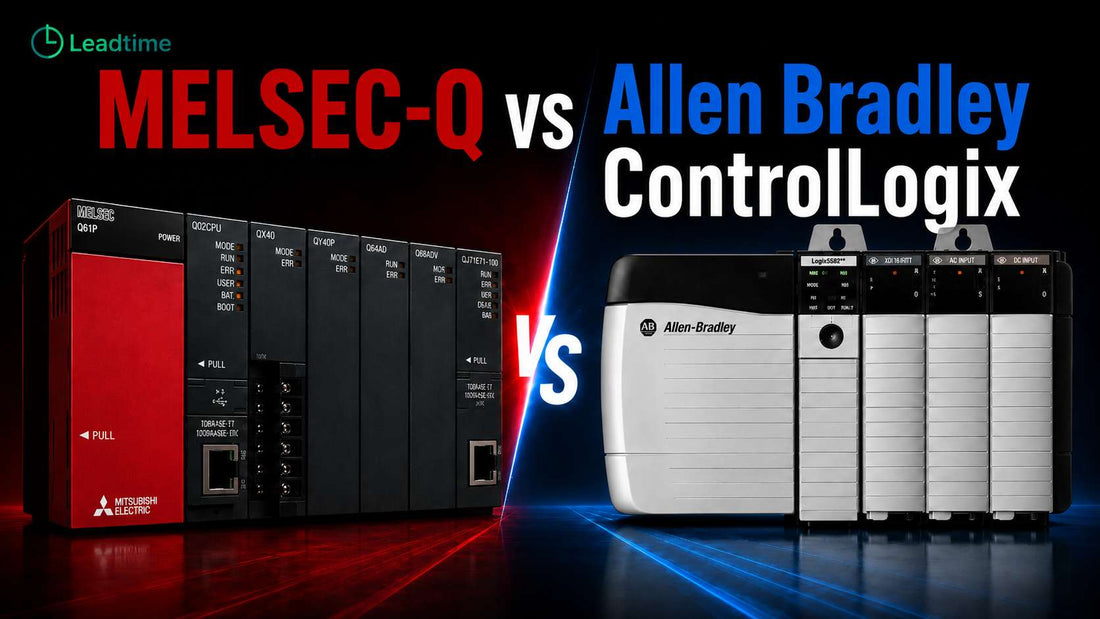

Mitsubishi MELSEC-Q Series and Allen-Bradley ControlLogix rack-based PLC platforms side by side for industrial automation comparison

MELSEC-Q Series vs ControlLogix Programmable Automation Controllers: Which High-End PLC Platform Should You Choose?

Controls engineers and automation managers evaluating a high-end rack-based PLC platform face a genuinely consequential choice when the shortlist comes down to Mitsubishi Electric MELSEC-Q Series Programmable Controllers and Allen-Bradley ControlLogix Programmable Automation Controllers. Both are capable modular platforms suited to large discrete lines, motion-heavy applications, and safety-critical systems — but their ecosystems, total cost of ownership, and regional support profiles differ significantly. The right answer depends far more on where you are, who supports the system, and what else is in the cabinet than on raw controller performance.

If you have already worked through your platform decision and need to source hardware now, check current pricing and availability at LeadTime.ca — we ship worldwide and can help you source components from either ecosystem.

Who Should Choose MELSEC-Q, and Who Should Choose ControlLogix?

This comparison is aimed at engineers and procurement leads who are actively shortlisting a platform — not comparing spec sheets for their own sake, but deciding what to put in an RFQ or a design standard document. Use the criteria below as a fast filter before reading the full analysis.

MELSEC-Q Series Programmable Controllers are the right choice when:

  • Your machines already use Mitsubishi drives, servo amplifiers (MR series), or Mitsubishi robots, and a Mitsubishi-centric architecture is the natural fit.
  • Total cost of ownership is a primary constraint and your team has access to Mitsubishi-experienced engineers or integrators — hardware and software licensing costs are consistently reported lower than equivalent Rockwell configurations.
  • Systems will be installed primarily in regions where Mitsubishi Electric has strong distribution, technical support, and integrator depth (particularly Asia-Pacific).
  • You are an OEM building high-speed machines sold into global markets without a customer-mandated Allen-Bradley requirement, and you want to bundle drives, motion, and control from a single vendor.
  • An existing MELSEC-Q footprint is already running on the line being expanded — code reuse, spares compatibility, and reduced engineering risk outweigh any argument for switching.

ControlLogix Programmable Automation Controllers are the right choice when:

  • Your plant or end customer has an explicit Allen-Bradley or Rockwell standard in the design specification — this is a non-negotiable decision driver in many North American facilities.
  • Your in-house engineering and maintenance teams are already trained on Studio 5000 Logix Designer; retraining costs and ramp-up time are real project expenses.
  • Deep integration with a Rockwell-centric ecosystem — GuardLogix integrated safety, Kinetix servo motion over EtherNet/IP, FactoryTalk SCADA — is required or expected.
  • You are operating a multi-line Canadian or North American plant where standardizing on one platform simplifies spares, integrator contracts, and ongoing support.
  • The project involves high safety and redundancy requirements where ControlLogix chassis redundancy and GuardLogix safety architectures align with existing corporate governance and IEC 61511 or IEC 62061 programmes.

If neither profile matches cleanly — for example, a greenfield Canadian plant with no legacy preference and a mixed-vendor equipment list — read the full decision scenarios section before committing to either platform.

On this page:

Where Each Platform Sits in Its Vendor's Lineup

The Mitsubishi Electric MELSEC-Q Series occupies the high-performance tier of Mitsubishi's MELSEC/iQ automation platform family. It was introduced as a successor to earlier MELSEC generations and established itself as the flagship modular PLC family for high-speed discrete manufacturing, motion-intensive lines, and large-scale I/O systems, particularly in Asia-Pacific markets and among OEMs that standardize on Mitsubishi drives and robots. The MELSEC-Q Series is now positioned alongside Mitsubishi's newer iQ-R platform, which represents the current-generation flagship — a lifecycle consideration that matters for new designs and is addressed in the scenarios below.

Allen-Bradley ControlLogix is Rockwell Automation's flagship Programmable Automation Controller platform. Built around the 1756 chassis system, it covers a wide range from mid-size discrete applications through large-scale process and safety-critical lines. The ControlLogix family spans multiple CPU generations, including the 5570 and the newer 5580 families, with the 5580 representing the current-generation hardware. ControlLogix is configured exclusively through Studio 5000 Logix Designer and integrates tightly with the full Rockwell ecosystem including GuardLogix safety controllers, Kinetix servo drives, and FactoryTalk software. It is the dominant rack-based PLC/PAC platform in North America by installed base and integrator volume.

Both platforms are classified as rack-based modular PAC/PLC systems capable of running complex, multi-discipline production lines. The distinction is not capability — it is ecosystem, regional support, and the total cost of owning that ecosystem over a 10-to-15-year system life.

Hardware Architecture, I/O Scaling, and System Expansion

Both the MELSEC-Q Series and ControlLogix use a rack-and-chassis modular architecture where CPUs, power supplies, communication modules, and I/O modules are assembled on a backplane. This shared architectural approach means the two platforms are conceptually similar at the hardware level — differences emerge in how each vendor handles remote I/O, multi-CPU configurations, and network-distributed expansion.

The MELSEC-Q system supports multiple CPU types within the same chassis, including standard process CPUs, high-performance CPUs, motion CPUs, and process control CPUs — enabling multi-CPU configurations where a single rack coordinates PLC logic, motion control, and process loops simultaneously. Remote I/O expansion is achieved through CC-Link IE Field, CC-Link, and Ethernet-based remote station configurations. Specific I/O node and memory capacities are CPU-variant dependent and should be confirmed against current MELSEC-Q datasheet documentation for the specific CPU model being specified.

ControlLogix uses the 1756 chassis in various slot configurations, with CPUs from the 5570 and 5580 families occupying a single slot alongside I/O modules, communication modules, and motion modules. Remote I/O is distributed via EtherNet/IP using 1734 POINT I/O or 1756 FLEX I/O architectures, as well as ControlNet where applicable. Exact I/O capacity, memory, and task limits vary by CPU model within the 5570 and 5580 families and must be verified against current Rockwell selection guides.

For practical system sizing, both platforms can support large production lines with hundreds to thousands of I/O points through local and distributed expansion. The meaningful hardware architecture question is not which chassis holds more modules, but which remote I/O and communication network fits your plant topology and which ecosystem your field devices — drives, safety modules, instruments — already use.

Performance, Motion Control, and Determinism

At the high-performance tier that both platforms occupy, raw scan-time performance is rarely the deciding factor between them for most discrete and process applications. High-end MELSEC-Q CPUs and current-generation ControlLogix 5580 CPUs both deliver deterministic execution suited to high-speed machine control — the specific performance envelope depends on the CPU variant selected, not the platform family in general. Engineers specifying either platform for demanding applications should review the individual CPU datasheet for task execution times and I/O update rates.

Where the platforms diverge meaningfully on performance is motion control integration. MELSEC-Q supports multi-axis motion through dedicated motion CPUs within the same rack, coordinating Mitsubishi MR-series servo amplifiers via SSCNET III/H (a dedicated high-speed motion network) or through CC-Link IE. This architecture is well-suited to high-axis-count servo lines where the Mitsubishi motion ecosystem — drives, amplifiers, and motion CPU — is treated as an integrated unit. OEMs already using Mitsubishi servo hardware report that the MELSEC-Q motion architecture simplifies commissioning and tuning within the Mitsubishi environment.

ControlLogix delivers motion control through Kinetix servo drives coordinated over EtherNet/IP using CIP Motion, configured and programmed within Studio 5000. The advantage here is that motion programming, safety logic, and standard I/O control share the same engineering environment and project file, which reduces the context-switching engineers face when managing multi-discipline systems. For organizations already running Kinetix drives and FactoryTalk Optix or View, this integration represents a genuine productivity benefit.

For high-speed assembly, electronics manufacturing, and packaging lines where sub-millisecond cycle times matter, both platforms can be configured to deliver appropriate determinism — but the engineering effort and the choice of motion hardware will differ, and that effort should be factored into project estimates.

EtherNet/IP vs CC-Link IE: Network and Fieldbus Integration

Network compatibility is one of the most consequential and least reversible elements of a platform selection decision. Once a production line is wired and commissioned on a specific fieldbus, changing the network architecture carries significant retrofit cost.

ControlLogix uses EtherNet/IP as its primary network, based on the CIP (Common Industrial Protocol) stack. EtherNet/IP is widely supported across drives, safety I/O, HMIs, instruments, and third-party devices from many manufacturers. Additional networks — including DeviceNet and ControlNet — are accessible via communication modules in the 1756 chassis. For plants where a large portion of field devices are already CIP-compatible or where EtherNet/IP is the established plant network standard, ControlLogix network integration is straightforward and the device library is broad.

MELSEC-Q uses CC-Link and CC-Link IE as its native networks. CC-Link IE Field is a gigabit Ethernet-based open network standard that supports high-speed deterministic communication to remote I/O stations, drives, and safety devices within the CC-Link ecosystem. Standard Ethernet-based connections and third-party fieldbus support are also available through communication modules, including Modbus/TCP and other common protocols. However, CC-Link IE has a smaller installed base than EtherNet/IP in North America, which means fewer third-party devices have native CC-Link IE support and protocol gateways may be required to integrate non-Mitsubishi equipment.

The practical implication: if your field devices, drives, and safety I/O are predominantly CIP-compatible, ControlLogix's EtherNet/IP architecture reduces integration risk. If your device ecosystem is Mitsubishi-centric — MR-series drives, Mitsubishi robots, CC-Link-native I/O — MELSEC-Q's native network architecture is the more natural fit. For mixed environments, both platforms support gateway-based interoperability, but gateways add engineering effort and potential maintenance complexity.

GX Works vs Studio 5000: Engineering Environment and Learning Curve

The engineering software environment is where the MELSEC-Q vs ControlLogix decision becomes most personal for the engineers who will live with it. Both platforms support IEC 61131-3 programming languages — ladder diagram, structured text, and function block diagram — but the tools, project structure, and user experience differ significantly.

MELSEC-Q programming is performed in GX Developer or the newer GX Works2 and GX Works3 environments. GX Works3 is the current-generation tool and also supports the newer iQ-R platform, making it the recommended environment for new projects. Engineers familiar with earlier MELSEC families will find the transition to GX Works manageable. For engineers coming from Rockwell backgrounds, the tool architecture and device addressing conventions require a learning investment. English-language documentation and community resources for GX Works are available but are generally considered less extensive than those available for Studio 5000 in North American markets.

ControlLogix is programmed exclusively in Studio 5000 Logix Designer, Rockwell's unified engineering environment that covers logic programming, motion configuration, safety program integration, I/O configuration, and network setup in a single project file. Studio 5000 is widely regarded within the North American automation community for its documentation quality, training ecosystem (including Rockwell's extensive online and in-person training programmes), and the large pool of engineers who already know it. The software carries a licensing cost — both initial and ongoing maintenance — that is consistently identified as a significant line item in ControlLogix TCO comparisons. Multi-controller project management and version control are supported, which matters for large plants managing multiple ControlLogix systems.

The learning curve question is directly tied to hiring and retention: in Canadian and North American markets, the pool of engineers with Studio 5000 experience is substantially larger than the pool with GX Works experience. This is not a reflection of the tool quality — it is a reflection of the installed base and the training investment that has accumulated around the Rockwell ecosystem over decades.

Safety and Redundancy: GuardLogix vs Mitsubishi Safety CPU

For safety-critical lines where functional safety to IEC 61511 or IEC 62061 is required, both platforms offer dedicated safety hardware — but the depth of ecosystem integration and regional support for each safety platform differs.

ControlLogix safety is delivered through GuardLogix controllers, which integrate safety and standard logic in the same chassis and project file. GuardLogix supports Safety I/O over EtherNet/IP using CIP Safety, and the safety programme is developed and validated within Studio 5000 using the same environment as the standard logic. Chassis and controller redundancy options are available within the ControlLogix family to support high-availability requirements where unplanned downtime carries significant cost. The combination of GuardLogix, Kinetix functional safety drives, and CIP Safety I/O gives ControlLogix a well-integrated, widely validated safety architecture that is familiar to North American functional safety engineers and auditors.

The MELSEC-Q Series supports safety through dedicated safety CPUs and safety network connections within the MELSEC-Q platform. Dual CPU and redundant configurations are supported within the Q architecture for high-availability applications. Safety engineering within the MELSEC environment follows the same general framework as IEC 61508-based safety design, and Mitsubishi safety products are used in safety-critical lines particularly in Asia-Pacific manufacturing environments. For North American projects, the relative familiarity of functional safety auditors and system integrators with the Mitsubishi safety architecture compared to GuardLogix is a practical consideration worth evaluating during the safety planning phase.

For projects where safety and redundancy requirements are the primary decision driver and the organization already operates within a Rockwell-centric environment, GuardLogix and ControlLogix redundancy represent a lower-risk path through the safety validation and commissioning process due to the depth of available documentation, trained integrators, and precedent in North American installations.

Integrator Base, Regional Support, and Long-Term Lifecycle

The single most commonly cited reason for choosing ControlLogix in North American plants is not its technical specification — it is integrator availability. In Canada and the United States, the number of automation integrators, system builders, and maintenance engineers with current Studio 5000 experience substantially exceeds those with active MELSEC-Q and GX Works experience. This means that when a plant needs to hire a contractor, find a second-source integrator, or bring in emergency support, ControlLogix projects have more options.

Mitsubishi Electric has a strong distribution and technical support network in Canada and North America, and MELSEC-Q hardware is available through Mitsubishi distributors and specialist automation suppliers. However, the community of engineers fluent in GX Works and the MELSEC architecture is smaller in this region, which increases training costs and can extend onboarding time when staff turns over. For OEMs selling into Asian markets, this equation reverses — Mitsubishi's integrator and support depth in Asia-Pacific makes MELSEC-Q the lower-risk choice for machines destined for that market.

Lifecycle is a critical overlay on the ecosystem question. The MELSEC-Q Series is a mature platform, and Mitsubishi's current-generation flagship is the iQ-R Series. Engineers specifying MELSEC-Q for new long-duration projects should verify Mitsubishi's current lifecycle status for specific Q CPU models and understand the migration path to iQ-R, which uses the same GX Works3 engineering environment. Within ControlLogix, the 5570 family represents an older generation and the 5580 family is the current-generation hardware — new designs should specify accordingly, and lifecycle documents from Rockwell should be reviewed before standardizing on a specific CPU model for a 10-to-15-year plant horizon.

Total Cost of Ownership: Hardware, Software, and Engineering Time

Practitioners and integrators who have priced both platforms consistently report that Mitsubishi MELSEC hardware and software carries a lower cost than equivalent Allen-Bradley ControlLogix configurations when comparing similar application scope. This cost differential is reported at both the hardware level (CPUs, I/O modules, communication modules) and the software licensing level, where GX Works licensing is generally lower than Studio 5000 licensing. This is a market-typical observation reported by users and integrators — actual costs vary by configuration, regional pricing, and distributor terms, and should be verified with current distributor quotes before any project budget is finalized.

However, hardware and software purchase price is only part of the TCO picture. Engineering time is a major variable: a team that is expert in Studio 5000 will complete a ControlLogix project faster than the same team working on a MELSEC-Q project for the first time, and vice versa. Training costs for an unfamiliar platform — both initial training and the ongoing cost of maintaining proficiency — can easily offset hardware savings over a five-year horizon. Spare parts stocking is another factor: plants running ControlLogix in North America can typically source spares through multiple local distributors quickly; MELSEC-Q spares require access to Mitsubishi's distribution network, which is present but less dense in many Canadian regions.

A meaningful TCO comparison for any specific project should account for: hardware and I/O module costs at the required scale, software licensing (initial and annual maintenance), training hours for the selected platform, projected engineering hours based on team familiarity, spare parts stocking strategy, and expected integrator costs over the system's life. Comparing CPU prices in isolation — the most common mistake in this decision — produces a misleading result in both directions.

Head-to-Head Comparison Tables

Dimension MELSEC-Q Series Allen-Bradley ControlLogix Assessment
System type Rack-based modular PLC (high-performance) Rack-based modular PAC (high-end) Neutral — both are rack-based modular platforms
Current-generation CPU families MELSEC-Q CPU types (multiple variants); iQ-R is newer flagship ControlLogix 5580 (current); 5570 (previous generation) Scenario-dependent — verify lifecycle status for new designs
I/O scaling and remote expansion CC-Link IE Field, CC-Link, Ethernet remote stations EtherNet/IP with 1734 POINT I/O, 1756 FLEX I/O, ControlNet Scenario-dependent — network choice drives device compatibility
Motion integration Motion CPU in rack; SSCNET III/H to MR-series amplifiers; CC-Link IE CIP Motion over EtherNet/IP to Kinetix servo drives; within Studio 5000 Scenario-dependent — advantage depends on which servo ecosystem is in use
Integrated safety platform Dedicated safety CPU and safety network within MELSEC-Q GuardLogix safety controllers; CIP Safety I/O over EtherNet/IP ControlLogix advantage in North America — GuardLogix ecosystem deeper and more widely validated locally
Redundancy options Dual CPU and redundant configurations supported in Q architecture Chassis and controller redundancy available within ControlLogix family Neutral — both support redundancy; ControlLogix redundancy more widely deployed in North American process applications
Engineering software GX Works2 / GX Works3 (GX Works3 is current-generation) Studio 5000 Logix Designer (unified environment) ControlLogix advantage in North America — larger trained engineer pool and broader documentation ecosystem
Roadmap position Mature platform; iQ-R is current Mitsubishi flagship 5580 is current generation; 5570 is previous generation Scenario-dependent — verify specific CPU lifecycle before specifying for new long-duration projects
Dimension MELSEC-Q Series ControlLogix Assessment
Primary Ethernet-based protocol CC-Link IE (gigabit Ethernet-based open network) EtherNet/IP (CIP over Ethernet) ControlLogix advantage for North American device compatibility — EtherNet/IP has broader third-party device support in this region
Third-party fieldbus support Modbus/TCP, Profibus, others via communication modules DeviceNet, ControlNet, Modbus, others via communication modules Neutral — both support third-party protocols via add-on comm modules
Engineering environment GX Works3 (also supports iQ-R; shared tool across current Mitsubishi PLCs) Studio 5000 Logix Designer (covers logic, motion, safety in one project) ControlLogix advantage — single unified file for logic, motion, and safety; larger North American training ecosystem
Supported programming languages Ladder, structured text, function block diagram, SFC (IEC 61131-3) Ladder, structured text, function block diagram, SFC, sequential function chart (IEC 61131-3) Neutral — both support standard IEC 61131-3 languages
Multi-controller project handling Supported within GX Works environment across networked MELSEC-Q systems Supported within Studio 5000; Logix Designer allows online/offline management of multiple controllers Neutral — both support multi-controller environments
Dimension MELSEC-Q Series ControlLogix Assessment Notes
Typical hardware cost level Lower than equivalent ControlLogix configurations (reported by users and integrators) Higher hardware cost at CPU and module level MELSEC-Q advantage Market-typical estimate — verify with distributor before quoting
Software and licensing cost level GX Works licensing generally lower; no annual seat fees for basic programming Studio 5000 licensing carries significant initial and ongoing maintenance cost MELSEC-Q advantage Market-typical estimate — verify with distributor before quoting
Training and integrator availability (North America) Smaller integrator base; fewer trained engineers readily available in Canada Very large integrator and trained engineer base across North America and Canada ControlLogix advantage in Canada and North America Region-specific — reverses in Asia-Pacific markets
Spare parts availability in Canada Available through Mitsubishi distributors and specialist suppliers; less dense distribution network Widespread through Rockwell distributor network; multiple local options in most Canadian regions ControlLogix advantage in Canada Market-typical — verify current stock with distributor
Typical lead times / stock signals Variable; specialty items may require import; Mitsubishi network is present but thinner in Canada Generally good availability through Rockwell network; subject to demand and chip supply conditions Scenario-dependent Market-typical estimate — verify with distributor before quoting
Overall 3–5 year TCO (qualitative) Lower hardware and software baseline; higher if team requires training or integrators are scarce locally Higher hardware and software baseline; offset by lower engineering risk where team is already Rockwell-trained Scenario-dependent — team experience and region are the primary TCO variables No proprietary pricing used; full TCO estimate requires project-specific analysis

For current pricing and availability on specific MELSEC-Q or ControlLogix hardware, contact the LeadTime.ca team directly — we source components from both ecosystems and ship worldwide.

Expert Verdict: Scenario-Based Recommendations for MELSEC-Q vs ControlLogix

The MELSEC-Q vs ControlLogix decision is fundamentally an ecosystem and lifecycle question, not a performance question. Both platforms are technically capable of running complex, high-speed production lines. The MELSEC-Q Series is the right fit for organizations that are already operating within a Mitsubishi-centric architecture — Mitsubishi drives, MR-series servo amplifiers, Mitsubishi robots — or for cost-sensitive OEMs building machines for markets where Mitsubishi support and distribution are strong, particularly Asia-Pacific. The lower hardware and software licensing costs reported consistently by users and integrators represent a genuine advantage when the team has the experience to exploit them. For Canadian and North American plants with no existing Mitsubishi footprint, that cost advantage must be weighed carefully against the training investment, the smaller local integrator pool, and the lifecycle position of the MELSEC-Q platform relative to the current iQ-R Series.

ControlLogix makes the most sense when a plant or corporate standard already specifies Rockwell, when the in-house engineering team is trained on Studio 5000, or when the project requires deep integration with GuardLogix safety, Kinetix motion, and FactoryTalk — a fully integrated Rockwell ecosystem that is well-understood by North American integrators and functional safety auditors. The premium in hardware and software cost is real, and should not be dismissed in a TCO comparison. But for a Canadian plant standardizing for the long term, the depth of the Rockwell integrator base and the size of the Studio 5000-trained workforce represent risk mitigation with genuine financial value over a 10-to-15-year system life. Where lifecycle is a concern, new ControlLogix designs should target the 5580 CPU family rather than the older 5570 generation, and MELSEC-Q designs should include a review of Mitsubishi's current lifecycle notices and the migration path to iQ-R. The worst reason to choose either platform is because it appeared at the top of a forum thread — the deciding question is which platform best matches your existing skills, regional support, lifecycle roadmap, and required device ecosystem.

For procurement, the practical reality is that ControlLogix hardware carries a higher purchase price and is subject to Rockwell's distribution pricing structure, while MELSEC-Q hardware is available at generally lower cost through Mitsubishi's distribution network. Lead times for both platforms are subject to regional stock conditions and global component availability — verifying current lead time with a distributor before committing a project schedule is not optional, it is standard practice. LeadTime.ca sources hardware from both ecosystems and ships worldwide, and can help engineering and procurement teams compare current availability when a platform choice has been narrowed down. Check current availability at LeadTime.ca before finalizing your BOM.

For volume pricing, lead-time confirmation, or help sourcing components from either the MELSEC-Q or ControlLogix ecosystem, contact the LeadTime.ca team directly — we work with controls engineers and procurement specialists worldwide.

What Engineers in the Field Are Saying About MELSEC-Q vs ControlLogix

Across practitioner communities — including forums, integrator blogs, and automation engineering discussions — the MELSEC-Q vs ControlLogix debate tends to follow a predictable arc. Engineers who have worked extensively with Mitsubishi hardware report that MELSEC-Q delivers reliable, high-speed performance at a hardware cost that is noticeably lower than comparable ControlLogix configurations. The integration with Mitsubishi servo systems and drives is consistently praised, particularly for high-axis-count motion applications where having a single vendor's architecture from the servo amplifier to the motion CPU reduces commissioning complexity. The recurring criticism from North American engineers is the smaller community of colleagues and integrators who know GX Works well — when a project stalls or a maintenance engineer turns over, finding a qualified replacement quickly is harder with MELSEC-Q than with ControlLogix in Canadian and US markets.

ControlLogix draws consistent praise for the Studio 5000 ecosystem and the depth of documentation, training options, and community knowledge available. Engineers who have spent years in the Rockwell environment describe Studio 5000 as a mature, well-integrated tool that handles logic, motion, safety, and I/O configuration within a single project, reducing the context-switching burden on multi-discipline projects. The recurring complaint is cost — not just hardware, but software licensing, spare parts, and the perception of being locked into Rockwell pricing for the life of the system. Reports of OEMs switching from ControlLogix to Mitsubishi platforms for machines exported to non-North-American markets are common enough in automation communities that cost pressure from customers is clearly a real force pushing against the Rockwell premium in certain segments.

The consistent theme across both sides of the community discussion is that neither platform has a meaningful technical performance advantage that drives the decision — engineers on both sides describe their chosen platform as capable of handling demanding applications. The decision comes down to where the machine is going, who will support it, and what the total cost looks like over the system life. The practitioners who report regretting their platform choice most often are those who selected based on hardware price alone without accounting for training time or integrator scarcity, or who chose a platform because a customer mentioned it once without confirming it was actually a firm specification requirement.

Migration and Hybrid Architectures: When Switching Is Not the Right Answer

Not every MELSEC-Q vs ControlLogix decision is a clean greenfield choice. A significant number of engineers searching this comparison are looking at brownfield situations — an existing line running on one platform, and a decision about whether to stay, expand on the same platform, or migrate.

For brownfield expansions, the default recommendation is to stay on the existing platform unless there is a compelling reason to change. An existing MELSEC-Q line being expanded with similar equipment should be expanded with MELSEC-Q hardware, preserving code compatibility, spares pool, and engineering familiarity. The same logic applies to ControlLogix expansions in Rockwell-standardized plants. The cost and risk of migrating a running production system — rewriting control programmes, retraining operators and maintenance, restocking spares — is almost always higher than the projected savings from switching platforms in isolation.

For plants with mixed installed bases, protocol gateways can enable coexistence between MELSEC-Q and ControlLogix systems at the data level — passing process data, status signals, and alarm information between platforms without replacing controllers. This approach makes sense for incremental migrations or for lines that will eventually be consolidated, where a full platform switch is deferred until a natural refresh point. Gateway-based integration adds engineering effort and a maintenance obligation, but is often significantly cheaper than a full platform replacement for a functioning line. For plants evaluating the MELSEC-Q to iQ-R migration path specifically, Mitsubishi's GX Works3 environment supports both platforms, which reduces the engineering tool transition risk compared to a cross-vendor migration.

Wrong-Platform Prevention Checklist Before You Specify Either System

Before committing to either MELSEC-Q Series Programmable Controllers or ControlLogix Programmable Automation Controllers as a platform standard, verify each of the following points. This checklist reflects the most common selection errors identified across engineering projects and community discussions:

  1. Confirm plant or customer standards do not mandate a specific vendor or family.
  2. Verify your team's actual experience and training on the chosen platform and software.
  3. Check regional distributor and technical support availability for the next 10–15 years.
  4. Validate required motion, safety, and redundancy capabilities for each platform version (MELSEC-Q vs iQ-R; ControlLogix 5570 vs 5580).
  5. Confirm that required field networks (EtherNet/IP, CC-Link IE, Profibus/Modbus, etc.) are available and supported on the selected CPUs and comm modules.
  6. Ensure licensing, software maintenance, and training costs are included in TCO.
  7. Avoid selecting purely on hardware price per CPU without I/O, software and engineering effort.

If any item on this checklist raises an unresolved question before you finalize a platform specification, contact the LeadTime.ca team — we work with controls engineers at the platform selection stage and can help verify current availability, lead times, and sourcing options for both ecosystems worldwide.

Frequently Asked Questions

Is MELSEC-Q still a competitive choice for new projects, or has iQ-R made it obsolete?

The MELSEC-Q Series remains a capable platform in active use across many production environments, but Mitsubishi's current-generation flagship is the iQ-R Series, which uses the same GX Works3 engineering environment. For new long-duration projects, engineers should review Mitsubishi's current lifecycle notices for specific MELSEC-Q CPU models and evaluate whether specifying iQ-R from the outset provides a better long-term roadmap position. For expansions of existing Q-based lines, staying on MELSEC-Q hardware remains the lower-risk path until a natural system refresh point arises.

How significant is the cost difference between MELSEC-Q and ControlLogix in practice?

Users and integrators consistently report lower hardware and software licensing costs for Mitsubishi MELSEC configurations compared to equivalent ControlLogix setups. However, the total cost of ownership depends heavily on team familiarity, training requirements, integrator availability in your region, and spare parts sourcing strategy. For a North American team with strong Studio 5000 expertise, the engineering-time savings may offset a portion of the hardware premium. Actual costs must be verified with current distributor quotes — market-typical observations are a starting point, not a budget.

Can ControlLogix communicate with Mitsubishi drives and MELSEC equipment in a mixed plant?

Yes, communication between ControlLogix and Mitsubishi equipment is achievable through protocol gateways and communication modules that bridge EtherNet/IP and CC-Link IE or other supported protocols. Mitsubishi drives that support standard Ethernet-based protocols can also be addressed from ControlLogix systems via appropriate communication modules. This integration requires additional engineering effort and introduces gateway maintenance obligations, but it is a proven approach for plants running mixed-vendor equipment during incremental migrations or in legacy environments.

Which platform is easier to hire engineers for in Canada and North America?

ControlLogix, by a significant margin in the current North American labour market. The pool of engineers with active Studio 5000 experience is substantially larger than those with GX Works and MELSEC-Q expertise in Canada and the United States. This is a practical hiring and succession planning factor that should be explicitly considered when evaluating platform TCO — not just at project start, but over the 10-to-15-year life of the system.

Is it realistic to standardize on MELSEC-Q globally across plants in multiple regions?

A global single-platform standard is achievable with MELSEC-Q if the organization can establish training, support, and spare parts procurement across all regions involved. Mitsubishi Electric has strong distribution and support in Asia-Pacific, and distribution is present in North America and Europe. The key risk in a global MELSEC-Q standard is the thinner integrator base in North American and European regions compared to Rockwell — this must be addressed through in-house expertise development or pre-qualified integrator partnerships. The same challenge applies in reverse for a global ControlLogix standard applied to facilities in Asia, where Mitsubishi's support depth often exceeds Rockwell's.

What is the most common mistake engineers make when choosing between these two platforms?

Comparing CPU hardware prices in isolation — without including software licensing, training, integrator costs, and spare parts stocking — is the most reported selection error in both directions. A lower MELSEC-Q hardware price does not automatically produce a lower-cost project if the team requires significant training or if local integrators are scarce. Similarly, a ControlLogix hardware premium does not automatically produce higher long-term cost if it comes with a fully trained team and an established local support network. A simple TCO model covering hardware, software, training, engineering hours, and projected maintenance costs is the minimum basis for a defensible platform decision.
