GV2 vs Thermal Overload + MCCB: Which Is Better for Small Motors?

By Abdullah Zahid
18 min read

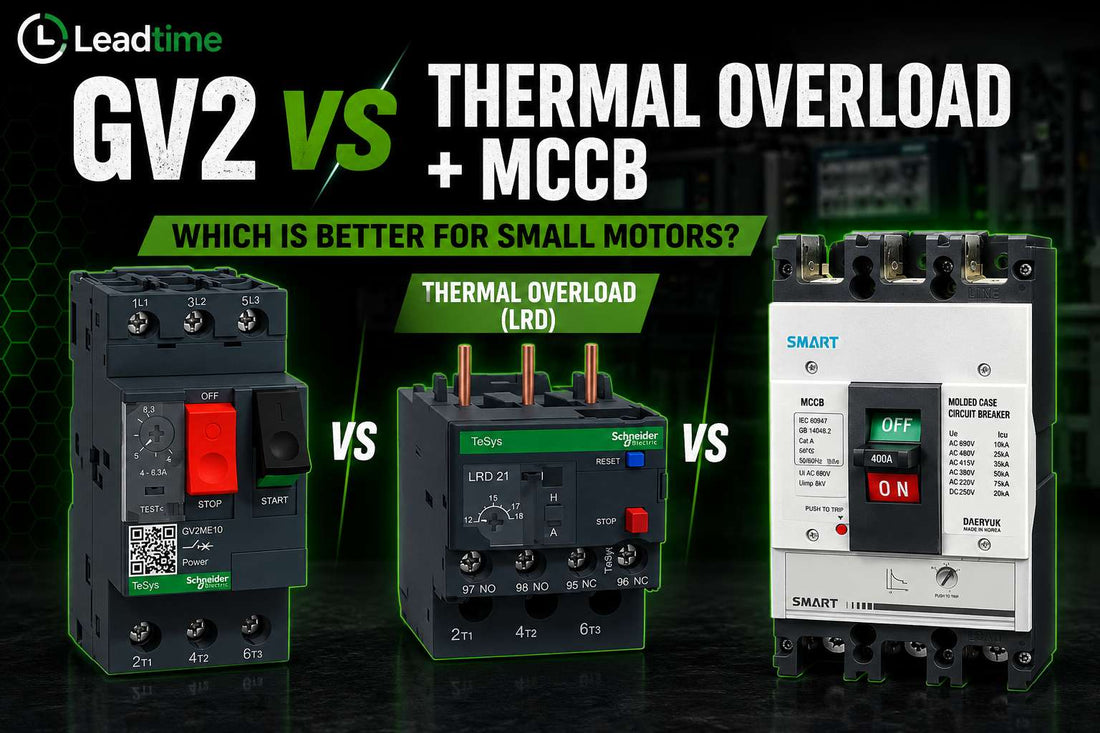

Schneider Electric TeSys GV2 motor protection circuit breaker compared to MCCB and thermal overload relay starter components for small three-phase motors

GV2 vs MCCB + Thermal Overload: Which Motor Protection Is Better for Small Motors?

Controls engineers specifying small three-phase motor starters face a genuine architecture decision: use an integrated Schneider Electric TeSys GV2 Motor Protection Circuit Breaker, or build a starter from separate MCCB, thermal overload relay, and contactor components. The answer depends on your standards context, panel constraints, and motor starting characteristics — and getting it wrong means either an overcrowded panel, a non-compliant combination, or a motor running without adequate overload protection. This article gives you the technical framework to make a confident, defensible choice.

If you already know GV2 is the right fit for your application, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Use GV2 — and When Does MCCB + Thermal Overload Win?

This comparison is most useful for designers specifying dedicated small-motor feeders in IEC-oriented panels, OEM machines, or mixed-standard MCCs. The GV2 is the stronger default when all of the following apply:

  • You are protecting individual small motors on dedicated feeders, not shared or mixed-load circuits
  • Your primary standards context is IEC rather than UL508A combination motor starter listings
  • Panel space and wiring simplicity are real constraints — dense OEM enclosures or compact MCC sections
  • You want integrated overload, short-circuit, and phase-loss sensitivity in one device without a separate thermal overload relay
  • You are standardizing compact DOL starters across a machine line or plant where the GV2ME's thermal-magnetic protection covers the motor current range

If your panel must meet strict UL-listed combination motor starter requirements, if the breaker also feeds non-motor loads, or if the load involves high inertia or special trip classes such as Class 25 or Class 30, the MCCB plus thermal overload relay architecture is the more appropriate choice. Specific model selection within either architecture should always be confirmed against motor nameplate data and applicable standards before releasing a bill of materials.

On this page:

What Each Architecture Actually Does in a Motor Starter

The TeSys GV2 is a motor protection circuit breaker (MPCB) designed specifically for motor feeders. Its thermal-magnetic variant, the GV2ME, integrates overload protection, short-circuit protection, and phase-loss sensitivity via thermal elements into a single device. This means the GV2ME does not require an external thermal overload relay — the motor current dial is set directly to the motor's full-load ampere rating from the nameplate. The magnetic-only variant, the GV2LE, provides short-circuit protection only and must be combined with an external thermal overload relay to protect against overload. This distinction between GV2ME and GV2LE is the most commonly misunderstood aspect of the GV2 family.

The MCCB plus thermal overload relay configuration works differently. The molded case circuit breaker handles short-circuit and general overcurrent protection but is a general-purpose device — its trip curves are not optimized for motor starting characteristics. The thermal overload relay, mounted on the contactor, handles motor overload protection and typically provides phase-loss and phase-imbalance sensitivity. The contactor switches the motor under load. Together, these three components form the conventional motor starter architecture that has been standard in industrial panels for decades. A thermal overload relay provides overload protection only and must always be paired with an upstream breaker or fuse for short-circuit protection — the thermal relay alone is not a complete motor protection solution, and an MCCB alone without a thermal overload relay does not provide adequate motor overload protection.

Where These Devices Sit in a Typical Motor Control System

Understanding the physical and electrical position of each device helps visualize why the architecture choice affects both protection quality and panel layout.

  • Upstream supply: incoming feeder from MCC busbar or panel distribution block, protected by main breaker or fuse
  • GV2 path: GV2 motor circuit breaker connects directly between supply and contactor, providing integrated overload, short-circuit, and phase-loss protection at one point in the circuit
  • MCCB path: MCCB connects between supply and a contactor-plus-thermal-overload-relay assembly; overload relay sits in the contactor current path downstream of the MCCB
  • Contactor: present in both architectures, switches the motor under load and interfaces with the control circuit
  • Motor terminals: three-phase motor receives protected power downstream of contactor; nameplate current data drives the thermal setting in both architectures

Typical Applications and Deployment Scenarios

In OEM machinery — packaging lines, conveyors, and small process machines — the combination of many small motors in a tight enclosure makes the compact footprint of GV2 MPCBs particularly valuable. Each motor feeder occupies less rail space, fewer terminals are needed, and the thermal dial is set directly to the motor nameplate current without a separate relay to mount and wire.

Food and beverage and water and wastewater applications often specify IEC-compliant starters and benefit from the phase-loss sensitivity built into the GV2ME's thermal elements. Phase loss in these environments can damage pump and mixer motors quickly, and an integrated response is faster to commission than a separate relay-based architecture.

HVAC and building services panels frequently encounter a mix of motor sizes and load types. Where one MCCB feeds a distribution point serving both motor and non-motor branch circuits, the MCCB plus thermal overload relay architecture is the correct choice — the GV2 is a motor feeder device, not a general distribution breaker.

High-inertia applications such as large fans, centrifuges, or crushers may require trip Class 25 or Class 30 overload relays to survive long acceleration times without nuisance tripping. Separate thermal overload relays offer more flexibility in trip class selection than an integrated MPCB, making the MCCB plus relay architecture appropriate here regardless of panel size.

Application Typical Deployment
Small pump or conveyor motor, IEC panel, dedicated feeder GV2ME motor circuit breaker plus contactor; thermal dial set to motor FLA
UL508A industrial panel, multiple small motors, combination listings required MCCB plus thermal overload relay plus contactor; UL-listed combination verified
Mixed-load feeder supplying motor and non-motor branch circuits MCCB as feeder protection; separate thermal overload relays at each motor contactor
High-inertia load requiring Class 25 or Class 30 trip MCCB plus dedicated thermal overload relay with appropriate trip class setting
Compact OEM machine with many small motors, tight panel space Row of GV2 MPCBs each paired with contactors; minimized wiring and footprint
Facility standardization program, predominantly small IEC motors GV2-based starters as plant standard; MCCB plus relay reserved for exceptions

Head-to-Head Specifications: GV2 vs MCCB + Thermal Overload

Feature TeSys GV2 MPCB MCCB + Thermal Overload + Contactor
Device type Motor protection circuit breaker (MPCB) General-purpose MCCB plus separate motor overload relay
Protection functions Overload, short-circuit; phase-loss sensitivity via thermal element (GV2ME) Short-circuit via MCCB; overload and phase-loss sensitivity via thermal overload relay
Motor-specific design Yes — curves and settings oriented to motor feeders MCCB is general-purpose; overload relay is motor-specific
Devices per starter One main protection device (GV2) plus contactor MCCB, thermal overload relay, and contactor
Phase-loss response Integrated via thermal elements (GV2ME) Via thermal overload relay; MCCB alone does not provide overload or phase-loss protection
Setting method Adjustable thermal dial; magnetic trip characteristics per GV2 variant Adjustable overload dial on relay; MCCB long-time and instantaneous settings where applicable
Configuration effort Lower for standard IEC small-motor applications Higher — must calculate and verify breaker, relay, and contactor combination
Panel space Compact, especially in rows of GV2 devices Larger footprint due to MCCB frame size and separate relay
Typical use context Dedicated small-motor feeders in IEC panels and MCCs General feeders, UL combination motor starters, mixed-load circuits
Standards alignment Designed for IEC motor protection; verify for UL/CSA applications Widely used in UL-listed combination starters; confirm listings before specifying

Full technical specifications are available on the product page at LeadTime.ca.

GV2ME vs GV2LE: Which Variant Do You Actually Need?

Variant Protection Included External Thermal Overload Relay Required? Typical Use Case
GV2ME (thermal-magnetic) Overload + short-circuit + phase-loss sensitivity No — overload protection is integrated Standard dedicated small-motor feeders in IEC panels
GV2LE (magnetic-only) Short-circuit only Yes — must add thermal overload relay for complete motor protection Applications where a separate overload relay is already specified or required

The GV2ME is the correct default for most small-motor dedicated feeders. The GV2LE is appropriate only when a separate thermal overload relay is intentionally added to the starter design — for example, where special trip class flexibility is needed. Selecting GV2LE and omitting the external overload relay leaves the motor without overload protection. Check availability of both variants at LeadTime.ca before finalizing your bill of materials.

Protection Functions Compared: Overload, Short-Circuit, and Phase Loss

Overload Protection

The GV2ME's thermal element is set via an adjustable current dial calibrated to the motor's full-load ampere rating from the nameplate. Because the GV2 is motor-specific by design, its thermal trip characteristics account for motor starting behavior and thermal time constants relevant to motor feeders. A separate thermal overload relay in an MCCB-based starter performs the same overload function and also offers an adjustable current dial, but it is a physically separate device requiring its own mounting, wiring, and coordination with the upstream MCCB. Separate overload relays generally offer broader flexibility in trip class selection — an important consideration for high-inertia loads.

Short-Circuit Protection

The GV2's magnetic trip is tuned for motor feeders, meaning its instantaneous trip threshold accommodates normal motor inrush without nuisance tripping, while still clearing genuine short-circuit faults rapidly. An MCCB's instantaneous and long-time overcurrent settings are calibrated for general feeder and distribution use — not specifically for motor starting inrush profiles. This can result in nuisance trips during motor start-up if the MCCB is not carefully sized with motor inrush characteristics in mind. Neither the GV2 nor the MCCB should be sized on nominal motor current alone; starting current must be factored into magnetic trip selection.

Phase Loss and Imbalance

The GV2ME's thermal elements respond to phase loss and phase imbalance because unequal currents in the three phases create differential heating in the bimetal elements. A thermal overload relay in the MCCB-based architecture performs this same function via its three-phase bimetal or electronic elements. An MCCB alone — without a thermal overload relay — does not provide phase-loss or overload protection. This is a critical distinction: motor protection circuit breakers such as the GV2ME and motor thermal overload relays are specifically designed for motor feeders, while general-purpose MCCBs are intended primarily for feeders and non-motor loads.

Panel Space, Wiring Complexity, and Total Installed Cost

For a dense motor panel or OEM machine enclosure, the device count per starter is a meaningful constraint. A GV2-based starter is one protection device plus a contactor. An MCCB-based starter adds a separate thermal overload relay — a third device that must be mounted, wired, and documented. Multiplied across ten or twenty motor feeders, the difference in termination count and wiring duct requirements becomes significant in both build time and enclosure size.

Total installed cost analysis should account for panel real estate, wiring labour, and long-term maintenance, not device unit price alone. The GV2 MPCB typically carries a higher unit device cost than a single MCCB, but it replaces both the MCCB and the thermal overload relay. When panel space is at a premium and labour costs are factored in, the GV2 architecture often delivers a lower total installed cost per motor feeder for standard small-motor applications. The MCCB plus thermal overload relay architecture can be more cost-effective where MCCBs are already installed, where shared feeder circuits are involved, or where individual component replacement — changing only the overload relay without replacing the breaker — is a maintenance priority.

IEC vs UL/CSA: How Standards Drive the Architecture Decision

The TeSys GV2 is designed for IEC motor protection practice, where motor protection circuit breakers are a well-established device category with defined coordination types for contactors and upstream protective devices. In IEC-oriented panels — common in Canadian process industries, OEM machinery, and plants aligned to international equipment standards — GV2-based starters align naturally with applicable standards and coordination documentation.

In UL508A-governed industrial control panels, combination motor starters follow documented UL-listed device combinations. Specific UL-listed combinations typically specify MCCB, overload relay, and contactor from verified manufacturer combinations. Where GV2 devices carry the required UL or CSA listings for the specific combination in use, they may be acceptable in North American panels — but this must be verified against the applicable manufacturer documentation and listing data before specifying. Assuming IEC-listed devices are automatically acceptable in a UL508A panel is a common source of rework. In mixed-standard environments, design to the strictest applicable standard and document all device combinations thoroughly.

Seven Real-World Scenarios With a Clear Recommendation

Scenario Recommended Architecture Rationale
Standard small pump or conveyor motor, IEC panel, dedicated feeder, limited panel space GV2ME motor circuit breaker plus contactor Motor-specific settings, compact design, integrated phase-loss protection, simpler wiring
UL508A industrial panel, multiple small motors, strict UL-listed combination requirements MCCB plus thermal overload relay plus contactor (UL-listed combination); consider GV2 only where UL listing supports it UL rules and combination listings often specify MCCB, relay, and contactor combinations
Mixed-load feeder where one MCCB supplies several branch circuits including small motors MCCB for feeder protection plus separate thermal overload relays at each motor contactor MCCB is appropriate for feeder protection; thermal overload relays provide motor-specific downstream protection
High-inertia load requiring Class 25 or Class 30 trip for long acceleration MCCB plus dedicated thermal overload relay with appropriate trip class Separate overload relays offer more flexibility in trip class and settings than integrated MPCBs
Compact OEM machine with many small motors and tight control panel Row of GV2 MPCBs each paired with contactors Space and wiring efficiency strongly favour integrated motor circuit breakers
Existing MCC buckets built around MCCB plus relay starters, incremental retrofit planned Stay with MCCB plus thermal overload relay combinations updated to current models; consider GV2 in new sections only Mechanical and wiring constraints in existing MCC buckets favour drop-in equivalent devices
Facility standardization program, predominantly small IEC motors GV2-based starters as plant standard for small motors; MCCB plus overload reserved for exceptions Standardization simplifies maintenance and spare parts stocking; GV2 fits most small IEC motor cases

Expert Verdict: Which Protection Architecture Should You Specify?

For the majority of small three-phase motors on dedicated feeders in IEC-aligned plants and OEM machines, the TeSys GV2 Motor Protection Circuit Breaker in its GV2ME thermal-magnetic variant delivers a clean, confident answer. It integrates overload protection, short-circuit protection, and phase-loss sensitivity in a single device with a motor-specific current dial — eliminating the separate thermal overload relay entirely. The result is fewer components per starter, fewer terminations, a smaller panel footprint, and a protection philosophy that is explicitly matched to motor feeder behavior. For engineers standardizing compact DOL starters across a machine line or process panel, the GV2ME is frequently the right default unless a specific constraint says otherwise.

The honest limits of the GV2 architecture are equally important to state. The GV2 is a dedicated motor feeder device — it is not a substitute for an MCCB protecting a mixed or shared feeder. Where the application involves high-inertia loads requiring Class 25 or Class 30 trip characteristics, a separate thermal overload relay gives greater flexibility than an integrated MPCB. In UL508A-governed panels where documented combination motor starter listings drive device selection, the conventional MCCB plus thermal overload relay plus contactor architecture is typically required, and the GV2 must be verified against applicable UL/CSA listing data before substituting into those designs. Finally, the GV2LE variant provides short-circuit protection only — pairing it with a contactor and no external thermal overload relay is a motor protection failure, not a valid starter.

From a procurement standpoint, both architectures involve devices that are widely available through industrial distributors in Canada and internationally, but lead times and stocked variants vary by frame and rating. Confirming availability before finalizing a bill of materials — particularly when standardizing across a large project — avoids late-stage design changes. Check current pricing and availability for TeSys GV2 devices at LeadTime.ca, where we ship worldwide and support both single-unit and project-quantity sourcing.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers in the Field Say About This Choice

Among practitioners who have worked with both architectures, the consistent theme in favour of MPCBs like the GV2 is integration. Engineers who have rebuilt dense motor panels cite the reduction in component count as the primary practical benefit — eliminating the separate thermal overload relay removes a mounting step, a wiring step, and one more device to stock as a spare. Phase-loss sensitivity coming from the GV2ME's integrated thermal elements is also frequently noted as a reliability improvement over earlier MCB-based motor feeders that provided no genuine overload protection at all. The upgrade path from MCB-only motor feeders to GV2-based starters is a recurring story in field discussions, driven by motor failures traced back to inadequate overload protection.

Support for the MCCB plus thermal overload relay architecture in field discussions tends to centre on flexibility and familiarity. Many plants have large installed bases of MCCB-based starters in MCC buckets, and the ability to replace only the thermal overload relay when a relay fails — without pulling the breaker — is cited as a genuine maintenance advantage. Engineers working under UL508A requirements consistently note that documented, listed combinations provide a clear compliance path that an integrated MPCB cannot always match without additional verification work. The concern about GV2ME versus GV2LE confusion appears regularly: buyers have ordered GV2LE devices expecting full integrated motor protection, then discovered the missing thermal element only when commissioning the panel.

One recurring warning in engineering forums and application guides deserves direct emphasis: using a standard MCB or general-purpose MCCB without any thermal overload relay for motor protection is widely flagged as a misapplication. It provides no genuine overload protection, no phase-loss response, and leaves the motor vulnerable to damage from sustained overcurrent well below the breaker's trip threshold. Whether the final specification lands on GV2ME or MCCB plus thermal overload relay, every motor feeder requires proper overload protection — the two architectures provide it differently, but neither allows the thermal element to be omitted.

Wiring and Installation Overview

  • GV2ME installs on DIN rail between the supply terminals and the contactor; the three motor phases pass through the device and the current dial is set to the motor nameplate full-load current before energizing
  • GV2LE installation follows the same rail and connection sequence but requires a separate thermal overload relay mounted on or wired to the contactor; omitting the relay leaves the motor without overload protection
  • MCCB plus thermal overload configurations require the overload relay to be mounted in the contactor current path downstream of the MCCB; the relay current dial is set to motor nameplate FLA and the MCCB is sized to tolerate motor inrush without nuisance tripping
  • In both architectures, verify that the magnetic trip setting or instantaneous trip threshold of the circuit breaker accommodates motor starting inrush before finalizing installation
  • Confirm coordination type (Type 1 or Type 2) between the contactor and the upstream protection device in both architectures; refer to manufacturer coordination tables for the specific GV2 variant or MCCB and overload relay combination selected

Accessories and System Integration Options

Both architectures support accessories that extend control system integration beyond basic motor protection. For GV2 devices, the following accessories are available within the TeSys GV2 family:

  • Auxiliary contacts — add signal contacts for status feedback to PLC or control circuit
  • Shunt trip release — allows remote electrical trip command from control circuit or safety relay
  • Undervoltage release — provides automatic trip on supply voltage loss
  • Enclosures and mounting accessories — support standalone or grouped GV2 installations on rail

For MCCB-based starters, the MCCB itself may support auxiliary contacts, shunt trips, and undervoltage releases depending on frame and manufacturer. The thermal overload relay typically provides a trip contact for control circuit indication and a reset mechanism. The modular nature of the separate architecture allows each accessory to be matched independently to the breaker or the relay as required.

Wrong-Part Prevention Checklist

Before finalizing your motor protection architecture, verify each of the following points against your motor and panel data:

  1. Confirm the motor's full-load current and starting characteristics before selecting GV2 or MCCB rating.
  2. Do not use MCCBs without a thermal overload relay for motor overload protection.
  3. Ensure any GV2 variant (GV2ME vs GV2LE) is correctly paired with or without an external overload relay.
  4. Check that the magnetic (short-circuit) setting tolerates motor inrush without nuisance trips.
  5. Verify coordination with the contactor (type 1 or type 2) for either architecture.
  6. Respect UL/CSA or IEC rules for combination starters and field wiring.
  7. Avoid using MCCB-only feeders as a substitute for motor-specific MPCBs where phase-loss sensitivity is required.

If any item on this checklist raises a question you cannot resolve from manufacturer documentation, contact the LeadTime.ca team before ordering — incorrect motor protection architecture is faster to fix at the specification stage than during panel build or commissioning.

Frequently Asked Questions

Does the GV2ME replace both the MCCB and the thermal overload relay in a motor starter?

Yes, for dedicated small-motor feeders. The GV2ME is a thermal-magnetic motor protection circuit breaker that provides integrated overload protection, short-circuit protection, and phase-loss sensitivity via its thermal elements. It does not require a separate thermal overload relay. The GV2LE variant, by contrast, provides short-circuit protection only and must be combined with an external thermal overload relay for complete motor protection.

Is an MCCB alone sufficient to protect a small motor without adding a thermal overload relay?

No. An MCCB provides short-circuit and general overcurrent protection but is not designed to provide motor overload protection or phase-loss sensitivity. Running a motor on an MCCB without a thermal overload relay leaves it vulnerable to sustained overcurrent well below the breaker's trip threshold, which is a common cause of motor overheating and failure. Every motor circuit requires a thermal overload relay or an integrated MPCB such as the GV2ME.

Can the TeSys GV2 be used in UL508A panels?

The GV2 is designed for IEC motor protection applications. Use in UL508A industrial control panels requires verification of the applicable UL and CSA listings for the specific GV2 variant and the combination of devices in the starter. Do not assume IEC-listed devices are automatically acceptable in a UL508A panel — confirm the listing status against manufacturer documentation and the panel certification requirements before specifying.

When does the MCCB plus thermal overload relay architecture outperform GV2 for small motors?

The MCCB plus thermal overload relay architecture is more appropriate when the breaker also feeds non-motor loads or acts as a feeder device, when the application requires special trip classes such as Class 25 or Class 30 for high-inertia loads, when UL-listed combination motor starter requirements dictate the device combination, or when existing MCC buckets are built around MCCB-based starters and mechanical constraints make drop-in replacement the practical path.

How do I set the GV2ME current dial compared to a thermal overload relay dial?

Both are set to the motor's full-load ampere rating from the nameplate. On the GV2ME, the adjustable thermal dial is set directly to the motor FLA within the dial range of the selected GV2 variant. On a separate thermal overload relay, the current dial is also set to the motor nameplate FLA. In both cases, the magnetic trip setting or the upstream MCCB must be verified separately to ensure it tolerates motor starting inrush without nuisance tripping while still providing short-circuit protection.

What should I consider when standardizing small-motor protection across a plant or OEM line?

The most important factors are the range of motor sizes you need to cover, the applicable standards (IEC versus UL/CSA), and whether your typical feeder is dedicated to one motor or shared. For plants with predominantly small IEC motors on dedicated feeders, standardizing on GV2ME-based starters simplifies spare parts stocking, reduces panel build time, and provides consistent integrated protection. Where high-inertia motors or UL-listed combinations are part of the mix, those feeders should be handled as documented exceptions within the standard design.

Why Source Motor Protection Hardware Through LeadTime.ca

  • LeadTime.ca ships worldwide — project sourcing is not limited to any single region or country
  • Support for both single-unit and project-volume orders of motor protection devices including TeSys GV2 variants and associated accessories
  • Technical sourcing assistance for GV2ME versus GV2LE selection and compatible contactor combinations
  • Distributor-level support for confirming lead times and availability before a bill of materials is finalized
  • Contact the team directly for volume pricing or project-specific sourcing questions

At-a-Glance Summary

  • TeSys GV2ME is a thermal-magnetic motor protection circuit breaker providing integrated overload, short-circuit, and phase-loss protection — no external thermal overload relay required
  • TeSys GV2LE is a magnetic-only motor circuit breaker providing short-circuit protection only — an external thermal overload relay is mandatory for complete motor protection
  • Thermal overload relays provide overload protection only and must always be paired with an upstream breaker or fuse for short-circuit protection
  • MCCBs are general-purpose devices not designed for motor feeders — using an MCCB without a thermal overload relay on a motor circuit does not provide adequate overload or phase-loss protection
  • GV2ME is the default recommendation for standard small motors on dedicated feeders in IEC-oriented panels where panel space and wiring simplicity are priorities
  • MCCB plus thermal overload relay architecture is preferred for UL508A combination starters, mixed-load feeders, high-inertia loads requiring Class 25 or Class 30 trip, and existing MCC buckets with mechanical constraints
  • Architecture selection must account for standards (IEC versus UL/CSA), motor starting characteristics, panel space, wiring labour, and total installed cost — not device unit price alone
  • Both architectures are widely available through industrial distributors; confirm stocked variants and lead times before releasing a bill of materials
