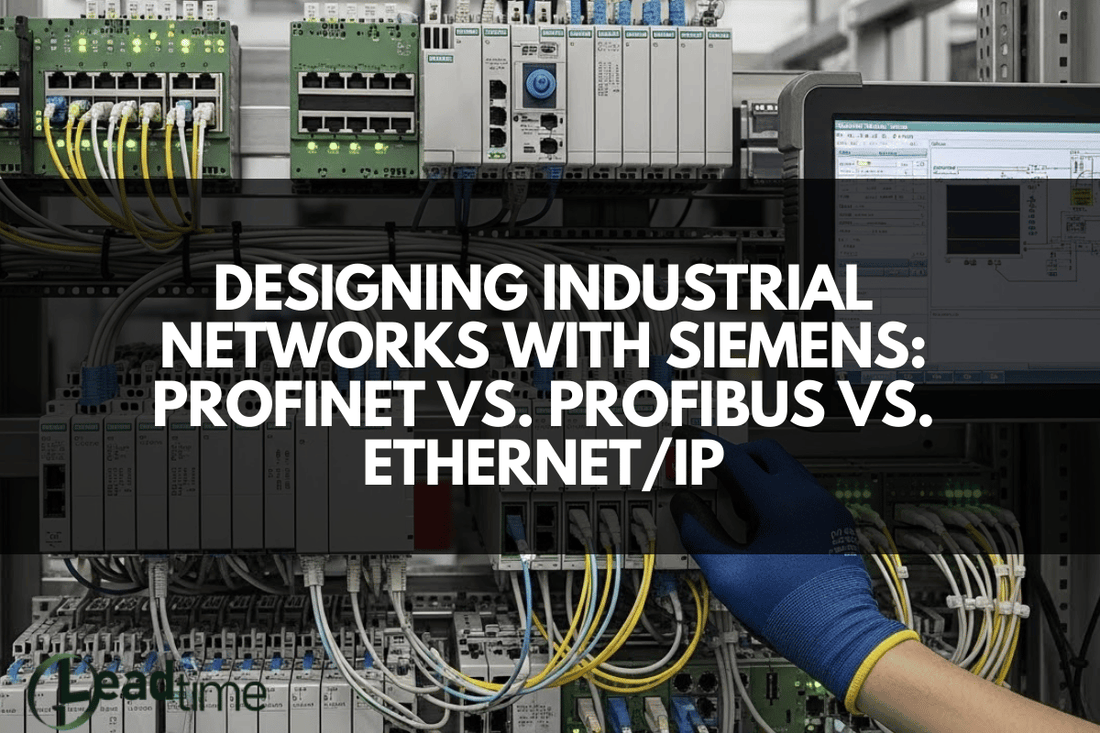

Designing industrial networks with Siemens: PROFINET vs. Profibus vs. Ethernet/IP
Understanding Industrial Network Protocols in Siemens Automation
Industrial automation relies heavily on robust, deterministic communication networks to interconnect controllers, I/O devices, drives, and safety systems. Over the decades, several network protocols have emerged, each optimized for specific applications and hardware constraints. Siemens, a leader in industrial control following Siemens PLC programming basics, provides extensive support for both legacy and modern protocols within its automation ecosystem, including PROFIBUS, PROFINET, and Ethernet/IP.
PROFIBUS originated as a serial fieldbus standard requiring proper Siemens Profibus configuration leveraging RS-485 physical layers and was designed to replace hardwired 4-20 mA and relay logic field devices with a digital bus supporting device diagnostics and centralized control. PROFINET, standardized under IEC 61158/61784 PROFINET, extends industrial communication to high-speed Ethernet backbones supporting real-time and isochronous real-time data exchange. Ethernet/IP, developed primarily for the North American market by ODVA, is another Ethernet-based protocol built on the Common Industrial Protocol (CIP) and enjoys wide adoption among OEMs using Allen-Bradley and other platforms.
Selecting the optimal communication protocol in Siemens environments affects not only system compatibility but also influences hardware cost, network scalability, cabling infrastructure, and future-proofing efforts. Siemens PLC families such as the S7-1200 and S7-1500 offer built-in support for these protocols as core components of industrial automation, and ET 200 distributed I/O modules provide versatile connectivity options accommodating both fieldbus and industrial Ethernet standards.
PROFIBUS Fundamentals: Serial Fieldbus Features and Current Applications
PROFIBUS, primarily in forms DP (Decentralized Peripherals) and PA (Process Automation), is a serial communication protocol operating over RS-485 physical layers. It supports baud rates from 9.6 Kbps up to 12 Mbps, with higher speeds reducing maximum cable segment lengths due to signal attenuation and timing constraints.
An important consideration with PROFIBUS is its addressing scheme that allows up to 126 devices per network segment. Devices communicate within a master/slave hierarchy where the master schedules telegrams for cyclic and acyclic data exchange, and slaves respond accordingly. Telegrams are limited to 244 bytes in size, restricting maximum payload per communication cycle, which impacts high data volume applications.
The protocol remains prevalent in legacy industrial environments such as automotive assembly lines and foundries, where existing cabling and devices still operate efficiently. Typical use cases include motor and pump control, distributed I/O collection, and installations where migration costs to Ethernet-based systems are prohibitive or unplanned.
PROFINET Architecture: Ethernet-Driven Real-Time Industrial Communication
PROFINET leverages standard Ethernet (Fast Ethernet at 100 Mbps and Gigabit Ethernet at 1 Gbps) for industrial networking but adds deterministic communication capabilities through real-time (RT) and isochronous real-time (IRT) modes. The protocol supports an unlimited number of nodes, enabling large-scale plant-wide network topologies with simplified addressing and device discovery mechanisms.
Its telegram size expands to 1440 bytes, allowing more efficient data transport per cycle. PROFINET's isochronous real-time capability guarantees cycle time consistency below 1 millisecond, critical for applications involving synchronized motion control such as packaging machines or CNC drives.
Devices adopting the provider/consumer model in PROFINET avoid the traditional master/slave hierarchy, improving scalability and enabling flexible data exchange patterns. PROFINET also integrates well with safety protocols like PROFIsafe, providing certified safe communication layers for emergency stops, light curtains, and pressure sensors without the need for complex hardwired safety circuits.
Ethernet/IP in Siemens Environments: North American Focus and CIP Model
Ethernet/IP, developed by the ODVA consortium, differs from PROFINET by using the Common Industrial Protocol (CIP) object-oriented communication model. It supports large device counts with robust mechanisms for device discovery and tag-based symbolic addressing.
Predominantly used in North America, Ethernet/IP has established a strong presence among OEMs integrating Allen-Bradley and Rockwell Automation equipment. Its support for gigabit Ethernet infrastructure yields performance advantages when deployed on pure Ethernet backbones with high port density managed switches.
Backward compatibility with legacy serial protocols is limited, so integrating Ethernet/IP into existing PROFIBUS or PROFINET-based Siemens systems typically requires gateways or protocol converters. Siemens controllers such as the S7-1500 can communicate with Ethernet/IP devices via special modules or software stacks but these add complexity and cost.
Network Topology and Cabling Considerations
PROFIBUS networks are structurally limited to line and tree topologies due to timing constraints and the nature of RS-485 signaling. Cable runs can reach up to 1000 meters at lower baud rates but decrease significantly when approaching maximum data rates. The installation requires shielded twisted-pair cables and repeaters for extended distances, increasing material and installation cost.
In contrast, PROFINET takes advantage of standard Ethernet topologies supporting star, line, ring, and tree configurations. Cable segments are limited to 100 meters between switches per IEEE standards, but industrial Ethernet switches support redundancy protocols such as Rapid Spanning Tree Protocol (RSTP) enabling resilient ring topologies appropriate for 24/7 operations in critical industries like food, pharmaceuticals, and automotive manufacturing.
Ethernet switch hardware for PROFINET is widely available in the Siemens collection, reducing hardware cost due to vendor competition, while PROFIBUS repeaters and specialized cabling contribute to higher expenses. Ethernet connectors such as RJ45 and robust M12 variants simplify field installation and maintenance.
Motion Control and Axis Synchronization Capabilities
PROFIBUS limits motion control applications to approximately 32 axes per network, which constrains its usage in highly complex multi-axis systems, such as gantry robots or multi-spindle machining centers. Its cyclic polling method creates synchronization difficulties for high-speed coordinated motion.
PROFINET supports more than 150 motion axes per network with isochronous real-time communication ensuring sub-millisecond jitter and synchronization between servo drives. This capability is essential for packaging lines requiring motion control systems with PLCs, textile machinery, and CNC multi-spindle heads where precise timing and deterministic data flow impact product quality and machine efficiency.
Integrated support for PROFIdrive profiles further simplifies the configuration and commissioning of motion devices within Siemens TIA Portal, enabling efficient project workflows across engineering teams.
Safety Integration Using PROFIsafe
PROFIsafe is a safety protocol overlay primarily implemented over PROFINET but also supported on PROFIBUS. It enables communication of safety-critical signals including emergency stops, safety light curtains, and pressure sensors without requiring a separate safety cabling infrastructure.
The protocol meets SIL 3 and PLd safety integrity levels per ISO 13849-1 standards. On PROFINET, PROFIsafe benefits from the high-speed and deterministic network architecture, which reduces safety cycle times and simplifies diagnostics.
While PROFIsafe over PROFIBUS exists, legacy limitations on device count and slower cycle times may hinder performance in modern safety applications, prompting many to migrate safety I/O onto PROFINET-based networks for enhanced performance and maintainability.
Backward Compatibility Strategies and Migration Tools
One key advantage of PROFINET within Siemens systems is the embedded PROFIBUS profile compatibility, allowing ET 200 distributed I/O modules to operate simultaneously on both networks using a single physical twisted-pair cable. This feature supports gradual migration paths rather than wholesale replacement of existing PROFIBUS infrastructure.
Migration approaches typically span 3 to 5 years, preserving investment in existing devices and cabling while progressively introducing Ethernet-based communication to enable scalability and integration of newer controllers and drives.
Where direct protocol integration is impossible, protocol gateways convert communication between PROFIBUS, PROFINET, and legacy protocols such as Modbus RTU. Siemens and third-party vendors offer gateways that support protocol mapping, data translation, and synchronization, thus enabling coexistence in heterogeneous system architectures.
Wireless PROFINET Implementation and Limitations
PROFINET supports wireless communication adhering to IEEE 802.11 Wi-Fi and Bluetooth standards, enabling use cases like mobile human-machine interfaces (HMI), process monitoring in constrained environments, and temporary machine hookups where cable installation is impractical.
Wireless PROFIBUS solutions exist but usually require specialized add-on modules, increasing cost and complexity. The inherent latency and jitter in wireless communication limit suitability for closed-loop servo control; however, it remains adequate for non-critical sensor data data and supervisory information.
Wireless PROFINET networks demand careful planning regarding channel interference, signal strength, and security segmentation to ensure reliability and cybersecurity conforming to industrial standards.
Vendor Ecosystem and Regional Protocol Preferences
Globally, Siemens, Beckhoff, Festo, and SICK standardize on PROFINET throughout their product lines, emphasizing seamless interoperability in European and Asian markets. Conversely, Allen-Bradley, Flex, and Rockwell Automation with strong North American footprints promote Ethernet/IP as the default industrial Ethernet choice.
Multi-protocol controllers capable of handling both protocols exist but increase engineering complexity and spare parts inventory, introducing cost and training considerations for maintenance teams.
Procurement specialists must align with plant-wide supplier ecosystems early in system design to avoid vendor lock-in or costly future network overhauls that arise due to protocol incompatibility.
Cost Factors in Network Hardware and Cabling
Networking hardware influences project budgets substantially. Standard managed Ethernet switches supporting PROFINET ring topologies provide features like IGMP snooping for multicast optimization, port mirroring for diagnostics, and redundancy protocols at a cost 2-3 times that of consumer-grade switches. These enhancements yield operational uptime benefits critical in industrial environments.
In contrast, PROFIBUS installations demand certified shielded twisted-pair cable with specific impedance and grounding requirements. Repeaters and segment connectors add complexity and cost, particularly across large plants with multiple network branches.
Cable connector types for Ethernet include ruggedized M12 variants with IP67 ratings suitable for harsh environments and standard RJ45 connectors for protected control cabinets, influencing installation method and maintenance practices.
Engineering Tools and Software Integration
Configuration and commissioning of PROFINET networks are conducted predominantly through Siemens TIA Portal version 17 and above, which offers a Device Editor for customizing parameters, setting up diagnostic functions, and integrating PROFIsafe safety devices. The software supports graphical topology views and communication diagnostics, facilitating faster troubleshooting.
PROFIBUS setups rely on older STEP 7 tools or subsets of TIA Portal backward-compatible with legacy hardware. Engineers must be cautious with tool versions to avoid silent failures during configuration export, which can complicate commissioning and cause significant downtime.
Ethernet/IP networks require RSLogix 5000 or newer Studio 5000 software when working on Allen-Bradley platforms, differing significantly from Siemens tools and requiring specialized knowledge for proper integration.
Ensuring Real-Time Communication and Performance
PROFINET's isochronous real-time (IRT) mode achieves deterministic cycle times under 1 millisecond with jitter tightly controlled, enabling safety-critical events and synchronized motion control. Standard PROFINET RT mode adds slight jitter in the range of 5-10 milliseconds due to Ethernet switch buffering but remains faster than most fieldbus alternatives.
PROFIBUS ensures synchronous communication within a single polling loop, typically between 10 to 100 milliseconds, adequate for many process automation tasks but insufficient for high-speed motion applications.
Ethernet/IP relies on application-layer real-time transport protocols without guaranteed cycle times, risking packet loss or latency during network congestion, which can impact tightly synchronized machine systems.
Diagnostics, Troubleshooting, and Network Monitoring Techniques
PROFINET supports remote diagnostics via standard SNMP monitoring and web browser interfaces for viewing IP configurations, MAC filtering, and interface status. Managed switches enable advanced features like port mirroring aiding deep packet capture and analysis with tools like Wireshark.
PROFIBUS diagnostics are more limited, requiring serial terminal communication or proprietary adapters to monitor telegram status, device diagnostics, and bus load. Troubleshooting complex timing violations often necessitates oscilloscope analysis.
Pre-deployment network load simulation and traffic shaping help verify bandwidth headroom and latency compliance, reducing commissioning errors and unplanned downtime.
Future-Proofing and Standards Roadmap
PROFINET remains an actively developed international standard (IEC 61158 / 61784-2) with regular updates and vendor commitments extending support through at least 2035. It aligns with evolving industrial Ethernet trends including integration with TSN (Time Sensitive Networking) and 5G industrial communication frameworks.
PROFIBUS, while mature and widely deployed, is officially designated as legacy with many suppliers discontinuing support for certain devices and modules annually. Migration planning is essential for longevity in industrial applications.
Ethernet/IP, stable and mature, is beginning to intersect with emerging 5G industrial network plans but lacks a fully defined migration roadmap, creating uncertainty for long-term investment decisions.
Concluding Considerations for Siemens Industrial Network Selection
Designing industrial communication networks for Siemens automation systems requires a careful balance of legacy compatibility, real-time performance, scalability, safety integration, and total cost of ownership. PROFIBUS remains a strong candidate for existing installations and simple device networks but encounters limitations in speed, device count, and topology flexibility.
PROFINET stands out as the preferred modern protocol offering high-speed Ethernet backbone integration, advanced real-time deterministic communication, extensive safety capabilities, and flexible network architectures suitable for complex motion and safety-critical applications.
Ethernet/IP suits North American OEMs and specific applications requiring large device counts on native Ethernet infrastructures but its integration into Siemens-centric environments involves added complexity.
Ultimately, engineering teams should evaluate project requirements with partners like Leadtime to select the optimal communication protocol and design a reliable, maintainable industrial network that supports operational goals and future expansions.
