Complete Guide to Allen Bradley 1734 POINT I/O

By Abdullah Zahid
26 min read

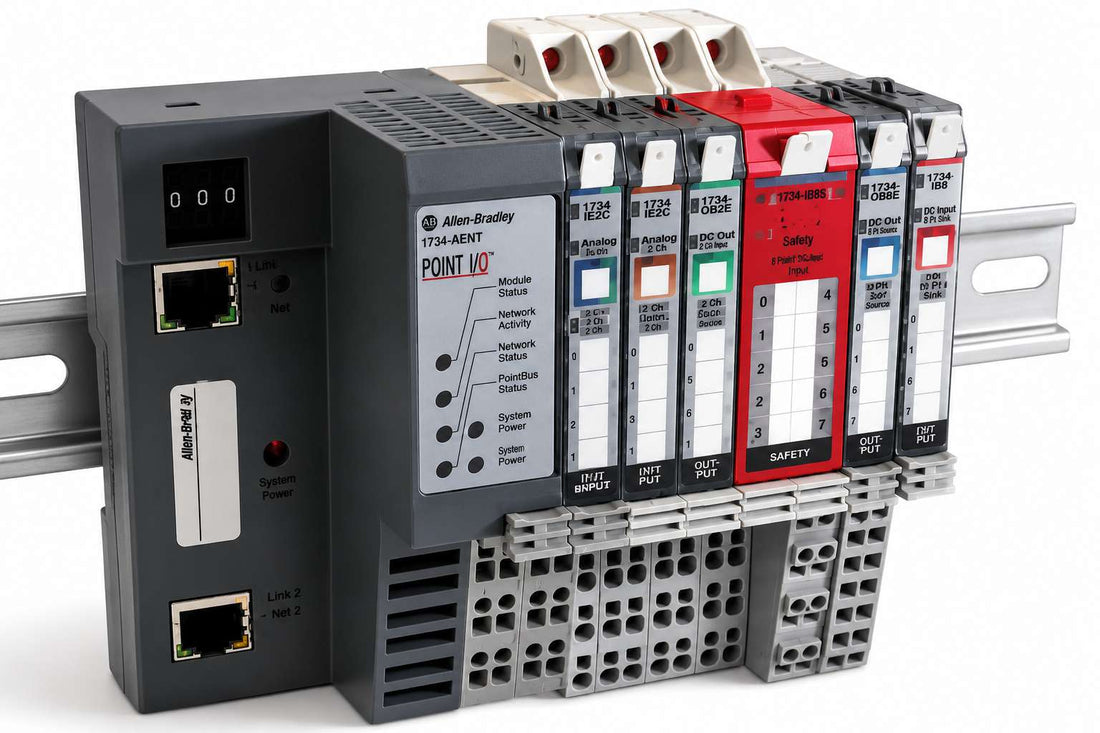

Allen-Bradley 1734 POINT I/O modular system with 1734-AENTR adapter and terminal bases mounted on DIN rail in industrial panel

Complete Guide to Allen-Bradley 1734 POINT I/O: Architecture, Modules, Adapters, and System Design

Controls engineers and systems integrators evaluating distributed I/O for a CompactLogix or ControlLogix system consistently land on the same question: is Allen-Bradley 1734 POINT I/O the right platform for this application, and how do I specify it correctly? This guide covers the full POINT I/O modular I/O system — from EtherNet/IP adapters like the 1734-AENT and 1734-AENTR, to terminal bases like the 1734-TOP, to digital, analog, and specialty modules including the 1734-4IOL IO-Link Master — so you can move from architecture decision to a confirmed parts list with confidence.

If you already know which catalog numbers you need, check current pricing and availability at LeadTime.ca — ships worldwide.

Is the Allen-Bradley 1734 POINT I/O System Right for Your Application?

The POINT I/O modular I/O system is the correct choice for engineers who need compact, flexible, DIN-rail-mounted distributed I/O on EtherNet/IP with module-level expandability. It fits these criteria:

  • Your controller is a CompactLogix or ControlLogix system and you are connecting I/O over EtherNet/IP
  • You need modular point-level channel selection — mixing digital, analog, and specialty modules in a single I/O drop
  • Your application requires distributed drops near field devices rather than a centralized chassis rack
  • You are integrating IO-Link smart sensors and need the 1734-4IOL IO-Link Master module's four configurable channels
  • Your design requires future expansion — additional modules can be added to an existing adapter without replacing the adapter or wiring infrastructure
  • Panel space is constrained and the compact DIN-rail footprint of POINT I/O modules provides an advantage over full-chassis I/O

If your application demands extremely high channel counts in a single centralized rack, chassis-based I/O may be a simpler fit. For installations in extreme environmental conditions requiring hardened remote I/O platforms, verify the specific environmental ratings of the 1734 modules you intend to use against your site conditions before specifying.

On this page:

What the Allen-Bradley 1734 POINT I/O System Does in a Real Control Architecture

The Allen-Bradley 1734 POINT I/O modular I/O system gives controls engineers a way to distribute I/O signal termination close to field devices while keeping all data flowing back to a central Logix controller over EtherNet/IP. Rather than running long home-run cables from every sensor and actuator back to a central panel, POINT I/O drops are installed near the equipment — on machine frames, skids, or in local enclosures — and only the EtherNet/IP network cable returns to the controller. The system is built on a DIN-rail architecture where each module occupies its own terminal base, providing mechanical support and field wiring termination independently of adjacent modules. This modularity means a single I/O drop can contain exactly the mix of digital inputs, digital outputs, analog inputs, analog outputs, and specialty channels your zone requires — no empty slots consuming panel space and budget.

POINT I/O is documented in official Rockwell Automation literature as a modular DIN-rail-based I/O system that uses terminal bases to provide mechanical and wiring interfaces for 1734 modules. The 1734-AENT and 1734-AENTR adapters are dedicated communications adapters for POINT I/O modules, with installation, wiring, configuration, and troubleshooting procedures covered in their respective user manuals. This documented infrastructure — from adapter to terminal base to module — is what makes POINT I/O a predictable platform to specify and commission.

Typical POINT I/O System Architecture: From Controller to Field Device

In a standard POINT I/O deployment, the data path runs from the Logix controller down through the EtherNet/IP network to the adapter, through the backplane into individual I/O modules, and finally to field devices wired into the terminal bases. Understanding this chain is essential before selecting any individual component.

  • Controller layer: A CompactLogix (for example 1769-L3x series) or ControlLogix (for example 1756-L7x series) controller hosts the EtherNet/IP network and owns the POINT I/O modules in its I/O tree
  • Network bridge (ControlLogix only): An EtherNet/IP bridge module such as a 1756-ENBT or 1756-EN2T connects the ControlLogix backplane to the EtherNet/IP network carrying POINT I/O traffic
  • POINT I/O adapter: A 1734-AENT (single-port) or 1734-AENTR (dual-port) adapter mounts on the DIN rail as the first component of the I/O drop, managing all communications between the network and the modules in its string
  • Terminal bases: Each I/O module slots into a dedicated terminal base — for example a 1734-TOP top-wiring base — which provides the physical wiring interface to field signals without requiring the module itself to be removed for field wiring work
  • I/O modules: Digital input, digital output, analog input, analog output, and specialty modules (such as the 1734-4IOL IO-Link Master) occupy the terminal bases and implement the actual signal conversion
  • Field devices: Sensors, actuators, transmitters, and smart IO-Link devices wire directly into the terminal base terminals, keeping field wiring local to the I/O drop
Role Component Family Example Catalog Numbers Key Notes
Controller CompactLogix / ControlLogix 1769-L3x, 1756-L7x Hosts EtherNet/IP network and owns POINT I/O modules in the I/O tree
Network bridge (ControlLogix) EtherNet/IP bridge module 1756-ENBT, 1756-EN2T Connects ControlLogix backplane to EtherNet/IP; CompactLogix has built-in EtherNet/IP port
POINT I/O adapter EtherNet/IP adapter 1734-AENT, 1734-AENTR Dedicated communications adapter; single-port or dual-port depending on topology
Terminal base POINT I/O terminal base 1734-TOP and related bases Provides mechanical mounting and field wiring termination for each module
I/O modules Digital, analog, specialty Various 1734-xxxx modules Each module implements input or output functions for its specific signal type
Field devices Sensors, actuators, smart devices — Wired into terminal base terminals; IO-Link devices connect to 1734-4IOL channels

Choosing the Right POINT I/O Adapter: 1734-AENT vs 1734-AENTR

The adapter is the first selection decision in any POINT I/O system design, because it determines your network topology options, your redundancy capability, and the maximum number of I/O modules the drop can support. Getting this decision right before ordering anything else saves significant rework.

The 1734-AENT is a single-port EtherNet/IP adapter. It connects the POINT I/O string to the network via a single EtherNet/IP port, making it suitable for star topology deployments where each adapter has a dedicated connection back to a managed switch. It is well-suited to applications where a simple, clean network layout is preferred and ring or daisy-chain topology is not required.

The 1734-AENTR is a dual-port EtherNet/IP adapter. The two ports allow the adapter to participate in linear daisy-chain or Device Level Ring (DLR) topologies, which means the I/O drops can be connected in a chain or ring without requiring additional switches at each drop. This makes the 1734-AENTR the preferred choice for production lines with multiple distributed drops, for applications where reducing switch count matters, or for installations where ring topology provides the network resilience the application requires. Both adapters appear in the controller's I/O tree as the parent node under which all modules in the string are addressed.

The maximum number of POINT I/O modules supported per adapter is defined by the specific adapter variant and its firmware revision. This limit must be confirmed in the current adapter user manual — the 1734-AENT/B User Manual and the 1734-UM017 Dual Port EtherNet/IP Adapters User Manual are the authoritative sources. Plan your module count per drop before finalizing adapter selection, and do not assume both adapter variants share the same limit.

Adapter EtherNet/IP Ports Supported Topology Typical Use Case
1734-AENT Single port Star (point-to-point to switch) Single drops, star network layouts, simpler installations
1734-AENTR Dual port Linear daisy-chain, Device Level Ring (DLR) Multiple drops on a line, ring topology for network resilience, reduced switch count

If your production line includes multiple I/O drops that benefit from ring topology resilience or reduced switch infrastructure, the 1734-AENTR is the correct choice — check current availability at LeadTime.ca.

Terminal Bases, Keying, and Accessories: What Engineers Often Overlook

Terminal bases are the mechanical and electrical foundation of every POINT I/O installation. The 1734-TOP top-wiring terminal base is documented as providing field wiring termination and mechanical support for POINT I/O modules, with detailed wiring diagrams in its datasheet. The base is ordered separately from the module it supports, which means every module in your bill of materials requires a corresponding terminal base catalog number — a step that engineers new to the platform frequently miss when building their first parts list.

Terminal bases differ by wiring style (top-wiring versus side-wiring configurations), by the field terminal arrangement, and by compatibility with specific module types. Analog modules, for example, have different terminal base requirements than digital modules, including different terminal assignments and shielding provisions. Using a digital-rated base under an analog module is a documented ordering mistake — the module may physically seat but the terminal assignments will not match the signal requirements.

POINT I/O terminal bases include keying features that physically prevent a module from being inserted into the wrong base type. These keying provisions are set during initial installation and should be confirmed after any module replacement. When working with IO-Link modules such as the 1734-4IOL, the correct terminal base is specified in the 1734-4IOL Installation Guide and must be ordered explicitly — the IO-Link and digital I/O wiring configuration at the base level is different from a standard digital module base.

Accessories available within the POINT I/O system include end caps, shield clamps, power separator modules, and labeling accessories. Power separator modules are particularly important for large I/O strings where field power (24 VDC) must be segmented from the backplane power domain — these are not optional accessories in larger designs; they are part of the power distribution architecture.

Digital, Analog, and Specialty Modules: How to Match Modules to Signals

Module selection starts with a clean signal count. For each I/O drop, list every signal by type — digital input, digital output, analog input, analog output, or specialty — along with voltage level and, for analog signals, whether the signal is current or voltage. This list drives both the module selection and the terminal base selection that follows it.

Digital I/O modules cover discrete sensors and actuators. POINT I/O digital input and output modules are available in multiple channel counts, allowing engineers to match the number of channels to the actual signal density at each drop rather than over-buying to fill a fixed slot count. Voltage range and sourcing or sinking configuration must be confirmed for each module against the field devices it will serve.

Analog modules handle process signals such as 4–20 mA current loops and voltage signals from transmitters, pressure sensors, flow meters, and temperature elements. Analog modules require analog-rated terminal bases with the correct terminal assignments and shielding provisions — these are not interchangeable with digital terminal bases. Resolution, accuracy, and isolation specifications vary by specific analog module catalog number and must be confirmed in the module datasheet rather than assumed.

Specialty modules extend POINT I/O beyond standard signal types. The 1734-4IOL IO-Link Master is the most commonly specified specialty module for modern machine designs incorporating smart sensors. Counter modules, relay output modules, and other specialty types are also available within the 1734 family and address specific signal conditioning or output switching requirements that standard digital modules do not cover.

Requirement Recommended Component Type Key Notes
Distributed EtherNet/IP I/O 1734-AENT or 1734-AENTR adapter Choose dual-port for daisy-chain or ring topologies
Discrete sensors and actuators 1734 digital input and output modules Select voltage level and channel count based on field devices
Process signals (4–20 mA, voltage) 1734 analog input and output modules Requires analog-rated terminal bases; confirm resolution and isolation from datasheet
Smart sensors with IO-Link 1734-4IOL IO-Link Master module Four channels configurable as IO-Link masters or standard digital I/O
Relay switching outputs 1734 relay output modules Use where solid-state digital outputs are not suitable for the load type
High-speed counting or encoder 1734 counter or specialty modules Confirm compatibility with encoder type in module datasheet

The 1734-4IOL IO-Link Master module is documented as providing four channels, each configurable as an IO-Link master port or as a standard digital I/O point. This makes it one of the most versatile modules in the POINT I/O family for modern machine designs, where smart sensors increasingly replace conventional discrete devices. A single 1734-4IOL module can connect up to four IO-Link devices — such as smart position sensors, vision sensors, or IO-Link-enabled pressure transmitters — and expose their diagnostic data and parameterization access through the EtherNet/IP connection back to the controller.

Wiring the 1734-4IOL requires the terminal base specified in the 1734-4IOL Installation Guide. IO-Link device wiring follows the IO-Link and digital I/O wiring assignments defined in the installation guide — do not assume the wiring matches a standard digital input module base. Configuration of IO-Link devices connected to the 1734-4IOL is performed through Studio 5000 Logix Designer, where each IO-Link channel and connected device appears in the controller's I/O tree and can be parameterized or monitored through controller tags. Engineers planning IO-Link integration should review the 1734-4IOL Installation Guide for channel-level configuration details before commissioning.

Power, Capacity, and Expansion Limits: How Many Modules Per Adapter?

One of the most common system design errors with POINT I/O is adding modules to a string without first confirming the adapter's documented module-count limit and the backplane power budget. Both of these constraints are real and enforced — exceeding them produces unstable I/O behavior that is difficult to diagnose in the field.

The maximum number of POINT I/O modules per adapter is defined in the specific adapter user manual for the variant you are using. The 1734-AENT/B User Manual and the 1734-UM017 Dual Port EtherNet/IP Adapters User Manual are the authoritative references. This limit may also vary with firmware revision, so confirm against the current version of the relevant manual at the time of design. Plan your total module count per drop before finalizing the adapter selection, and include a margin for the modules you are likely to add during the operational life of the installation.

Backplane power is managed by the adapter and by power distribution modules placed within the string. Total module current draw on the backplane must not exceed the adapter's rated backplane power output. Field power (24 VDC for sensors and actuators) is separate from backplane power and is distributed through the terminal bases — in large strings, power separator modules segment the field power domain and prevent the total field current from exceeding safe limits. When designing a string with many output modules or high-current field devices, calculate the field power load explicitly rather than estimating.

When a design requires more modules than a single adapter supports, the correct approach is to add a second adapter and create a second I/O drop. This is a planned expansion strategy, not a workaround — POINT I/O is explicitly architected to support multiple distributed drops, each with its own adapter and its own address space in the controller's I/O tree.

Limit Type Typical Constraint Design Implication
Max modules per adapter Defined by specific adapter variant and firmware; confirm in current adapter user manual Plan module count per drop before ordering; add a second adapter when the limit is reached
Backplane power Limited by adapter power output and power distribution modules in the string Calculate total module backplane current draw; do not exceed adapter backplane rating
Field power (24 VDC) Managed through terminal bases and power separator modules Segment field power domains in large strings; calculate output current for high-load zones
Network bandwidth Depends on controller, bridge module, and adapter update rates For high module counts or fast scan requirements, verify bandwidth and RPI settings in controller configuration

Typical Applications and Deployment Scenarios for 1734 POINT I/O

POINT I/O's combination of compact footprint, module-level channel selection, and EtherNet/IP connectivity makes it a natural fit for a wide range of machine and process applications where distributed I/O is preferable to centralized wiring.

Discrete machine cells with conveyors, cylinders, proximity sensors, and solenoid valves benefit from a single 1734-AENT adapter with a mix of digital input and output modules — one per terminal base — mounted close to the machine frame. The modular footprint keeps the local enclosure compact and allows individual modules to be added or replaced without disturbing adjacent wiring.

Packaging line IO-Link networks use one or more 1734-AENTR adapters in a daisy-chain or ring topology, with multiple 1734-4IOL modules at each drop connecting smart sensors for position, presence, and label detection. IO-Link eliminates much of the point-to-point discrete wiring and allows sensor parameterization from the controller without physical access to the sensor.

Process skids for utilities such as compressed air, cooling water, or chemical dosing combine analog input modules for flow and pressure signals with digital output modules for valve and pump control, all under a single 1734-AENT adapter. Power separator modules segment field power for the analog and digital zones within the string.

Panel consolidation projects replace traditional terminal block marshalling with POINT I/O modules mounted on DIN rail in the main control panel. Field devices wire directly into the terminal bases, simplifying the panel layout and making I/O additions straightforward — add a terminal base and module rather than running new cables to a marshalling rack.

Large production lines with multiple zones use several 1734-AENTR adapters in a ring topology, each drop hosting the modules for its nearest zone. This eliminates home-run cabling for every field device and allows zone-level troubleshooting without affecting the rest of the line.

Application Typical Deployment
Discrete machine cell 1734-AENT adapter, mix of digital input and output modules, star topology back to managed switch
Packaging line with IO-Link sensors 1734-AENTR adapters in ring or daisy-chain, multiple 1734-4IOL modules per drop
Process utility skid 1734-AENT adapter, analog input modules for process variables, digital outputs for valves and pumps
Panel-based I/O consolidation POINT I/O modules on DIN rail in main panel, replacing marshalling terminal blocks
Multi-zone production line Multiple 1734-AENTR adapters in DLR ring, each drop serving its nearest equipment zone
OEM machine with modular I/O POINT I/O string sized per machine variant; adapter and module count matched to machine configuration

Rack-Optimized vs Direct Connections: The Configuration Decision That Trips Up Engineers

Within Studio 5000 Logix Designer, POINT I/O modules under a 1734 adapter can be configured as either rack-optimized connections or direct connections. This is a software configuration choice that affects how the controller communicates with each module, how addressing works in the controller tag database, and how the controller handles individual module faults. Getting this decision wrong is one of the most frequently reported POINT I/O configuration mistakes in the community, and it does not produce an obvious error at commissioning — the effects appear later as unexpected addressing behavior or fault handling issues.

In a rack-optimized connection, the adapter consolidates I/O data from all modules in the string into a single connection to the controller. This is efficient in terms of network connection count and is appropriate for most discrete I/O applications where individual module-level diagnostics through separate connections are not required. In a direct connection, each module has its own independent connection to the controller, which gives the controller direct visibility into that module's status and diagnostics but consumes more connection resources. Specialty modules — including the 1734-4IOL — typically require direct connections, and the controller and adapter manuals specify which modules require direct versus rack-optimized configuration. Follow the user manual examples for mixed configurations rather than assuming a uniform approach across the entire string.

Studio 5000 Configuration, Diagnostics, and Electronic Keying

Studio 5000 Logix Designer is the engineering tool used to configure 1734 POINT I/O modules, discover devices on the EtherNet/IP network, assign module profiles, and set electronic keying. The adapter appears as a device in the I/O configuration tree, and each module in the string is added under it with its catalog number and slot position. Module profiles define the tag structure the controller uses to access I/O data, and these profiles are part of the Studio 5000 installation for current Rockwell catalog numbers.

Electronic keying in Studio 5000 allows the controller to verify that the physical module installed in each slot matches the configured catalog number and revision. This is a production safety feature — if a technician installs the wrong module type, the controller detects the mismatch and faults the module rather than reading incorrect data silently. Engineers should confirm the keying mode selected for each module matches their maintenance and spare-parts strategy: exact match keying provides maximum protection but requires spare modules of the exact firmware revision; compatible keying allows revision flexibility.

Diagnostics for POINT I/O adapters and modules are available through LED status indicators on the hardware and through controller tags exposed in Studio 5000. The adapter provides network status and module status LEDs; individual modules provide their own status indication. Fault information reported through controller tags allows the SCADA or HMI to surface module-level faults to operators without requiring manual inspection of the I/O cabinet.

Expert Verdict: Who Should Specify POINT I/O and When to Choose Otherwise

The Allen-Bradley 1734 POINT I/O modular I/O system earns a strong position in Rockwell-based architectures because it solves a real engineering problem cleanly: how do you get flexible, expandable distributed I/O close to field devices without committing to a fixed chassis size or a proprietary block I/O form factor? POINT I/O answers that with a platform where every module is independent, every terminal base provides its own field wiring interface, and the adapter brings all of it onto EtherNet/IP in a single addressable node. For controls engineers specifying CompactLogix or ControlLogix systems with distributed drops on machine cells, skids, or production lines, POINT I/O is a proven, well-documented choice with broad module coverage across digital, analog, and IO-Link signal types. The 1734-4IOL IO-Link Master module's four configurable channels make it particularly well-suited to modern machine designs where smart sensors are replacing conventional discrete devices across the installed base.

Where POINT I/O is not the optimal choice is in applications requiring very large, centralized I/O racks where chassis-based I/O provides simpler slot management and higher channel density in a single enclosure. It is also worth verifying environmental ratings carefully for any 1734 module intended for installations subject to extreme temperatures, moisture, or contamination — specific module environmental ratings must be confirmed from module datasheets, and in some harsh-environment applications a different remote I/O platform may be more appropriate. For those cases, consult your controls engineer or distributor before committing to a bill of materials.

From a procurement standpoint, POINT I/O systems are purchased as individual catalog numbers — adapters, terminal bases, and modules are ordered separately. This means your bill of materials for even a modest I/O drop will include three or more catalog numbers per physical module position, and omitting terminal bases from the order is one of the most common purchasing mistakes. Lead times for adapter variants and specialty modules like the 1734-4IOL can differ from standard digital module lead times, so plan your order with enough lead time to receive all components before your panel build date. For current pricing, availability, and support in confirming your parts list before committing to an order, check the product page at LeadTime.ca — we ship worldwide and can help identify long-lead items before they affect your schedule.

For volume pricing or to confirm lead times across a full POINT I/O bill of materials, contact the LeadTime.ca team directly — we ship worldwide and work with engineers at every stage from initial specification to procurement.

Contact LeadTime.ca to confirm availability and pricing for your POINT I/O system build.

What Engineers Are Asking About 1734 POINT I/O

Across controls engineering communities — including r/PLC, r/automation, PLCTalk, and Rockwell Automation user forums — the Allen-Bradley 1734 POINT I/O platform consistently draws positive overall sentiment. Engineers describe it as a standard distributed I/O solution for Rockwell-based systems and appreciate its compact footprint, flexibility, and straightforward expansion path on EtherNet/IP. It is regularly described as a natural fit for modular machine design and small distributed panels where a chassis-based solution would be oversized and inflexible.

The recurring friction points are almost entirely in the configuration and wiring domain rather than in the hardware itself. Confusion around rack-optimized versus direct connections in Studio 5000 is the most frequently reported issue — engineers who configure all modules as rack-optimized without understanding which specialty modules require direct connections discover the problem during commissioning rather than during design. Noise-induced signal issues caused by running I/O wiring near high-noise power cables or using inadequate grounding practices appear regularly as intermittent fault complaints that are difficult to diagnose without reviewing the installation against the manufacturer's cable separation and shielding recommendations. Engineers also report complexity when building long strings with many mixed module types without a structured power distribution plan — the result is unexpected behavior when the backplane or field power budget is exceeded.

Selection confusion is common for engineers new to the platform. The choice between different digital and analog modules with similar signal ranges, the selection of the correct adapter variant for a given network topology, and the determination of how many modules a single adapter can support before another adapter is needed are the three questions that generate the most community discussion. These are answerable questions with specific answers in the Rockwell documentation — but they require reading the correct manual for the specific adapter variant, not assuming answers apply across the entire POINT I/O family. When community feedback is sparse on a specific catalog number or module variant, speaking directly with a specialist distributor who works with POINT I/O configurations daily is faster and more reliable than searching forum archives.

Wiring and Installation Overview for 1734 POINT I/O

This section provides an overview of key wiring and installation considerations for POINT I/O. For complete wiring diagrams and step-by-step procedures, refer to the relevant Rockwell Automation user manuals and installation guides for each specific module and adapter catalog number.

  • DIN-rail mounting and mechanical check: Mount the adapter first on the DIN rail, followed by terminal bases left to right in the order that matches your Studio 5000 slot configuration; verify each base is fully seated and locked before inserting modules
  • Field wiring at the terminal base: Field device wiring terminates at the terminal base — not at the module itself — so field wiring can be completed and verified before modules are inserted; confirm wiring against the terminal assignment diagram in the terminal base datasheet for each base type (for example 1734-TOP or analog-rated bases)
  • Power distribution and segmentation: Connect 24 VDC field power at the adapter and at each power separator module in the string; keep field power wiring and backplane power domains separate; calculate total field output current for zones with many output modules
  • Grounding and cable routing: Use the adapter's ground lug as specified in the adapter installation guide; route I/O signal cables separately from power cables following manufacturer cable separation recommendations; use shielded cable for analog signals and terminate shields at one end
  • Commissioning check after power-up: Verify adapter network LED confirms EtherNet/IP connection; confirm module status LEDs show healthy state for each inserted module; verify electronic keying matches in Studio 5000 before going online with the controller

Common POINT I/O Design and Installation Mistakes to Avoid

These are the most frequently documented mistakes in POINT I/O system design and installation. Review each one against your current design before finalizing your bill of materials or beginning panel wiring.

Ignoring adapter module-count and power limits. Adding modules to a POINT I/O string without checking the adapter's documented module-count limit and the backplane power budget produces unstable I/O behavior. Review the adapter user manual for the specific variant you are using and calculate total module count and backplane current before finalizing the design.

Mixing incompatible terminal bases and modules. Selecting terminal bases by visual appearance rather than confirmed catalog-based compatibility leads to wiring mismatches at commissioning. Use the compatibility tables in Rockwell documentation and verify keying and mechanical features before installation begins.

Poor cable routing and grounding. Running I/O wiring near high-noise power cables or omitting proper grounding connections is a primary cause of intermittent signal faults. Follow manufacturer recommendations on cable separation and shielding, and use the adapter's ground lug as specified in the installation guide.

Misconfigured rack-optimized versus direct connections. Incorrectly configuring POINT I/O connections in Studio 5000 leads to unexpected addressing or fault-handling behavior. Understand when each connection type is appropriate, and follow controller and adapter user manual examples for mixed-connection configurations — especially for specialty modules like the 1734-4IOL that require direct connections.

Insufficient environmental consideration. Installing POINT I/O modules in environments that exceed their rated temperature or contamination limits causes premature failures. Confirm the environmental ratings for each specific 1734 module from its datasheet, and use appropriate enclosures and module spacing where ambient conditions require it.

System Design Checklist Before You Order

Before issuing an RFQ or placing an order for a POINT I/O system, work through this checklist to confirm your bill of materials is complete and your design will function as intended:

  1. Confirm your controller family (CompactLogix or ControlLogix) and verify EtherNet/IP network connectivity path to each planned POINT I/O adapter
  2. Select the adapter variant (1734-AENT for star topology, 1734-AENTR for ring or daisy-chain) based on your network topology and resilience requirements — do not default to single-port if your layout needs ring topology
  3. Count all signal types per I/O drop: digital inputs, digital outputs, analog inputs, analog outputs, IO-Link channels, and specialty signals — this drives module selection, not the other way around
  4. Verify the total module count per adapter against the module-count limit documented in the current adapter user manual for your specific adapter variant and firmware revision
  5. Calculate backplane power consumption for all modules in each string and confirm it does not exceed the adapter's backplane power rating
  6. Calculate field power (24 VDC) load for output modules and field devices in each string; add power separator modules where field power segmentation is required
  7. Select terminal bases by confirmed catalog compatibility with each module — use Rockwell documentation compatibility tables, not visual matching; include one terminal base per module in your BOM
  8. Confirm the correct terminal base for the 1734-4IOL IO-Link Master module from the 1734-4IOL Installation Guide before ordering
  9. Determine the connection type (rack-optimized or direct) for each module type in Studio 5000 before programming, particularly for specialty modules that require direct connections
  10. Verify the environmental rating of each specific 1734 module against the installation environment; confirm enclosure type and spacing are adequate for the ambient temperature range
  11. Include end caps, power separator modules, shield clamps, and any required labeling accessories in your BOM — these are not optional for a complete installation
  12. Confirm lead times for adapter variants, specialty modules (especially 1734-4IOL), and terminal bases separately — lead times differ across catalog numbers and specialty items often have longer lead times than standard digital modules

If any item on this checklist raises a question you cannot resolve from the available documentation, contact LeadTime.ca before ordering — our team works with POINT I/O system specifications regularly and can help you confirm catalog numbers, flag incompatibilities, and identify long-lead items before they affect your build schedule.

Frequently Asked Questions

How many POINT I/O modules can I connect to a single 1734 adapter?

The maximum number of POINT I/O modules per adapter is defined by the specific adapter variant and its firmware revision. The 1734-AENT/B User Manual and the 1734-UM017 Dual Port EtherNet/IP Adapters User Manual are the authoritative sources for these limits. Do not assume the limit is the same across different adapter variants — confirm the module-count limit for your specific adapter from the current version of the relevant manual before finalizing your design.

Do I need different terminal bases for analog modules versus digital modules?

Yes. Analog POINT I/O modules require analog-rated terminal bases with the correct terminal assignments and shielding provisions — these are not interchangeable with digital module terminal bases. Using a digital terminal base under an analog module will produce a terminal assignment mismatch. Always select terminal bases using the catalog-based compatibility tables in Rockwell documentation, and verify the correct base for each module type before ordering.

What is the difference between rack-optimized and direct connections for POINT I/O in Studio 5000?

Rack-optimized connections consolidate I/O data from multiple modules into a single controller connection through the adapter, which is efficient for discrete I/O applications. Direct connections give each module an independent connection to the controller, providing individual module-level diagnostics but consuming more connection resources. Specialty modules including the 1734-4IOL IO-Link Master typically require direct connections — the adapter and controller user manuals specify which modules require direct versus rack-optimized configuration. Incorrect configuration in this area leads to addressing and fault-handling issues that are difficult to diagnose in the field.

How do I configure and wire IO-Link devices connected to a 1734-4IOL module?

The 1734-4IOL IO-Link Master module provides four channels, each configurable as an IO-Link master port or as a standard digital I/O point, as documented in the 1734-4IOL Installation Guide. IO-Link and digital I/O wiring assignments at the terminal base are defined in the installation guide — confirm the correct terminal base catalog number from that guide before ordering. Configuration of connected IO-Link devices is performed in Studio 5000 Logix Designer, where each channel and device appears in the controller I/O tree and can be parameterized through controller tags.

Can I use 1734-AENT and 1734-AENTR adapters on the same EtherNet/IP network?

The two adapter types connect to the same EtherNet/IP network and appear to the controller as individual adapter nodes — the controller does not require all adapters to be the same variant. However, network topology planning must account for each adapter's port count: the 1734-AENT (single-port) suits star topology drops, while the 1734-AENTR (dual-port) participates in linear daisy-chain or Device Level Ring topologies. Mix adapter types based on what each drop's position in the network topology requires, not based on uniform standardization alone.

How do I diagnose a POINT I/O module fault without being in front of the panel?

POINT I/O module faults are reported to the controller through EtherNet/IP and appear as controller tag data accessible in Studio 5000 Logix Designer and through any connected SCADA or HMI. The adapter and individual modules also have LED status indicators for power, network status, and module status that provide on-site diagnostic information. For remote diagnostics, module fault information in controller tags allows the HMI to surface specific module or channel faults to operators — this requires that the I/O configuration and tag mapping were set up correctly during commissioning.

What is the correct process for replacing a single POINT I/O module without disrupting adjacent modules?

Because each module occupies its own terminal base and the field wiring terminates at the base rather than the module, the module can be removed and replaced without disturbing the field wiring or the adjacent modules in the string. After replacement, electronic keying in Studio 5000 will verify that the replacement module matches the configured catalog number and revision. Confirm the replacement module's keying compatibility with the configured keying mode before installing to avoid a keying fault that takes the entire adapter offline.

When should I add a second POINT I/O adapter instead of adding more modules to an existing string?

Add a second adapter and create a new I/O drop when you reach the adapter's documented module-count limit, when the total backplane power consumption of the modules in the string exceeds the adapter's backplane power rating, or when the physical location of additional field devices makes it more practical to place a new drop nearby rather than extending the existing string. Multiple POINT I/O drops are a normal and expected architecture — the system is designed for distributed deployment with one adapter per drop.

Why Order Through LeadTime.ca

  • LeadTime.ca ships POINT I/O adapters, terminal bases, and modules worldwide — not limited to any single region
  • Specialist support for multi-catalog POINT I/O orders where adapter, terminal base, and module catalog numbers all need to be confirmed together before purchasing
  • Sourcing support for specialty and longer-lead catalog numbers such as the 1734-4IOL and 1734-AENTR that may have different availability than standard digital modules
  • Volume pricing available — contact the team directly for orders covering a full system BOM
  • Current pricing and availability visible on the product page; contact the team to confirm lead times before committing to a panel build schedule

At-a-Glance Summary

  • Allen-Bradley 1734 POINT I/O is a modular DIN-rail-based distributed I/O system using terminal bases to provide mechanical mounting and field wiring interfaces for 1734 modules
  • Primary network adapters are the 1734-AENT (single-port, star topology) and 1734-AENTR (dual-port, daisy-chain and Device Level Ring topology)
  • Modules cover digital inputs and outputs, analog inputs and outputs, and specialty types including the 1734-4IOL IO-Link Master with four channels configurable as IO-Link masters or standard digital I/O
  • Terminal bases such as the 1734-TOP are ordered separately from modules; one terminal base is required per module; analog modules require analog-rated bases — not digital bases
  • Maximum module count per adapter and backplane power limits are defined per adapter variant in the relevant user manual — confirm from the current manual before finalizing design
  • Rack-optimized versus direct connections must be configured correctly in Studio 5000; specialty modules including 1734-4IOL typically require direct connections
  • Compatible controllers include CompactLogix (for example 1769-L3x) and ControlLogix (for example 1756-L7x) via EtherNet/IP
  • Studio 5000 Logix Designer is used for device configuration, module profiling, electronic keying, and diagnostic tag access
  • POINT I/O is best suited for distributed drops on machine cells, skids, and production lines; chassis-based I/O may be simpler for very large centralized I/O racks
  • Orders must include adapter, terminal base, and module catalog numbers separately — omitting terminal bases from the BOM is the most common procurement mistake
